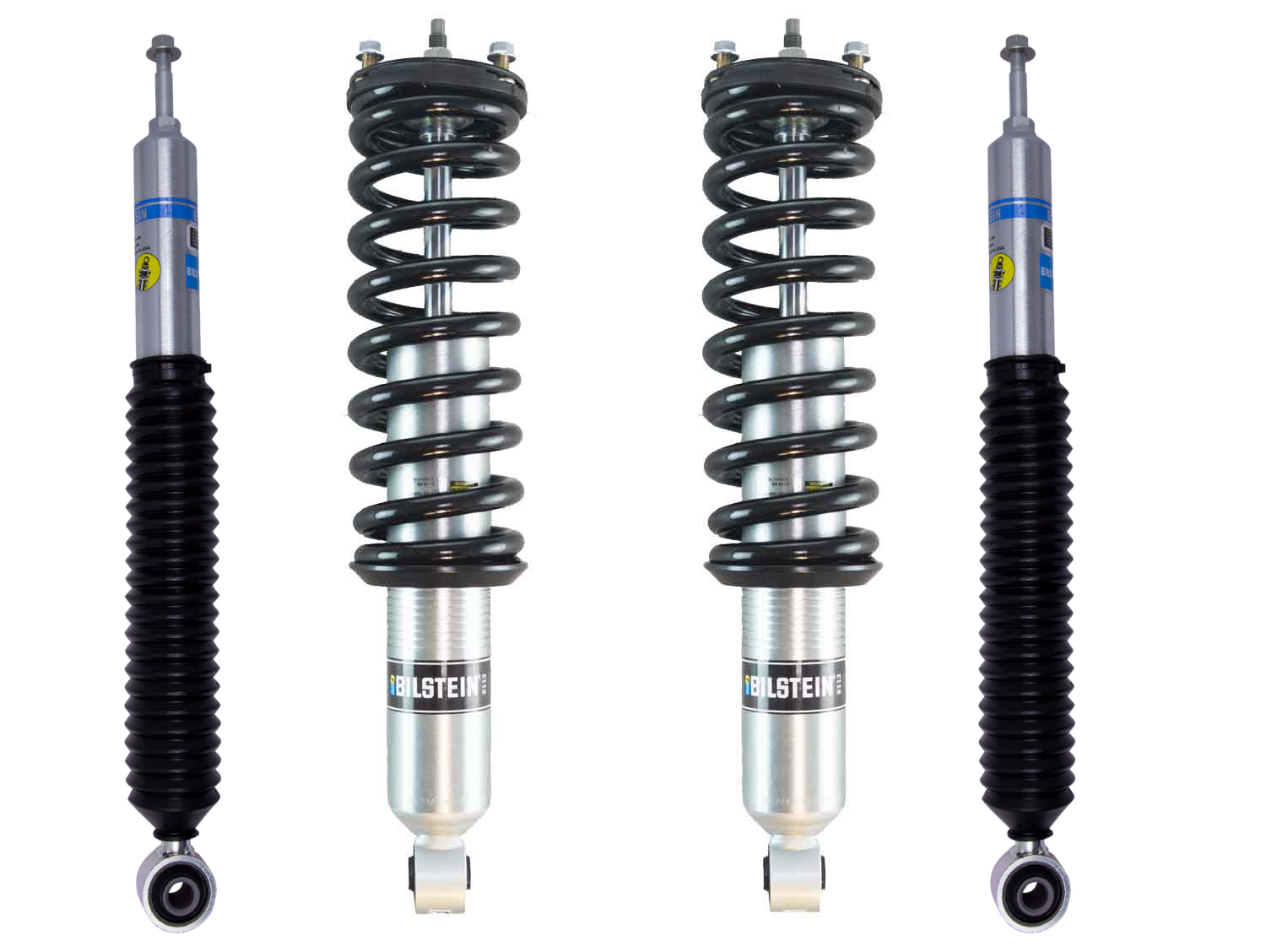

Bilstein 6112 0.6-3.2″ Assembled Front Lift Coilovers with 5100 0-2″ Rear Lift Shocks for 2003-2009 Lexus GX470

Description

Bilstein 6112 0.6-3.2″ Front Series Coilovers (Assembled) Kit with 5100 0-2″ Rear Lift Shocks for 2003, 2004, 2005, 2006, 2007, 2008, 2009 Lexus GX470

Part Number: 47-309975-ASB-5 – ASSEMBLED with KYB top mounts, bushings, hardware

Need only Coilovers kit?

Designed for the serious off-road adventure seeker, the all new BILSTEIN 6112 Series Kit is the ultimate suspension solution. The 6112 Series optimizes off-road and on-road capabilities with a 60mm digressive piston for increased damping control. This kit features specially designed cold wound springs and an adjustable spring seat which allows for vehicle leveling, larger tires, and increased ground clearance. The kit comes with (2) 60mm shocks (2) springs and (2) billet spring seats. The 6112 is a direct bolt on application for late model half-ton trucks and SUVs which utilize a factory coilover suspension. The 6112 kit is for front applications and reuses the OEM top mount and spring isolators. To maximize performance, Bilstein recommends a 5160 Series remote reservoir shock for the rear

Rear Shocks:

part number: 33-187174

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Collapsed Length (IN): 14.91
Extended Length (IN): 23.5
Collapsed Length (MM): 378.8
Extended Length (MM): 597.0
Finish: Zinc Plated
Reservoir: No
Body Design: Smooth Body (Non-Coilover)
Body Diameter: 46mm
Replacement Mounting Kit: B4-KT1-Z103A00

Notes:

• Requires Rear Coil Spring Conversion
