Bilstein 4600 Assembled Front Coilovers and Rear Shocks for 2016-2024 Nissan Titan XD 5.0L

Description
Bilstein 4600 Assembled Front Coilovers and Rear Shocks for 2016-2024 Nissan Titan XD 5.0L

Bilstein 4600 Front Assembled Coilovers + Rear 4600 Shocks – 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 Nissan Titan XD 5.0L

Part #: 4600BILXD16

What is included

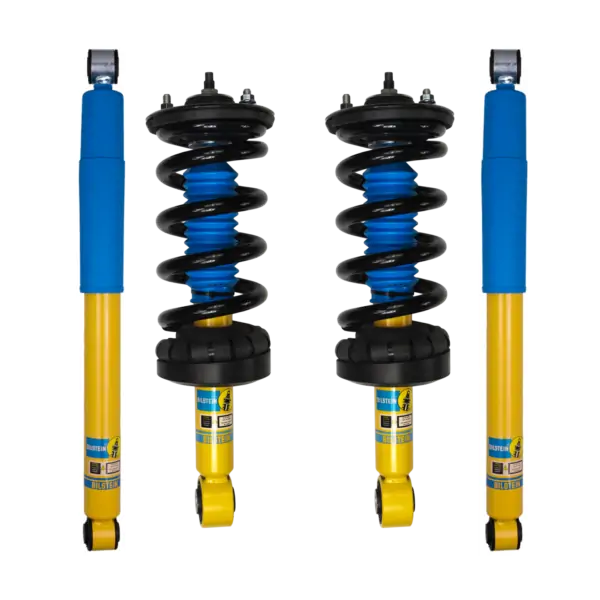

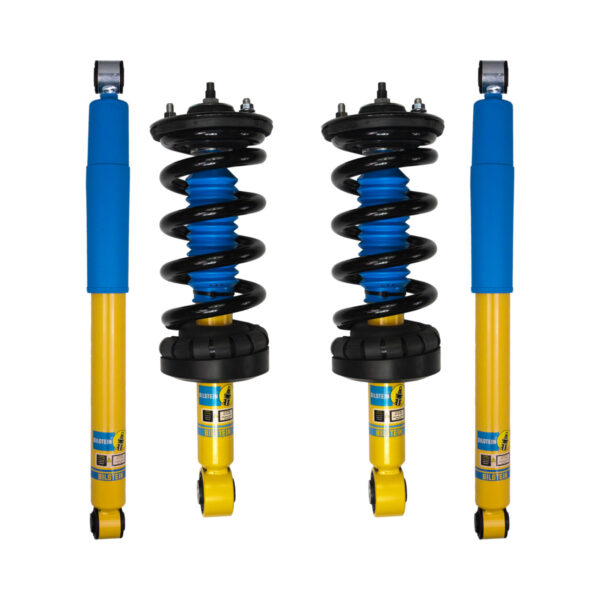

• Front (pre-assembled coilovers):
  • 2 x Bilstein B6 4600 front struts 24-268110
  • OE replacement front coil springs installed
  • New top mounts, bushings, isolators, and hardware
  • Ships assembled – no spring compressor needed
• Rear:
  • 2 x Bilstein B6 4600 rear shocks 24-268127

Why upgrade

• Monotube control – 46 mm digressive piston delivers consistent, fade-free damping
• Vehicle-specific tuning – improves stability, steering response, and comfort at stock height
• Direct fit – bolt-on replacement front and rear for Titan XD 5.0L
• Pre-assembled fronts – quicker, safer install with new mounts and hardware

Front shock details – 24-268110

• Finish: yellow paint
• Reservoir: no
• Body design: snap ring grooved body (coilover)
• Body diameter: 46 mm
• Damping: non-adjustable
• Ride height: stock height replacement

Rear shock specifications – 24-268127

• Finish: yellow paint
• Reservoir: no
• Body design: smooth body (non-coilover)
• Body diameter: 46 mm
• Spring seat included: no
• Adjustable damping: non-adjustable

Fitment

• Nissan Titan XD 5.0L: 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024
• 2WD and 4WD
• Ride height: stock height front and rear

Install notes

• Typical coilover assembly lead time: 3-7 business days
• Alignment required after installation
• Torque fasteners at ride height after initial road test

Bilstein B6 4600 shocks react quickly to changing road conditions, enhancing ride quality, handling, and comfort for daily driving and towing duties. This assembled package restores control and confidence with straightforward bolt-on installation.
