Bilstein 5100 0-2″ Front Lift Assembled Coilovers for 2004-2015 Nissan Titan 4WD
Sale!
Description

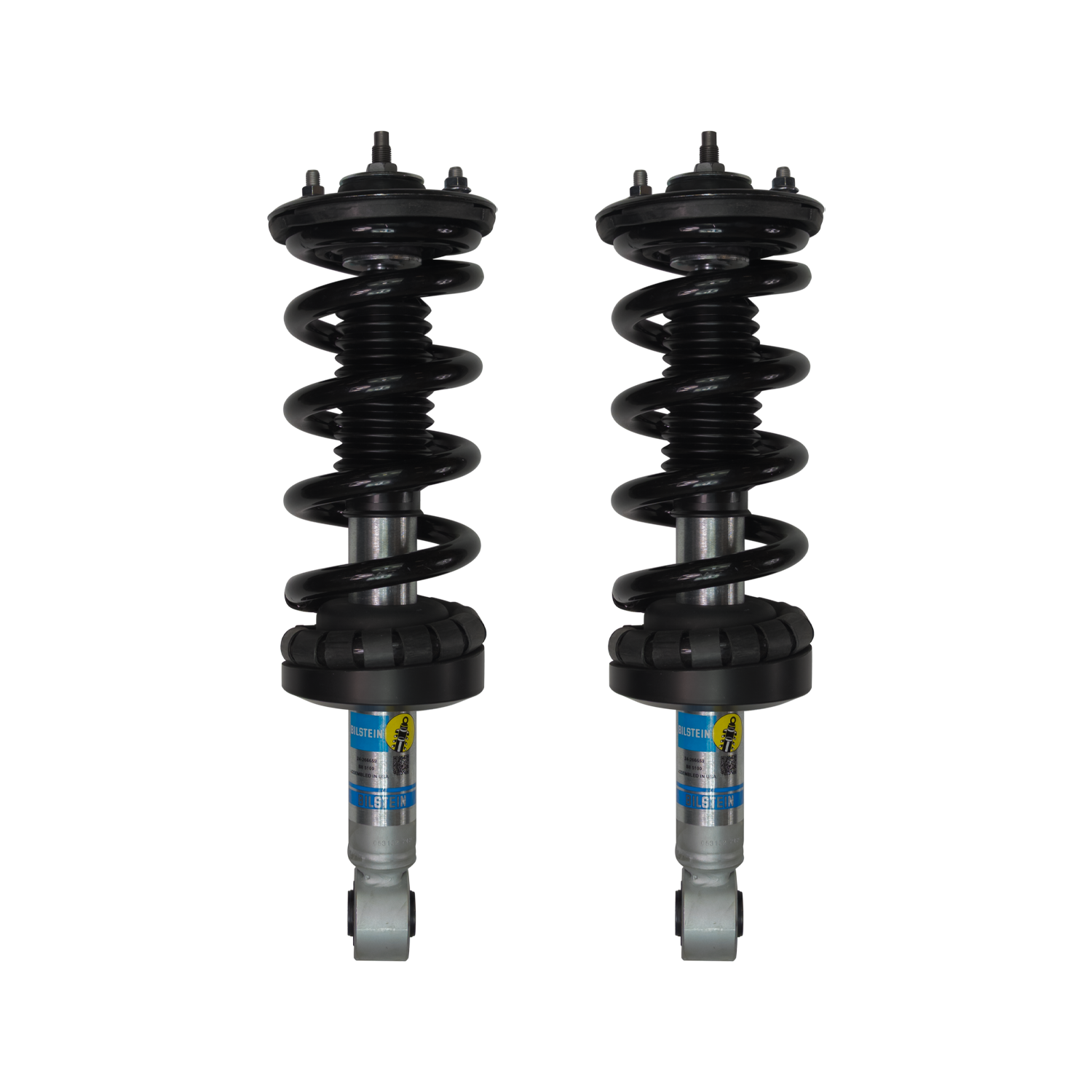

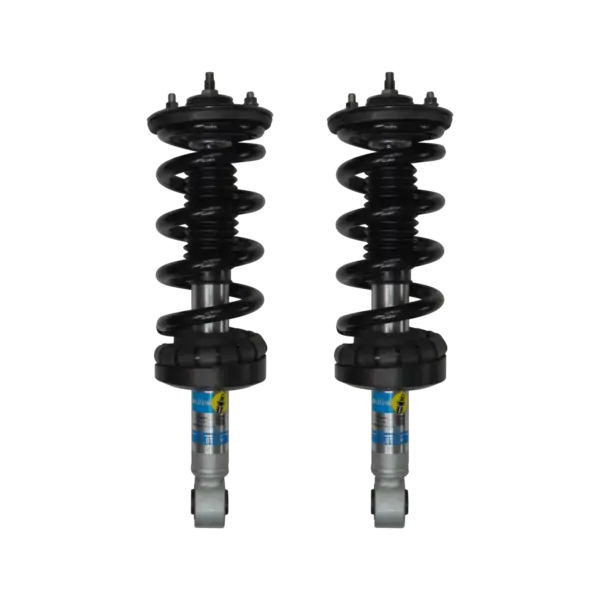

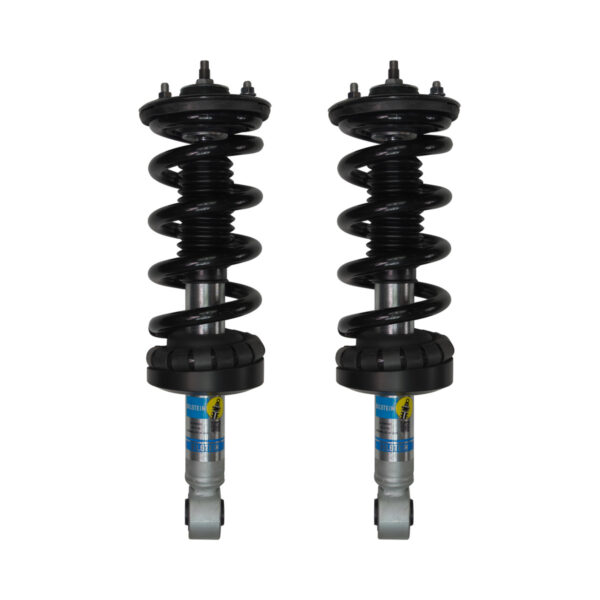

Bilstein 5100 0-2″ Front Lift Assembled Coilovers for 2004-2015 Nissan Titan 4WD
Bilstein 5100 0-2″ Front Lift Assembled Coilovers – 2004-2015 Nissan Titan 4WD
Part #: 5100BILNT04C
Wake up your Titan’s front end with pre-assembled Bilstein B8 5100 coilovers designed for confident control on-road and composed performance off-road. Multiple snap-ring grooves let you set 0-2″ of front lift for a level stance and added tyre clearance, while Bilstein’s 46 mm monotube architecture keeps damping consistent over washboards, potholes, and mountain passes.
- Ride-height tuning: Snap-ring adjustable spring perch for precise 0-2″ front lift on 4WD Titans.
- Monotube control: 46 mm digressive piston with self-adjusting deflective discs = crisp turn-in and stable braking without harshness.
- Fade-resistant: High-pressure nitrogen and large oil volume resist heat build-up on long, rough stretches.
- Ready to bolt on: Ships pre-assembled with new top mounts, bushings, and hardware-no spring compressor needed.
- Durable finish: Zinc-plated bodies for corrosion resistance in real-world weather.

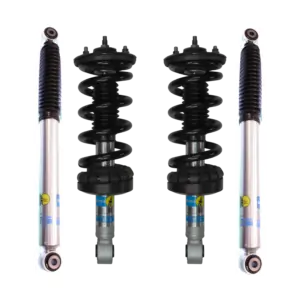

Need matching rears? Add the paired rear shocks here: Bilstein 5100 0-2″ Front Lift Assembled Coilovers and 0-1″ Rear Lift Shocks for 2004-2015 Nissan Titan
What’s Included
- (2) Bilstein B8 5100 front height-adjustable shocks – 24-197649
- (2) Coil springs (assembled on shocks)
- (2) New top mounts (OEM quality or better) plus all required bushings and hardware
Assembly lead time: Coilover assembly typically ships in 3-7 business days.
Fitment
- Vehicle: Nissan Titan 4WD – 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
- Front lift range: ~0-2″ (configuration-dependent)
- Notes: Designed for OE front coilover-style suspension
Key Specs (24-197649)
- Extended length: 15.61″ (396.5 mm)
- Collapsed length: 11.37″ (288.7 mm)
- Body diameter: 46 mm
- Body design: Snap-ring grooved body (coilover)
- Finish: Zinc plated
- Reservoir: No
- Damping: Non-adjustable (digressive valving)
- Spring seat included: Yes
- Replacement mounting kit: B4-KT1-Z361A00
Ride, Handling & Tyre Notes
Expect a firmer, more controlled feel than stock with reduced nose-dive and body roll. With ~1-2″ front lift, many Titans fit larger all-terrains on factory wheels; exact tyre clearance depends on tyre model and wheel offset.
Installation Notes
- No spring compressor required-units arrive pre-assembled.
- Alignment required after changing ride height.
- Tighten control-arm and link bushings at ride height to avoid preload and squeaks.
FAQs
How much front lift can I set?
These 5100s provide approximately 0-2″ of front lift on 4WD Titans (exact height depends on perch setting and vehicle weight).
Do I need a spring compressor?
No. The coilovers ship pre-assembled with new top mounts and hardware.
Will this kit level my truck?
Yes-set the snap-ring to achieve the nose-up height you prefer. Most owners use ~1.5-2″ to reduce factory rake.
Are the shocks rebuildable or revalvable?
Bilstein 5100s are designed for long service life without routine rebuilds. If you need different damping or service after high mileage, contact us for options.
Questions and answers of the customers
-
I currently have 2018 Nissan Titan SV 2W with a 2.5 inch spacer, but want to put a little more lift in the front. So what I want to know, do I leave the spacer in or will the struts lift my front over 3 inches.
-
0 votesQ I currently have 2018 Nissan Titan SV 2W with a 2.5 inch spacer, but want to put a little more li...... Read moreA it is not recommended to go higher, but it's up to you - you are able to set coilovers on 2'' height and add 1'' spacer (will make the ride more rough and put extra strain on suspension)
Will this fit my 2014 Nissan titan pro-4x?
-
0 votesQ Will this fit my 2014 Nissan titan pro-4x?A yes sure will fit PRO-4X
Are these the same part numbers for a 4wd 2007 Armada? Thanks.
-
0 votesQ Are these the same part numbers for a 4wd 2007 Armada? Thanks.A Yes Will fit for 2007 Nissan Armada
Do theses struts require a different upper control arm I know certain brands require a a control arm upgrade for clearance issues
-
0 votesQ Do theses struts require a different upper control arm I know certain brands require a a control ...... Read moreA UCA's are recommended but not required, the benefit of the UCA's is to fix the caster when the vehicle is getting aligned and also helps you a lot with articulation on the front end.
Would this work on a 2009 armada 4x4
-
0 votesQ Would this work on a 2009 armada 4x4A Yes Will fit for 2009 Nissan Armada
ATTENTION STATE OF CALIFORNIA CONSUMERS. WARNING: Cancer and reproductive harm – www.p65warnings.ca.gov

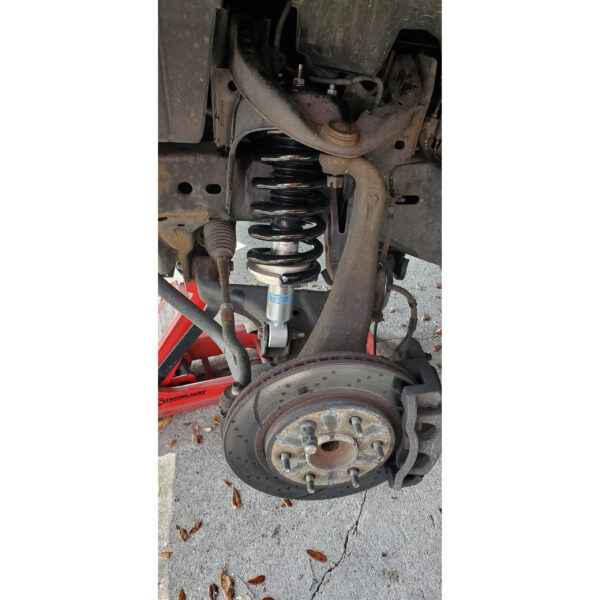

2 reviews for Bilstein 5100 0-2″ Front Lift Assembled Coilovers for 2004-2015 Nissan Titan 4WD
