Bilstein/OME 1.5-2″ Front Lift Assembled Coilovers for 2005-2015 Nissan Xterra

Bilstein/ARB 1.5-2″ Front Lift Pre-Assembled Coilovers – 2005-2015 Nissan Xterra

Part: BCOXR05

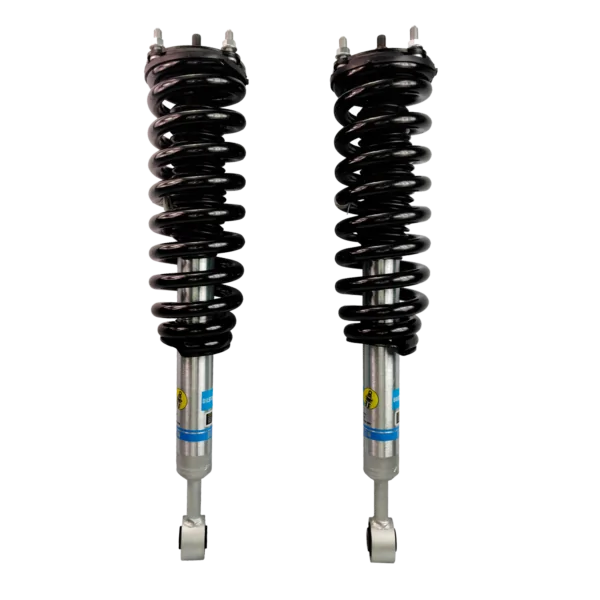

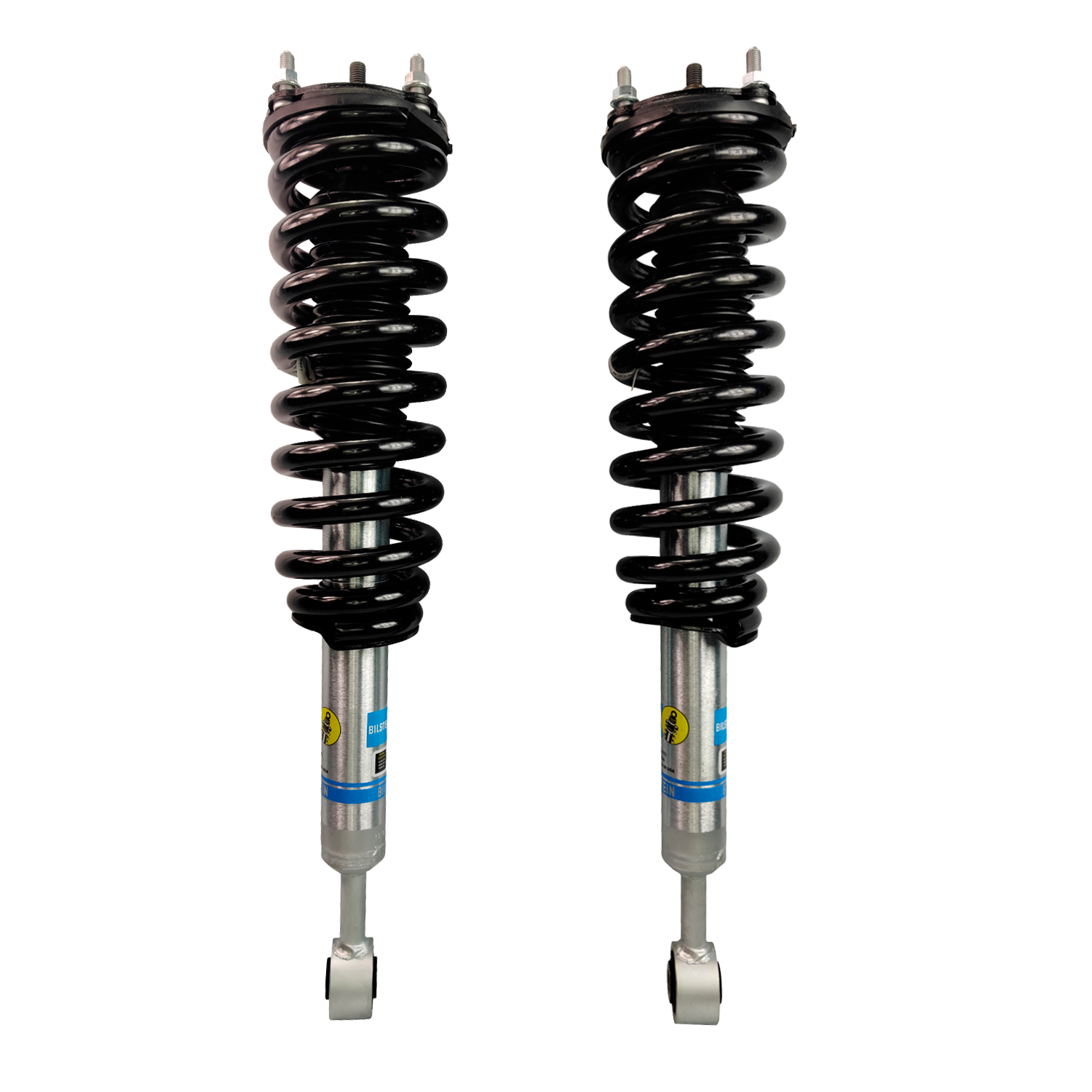

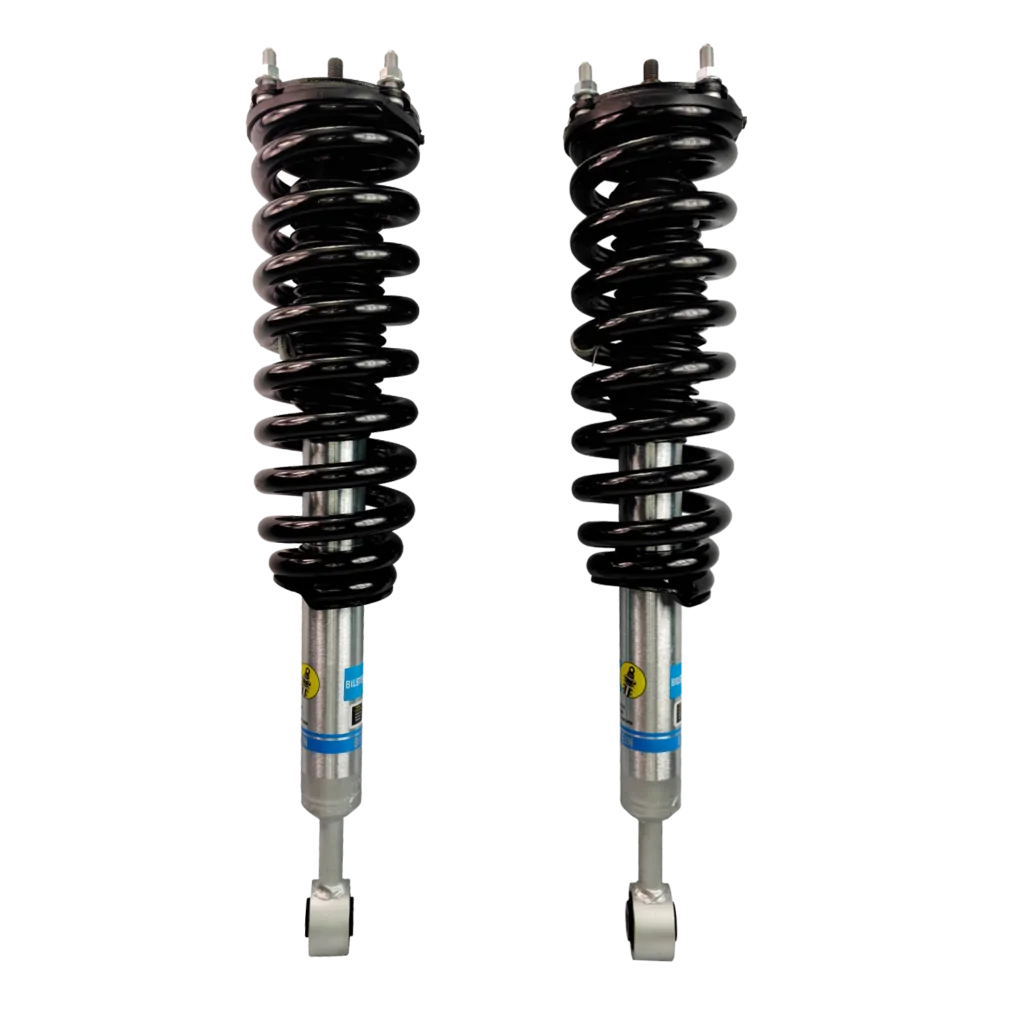

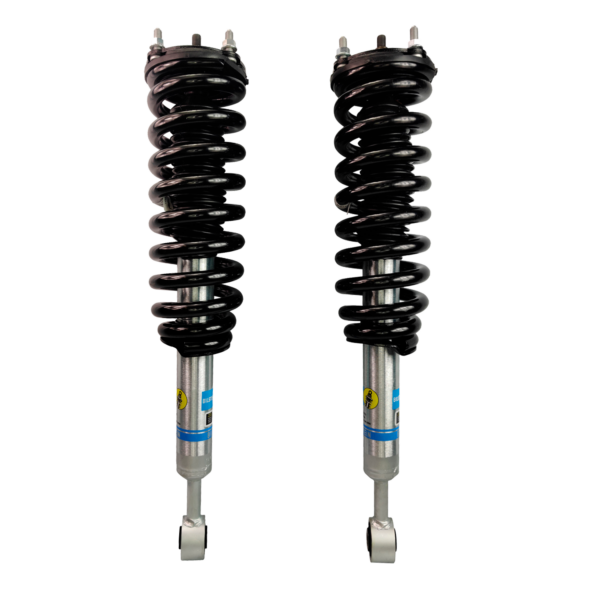

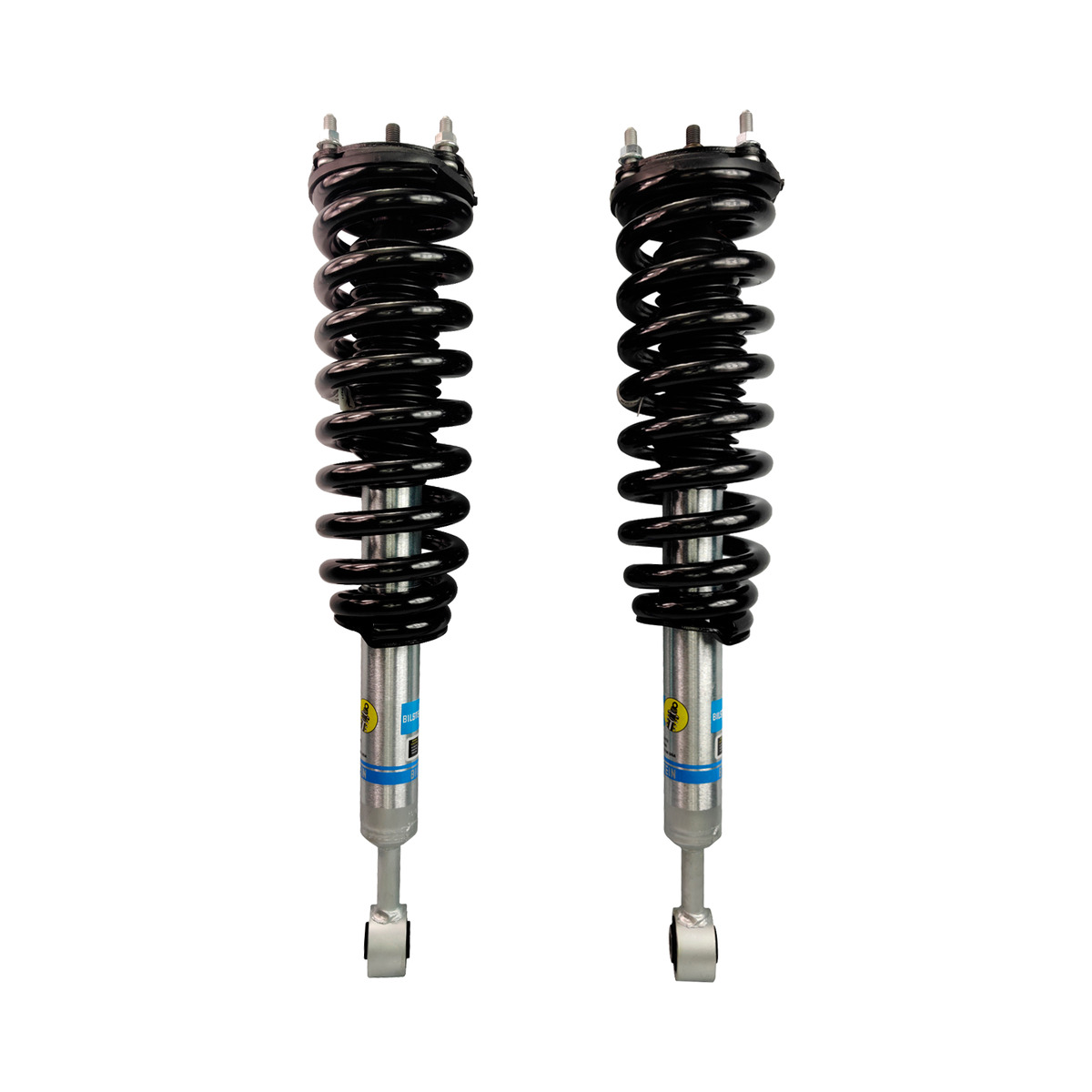

Front ride-height-adjustable Bilstein 5100 struts are assembled with ARB/OME coil springs for a clean 1.5-2″ front lift on your Xterra. Units arrive fully built with new top mounts and hardware, so you skip the spring compressor and bolt them in.

Need a full front/rear kit?

What’s Included

• 2 x Bilstein 5100 front ride-height-adjustable struts 24-187053
• 2 x ARB/OME front coil springs (choose rate below)
• New top mounts, isolators, dust boots, and assembly hardware
• Professionally pre-assembled coilover units

Coil Options

• OME 2607 – approx. 1.5-2″ front lift for stock bumper and no extra weight
• OME 2608 – approx. 1.5″ front lift for +110 lb constant front weight (ideal for steel bumper + winch)

Important Setup Note

Coilovers are assembled on the 1st clip. Raising the snap-ring perch above the 1st clip is not recommended as it can over-lift the front and risk CV, ball joint, and suspension damage.

Why You’ll Like It

• No spring compressor needed – arrives pre-assembled for a faster, safer install
• Matched components – Bilstein 5100 damping paired with OME coils for controlled ride and stance
• Real-world tuning – choose the correct coil for your accessory weight

Fitment

• Vehicle – Nissan Xterra 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
• Lift range – ~1.5-2″ front depending on coil choice and vehicle weight
• Drivetrain – 2WD or 4WD

Technical Notes

• Bilstein 5100 monotube design – 46 mm digressive piston – nitrogen gas-charged
• Snap-ring grooved body allows perch changes, but this kit is set to the 1st clip only
• Alignment is required after installation
• Expect minor settling after initial miles

FAQ

Can I move the clip higher for more lift? No. These ship on the 1st clip by design. Setting higher will over-lift and can damage front-end components.

Which coil should I choose? Use 2607 for stock-weight trucks. Choose 2608 if you run a steel bumper and winch (~+110 lb constant weight).

Do these come assembled? Yes. New top mounts, coils, and hardware are installed.
