Fleece 6.7 L Freedom-Series Cummins Cylinder Head (STREET) | 2007.5-2018 Ram 2500/3500

Fleece 6.7 L Freedom‑Series Cummins Cylinder Head (STREET) | 2007.5-2018 Ram 2500/3500

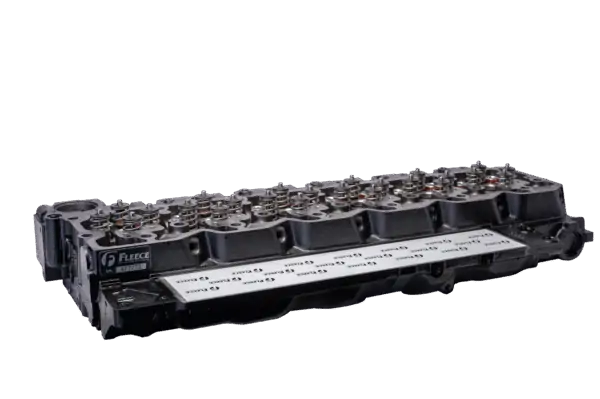

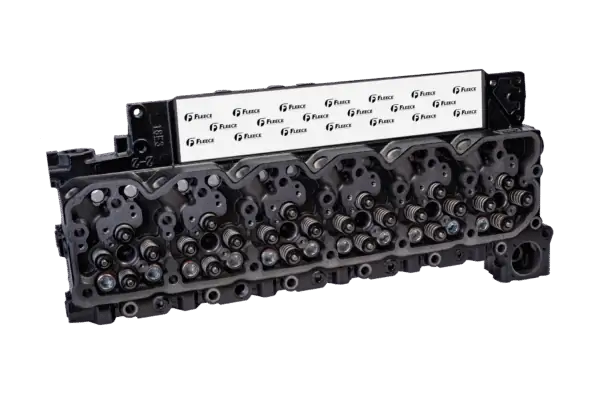

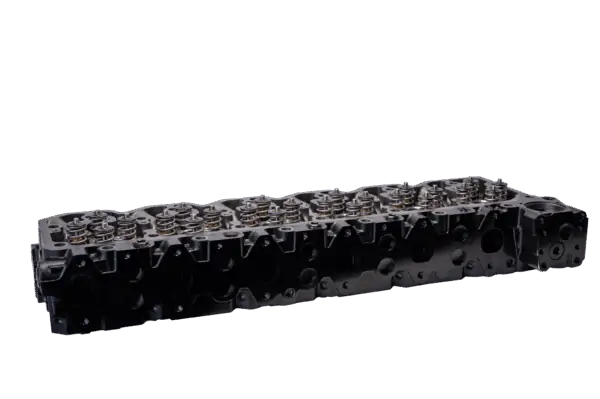

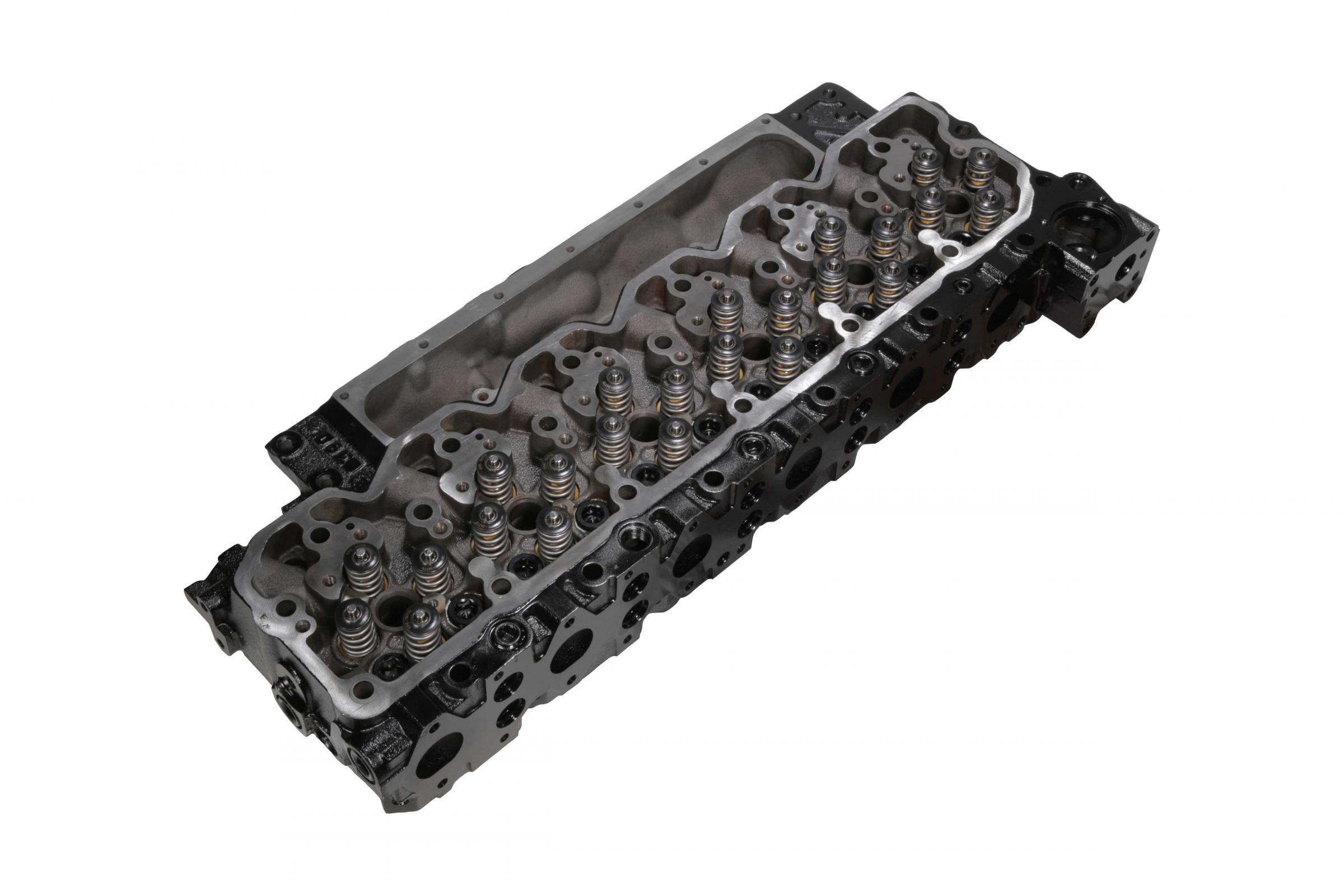

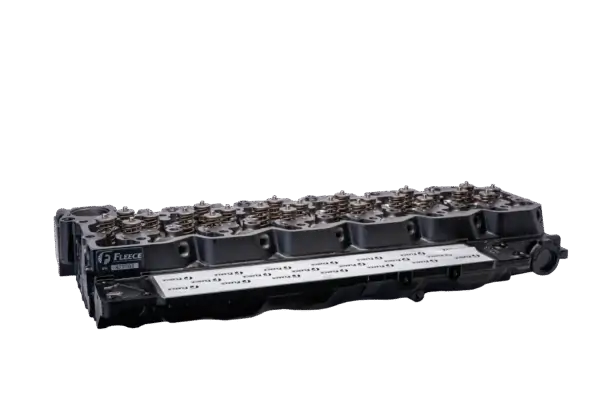

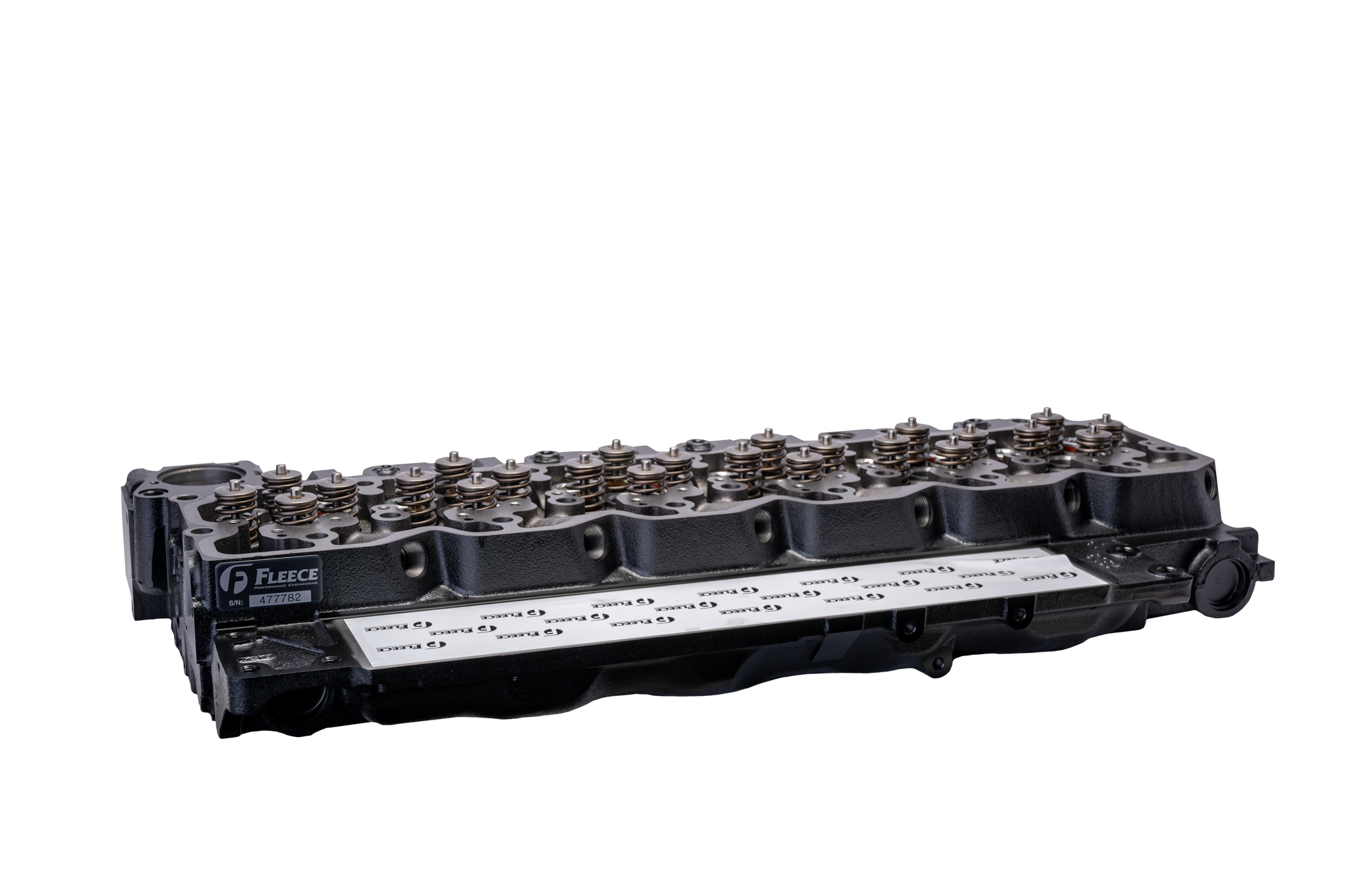

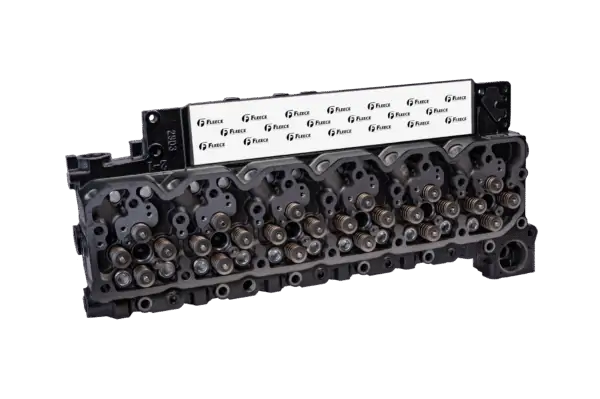

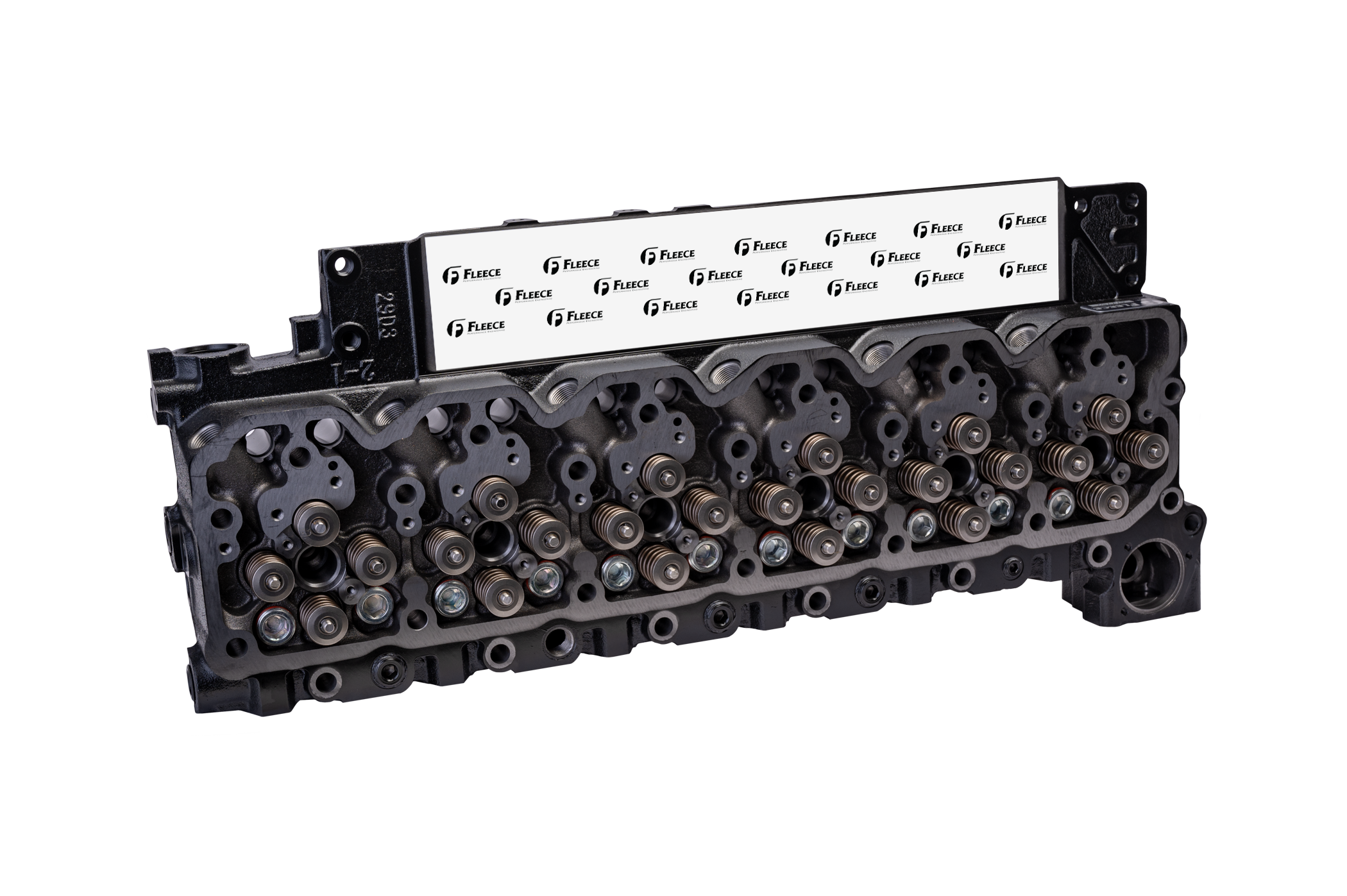

Refresh your 6.7 L Cummins with a fully remanufactured Freedom‑Series STREET cylinder head. Machined and assembled in Fleece’s state‑of‑the‑art facility, each head is pressure‑checked, decked, painted, and fitted with hardened oversize valve seats, new guide liners, and genuine Cummins springs. Eleven screw‑in freeze plugs eliminate the under‑valve‑cover coolant leaks that plague factory castings, while the 700 hp rating makes this head ideal for daily‑driven and heavy‑tow builds.

Key Features

• 11 screw‑in freeze plugs – permanent cure for internal coolant seepage.
• Hardened, oversize press‑in valve seats – resist seat recession in high‑EGT use.
• New Cummins valve springs & guide liners – OE durability right out of the box.

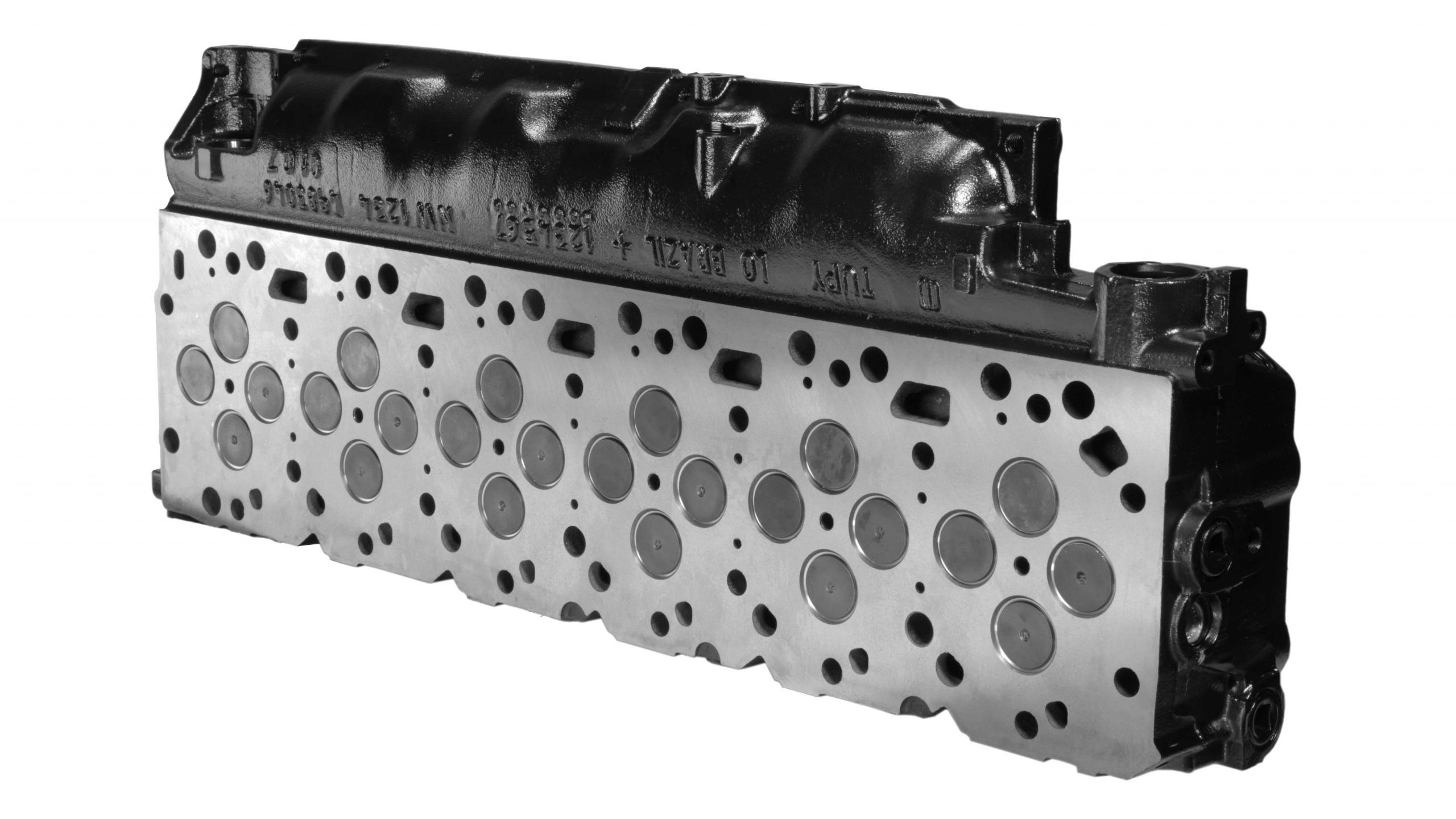

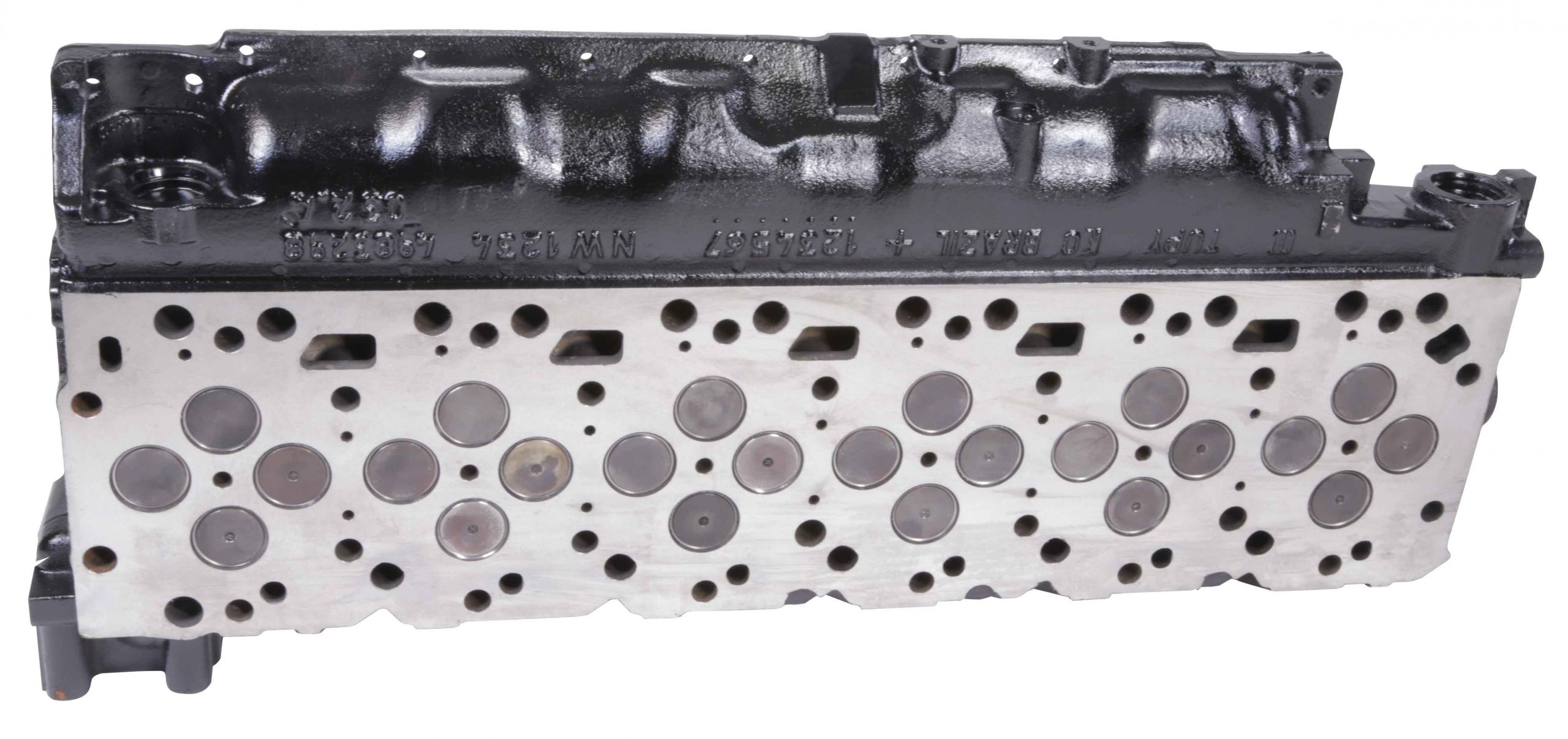

• Decked & multi‑angle valve job – ready to seal MLS gaskets without additional machine work.
• Street‑rated to ≈ 700 hp; choose Performance Series for higher RPM or boost.
• 1‑year limited parts warranty.

What’s Included

• Fully assembled STREET‑series cylinder head (ready to install)
• 11 screw‑in freeze plugs installed

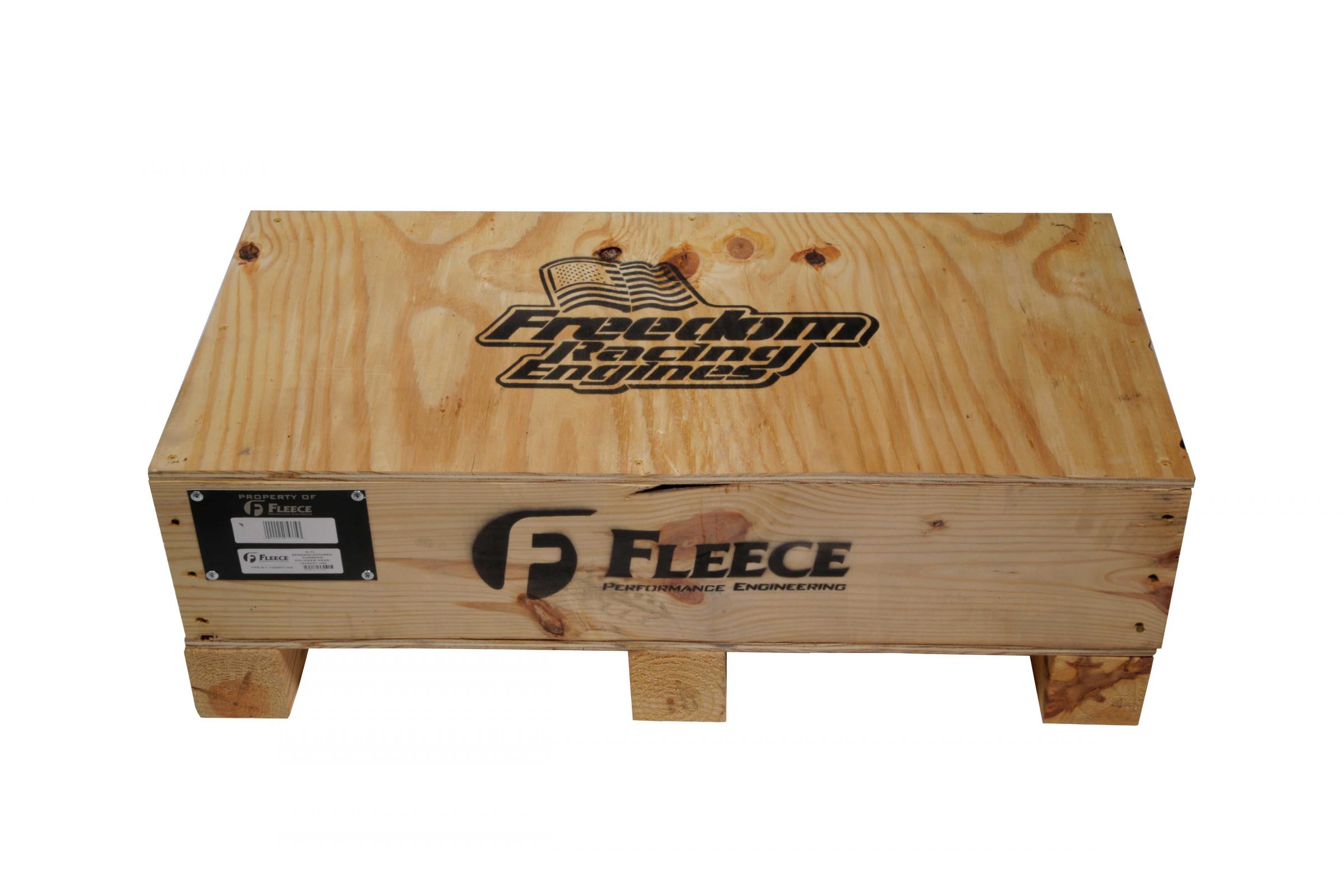

• Core & crate return paperwork (core return required; buyer pays return freight)
• Detailed installation and valve‑lash instructions

Vehicle Fitment

Fits 2007.5-2018 Ram 2500 & 3500 6.7 L Cummins (all trims and GVWRs). Will also retrofit to 2003-2007 5.9 L blocks with appropriate head gasket and manifold.

Technical Specs

Recommended Companion Parts

• Cummins 4932210 – OEM multi‑layer steel head gasket.
• ARP 247‑4203 – ARP 2000 12 mm head‑stud kit (street/700 hp).
• ARP 247‑4204 – ARP 625+ 12 mm head‑stud kit (700 + hp or high boost).
• FPE‑351‑1317 – 63 mm FMW Cheetah VGT Turbo (2013‑2018 trucks) for matched airflow.
• FPE‑CUMM‑CP3K‑6.7 – CP3K high‑RPM pump to maintain rail pressure with the new head & turbo.

Installation Notes

• Use Cummins Grade C or thicker MLS gasket for performance builds.
• Always back off rocker adjusters before initial torque to prevent valve damage.
• Final lash: 0.010″ intake / 0.020″ exhaust (hot).
• For builds above stock RPM or boost, upgrade to Performance‑Series head and higher‑rate valve springs.
