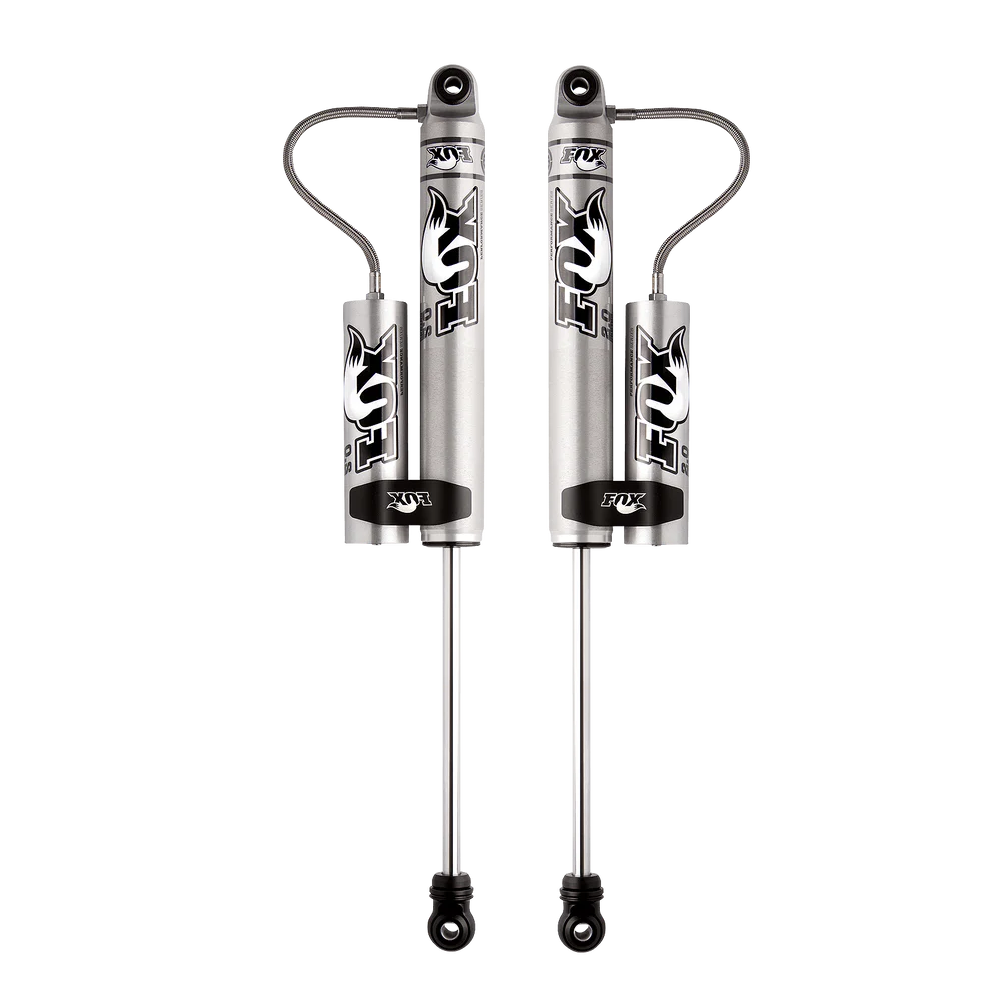

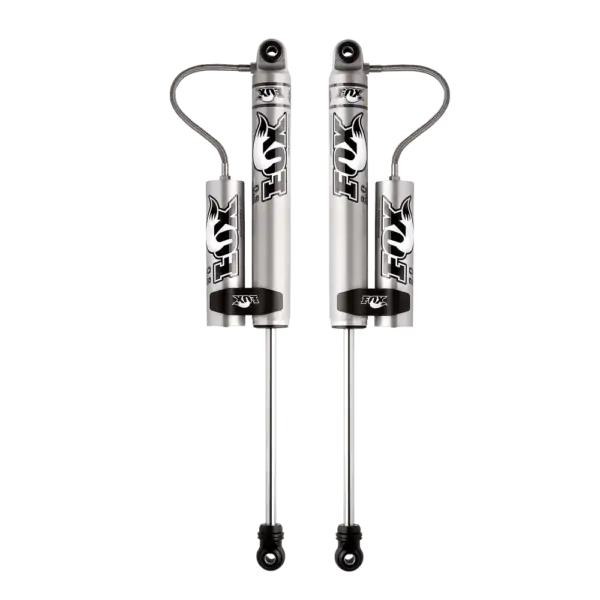

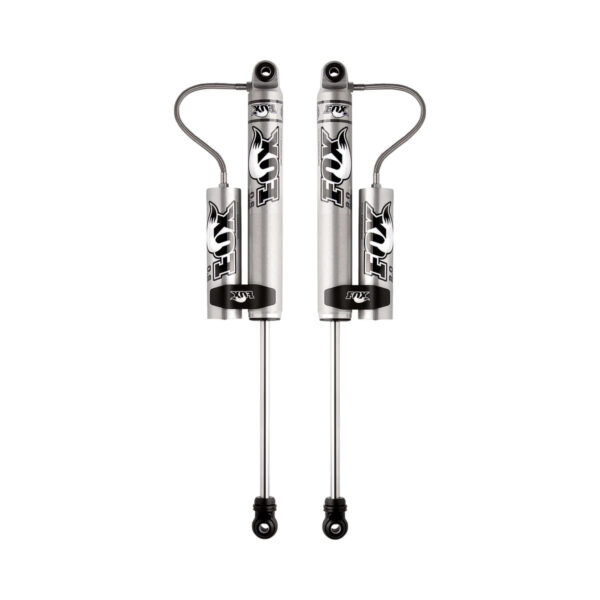

FOX 2.0 Performance 12″ Travel, 30.5″ Extended, 18.4 Collapsed Shocks with Reservoir

Description
FOX 2.0 Performance 12″ Travel, 30.5″ Extended, 18.4 Collapsed Shocks with Reservoir

FOX 2.0 Performance 12 inches Travel, 30.5 inches Extended, 18.4 Collapsed Shocks with Reservoir

Part Number: 985-24-054

Summary: The FOX Performance Series 2.0 Reservoir smooth body shocks are engineered to deliver race-inspired performance in an affordable, bolt-on package. Utilizing an external reservoir, these shocks provide increased oil and nitrogen capacity to manage heat more effectively than standard designs. The aluminum body construction ensures rapid heat dissipation and long-term durability, making them a reliable solution for handling the roughest road conditions with predictable ride quality.

Features

• External Reservoir: 2.0 inches Smooth bore 6061-T6 hard anodized aluminum provides increased oil and nitrogen capacity to ensure enhanced heat management and a striking race look.
• Aluminum Shock Body: Impact extruded 6061-T6 aluminum construction provides faster heat dissipation than conventional steel to ensure consistent performance and rust resistance.
• High-Flow Piston: Race-developed high-flow design provides application-specific valving to ensure predictable ride quality during demanding off-road use.
• Redundant Sealing Pack: A specialized system including a main seal, wiper seal, and scraper seal provides multi-layer protection to ensure long-term seal integrity.

Technical Specifications

Fitment

• Universal Fitment (Refer to 12.12 inches travel and mounting specifications)
• Note: Includes Billet Reservoir Clamp.

What’s Included

• Includes 2 Shocks
• Black anodized CNC-machined 6061-T6 billet aluminum reservoir mounting clamps

Why Choose This Product?

• Engineering Advantage: The combination of an external reservoir and an impact-extruded 6061-T6 aluminum body allows for superior thermal management compared to traditional steel-bodied shocks.
• Performance Benefit: Drivers experience more consistent damping and a predictable ride even when navigating rough terrain, thanks to the high-flow piston and application-specific valving.

Frequently Asked Questions

What is the benefit of the external reservoir on these FOX shocks?
The external reservoir increases the oil and nitrogen capacity of the shock, which helps reduce heat buildup and provides a race-inspired appearance.

Are these shocks resistant to rust?
Yes, the 6061-T6 aluminum body is clear-anodized to provide a durable finish that resists rust over time.

What type of mounts do these shocks use?
These shocks features eyelet mounts for both the top and bottom connections.
