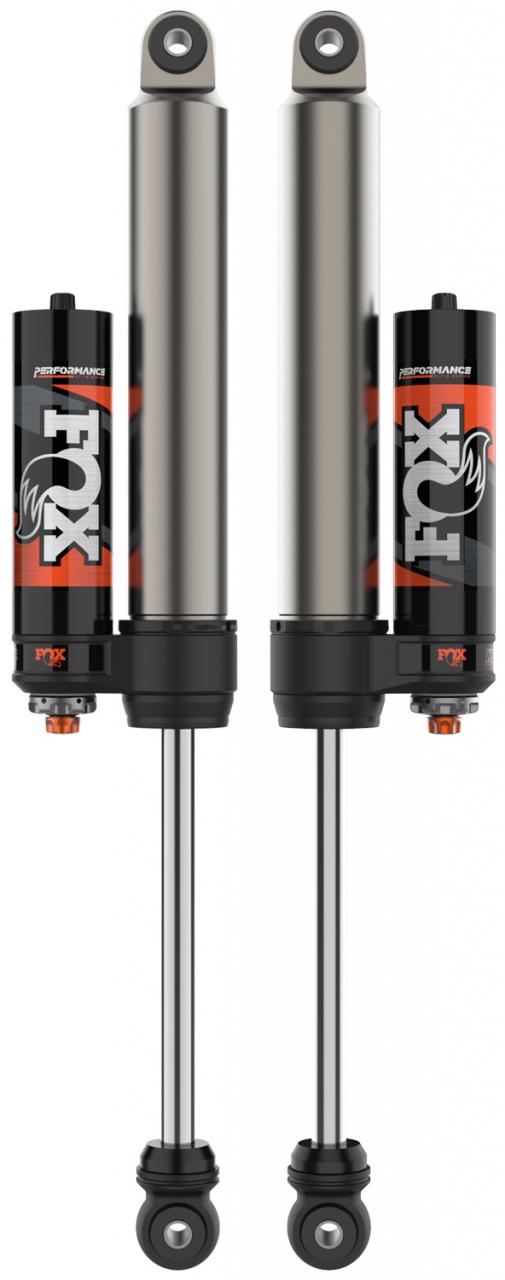

Fox 2.5 Perf Elite Series 2-3.5″ Rear Lift Shocks for 2014-2016 Ram 3500 4WD

Description
Fox 2.5 Perf Elite Series 2-3.5″ Rear Lift Shocks for 2014-2016 Ram 3500 4WD

Fox 2.5 Perf Elite Series 2-3.5 inches Rear Lift Shocks for 2014-2016 Ram 3500 4WD

Part Number: 883-26-107

Summary: The FOX Performance Elite Series 2.5 shocks are engineered to provide enhanced ride quality and precise control for the Ram 3500 when venturing off the pavement. Featuring an External reservoir, these shocks are designed to increase oil and nitrogen capacity for improved damping performance across any terrain. This bolt-on solution leverages race-developed technology to handle demanding conditions while maintaining consistent operation for lifted truck applications.

Features

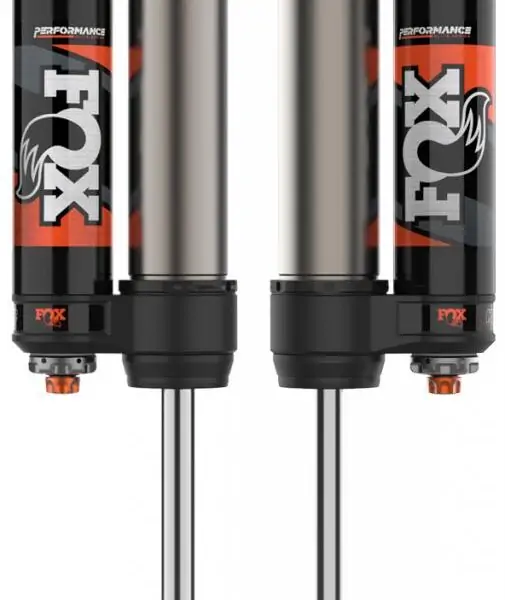

• External Reservoir: External reservoir design provides increased oil and nitrogen capacity to ensure the separation of shock oil from high-pressure nitrogen.
• Aluminum Body: 2.5 inches impact extruded and CNC machined 6061-T6 hard anodized aluminum body provides resistance to rust to ensure a durable finish over time.
• High-Flow Piston: Race-developed high-flow piston design provides application-specific valving to ensure maximized performance.
• Heavy-Duty Shaft: 7/8 inches hard chrome plated heat-treated alloy steel provides robust structural integrity to ensure reliable operation in brutal conditions.
• Advanced Sealing: Redundant sealing pack system (main, wiper, and scraper seals) provides superior protection to ensure internal components remain free of contaminants.

Technical Specifications

Fitment

• 2014-2016 Ram 3500 (4WD Extended/Standard Crew Cab Pickup)
• Note: With Single Rear Wheels. Fits models with 2-3.5 inches rear lift.

What’s Included

• Includes 2 Shocks

Why Choose This Product?

• Engineering Advantage: The use of 6061-T6 hard-anodized aluminum and an external reservoir allows for superior heat management and corrosion resistance compared to standard shock designs.
• Performance Benefit: Drivers experience improved damping and precise control in various terrains, derived from race-proven technology perfected in competition environments.

Frequently Asked Questions

What is the benefit of the external reservoir on these FOX shocks?
The external reservoir increases the capacity for oil and nitrogen, which helps separate the two and improves damping performance during off-road use.

Are these shocks compatible with dual rear wheel (DRW) trucks?
No, these shocks are specifically noted for use with Single Rear Wheel (SRW) models.

What lift height are these shocks designed for?
These rear shocks are configured for 2014-2016 Ram 3500 4WD trucks with 2 to 3.5 inches of rear lift.
