Synergy Dual Durometer Control Arm Bushings in Forged Housings for 2018+ Jeep Wrangler JL/2020+ Gladiator JT

SKU: syn4812-02
Synergy Dual Durometer Bushings (DDB) in Forged Housings - 4812-02
Synergy Dual Durometer Bushings (DDB) in Forged Housings - 4812-02

Description
Synergy Dual Durometer Control Arm Bushings in Forged Housings for 2018+ Jeep Wrangler JL/2020+ Gladiator JT

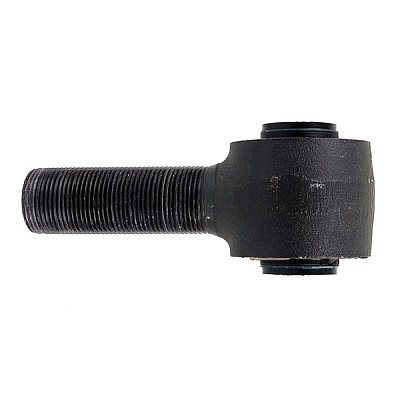

Synergy Dual Durometer Bushings (DDB) in forged housings have all the benefits of our Dual Durometer Bushings in a forged housing package. These are available for all Synergy products that use a Johnny Joint or rod end. See table for applications and specs. May be compatible with other products.

Fitments:

Part # Description Application Replacement Bushing Mounting Width Bolt Size Shank

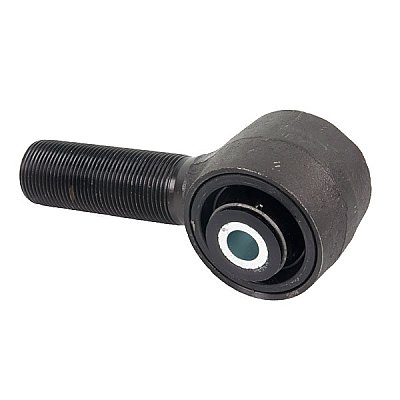

4800-01 LOWER CONTROL ARM JOINT 8033, 8036, 8052, 8153, 8231, 8551-04, 8551-01, 8871-01 4320-01 2.625″ 9/16″ / 14MM 1 1/4-12 LH

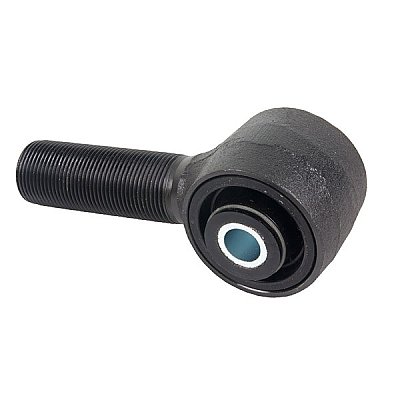

4800-02 DODGE LOWER CONTROL ARM JOINT 8551-02, 8551-03, 8583-02, 8583-03, 8583-04, 8870-01 4320-02 2.625″ 5/8″ / 16MM 1 1/4-12 LH

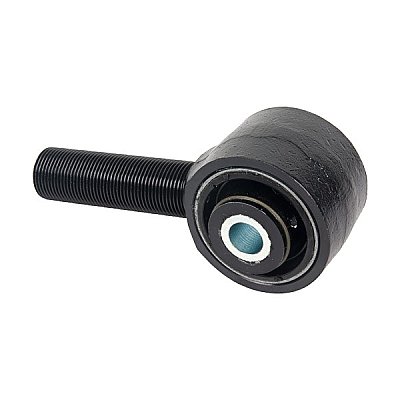

4801-21 UPPER CONTROL ARM JOINT 8553-01 4322-01 2.32″ 9/16″ / 14MM 1-14 LH
4801-22 JEEP JK REAR UPPER CONTROL ARM FRAME SIDE JOINT 8038 4322-02 2.625″ 9/16″ / 14MM 1-14 LH

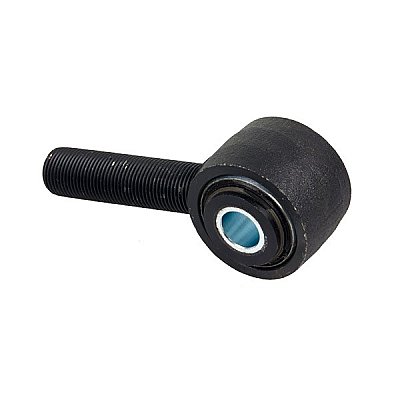

4802-31 JEEP TRACK BAR JOINT 8062, 8068, 8075, 8087, 8233-03 4323-01 1.60″ 9/16″ / 14MM 3/4-16 LH

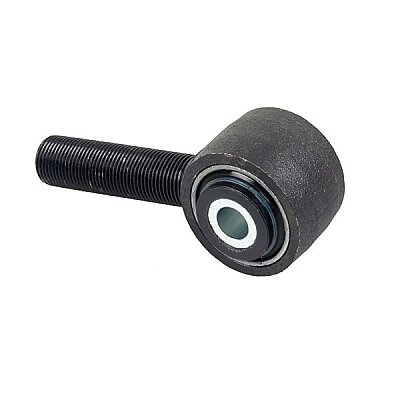

4802-32 JEEP TRACK BAR JOINT 8156 4323-02 1.60″ 1/2″ / 12MM 3/4-16 LH

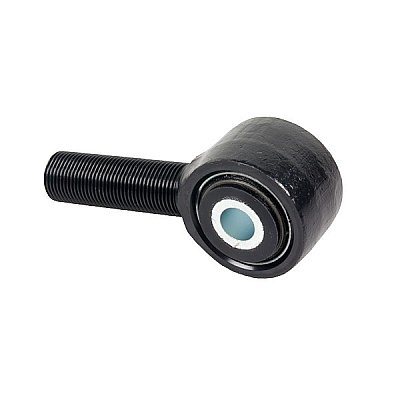

4803-41 DODGE TRACK BAR JOINT 8550-01 (03-07 trucks), 8550-02 4324-01 1.60″ 9/16″ / 14MM 7/8-14 LH

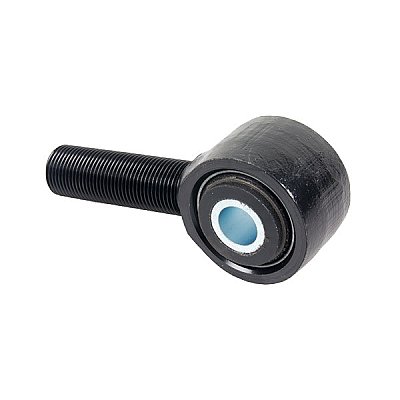

4803-42 DODGE TRACK BAR JOINT 8550-01 (08-13 trucks) 4324-02 1.60″ 5/8″ / 16MM 7/8-14 LH
4803-62 FORD BRONCO REAR TRACK BAR JOINT 7062-01 4324-03 2.188″ 5/8″ / 16MM 7/8-14 LH
4804-21 DODGE FRONT UPPER LONG ARM JOINT 8585 4322-01 2.32″ 9/16″ / 14MM 1 1/4-12 LH

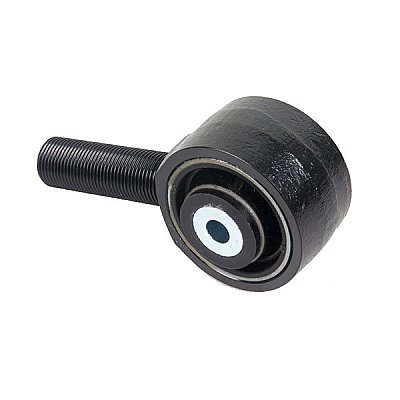

4805-12 JEEP TJ REAR UPPER CONTROL ARM JOINT NA 4321-02 2.00″ 10MM 7/8-14 LH

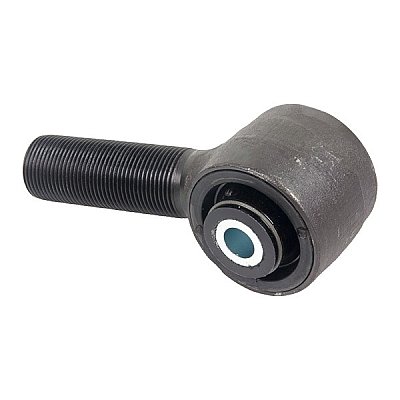

4807-01 JEEP JK FRONT LOWER SHORT ARM FRAME SIDE JOINT 8051 4320-01 2.625″ 9/16″ / 14MM 1 1/4-12 LH @ 6.3 DEG ANGLE
4807-02 JEEP JL FRONT LOWER SHORT ARM FRAME SIDE JOINT 8851-01 4320-02 2.625″ 5/8″ / 16MM 1 1/4-12 LH @ 6.3 DEG ANGLE
4807-04 BONCO REAR LOWER CONTROL ARM 7052-01 4320-04 2.91″ 5/8″ / 16MM 1 1/4-12 LH @ 6.3 DEG ANGLE
4807-05 BRONCO REAR UPPER CONTROL ARM 7054-01 4320-05 2.76″ 5/8″ / 16MM 1 1/4-12 LH @ 6.3 DEG ANGLE
4808-21 JEEP JK REAR UPPER SHORT ARM AXLE SIDE JOINT 8054, 8854-01 4322-01 2.32″ 9/16″ / 14MM 1-14 LH @ 6.3 DEG ANGLE
4810-02 14+ RAM TRACK BAR JOINT  8704-01  4328-02  1.63″ 18MM 1-14 LH @ 12 DEG ANGLE

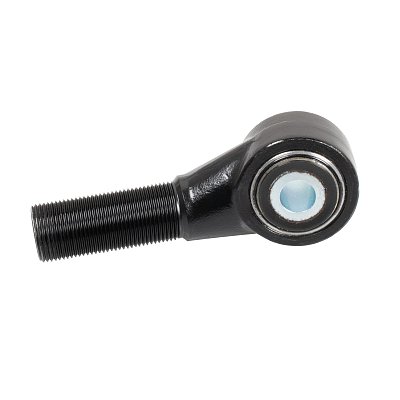

4810-11 14+ RAM TRACK BAR JOINT 8704-11 4328-02 1.63″ 18MM 1-14 LH @ 13 DEG ANGLE
4811-01 JEEP TRACK BAR JOINT 8062-02, 8862-01 4327-01 1.60″ 9/16″ / 14MM 7/8-14 LH
4812-01 JEEP TRACK BAR JOINT 8075-02, 8875-01 4327-01 1.60″ 9/16″ / 14MM 7/8-14 LH @ 12 DEG ANGLE

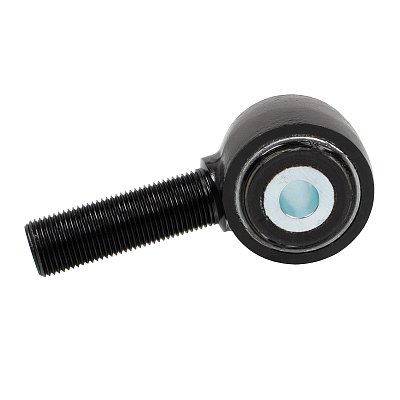

4812-02 94 – 13 RAM TRACK BAR JOINT 8550-11 4327-01 1.60″ 9/16″ / 14MM 7/8-14 LH @12 DEG ANGLE

Features:

  • Dual Durometer Bushings (DDB) feature a maintenance free, grease less design
  • Housings are forged from high strength 1045 steel and treated for corrosion resistance
  • Control arm bushings are self centering with 30 degrees of misalignment
  • Outer “soft” durometer acts as bushing cushion and flex material
  • Inner “hard” durometer lining acts as the bearing surface to allow free floating inner sleeve to rotate.
  • Provides for a maintenance free “zero bind” bushing
  • Internal bushing ring separates inner and outer materials to prevent inner sleeve gaping at extreme flex
  • Direct replacement available for Synergy products using a Johnny Joint or rod end
  • Available complete with bushing installed

Notes:

  • For 94-02 Ram track bar applications, the track bar conversion bracket part number 8554-02 is required to be used
