Synergy Heavy Duty Front Drag Link for 1994-2002 Dodge Ram

Description

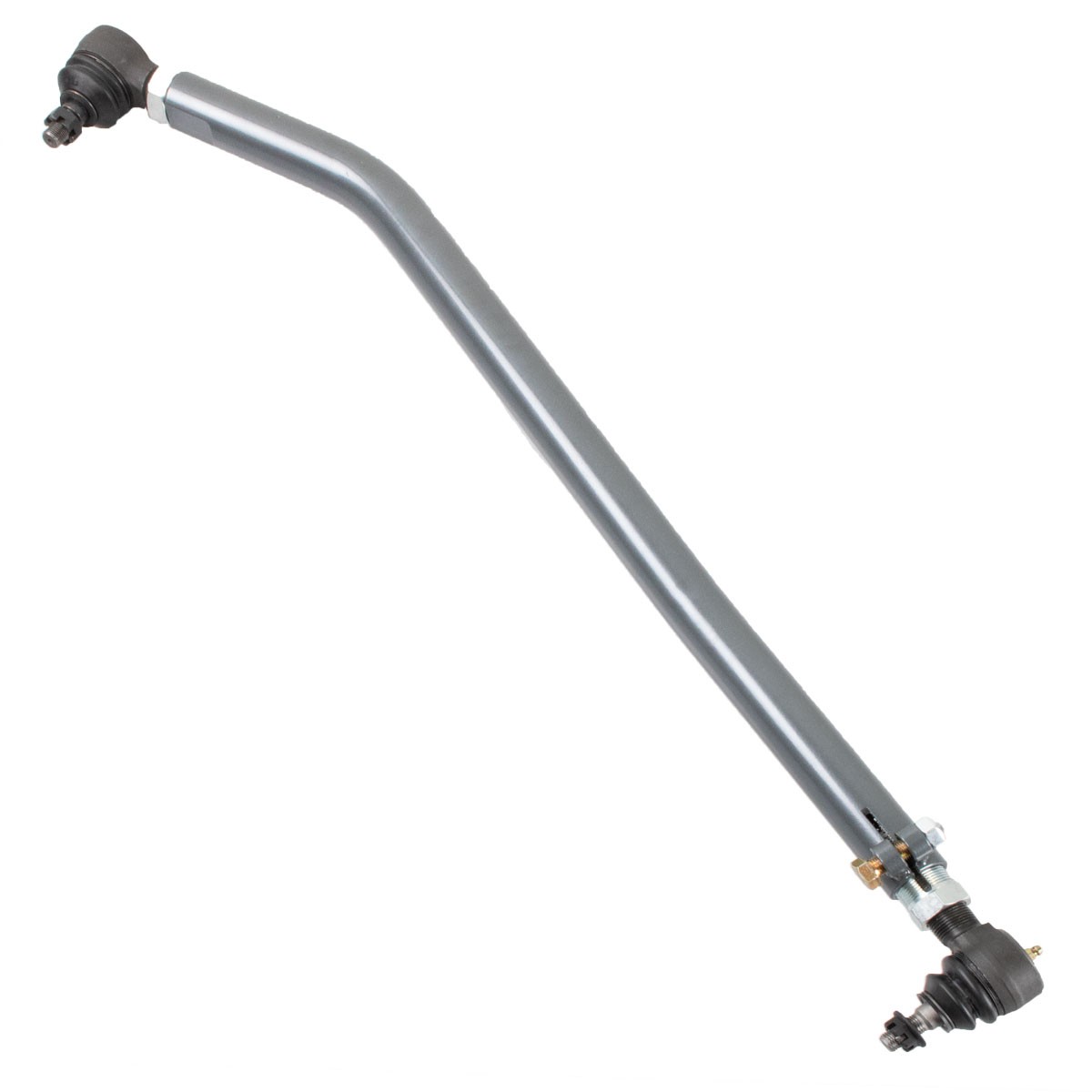

Synergy Heavy Duty Front Drag Link for 1994-2002 Dodge Ram

The Synergy Heavy Duty Drag Link is a larger and stronger, bolt-on replacement for the stock drag link. No drilling or reaming is required. It uses the updated factory T-style steering design to eliminate toe-change caused by Y-style steering. Using the factory T-style steering design also results in no induced bump steer inherent with most aftermarket “cross over” steering kits. When combined with the heavy duty tie rod, Steering Stabilizer Mount Kit, and Synergy tuned IFP stabilizer (6401-01) there is not a better steering kit on the market!

Fitment:

Benefits:

• Improves strength and steering feel and eliminates any chance of bending
• Offers a more direct connection to the road compared to stock; no  more bent drag links and constantly having to align your vehicle
• Synergy Heavy Duty Metal on Metal Tie Rod Ends are stronger and more durable than stock and include grease fittings/replaceable dust boots for ease of maintenance
• Eliminates unwanted drag link flop
• Drag Link length adjustable on the vehicle
• Compatible with stock wheels and tires

Features:

• Drag Link is CNC formed from 1.50 inch x .250 wall DOM tubing
• Abrasion-resistant powder coat finish for maximum durability and corrosion resistance
• Synergy Double Adjuster Sleeve allows adjustment of drag link length without removing it from the vehicle
• 100% bolt-on components assures an easy, trouble free installation with the use of basic hand tools

Min/Max Lengths:
Measured in a straight line from center of mounting point to center of mounting point

Minimum Collapsed: 33.875″
Maximum Extended: 35.75″

Notes:

• Important fitment note: If you have an upgraded PSC Steering Box part number SG851 you will need to order part number 4133-L for the pitman arm end of the drag link
• Replacement Tie Rod Ends
  • 2000-2002 Trucks: 4133-L and 4160-L (Pitman arm side is 4133-L)
  • 1994-1999 Trucks: 4136-L and 4160-L (Pitman arm side is 4136-L
• 1998-1999 trucks that originally came with T-Style Steering (where the tie rod connects to both knuckles) must use the pitman arm from 1994-1997 trucks

Installation Instructions

FOURWHEELER.COM – How-to: SYNERGY STEERING FOR HEAVY-DUTY RAM TRUCKS
