Description

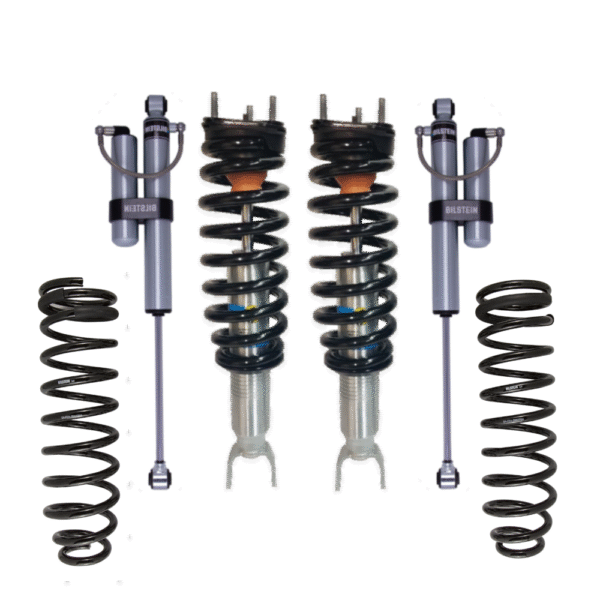

Bilstein 6112 0-2.75″ Front Lift Assembled Coilovers with 5160 1-2.5″ Rear Lift Shocks and B12 1″ Rear Lift Coil Springs for 2011-2018 Ram 1500 4WD

Bilstein 6112 0-2.75″ Front Lift Assembled Coilovers with 5160 1-2.5″ Rear Lift Shocks and B12 1″ Rear Lift Coil Springs for 2011-2018 Ram 1500 4WD

Part: 6112RA18C

What’s Included

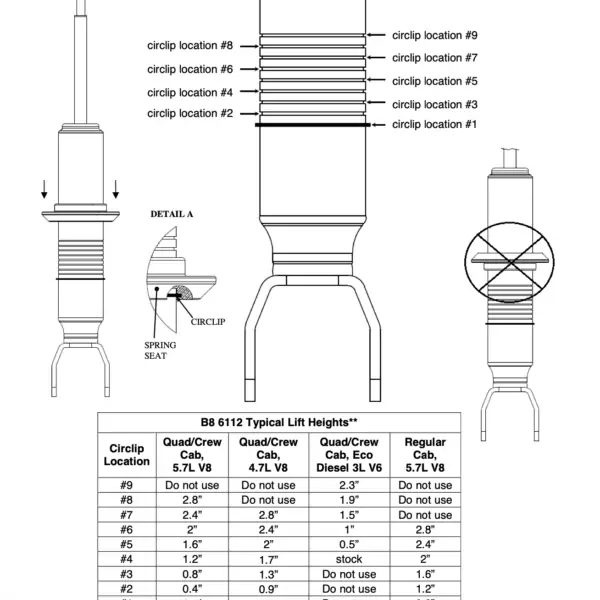

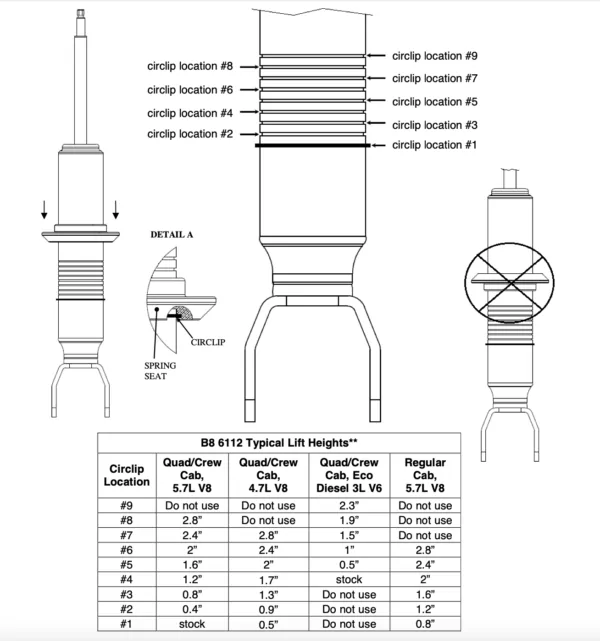

• Front: B8 6112 coilovers assembled — no spring compressor needed (Kit: 47-311015, old: 47-242548). Choose clip position per reference image.
• Rear Shocks: B8 5160 (Qty: 2) — Part Number: 25-325089 (old: 25-288278).
• Rear Coil Springs: B12 (Qty: 2) — provides 1″ rear lift; finish: black.

Vehicle Fitment

• 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018 Ram 1500 4WD
• Fits vehicles without Air Suspension

Front Setup

• Adjustment range: 0-2.75″
• Assembled — no spring compressor needed
• Reuses OEM top mount and rubber isolator

Rear Setup

• 5160 shocks for rear lifts 1-2.5″
• B12 coil springs provide 1″ rear lift

Features

• Large 60 mm monotube for increased oil capacity, cooling, and long-term durability
• 60 mm digressive piston for improved ride comfort and control over rough terrain
• Custom engineered cold-wound linear springs for enhanced vehicle control
• Monotube design for consistent, fade-free performance
• Application specific for maximum performance
• Reuses OEM top mount and rubber isolator
• Limited Lifetime Warranty

Specs

Part Numbers

• Front 6112 kit: 47-311015 (old: 47-242548)
• Rear shocks: 25-325089 (old: 25-288278)
• Rear Coils: 36-286539
• Kit Part: 6112RA18C

Notes

• Standard Cab short bed requires a 1″ taller spring or spacer.
• Alignment required after installation.
