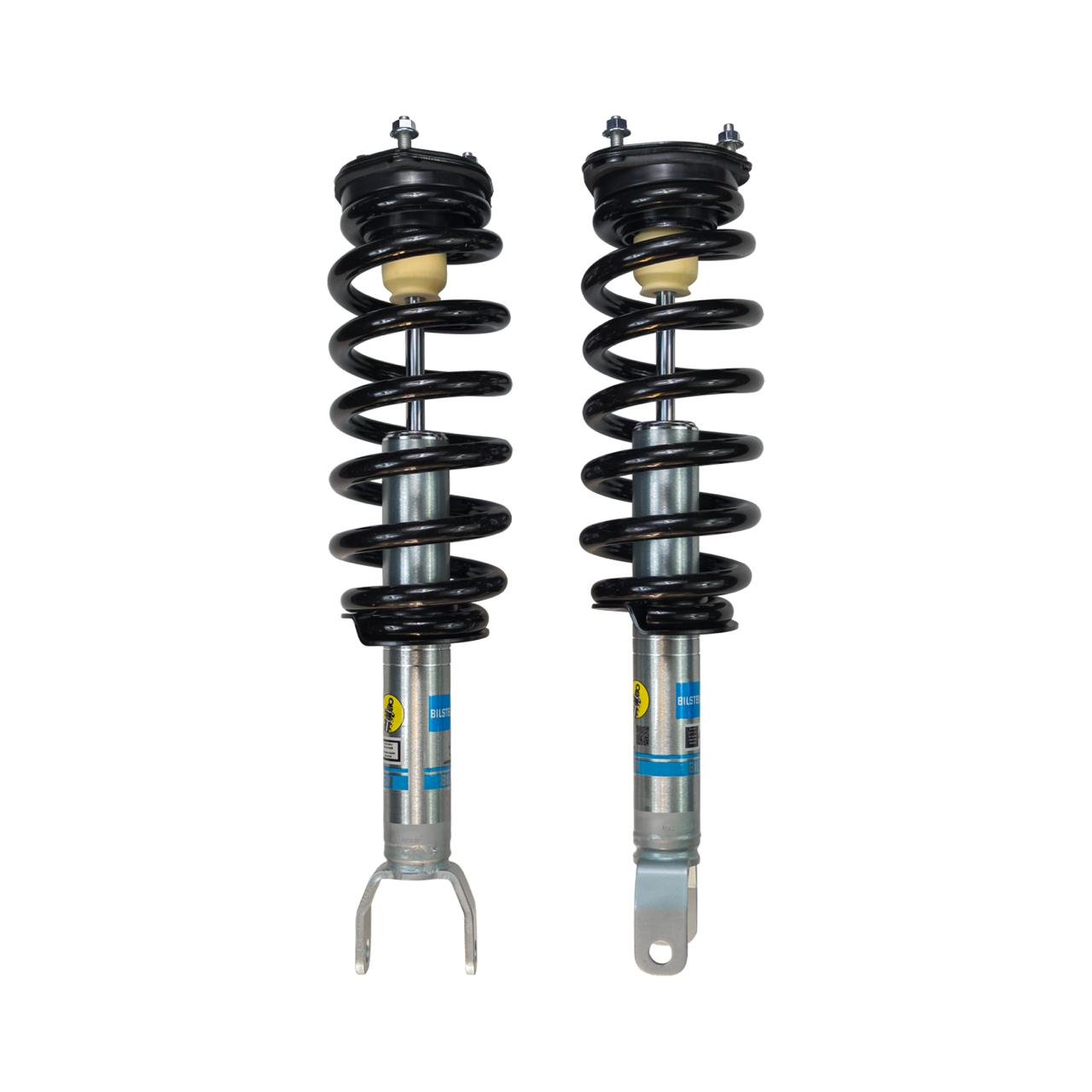

Bilstein 5100 0-2.75″ Front Assembled Coilovers 2011-2018 RAM 1500 4WD

SKU: 5100R1500B_n1
5 out of 5 based on 2 customer ratings
(2 customer reviews)
Bilstein 5100 0-2.75 Front Assembled Coilovers 2011-2018 RAM 1500 4WD
Bilstein 5100 0-2.75 Front Assembled Coilovers 2011-2018 RAM 1500 4WD

Description
Bilstein 5100 0-2.75″ Front Assembled Coilovers 2011-2018 RAM 1500 4WD

Bilstein 5100 0-2.75″ Front Lift Pre-Assembled Coilovers – 2011-2018 RAM 1500 4WD

Part: 5100R1500B_n1

Level your RAM 1500 with a bolt-on front suspension upgrade that blends control, comfort, and durability. These Bilstein B8 5100 coilovers arrive fully assembled with OE-style replacement coils, new top mounts, and hardware, so you skip the spring compressor and get a faster, safer install. Height is adjustable within the 0-2.75″ range via snap-ring perch positions on the shock body.

Need a kit with rear shocks?

What’s Included

  • 2 x Bilstein 5100 front ride-height-adjustable struts (24-317887)
  • 2 x OE-style replacement front coil springs
  • New top mounts, isolators, dust covers, and hardware
  • Professionally pre-assembled coilover units – ready to install

Why You’ll Like It

  • No spring compressor needed – pre-assembled for a clean, quick install
  • Adjustable 0-2.75″ front lift – dial in a level stance or mild lift to clear larger tires
  • Bilstein 5100 control – monotube design with 46 mm digressive piston for consistent, fade-resistant damping
  • OE-style comfort – factory-like ride with tighter body control

Front Shock Specs (24-317887)

  • Series – 5100
  • Extended length – 21.40 in
  • Collapsed length – 15.12 in

Coil Option

  • OE Replacement only – generic OE-style coils included

Fitment

  • Vehicle – RAM 1500 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
  • Drivetrain – 4WD only
  • Exclusions – will not work on trucks with the TRX package

Technical Notes

  • Snap-ring grooved body sets spring seat height within the stated range
  • Monotube, nitrogen gas-charged, 46 mm digressive piston
  • Alignment is required after installation
  • Tire clearance depends on wheel width and offset – verify after install

FAQ

Do these come assembled? Yes – new coils, mounts, and hardware are installed. No spring compressor needed.

Do they lift the rear? No – this is a front-only package. For a matched front/rear kit, see

.

Will this fit my TRX? No – not compatible with TRX package trucks.

Customer reviews

Rated 5 out of 5 stars
2 reviews
5 stars 2 100 %
4 stars 0 0 %
3 stars 0 0 %
2 stars 0 0 %
1 star 0 0 %

2 reviews for Bilstein 5100 0-2.75″ Front Assembled Coilovers 2011-2018 RAM 1500 4WD

Add a review

Use one of the allowed file type: jpg,png,jpeg.

    Questions and answers of the customers

      Will the 2.8” coil over replace the front spacer blocks in a 4in bds lift?
    1. 0 votes
      Q Will the 2.8” coil over replace the front spacer blocks in a 4in bds lift? answer now
      A highest setting will give 2.8'' lift compared to factory height
      2. I need these for a 4" lift
    2. 0 votes
      Q I need these for a 4" lift answer now
      A those will work for the front if your kit uses spindle lift or subframe cross-member  and stock height shocks as for the rear - we can offer https://www.suspensionlifts.com/shop/ram/1500-ram/2011-2018/shocks-2011-2018/bilstein-5100-rear-4-6-inch-shocks-for-2011-2018-ram-1500-4wd/ https://www.suspensionlifts.com/shop/ram/1500-ram/bilstein-5160-1-2-5-inch-rear-lift-shocks-11-18-ram-1500-4wd/ https://www.suspensionlifts.com/shop/ram/1500-ram/2011-2018/shocks-2011-2018/icon-0-3-rear-lift-2-0-aluminum-series-shock-for-2011-2018-dodge-ram-1500/
      3. Does the item come as a pair?
    3. 0 votes
      Q Does the item come as a pair?
      There are no answers for this question yet. Answer now
      4. Are these side specific, left and right? If so, how can you differ between the two?
    4. 0 votes
      Q Are these side specific, left and right? If so, how can you differ between the two?
      There are no answers for this question yet. Answer now
      5. Does this part come with the different clips to adjust to the desired height?
    5. 0 votes
      Q Does this part come with the different clips to adjust to the desired height? answer now
      A The height can be readjusted only by removing coilover from the vehicle and disassembling it - this way you could change the clip setting https://productdesk.cart.bilsteinus.com//media/products/bilstein/E-WM05-0000007.pdf
      6. Hi I want to get the pre assembled 5100 for my 12 ram 1500. Will the 2.1 make my nose too high and are they fully assembled will I need any other new parts for it
    6. 0 votes
      Q Hi I want to get the pre assembled 5100 for my 12 ram 1500. Will the 2.1 make my nose too high an...... Read more
      There are no answers for this question yet. Answer now
