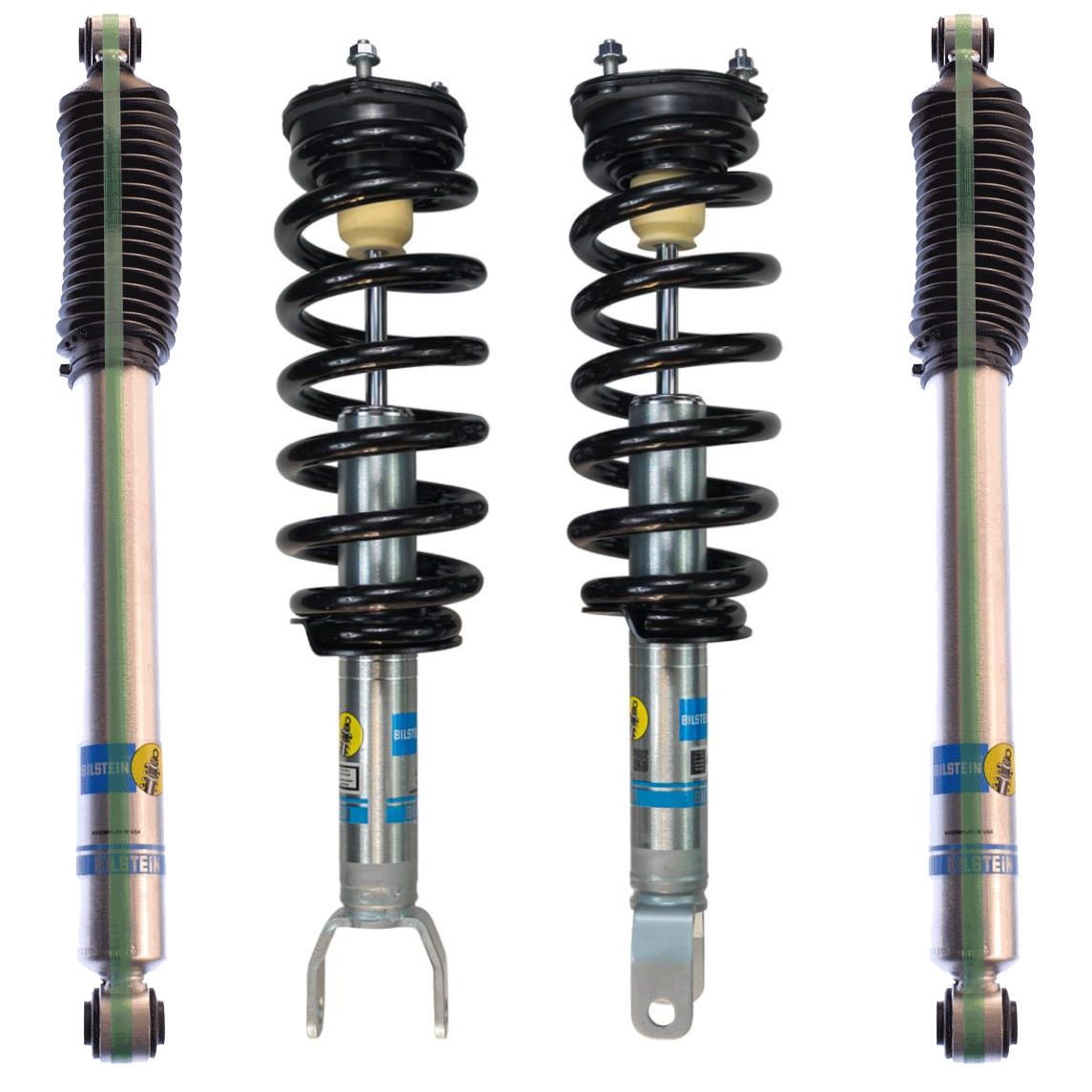

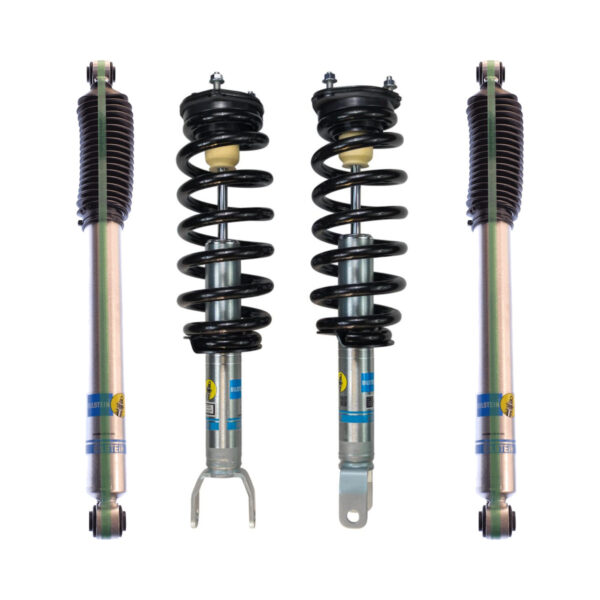

Bilstein 5100 0-2.75″ Front Assembled Coilovers and 0-1″ Rear Lift Shocks 2011-2018 RAM 1500 4WD

SKU: 5100R1500B
4.2 out of 5 based on 10 customer ratings
(10 customer reviews)
Sale!
Bilstein 5100 0-2.75 Front Assembled Coilovers and 0-1 Rear Lift Shocks 2011-2018 RAM 1500 4WD
Bilstein 5100 0-2.75 Front Assembled Coilovers and 0-1 Rear Lift Shocks 2011-2018 RAM 1500 4WD

Description
Bilstein 5100 0-2.75″ Front Assembled Coilovers and 0-1″ Rear Lift Shocks 2011-2018 RAM 1500 4WD

Bilstein 5100 0-2.75″ Front Lift Pre-Assembled Coilovers + 0-1″ Rear Lift Shocks – 2011-2018 RAM 1500 4WD

Part: 5100R1500B

Level your 2011-2018 RAM 1500 4WD with a matched front and rear Bilstein 5100 package. The front Bilstein 5100 ride-height-adjustable struts arrive fully assembled with OE-style replacement coils and new top mounts, so you skip the spring compressor and get a true bolt-on install. Rear 5100 shocks are valved and sized for 0-1″ rear lift components, giving you a balanced stance and controlled ride on and off road.

What’s Included

  • Front (pre-assembled): 2 x Bilstein 5100 ride-height-adjustable struts 24-317887 assembled with:
    • OE-style replacement coil springs
    • New top mounts and insulators
    • New bump stops and dust covers
    • New mounting hardware
  • Rear: 2 x Bilstein 5100 shocks 24-187374 for 0-1″ rear lift components (springs or spacers)

Front Perch Settings (clip positions)

  • Clip 5: ~2.8″ front lift
  • Clip 4: ~2.1″ front lift
  • Clip 3: ~1.4″ front lift
  • Clip 2: ~0.7″ front lift
  • Clip 1: 0″ (stock height)

Actual lift will vary based on vehicle weight, bumper or winch, accessories, and spring wear.

Why You’ll Like It

  • No spring compressor needed – front coilovers come fully assembled and ready to bolt in
  • Adjustable 0-2.75″ front lift – dial in a level stance or mild lift for tire clearance
  • Bilstein 5100 performance – 46 mm monotube with digressive valving for consistent, fade-resistant damping
  • Better control with OE-style comfort – tighter body control while keeping daily ride quality
  • Matched rear shocks – 5100 rears tuned for trucks running stock to 1″ rear lift components

Front Shock Specs – 24-317887

  • Series: Bilstein 5100
  • Extended length: 21.40 in
  • Collapsed length: 15.12 in
  • Design: snap-ring grooved body (coilover), monotube, nitrogen gas-charged
  • Piston diameter: 46 mm

Rear Shock Specs – 24-187374

  • Series: Bilstein 5100
  • Extended length: 26.73 in
  • Collapsed length: 16.75 in
  • Design: smooth body (non-coilover), monotube, nitrogen gas-charged
  • Piston diameter: 46 mm
  • Rear lift support: 0-1″ rear lift components (shocks do not add lift by themselves)

Fitment

  • Vehicle: RAM 1500
  • Model years: 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
  • Drivetrain: 4WD only
  • Front height range: adjustable 0-2.75″
  • Rear height range: shocks designed for 0-1″ rear lift components
  • Exclusions: will not work on trucks with the TRX package or other special suspension options

Processing Time

  • Coilover assembly time: typically 3-9 business days

Technical Notes

  • Multiple snap-ring grooves on the front strut body set the spring seat height within the stated 0-2.75″ range
  • Monotube design with self-adjusting deflective-disc valving increases wheel travel and improves handling
  • Professional alignment is required after installation
  • Tire clearance depends on wheel width and offset – always verify after install

FAQ

Do these come assembled?
Yes. The front coilovers are fully assembled with new coils, top mounts, bump stops, dust covers, and hardware. You do not need a spring compressor.

Which clip should I choose?
Most customers start around Clip 2 or Clip 3 to get a near-level stance with stock rear height. If you have extra front weight (bumper, winch, etc.), you may need a higher clip to achieve the same look.

Will the rear shocks lift my truck?
No. The rear Bilstein 5100 shocks are sized and valved to work with 0-1″ rear lift springs or spacers. They do not add height by themselves.

Looking for a kit for a 4-6″ lift?
Bilstein 5100 4-6″ Front Assembled Coilovers and 4″ Rear Lift Shocks 2011-2018 RAM 1500 4WD

Customer reviews

Rated 4.2 out of 5 stars
10 reviews
5 stars 8 80 %
4 stars 0 0 %
3 stars 0 0 %
2 stars 0 0 %
1 star 2 20 %

10 reviews for Bilstein 5100 0-2.75″ Front Assembled Coilovers and 0-1″ Rear Lift Shocks 2011-2018 RAM 1500 4WD

Add a review

Use one of the allowed file type: jpg,png,jpeg.

    Questions and answers of the customers

      I have a 2017 Ram 1500 4x4 and all I have done since new was a level kit in the front. I would like to keep the same right height I have now but I don’t know which clip size I should order?
    1. 0 votes
      Q I have a 2017 Ram 1500 4x4 and all I have done since new was a level kit in the front. I would li...... Read more
      A usually 1.5-2'' front-rear level difference, depending on rear springs sagging and on cab-engine weight
      2. How easy is to move the clip from 4 to 5 height?
    2. 0 votes
      Q How easy is to move the clip from 4 to 5 height?
      A Spring compressor tool will be required and will need to remove coilover from the truck. We provide coilvoers already assembled. In order to figure out how much lift you need to level please take existing measurements from center of the wheel hub to the bottom of the fender. Difference between front and rear is how much lift you need to level. https://www.suspensionlifts.com/level.png
      3. I have a 2017 ram 1500 ecodiesel 4x4 laramie crew cab. Between the rear tire and front finder is 7". front tire and front finder is 4.5" Will these coil over shocks into front carry the wieght of the truck
    3. 0 votes
      Q I have a 2017 ram 1500 ecodiesel 4x4 laramie crew cab. Between the rear tire and front finder is ...... Read more
      A yes sure they will increase front height  by 2.5''
      4. I have a 2016 ram 1500 4x4. I think I need to go up about 2" in the front to make the truck level. Where should I order the 5100 to be set for the proper height?
    4. 0 votes
      Q I have a 2016 ram 1500 4x4. I think I need to go up about 2" in the front to make the truck level...... Read more
      A clip4
      5. Are their any concerns with using these shocks with OEM UCAs, set at 2.8"?
    5. 0 votes
      Q Are their any concerns with using these shocks with OEM UCAs, set at 2.8"?
      A We would recommend replacing them UCAs are recommended but not required, the benefit of UCAs is that they lock caster when the vehicle is leveled and also help you a lot with front end articulation.
      6. Will this work if i have a 2015 ram 1500 sport with a 4in lift kit i will be using 4in strut spacers
    6. 0 votes
      Q Will this work if i have a 2015 ram 1500 sport with a 4in lift kit i will be using 4in strut spacers
      A it will depend on lift kit type. If your lift kit uses subframe crossmember or spindles and stock heith or 0-2'' front coilovers - then yes it will work
      7. will these fit a 2010 ram 1500 4x4 quad cab ?
    7. 0 votes
      Q will these fit a 2010 ram 1500 4x4 quad cab ?
      A yes will fit
      8. Will this fit a 2014 ecodiesel 4wd?
    8. 0 votes
      Q Will this fit a 2014 ecodiesel 4wd?
      A yes will fit
      9. will this fit my 2022 ram 1500 classic warlock
    9. 0 votes
      Q will this fit my 2022 ram 1500 classic warlock
      There are no answers for this question yet.
      10. What height rear would I need to level my 2016 ram if I went with the 2.1” clip?
    10. 0 votes
      Q What height rear would I need to level my 2016 ram if I went with the 2.1” clip?
      There are no answers for this question yet.
      11. Will this kit replace the factory air suspension?
    11. 0 votes
      Q Will this kit replace the factory air suspension?
      A you will require at least rear springs
      A you will require at least rear springs
      12. Will this fit a 2015 ram 1500 v6 4wd?
    12. 0 votes
      Q Will this fit a 2015 ram 1500 v6 4wd?
      A yes, sure will fit
      13. do you guy sell just the assembled front 5100s for 2018 ram 1500?
    13. 0 votes
      Q do you guy sell just the assembled front 5100s for 2018 ram 1500?
      A We can offer 6112 https://www.suspensionlifts.com/shop/ram/1500-ram/2011-2018/2011-2018-ram-1500-front-lifts/bilstein-6112-0-2-75-front-lift-assembled-coilovers-for-2011-2018-ram-1500-4wd/ or 5100 https://www.suspensionlifts.com/shop/ram/1500-ram/2011-2018/shocks-2011-2018/bilstein-b8-5100-height-adjustable-0-2-8-front-shocks-for-2011-2018-ram-1500-4wd/
      14. Will these fit on a 2015 ram 1500 ST 3.6 2WD?
    14. 0 votes
      Q Will these fit on a 2015 ram 1500 ST 3.6 2WD?
      A no sir, for 2wd you need https://www.suspensionlifts.com/shop/ram/1500-ram/2011-2018/shocks-2011-2018/bilstein-5100-1-75-front-0-1-rear-lift-shocks-for-2009-2018-ram-1500/ or https://www.suspensionlifts.com/?swoof=1&pa_vehicle-year=2016&pa_make=ram&pa_model=1500&pa_4wd2wd=2wd
