Bilstein 6112 0-2.75″ Front Lift Assembled Coilovers, 5100 0-1″ Rear Lift Shocks for 2011-2018 Ram 1500 4WD

Description
Bilstein 6112 0-2.75″ Front Lift Assembled Coilovers, 5100 0-1″ Rear Lift Shocks for 2011-2018 Ram 1500 4WD

Bilstein 6112 0–2.75″ Front Lift Pre-Assembled Coilovers + 0–1″ Rear 5100 Shocks
2011-2018 Ram 1500 4WD (Non-Air-Ride)

Part #: 6112RA18CK  |  Front kit 47-311015 (supersedes 47-242548)

What’s Included

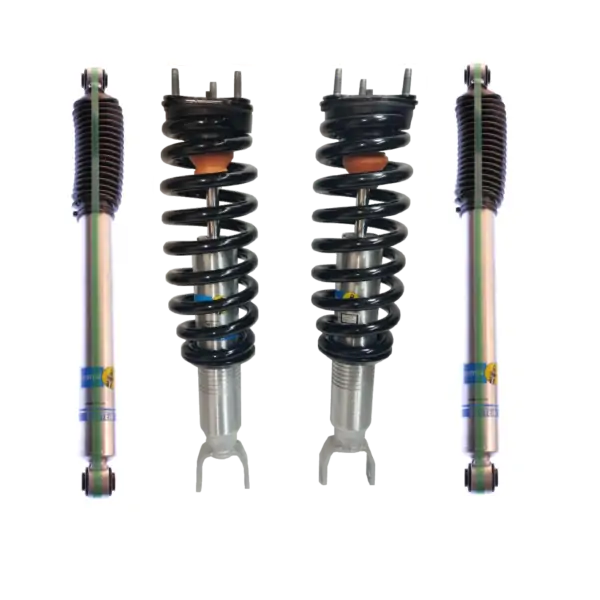

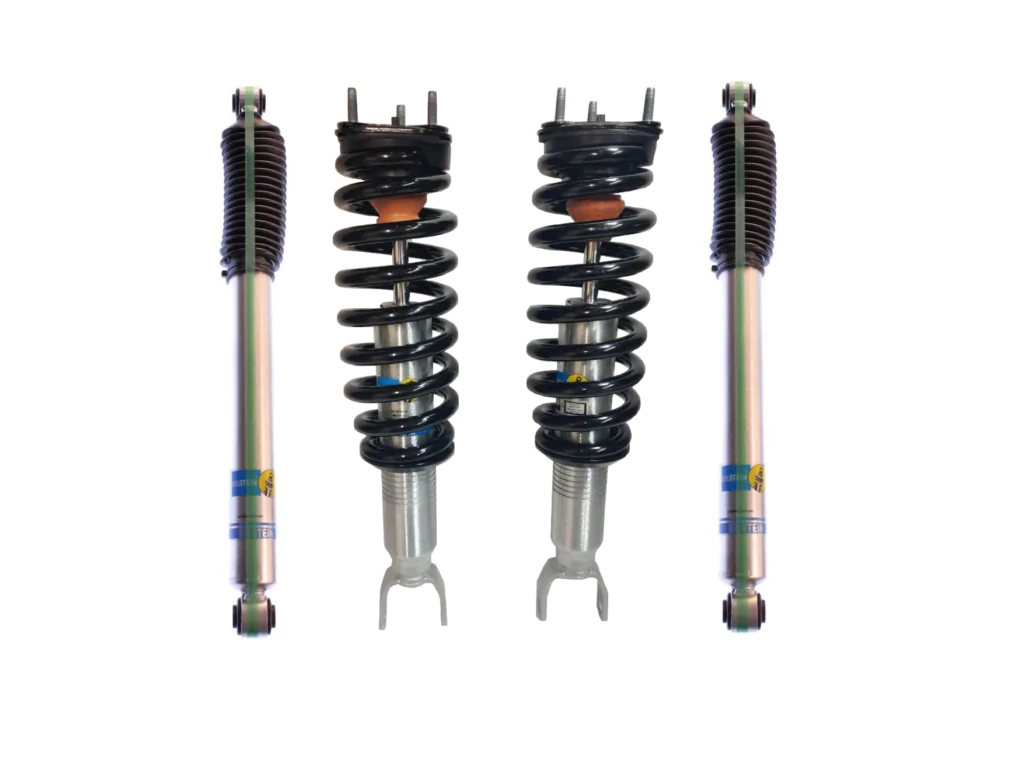

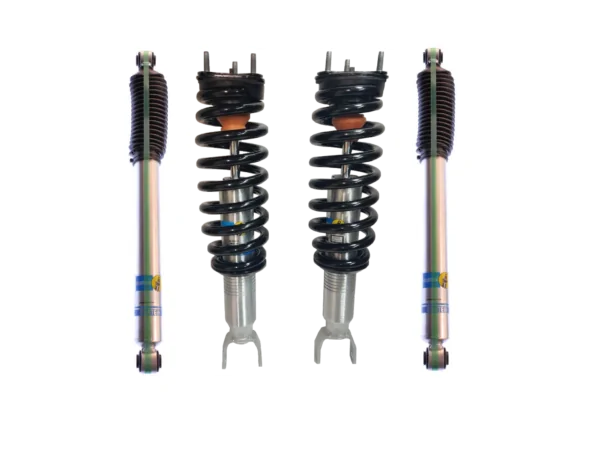

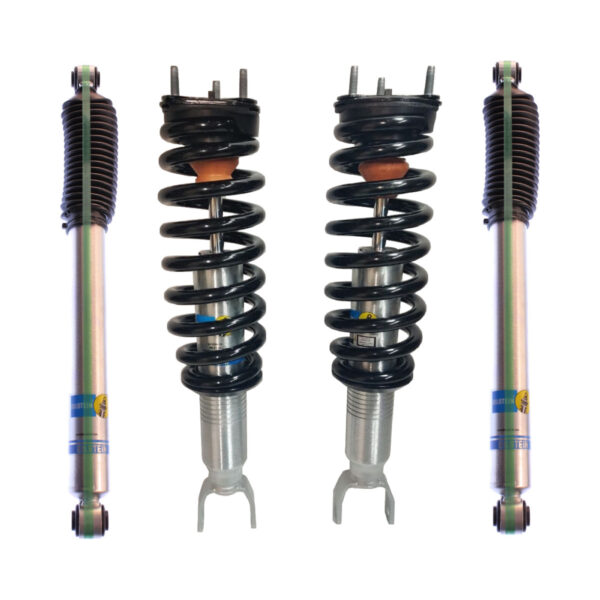

• Front (pre-assembled):
  • 2 × Bilstein B8 6112 60 mm monotube struts with matched coil springs
  • Billet spring seats set to your chosen circlip position (0 to ≈2.75″)
  • Reconditioned OE top mounts & new hardware
• Rear:
  • 2 × Bilstein B8 5100 shocks (24-187374) – tuned for 0-1″ rear lift

Front Circlip Guide (choose when ordering)

*Heights are Bilstein’s typical measurements on stock-weight trucks. Added accessories or worn springs will affect final stance.

Key Features

• Large 60 mm monotube fronts – more oil, cooler temps, longer life
• Digressive piston valving for smooth highway manners and off-road control
• Adjustable perch lets you level, run bigger tires, or add ground clearance
• 5100 rears match the front’s dynamics up to 1″ rear lift
• Direct bolt-on – no spring compressor needed
• Fits trucks without factory Air-Suspension

Specifications

Fitment & Notes

• Ram 1500 4WD (2011-2018) – coil-spring front, no Air-Ride
• OEM wheels & components reused; aftermarket UCAs recommended above clip #6
• Alignment required after installation
• Limited Lifetime Warranty on Bilstein dampers

FAQ

Can I change clip height later? Yes. Safely unload spring, move circlip, and re-assemble. Stay within the chart.

Do the rear shocks lift the truck? No. Rear height comes from springs, blocks, or airbags; these shocks are simply valved for up to 1″ of rear lift.

Are new top mounts included? We reuse your factory mount hardware cleaned and inspected; this preserves OE isolation while keeping cost down.
