Bilstein B8 8112 0.6-2.6″ Front Lift Coilovers ZoneControl CR for 2019-2025 Ram 1500 4WD/2WD

SKU: 41-325247_41-325230
Sale!
Bilstein B8 8112 0.6-2.5" Front Lift Coilovers ZoneControl CR for 2019-2021 Ram 1500 4WD/2WD
Lift Amounts - Bilstein B8 8112 0.6-2.5 Front Lift Coilovers ZoneControl CR for 2019-2021 Ram 1500 4WD:2WD
Bilstein B8 8112 0.6-2.5" Front Lift Coilovers ZoneControl CR for 2019-2021 Ram 1500 4WD/2WD
Lift Amounts - Bilstein B8 8112 0.6-2.5 Front Lift Coilovers ZoneControl CR for 2019-2021 Ram 1500 4WD:2WD

Description
Bilstein B8 8112 0.6-2.6″ Front Lift Coilovers ZoneControl CR for 2019-2025 Ram 1500 4WD/2WD

Bilstein B8 8112 0.6-2.6″ Front Lift Coilovers ZoneControl CR for 2019, 2020, 2021, 2022, 2023, 2024, 2025 Ram 1500 4WD/2WD

Part: 41-325247 (old part number 41-242513)_41-325230 (old part number 41-242391)

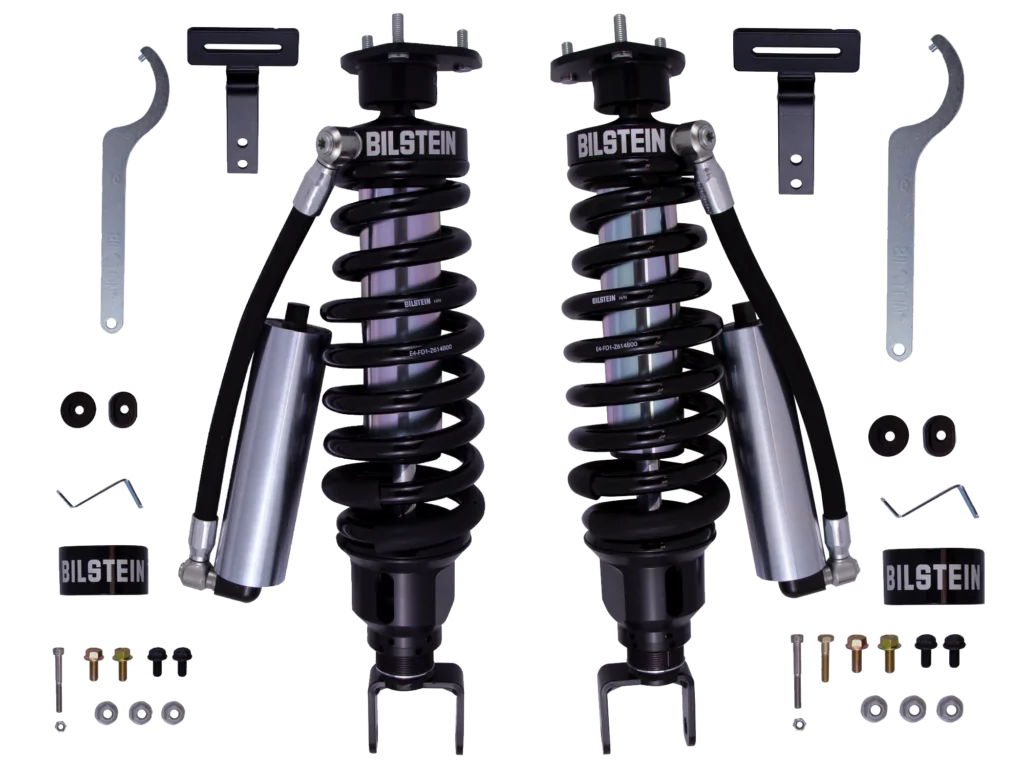

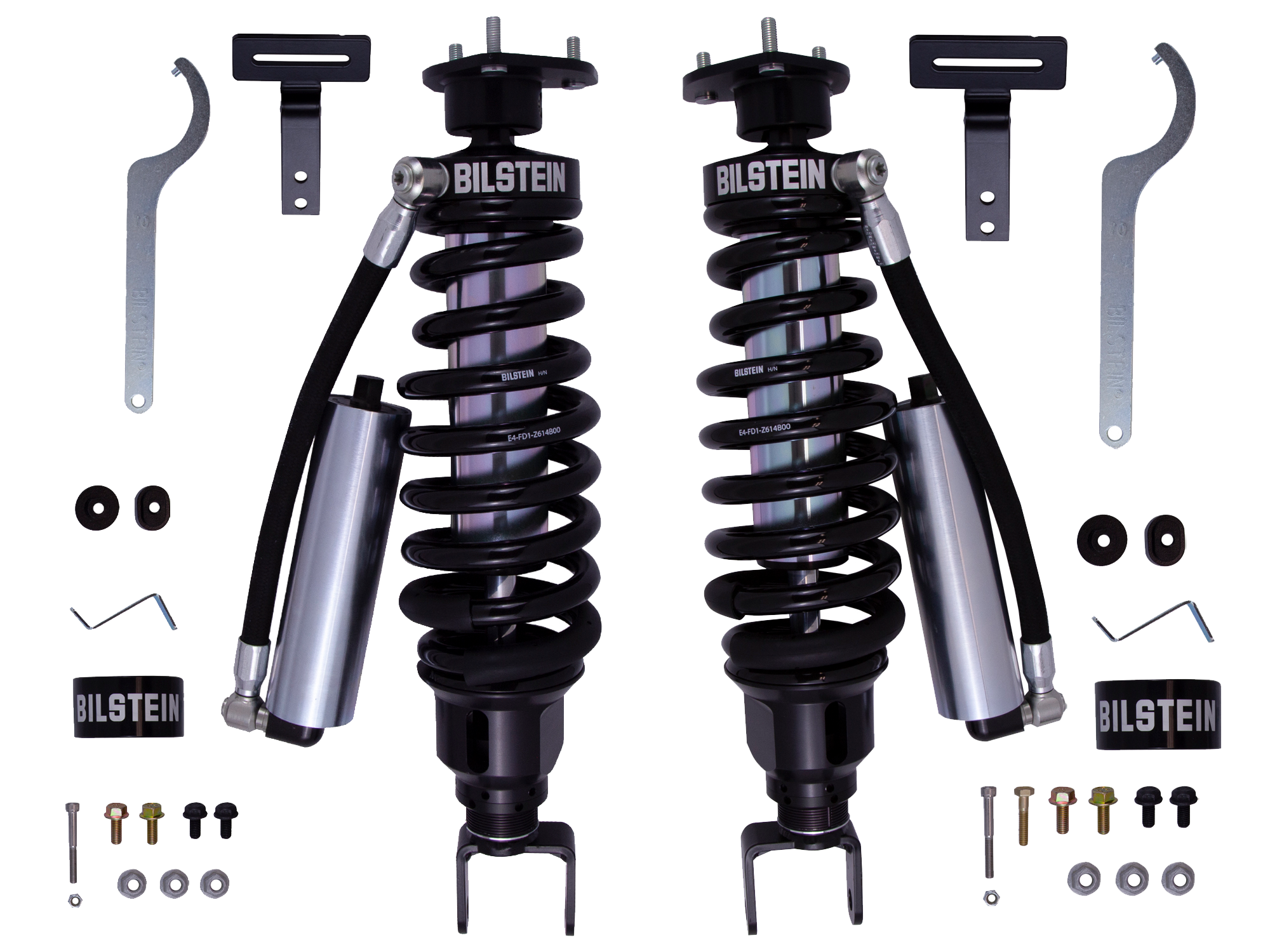

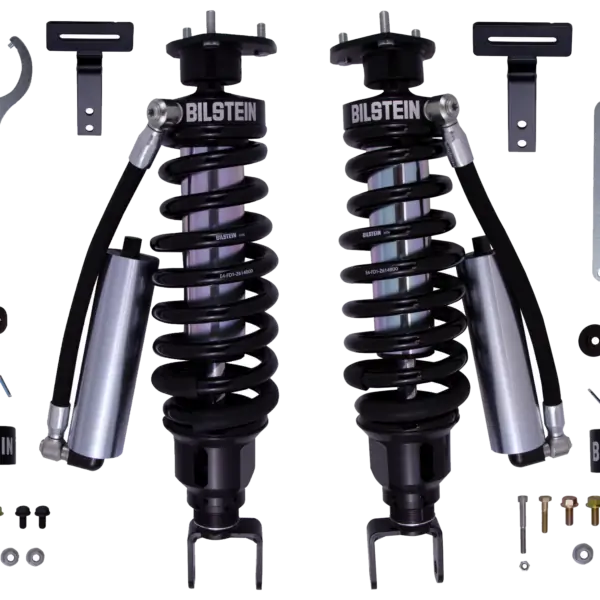

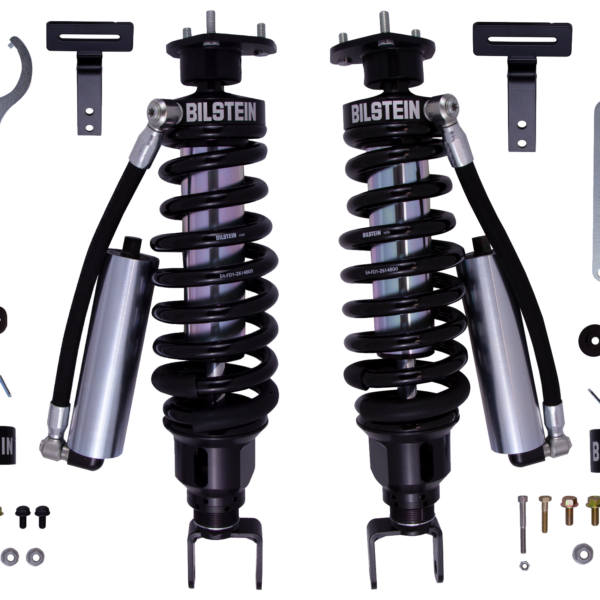

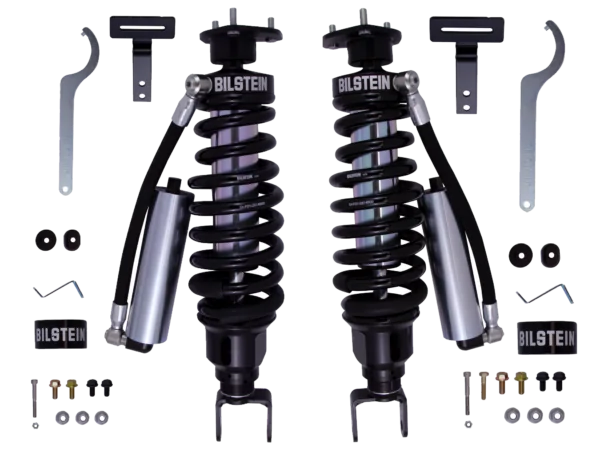

Includes: 2 Coilovers (left and right side specific) and necessary hardware

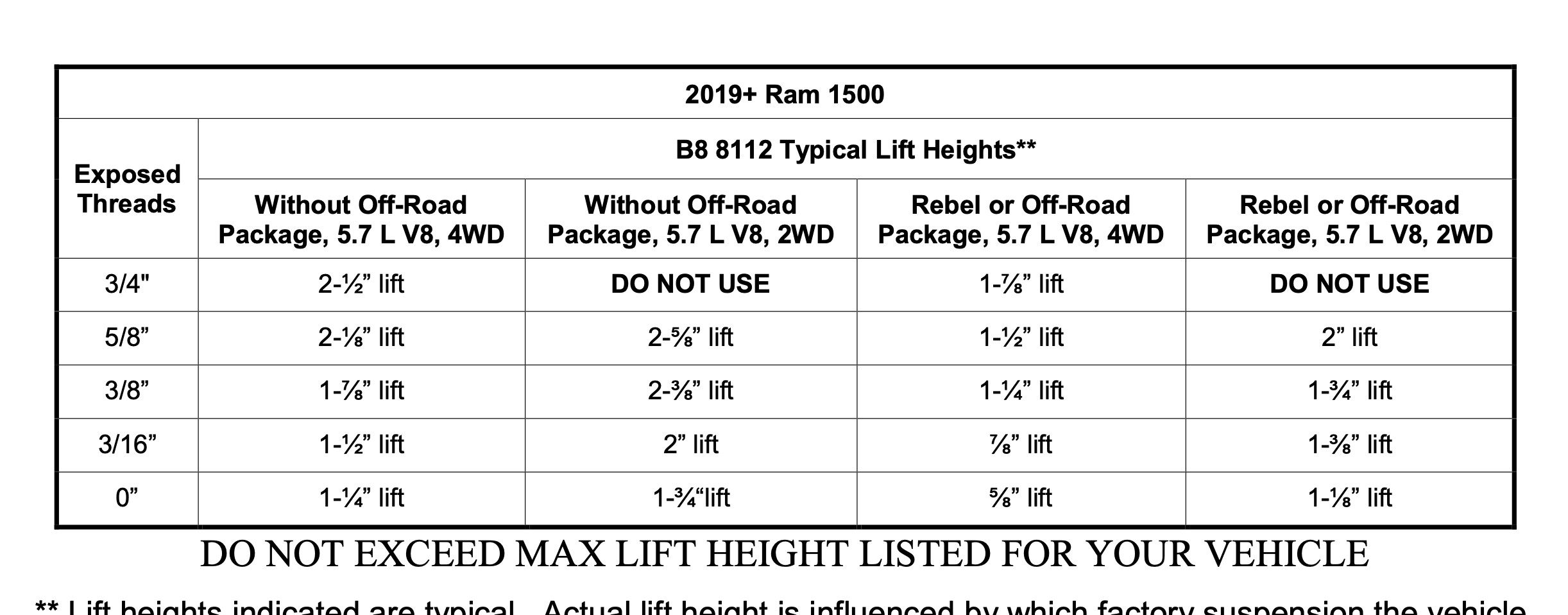

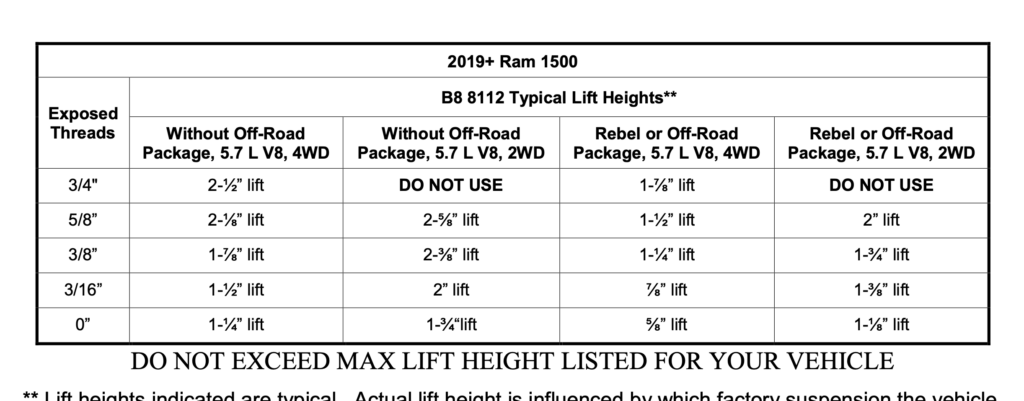

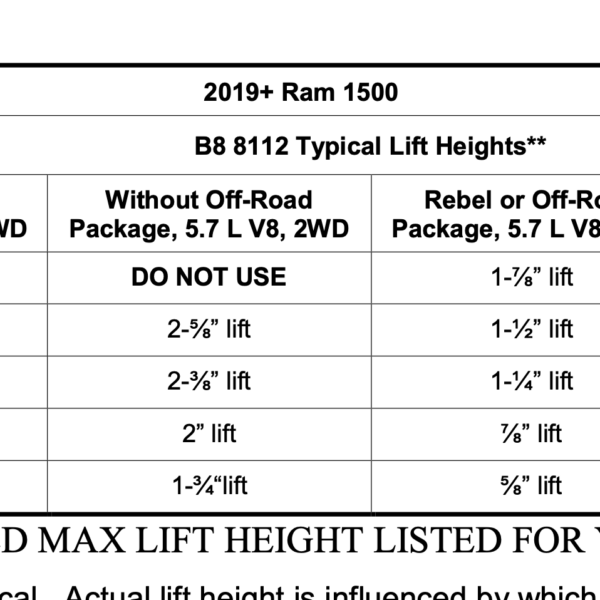

Use attached picture for lift amount reference.

Notes:

  • Ram 1500 2WD:
    Front Lift Height without factory Off-Road Package: 1.75-2.6″
    With factory Off-Road Package: 1.1-2″
  • Ram 1500 4WD
    Front Lift Height without factory Off-Road Package: 1.25-2.5″
    With factory Off-Road Package: 0.6-1.9″
  • Without Air Leveling Suspension
  • Fits models with V8 engine
  • Fits Vehicles with Front Coil

–Without Air Leveling Suspension

Product Description

Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

  • Collapsed Length (IN): 16.90
  • Extended Length (IN): 22.39
  • Collapsed Length (MM): 429.3
  • Extended Length (MM): 562.8
  • Finish: Dampers: Zinc Plated/Springs: Black
  • Reservoir: Yes
  • Body Design: Smooth Body (Coilover)
  • Body Diameter: 60mm
  • Adjustable Damping: Non-Adjustable

Customer reviews

Reviews

There are no reviews yet.

Be the first to review “Bilstein B8 8112 0.6-2.6″ Front Lift Coilovers ZoneControl CR for 2019-2025 Ram 1500 4WD/2WD”

Use one of the allowed file type: jpg,png,jpeg.

    Questions and answers of the customers

      The Bilstein B 8 8112’s are adjustable up to 2.6 inches for my 25 Ram 1500. Can these coil overs be purchased pre set at certain height like in my case 2 inches. I do see that there is a spanner wrench included so my 2nd question would be, does the spring have to be compressed to turn the nut iris it design to use the spanner wrench on the bench prior to installing? Thank you!
    1. 0 votes
      Q The Bilstein B 8 8112’s are adjustable up to 2.6 inches for my 25 Ram 1500. Can these coil overs ...... Read more
      A Before installing the B8 8112 shocks on the vehicle, check if they are set at the desired lift height. The pre-set lift height for 4WD models is approximately 2.5” with adjustment down to 1.25”. The pre-set lift height is too high for 2WD models and will need to be adjusted before installing on the vehicle.  here is the manual please  * * *  https://bilstein.blob.core.windows.net/images/Media/E-WM05-0000068_1.pdf
