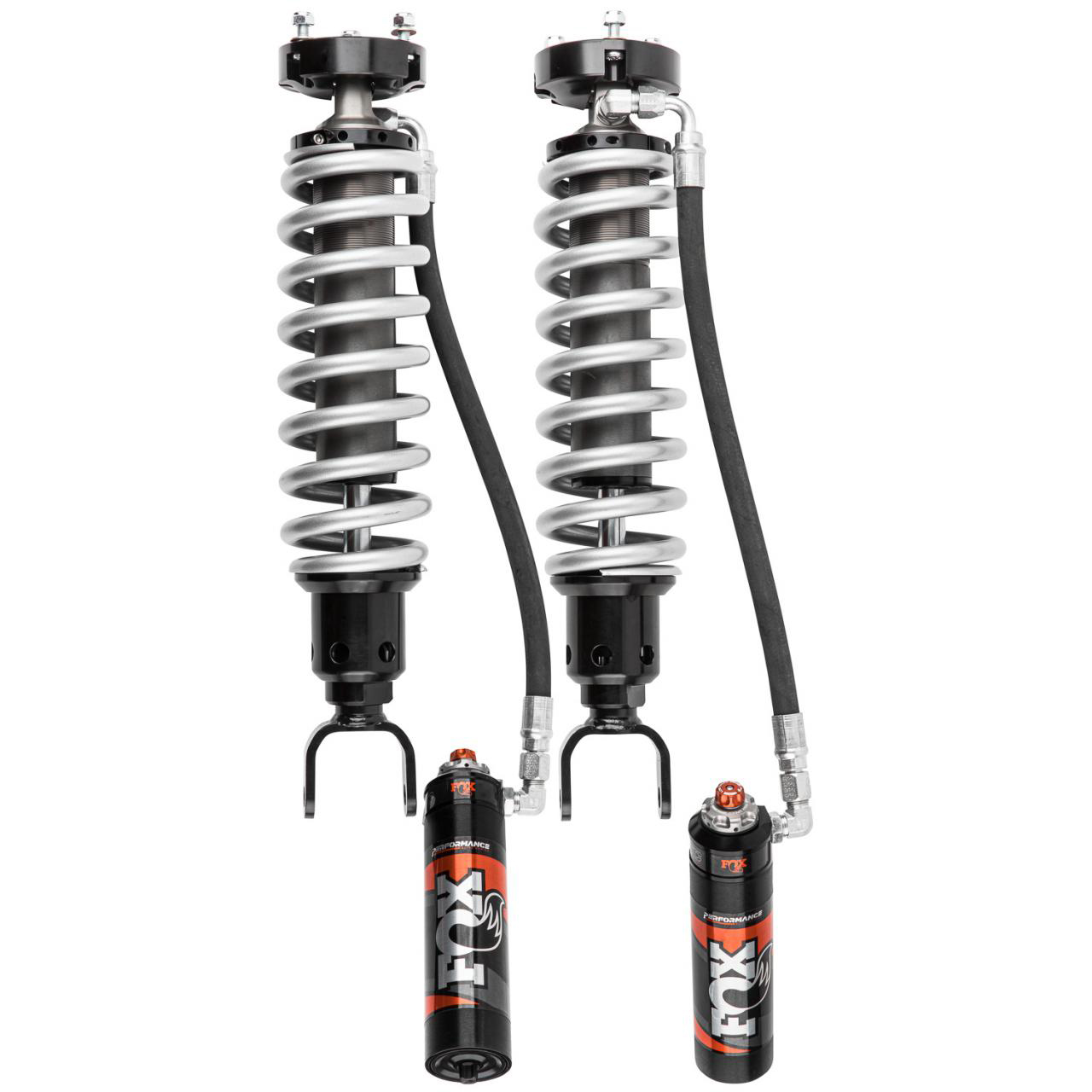

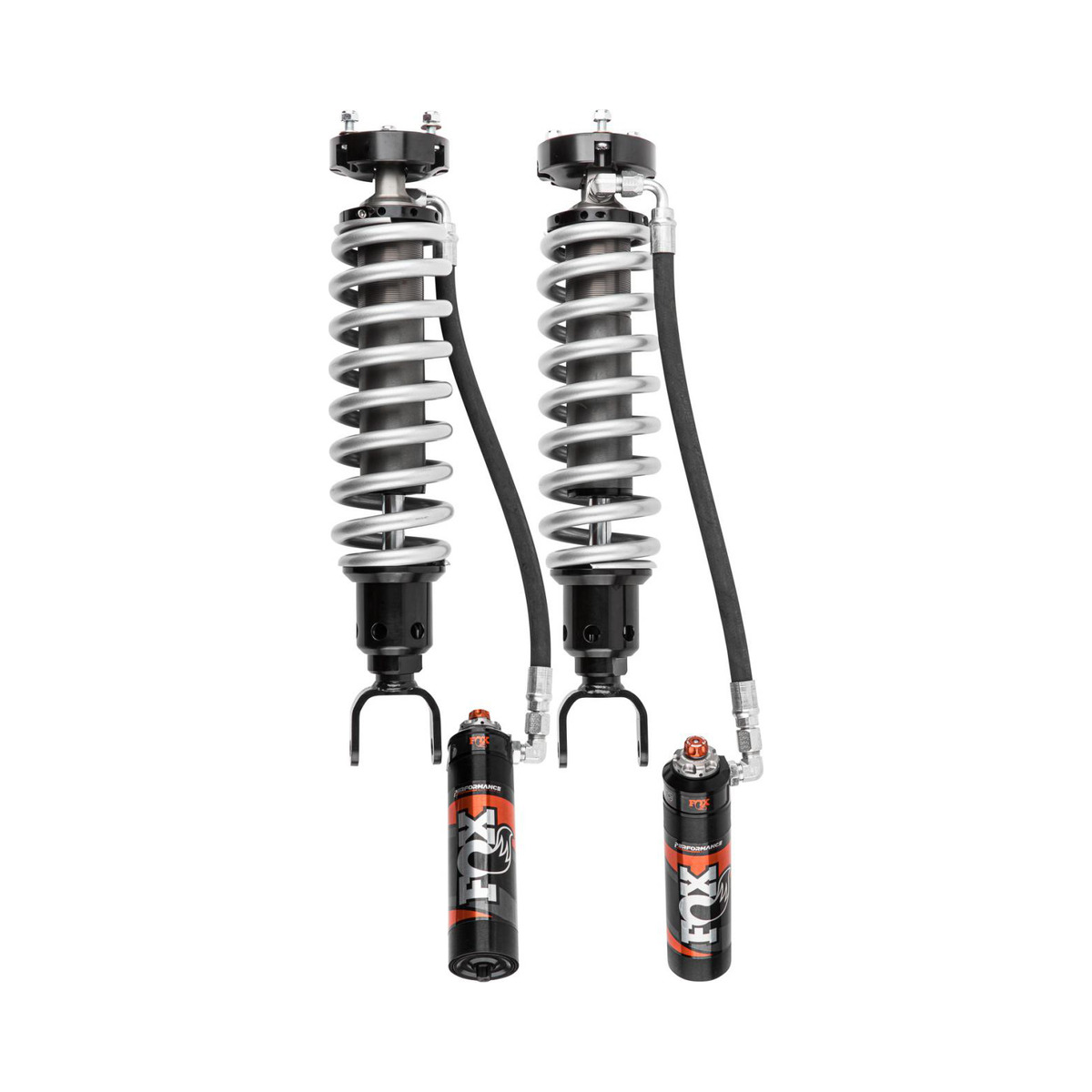

FOX Elite Series 2.5 Body 2-3″ Lift Front Coilovers with Adjusters for 2019-2026 Ram 1500

Description
FOX Elite Series 2.5 Body 2-3″ Lift Front Coilovers with Adjusters for 2019-2026 Ram 1500

FOX Elite Series 2.5 Body 2-3 inches Lift Front Coilovers with Adjusters for 2019-2026 Ram 1500

Part Number: 883-06-166

Summary: The FOX Performance Elite Series Coil-over Reservoir shocks are engineered to provide precise control and race-proven performance for the Ram 1500. Featuring Dual Speed Compression (DSC) adjusters, these coilovers allow for specific tuning to match varying terrain and load requirements. The integrated 2.5-inch smooth bore reservoir increases fluid capacity to maintain consistent damping and improved performance in challenging environments.

Features

• Dual Speed Compression (DSC): The DSC adjuster provides user-tunable compression settings to ensure versatility across different driving conditions.
• External Reservoir: 2.5 inches Smooth bore and honed seamless alloy reservoir provides increased oil capacity to ensure improved damping in any terrain.
• Adjustable Preload Ring: Integrated ride height preload ring provides the ability to adjust spring tension to ensure the vehicle is leveled right out of the box.
• Hard-Anodized Aluminum Body: 2.5 inches Impact extruded and CNC machined 6061-T6 aluminum provides rust resistance to ensure long-term durability.
• High-Flow Piston: 6061-T6 hard-anodized aluminum piston provides application-specific valving to ensure maximized performance.

Technical Specifications

Fitment

• 2019-2026 Ram 1500
• Note: Requires Upper Control Arm. Does Not Fit Air Ride Models. Configured for 2-3 inches lift.

What’s Included

• Sold Individually
• Integrated Eibach® racing springs
• External reservoirs

Why Choose This Product?

• Engineering Advantage: The use of DSC (Dual Speed Compression) technology combined with a large 2.5-inch hard-anodized aluminum body allows for high-tier heat management and precise manual tuning.
• Performance Benefit: Drivers experience improved damping and precise suspension control across varying terrains, with the ability to customize ride height and compression feel.

Frequently Asked Questions

What does the DSC adjuster do?
The Dual Speed Compression (DSC) adjuster allows for manual tuning of the shock’s compression settings to provide versatility for different driving conditions.

Can I adjust the ride height on these coilovers?
Yes, these coilovers feature an adjustable ride height preload ring designed to level the vehicle between 2 and 3 inches of lift.

Are there any specific fitment requirements for this kit?
Yes, this part requires the installation of an aftermarket Upper Control Arm and is not compatible with vehicles equipped with Air Ride suspension.
