Bilstein B8 5100 0-2.6″ Front Lift Adjustable Coilovers with Rear Shocks and Coils for 2019-2025 Ram 1500 New Body

Bilstein B8 5100 0-2.6″ Front Lift Adjustable Coilovers with Rear Shocks & Coils – 2019-2025 Ram 1500 (New Body, DT)

Part #: 19RamASBCKit

Level your fifth-gen Ram and tighten up handling with a complete, ready-to-bolt kit. Up front, height-adjustable Bilstein B8 5100 shocks are paired with genuine Mopar coils and new top mounts. Out back, matched Bilstein 5100 shocks and Bilstein B12 rear coils add about 1″ of rear lift for a composed, confident stance—on pavement and on the trail.

  • 0-2.6″ front lift range: Snap-ring grooves on the 5100 body let you dial in the exact rake and tyre clearance you want.
  • Monotube control: 46 mm digressive pistons deliver crisp turn-in, flatter cornering, and stable braking without harshness.
  • Heat-resistant damping: High-pressure nitrogen and large oil volume resist fade over washboards and long descents.
  • Aligned tuning, front to rear: Matching 5100 valving keeps the truck settled with bed cargo, campers, or weekend gear.
  • No spring compressor needed: Front coilovers arrive pre-assembled with new top mounts—bolt on, torque, align, done.
  • Built for real weather: Zinc-plated bodies and OEM-quality hardware fight corrosion and squeaks.

Looking for front-only? See our standalone front coilover set on the Ram 1500 DT category page.

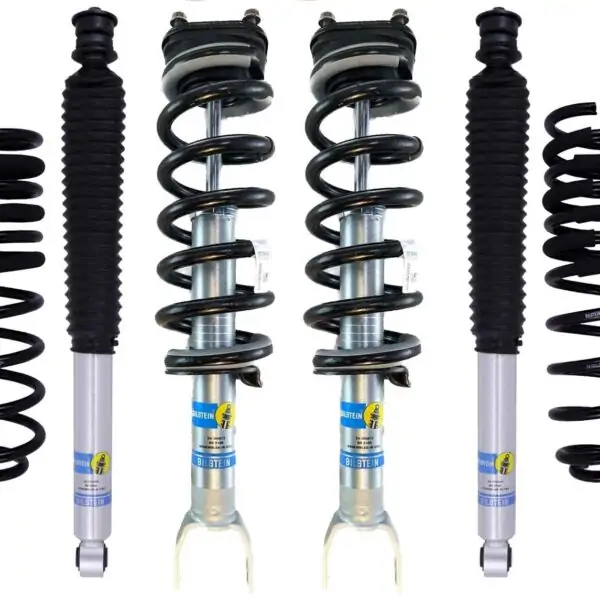

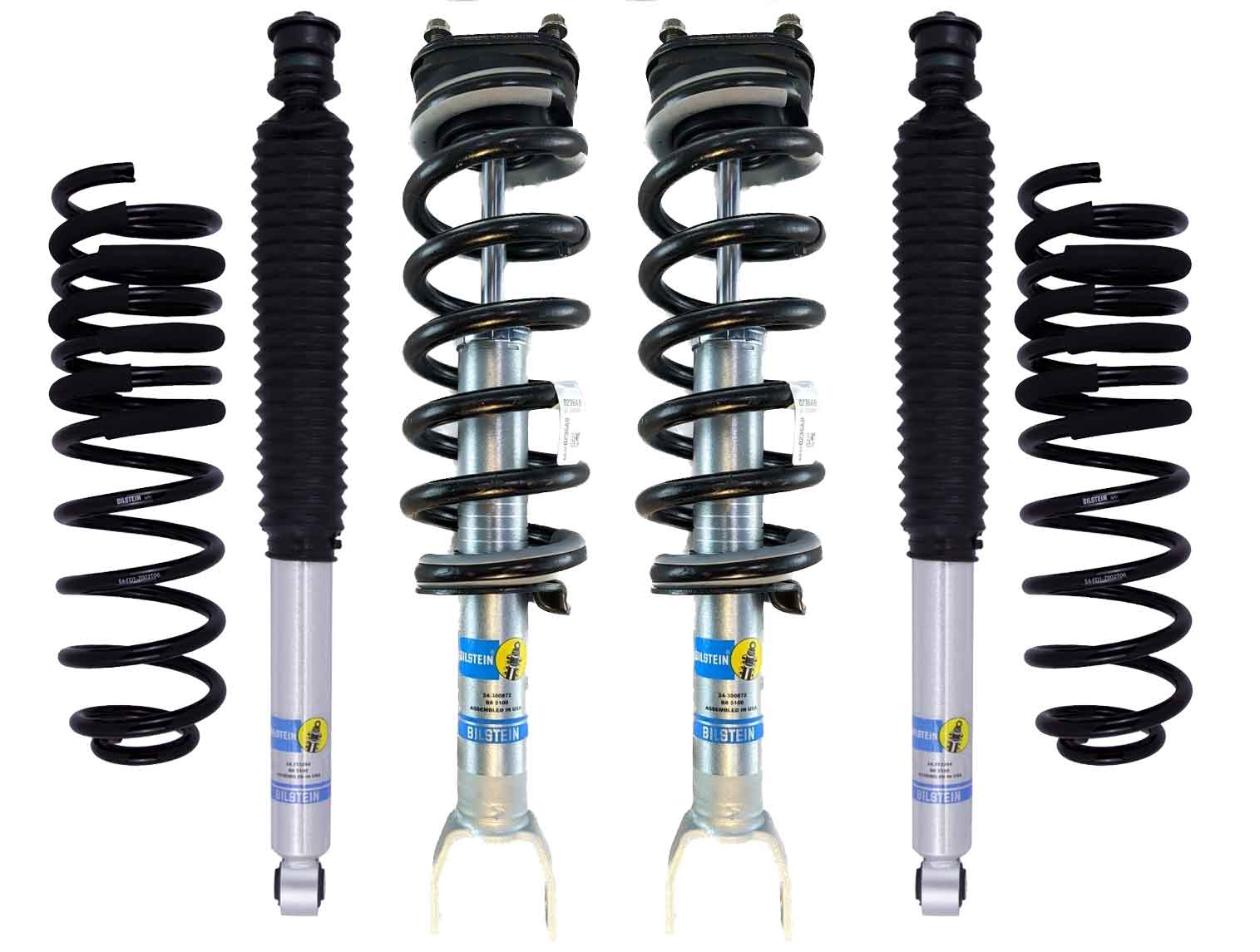

What’s Included

  • (2) Bilstein 5100 front height-adjustable shocks 24-300872 (supersedes 24-232203)
  • (2) Mopar front coils (OEM spec)
  • (2) New top mounts (OEM quality or better) with all required bushings and hardware
  • (2) Bilstein 5100 rear shocks 24-233354
  • (2) Bilstein B12 rear coils 53-297839 (≈1″ rear lift)

Cosmetic note: Mopar coils may show minor scuffs from bulk packaging. This won’t affect performance or longevity.

Fitment

  • Vehicle: Ram 1500 New Body (DT) — 2019, 2020, 2021, 2022, 2023, 2024, 2025
  • Drive: 2WD & 4WD (DT chassis)
  • Excludes: TRX, Classic (DS) body style, factory Air Suspension or load-levelling systems

Ride, Handling & Tyre Fitment

Expect a firmer, more controlled feel than stock without beating you up on broken pavement. With a typical 2-2.5″ front and ~1″ rear, many DT trucks clear up to 295/60R20 or similar with proper wheel offset and caster—trimming needs vary by wheel/tire combo.

Installation Notes

  • Alignment required after changing ride height.
  • Tighten control-arm and link bushings at ride height to prevent preload.
  • If adding a heavy front bumper/winch, choose a higher front snap-ring position or contact us for setup guidance.

FAQs

How much lift does the rear get?

The included Bilstein B12 rear coils (53-297839) add approximately 1″ of rear lift, restoring a mild rake when the front is set around 2-2.5″.

Can I choose my exact front height?

Yes. The 5100 snap-ring system provides about 0-2.6″ of front lift range. We can assemble to your requested setting.

Will this fit a Ram 1500 Classic?

No. This kit is for the DT (New Body) only. It does not fit the DS (Classic) or TRX, and is not compatible with factory air suspension.

Do I need a spring compressor?

No. Front coilovers ship pre-assembled with new top mounts.

Do I need an alignment?

Yes-always align after installing suspension components or changing ride height.

Customer reviews

Rated 5 out of 5 stars
4 reviews
5 stars 4 100 %
4 stars 0 0 %
3 stars 0 0 %
2 stars 0 0 %
1 star 0 0 %

4 reviews for Bilstein B8 5100 0-2.6″ Front Lift Adjustable Coilovers with Rear Shocks and Coils for 2019-2025 Ram 1500 New Body

Add a review

Use one of the allowed file type: jpg,png,jpeg.

    Questions and answers of the customers

      Do you need an aftermarket upper control arm for this kit on a 2023 RAM 1500 Bighorn 4x4?
    1. 0 votes
      Q Do you need an aftermarket upper control arm for this kit on a 2023 RAM 1500 Bighorn 4x4?
      A UCA's are recommended but not required, the benefit of the UCA's is to fix the caster when the vehicle is getting aligned and also helps you a lot with articulation on the front end.
      2. will this kit fit my 2024 ram 1500 big horn
    2. 0 votes
      Q will this kit fit my 2024 ram 1500 big horn
      A yes will fit if you ahve not Classic but 2019+ new body style
      3. With this Bilstein kit, if I add a 1" lift spacer to the rear, will it keep the factory rake? In theory I'm adding 2.6" of lift to the front, and 2" of lift to the rear
    3. 0 votes
      Q With this Bilstein kit, if I add a 1" lift spacer to the rear, will it keep the factory rake? In ...... Read more
      A Adding a 1" lift spacer will give close to factory rake, not exactly factory rake.
      4. Will this kit and coils handle the 2020 Ram 1500 supercrew cab EcoDiesel Bighorn Sport 4x4 with a grill guard installed on the front for more weight?
    4. 0 votes
      Q Will this kit and coils handle the 2020 Ram 1500 supercrew cab EcoDiesel Bighorn Sport 4x4 with a...... Read more
      A yes but the lift amount will be less depending on grill guard weight
      5. will this kit raise the rear up on a 2025 ram 1500 big horn 4wd ?
    5. 0 votes
      Q will this kit raise the rear up on a 2025 ram 1500 big horn 4wd ?
      A Yes This kit includes 2 Rear Bilstein B12 1″ rear lift coils 53-297839 and it will lift the rear of the truck 1″
      6. This kit is used to replace the air suspension on a 2019 Ram 1500?
    6. 0 votes
      Q This kit is used to replace the air suspension on a 2019 Ram 1500?
      A actually we haven't tried to replace air suspension with it, can ensure it works good on usual suspension
      A this compatible to remove the air suspension
      7. This will fit my 2022 ram 1500 bighorn night edition RWD no air suspension?
    7. 0 votes
      Q This will fit my 2022 ram 1500 bighorn night edition RWD no air suspension?
      A will fit if you have new body style (not Classic)
