Bilstein B8 5100 0-2.6” Front and B8 5160 0-2″ Rear Lift Shocks for 2019-2024 Ram 1500 new body style

Description
Bilstein B8 5100 0-2.6” Front and B8 5160 0-2″ Rear Lift Shocks for 2019-2024 Ram 1500 new body style

Bilstein B8 5100 0-2.6” Front and B8 5160 0-2″ Rear Lift Shocks for 2019, 2020, 2021, 2022, 2023, 2024, 2024 Ram 1500 new body style

Part: 24-300872 (old: 24-232203)_25-325102_25-316919

Need a kit with assembled coilovers?

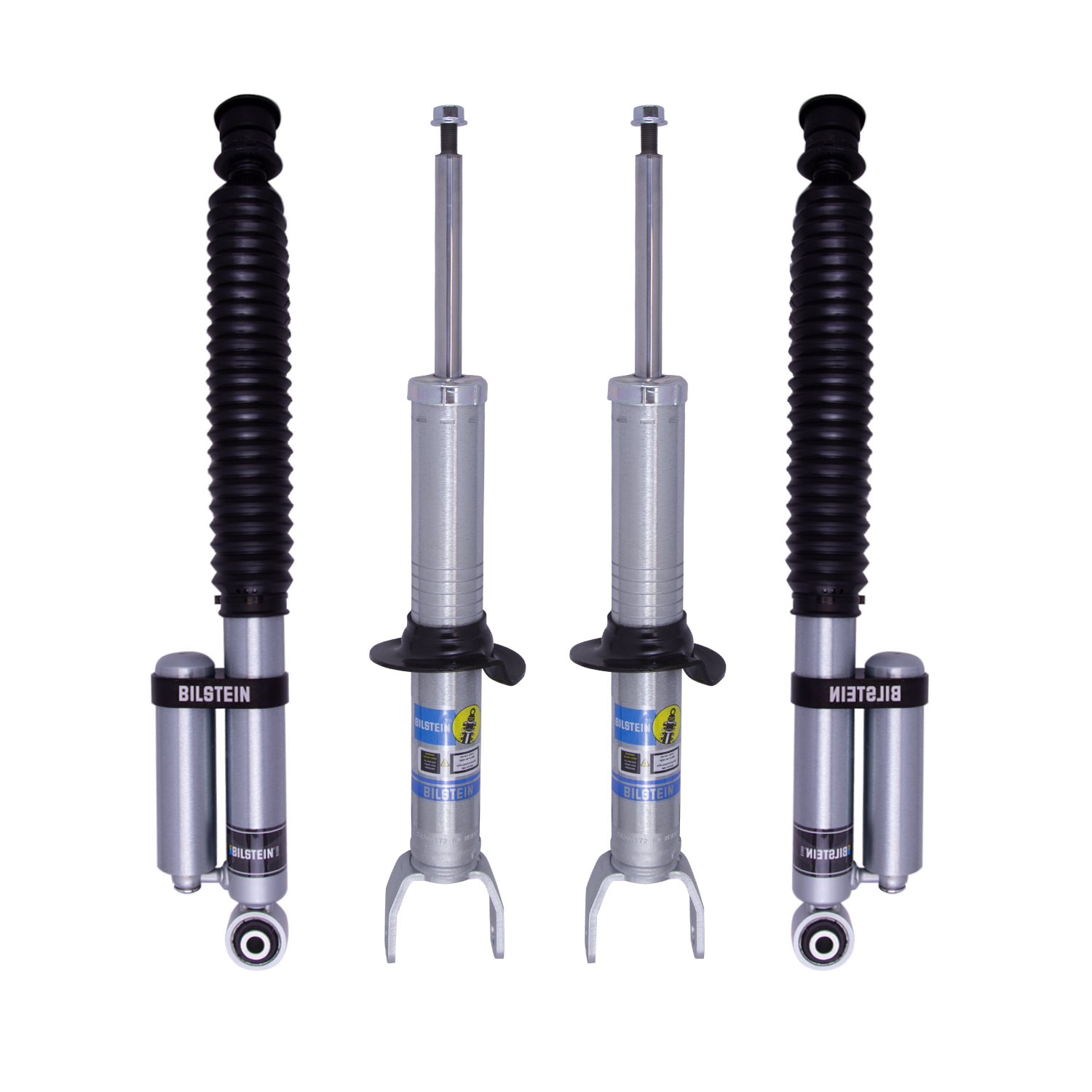

Includes: 2 front shocks and 2 rear shocks

Front Shocks:

Notes:

• Provides 0-2.6″ Front Lift without factory Off-Road Package
• Provides 0-2″ Front Lift with factory Off-Road Package
• Without Air Leveling Suspension

Collapsed Length (in) :16.00

Extended Length (in) :22.08

Collapsed Length (mm) :406.5

Extended Length (mm) :560.9

Finish :Zinc Plated

Reservoir :No

Body Design :Snap Ring Grooved Body (Coilover)

Body Diameter (id) :46mm

Replacement Mounting Kit :B4-KT1-Z417A00

Spring Seat Included :Yes

Adjustable Damping :Non-Adjustable

Rear Shocks:

Notes:

• Fits Trucks without factory Off-Road Package and with 0-2″ Rear Lift
• Fits Trucks with factory Off-Road Package and with 0-1″ Rear Lift
• Without Air Suspension

Collapsed Length (in) :15.69

Extended Length (in) :25.75

Collapsed Length (mm) :398.5

Extended Length (mm) :654.0

Finish :Zinc Plated

Reservoir :Yes

Body Design :Smooth Body (Non-Coilover)

Body Diameter (id) :46mm

Replacement Mounting Kit :B4-KT1-Z223A01

Spring Seat Included :No

Billet Reservoir Clamp Included :Yes

Adjustable Damping : Non-Adjustable
