Bilstein 6112 0.6-2.6″ Front Lift Assembled Coilovers 0-2″ Rear 5160 Shocks for 2019-2024 Ram 1500 2WD/4WD

SKU: 6112Ram19ASB
5 out of 5 based on 3 customer ratings
(3 customer reviews)
Sale!

Description
Bilstein 6112 0.6-2.6″ Front Lift Assembled Coilovers 0-2″ Rear 5160 Shocks for 2019-2024 Ram 1500 2WD/4WD

Bilstein 6112 0.6-2.6″ Front Lift Coilovers 0-2″ Rear 5160 Shocks for 2019, 2020, 2022, 2023 Ram 1500 2WD/4WD

Part:  6112Ram19ASB (47-293540, 25-325102, 25-316919 with top mounts)

Need a kit with rear coils?

Front Coilovers Description

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV

  • Finish: Dampers: Zinc Plated/Springs: Black
  • Reservoir: No
  • Aftermarket Upper Arms Required: No
  • Body Design: Snap Ring Grooved Body (Coilover)
  • Body Diameter: 60mm
Assembled with new top mounts, bushings, hardware.

Important fitment notes for coilovers:

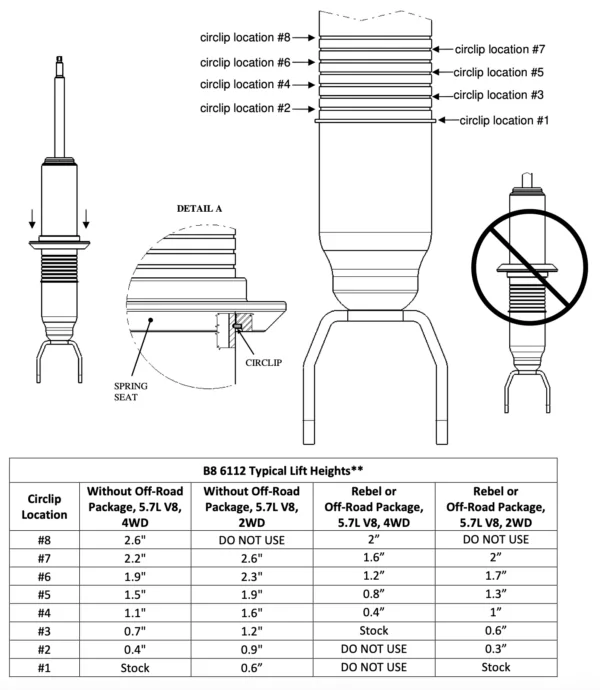

-Front Lift Height: 0.6-2.6″ including factory Off-Road Package

-Without Air Suspension

Rear Shocks:

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

Important fitment notes for rear shocks:

-For Rear Lifted Height: 0-2″ without factory Off-Road Group

-For Rear Lifted Height: 0-1″ with factory Off-Road Group

-Without Air Suspension

Rear Right Specs:
  • Collapsed Length (IN): 15.69
  • Extended Length (IN): 25.75
  • Collapsed Length (MM): 398.5
  • Extended Length (MM): 654
  • Finish: Zinc Plated
  • Reservoir: Yes
  • Body Design: Smooth Body (Non-Coilover)
  • Body Diameter: 46mm
  • Replacement Mounting Kit: B4-KT1-Z223A01
Rear Left Specs:
  • Collapsed Length (IN): 15.69
  • Extended Length (IN): 25.75
  • Collapsed Length (MM): 398.5
  • Extended Length (MM): 654
  • Finish: Zinc Plated
  • Reservoir: Yes
  • Body Design: Smooth Body (Non-Coilover)
  • Body Diameter: 46mm
  • Replacement Mounting Kit: B4-KT1-Z223A01
