Synergy Adjustable Control Arm Kit 0-4.5″ Front Lift for 1994-2013 Dodge Ram 1500/2500/3500

The Synergy 2003-2013 Dodge Ram 1500 / 2500 / 3500 Front Lower Control Long Arms are a critical component of any level of lift, allowing you to adjust the axle placement and caster on your truck – improving steering stability and performance. Delivering the perfect balance of adjustability, strength, and refinement for lifted and oversized-tire setups and equipped with Synergy’s innovative Double Adjuster Assembly, you can fine-tune arm length and caster angle without removing the arms from the vehicle. Maintenance-Free Dual Durometer Bushings (DDB) at both ends provide the ideal blend of articulation and isolation, ensuring a quiet, smooth ride with exceptional flex and durability.
Complete the kit: Pair these lower control arms with our Front Upper Long Arms part number 8553-01 for unmatched ride quality and off-road performance!
Fitment:
Part # Fitment
8531-02 1994 – 2001 Dodge Ram 1500 4×4
2006 – 2008 Dodge Ram 1500 Megacab 4×4
2000 – 2009 Dodge Ram 2500 / 3500 4×4
8531-03 2010 – 2013 Dodge Ram 2500 / 3500
Warning: 2013 Dodge Ram 3500’s were a split year for production. If your truck has radius arms use Dodge Ram 2014+ pages
1994 – 1999 year models require 9/16″ hole to be drilled in mount
Benefits:
Heavy duty 1.75″ x 0.188 wall USA made DOM tubing offers improved strength over stock
Reduces and optimizes the operating angle for the control arms which produces a smoother, more stable ride
Improves approach and departure angles for negotiating obstacles
Maintenance free Synergy Dual Durometer Bushings isolates noise and vibrations to provide a quiet, smooth ride
Fully adjustable without removing from the vehicle with our Synergy Double Adjuster Sleeve and Pinch Bolt Assembly
Maximizes ground clearance while maintaining compatibility with OEM wheels and larger tires – no spacers required
Features:
Made from high quality crush resistant USA made 1.75″ X 0.188 Wall 1026 DOM tubing
Two stage abrasion-resistant powder coat finish for maximum durability and corrosion resistance
Synergy Double Adjuster Sleeve & Pinch Bolt Assembly: allows for adjustment of control arm length without removing control arm mounting bolt
Features Synergy Dual Durometer Bushings (DDB) with Teflon® bearing surface for a maintenance free design focusing on performance, flex, longevity, and ride quality
100% bolt on components assures an easy, trouble free installation with the use of basic hand tools
Min/Max Length:
Measured in a straight line from center of bolt hole to center of bolt hole
Maximum extended length: 20.125″
Minimum collapsed length: 18.375″
Includes:
(1) Pair Heavy Duty Synergy Long Arms
(1) Pinch Bolt Hardware Kit
Notes:
Engineered to fit trucks with 0″ – 3.5″ of lift height
This part is a component in the Synergy Adjustable Control Arm Upgrade Kit part numbers 8531-02 and 8531-03 and is designed to be used in conjunction with Synergy Front Upper Control Arms part number 8553-01
Replacement Parts:
Frame Side Forged Rod End with Dual Durometer Bushing (DDB): 4800-01
Dual Durometer Bushings (DDBs): 4320-01
Synergy Cam Bolt Eliminators recommended for increased strength and extended bushing life
2006 – 2008 Dodge Ram 1500 – part number 8565-02
2003-2013 Dodge Ram 2500 / 3500 – part number 8565-03
Additional bushing sleeves are included for 2010 – 2013 models with larger bolt diameters
Important: 1994 – 1999 rams require the mounts to be drilled to 9/16″ with one of the following two options for replacement hardware:
OEM replacement bolts: 2000+ stock upper control arm mounting hardware
Standard hardware replacement bolts: 9/16″ x 6″ grade 8 bolts or M14 x 150mm grade 10.9 bolts
Sold as a pair
8551-04 supersedes old part numbers: 8551-01, 8551-02, and 8551-03
Installation Instructions

BREAKBREAKBREAKBREAKBREAKBREAKBREAK

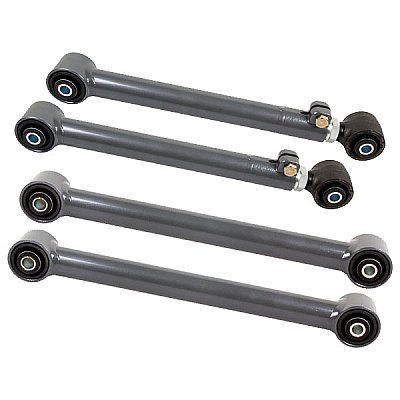

These control arm kits are designed for correcting caster and pinion angle on Dodge trucks that have been leveled or lifted. Kits include extended, fixed length, lower control arms or adjustable lower control arms, adjustable upper control arms, and stepped cam bolt eliminators designed exclusively for our Dual Durometer Bushings (DDB). Fixed length lower control arms are recommended for use with common leveling kits, while adjustable lower control arms are recommended for 3+” of lift or custom applications. Stepped cam bolt eliminators are included to eliminate the factory cam bolts and move all caster adjustability to the control arms.
Fitments:
Part # Application Description
8531-02
*1994-1999 1500 4×4 2500 / 3500
2000-2001 1500 4×4
2000-2009 2500/3500
2006-2008 1500 Megacab 4WD
Control Arm Kit with all Adjustable Arms
8531-03
2010-2013 2500
2010-2012 3500
Control Arm Kit with all Adjustable Arms
Note: *1994-1999 1500 4×4 2500 / 3500 *Requires 9/16” hole to be drilled in mount
Benefits:
Control arms are designed and manufactured to maximize ground clearance
Allows the use of OEM wheels with larger tires without the requirement of an additional wheel spacer
Corrects castor and pinion angle on lifted trucks
Features:
Lower control arms made from high quality crush resistant 1.75″ X .188 Wall 1026 DOM tubing
Upper control arms made from high quality crush resistant 1.50″ X .156 Wall 1026 DOM tubing
Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance
Synergy Double Adjuster Sleeve & Pinch Bolt Assembly: allows for adjustment of control arm length without removing control arm mounting bolt
Feature Synergy Dual Durometer Bushings (DDB) with Teflon® bearing surface for a maintenance free design focusing on performance, flex, longevity, and ride quality.

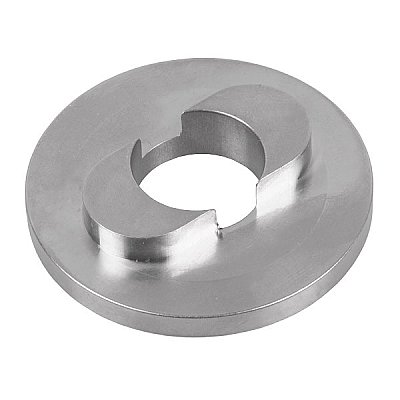

Stepped Cam Bolt Eliminators eliminate factory cam bolts allowing for even torque, increasing strength and extending bushing life
100% bolt on components assures an easy, trouble free installation with the use of basic hand tools
Includes:
8531-02
1994-2009 Dodge Ram Control Arm Kit
8531-03
2010-2013 Dodge Ram Control Arm Kit

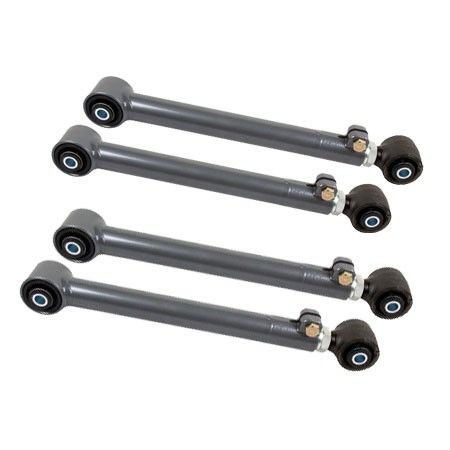

(1) 8551-04 – Adjustable Lower Control Arms
(1) 8553-01 – Adjustable Upper Control Arms
(1) 8565-02 – Stepped Cam Bolt Eliminators

(1) 8551-04 – Adjustable Lower Control Arms
(1) 8553-01 – Adjustable Upper Control Arms
(1) 8565-03 – Stepped Cam Bolt Eliminators
