Synergy Front Adjustable Track Bar 0-6″ Lift for 1994-2013 Dodge Ram 1500/2500/3500

Name: Synergy Front Adjustable Track Bar 0-6" Lift for 1994-2013 Dodge Ram 1500/2500/3500
Brand: Synergy
SKU: syn8550-11
Availability: InStock

SKU: syn8550-11

Synergy Front Adjustable Track Bar 0-6" Lift for 1994-2013 Dodge Ram 1500/2500/3500 - Nov-50

Description
Synergy Front Adjustable Track Bar 0-6″ Lift for 1994-2013 Dodge Ram 1500/2500/3500

Synergy Front Adjustable Track Bar 0-6″ Lift for 1994-2013 Dodge Ram 1500/2500/3500

The Synergy 1994-2013 Dodge Ram 1500 / 2500 / 3500 Adjustable Track Bar is a critical component to correcting axle placement and achieving ideal suspension geometry after installing a suspension lift. Manufactured from 1.50″ USA made DOM steel, this track bar significantly improves lateral stiffness and strength over stock to hold up to the abuse of large tires and aggressive offroad driving. This track bar can be adjusted 0.25″ shorter than stock to account for truck pulling, and race applications where the truck may be lowered up to 3″ from stock .

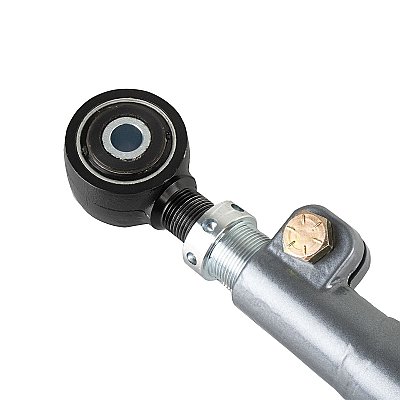

Equipped with the Synergy Double Adjuster Sleeve and Pinch Bolt Assembly on one end, you don’t even need to remove this track bar from the vehicle to make adjustments! We even topped it off with our maintenance free Dual Durometer Bushings to prevent any unnecessary noise or vibrations and provide unmatched ride quality. We recommend pairing this track bar with the Synergy 2003 – 2013 Ram Heavy Duty Steering Kit for optimal performance.

Fitment:

Part #	Fitment
8550-11	1994 – 2002 Dodge Ram 1500 / 2500 / 3500 with use of Synergy 3rd Gen Track Bar Conversion Bracket Front for 1994-2002 Dodge Ram 1500/2500/3500 2006 – 2008 Dodge Ram 1500 Megacab 4×4 2003 – 2013 Dodge Ram 2500 4×4 2003 – 2013.5 Dodge Ram 3500 4×4

Warning: 2013 Dodge Ram 3500’s were a split year for production. If your truck has radius arms, use part number 8704-11

Benefits:

Heavy duty 1.50″ x 0.250 wall USA made DOM offers improved strength over stock and provides a stronger connection to the road, preventing unwanted vehicle wandering and unnecessary axle movement
Centers the axle after installing a suspension lift to ensure proper suspension geometry, smooth handling, and consistent tire wear

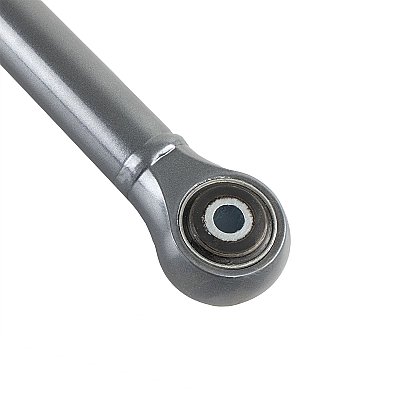

Maintenance free Synergy Dual Durometer Bushings isolate noise and vibrations to provide a quiet, smooth ride
Fully adjustable without removing from the vehicle with our Synergy Replacement Double Adjuster Sleeve 1.25-12 Threads for 2007-2018 Jeep Wrangler JK and Pinch Bolt Assembly
Offset forged rod end engineered for maximum clearance during articulation
No jam nuts that are impossible to keep tight
Compatible with stock steering components, wheels and tires
Bolts right to factory mounting locations with no modification necessary

Features:

Engineered and precision bent from USA made 1.50″ x 0.250 wall DOM tubing for maximum strength
Two stage abrasion resistant powder coat finish for maximum durability and corrosion resistance
Retains factory mounting locations and mounting hardware
Synergy Dual Durometer Bushings with Teflon Bearing surface for a maintenance free design focusing on performance, articulation, longevity, and ride quality
Synergy Replacement Double Adjuster Sleeve 1.25-12 Threads for 2007-2018 Jeep Wrangler JK and Pinch Bolt Assembly eliminates jam nuts and allows for easy adjustability
100% bolt-in components assures and easy, trouble free installation with the use of basic hand tools

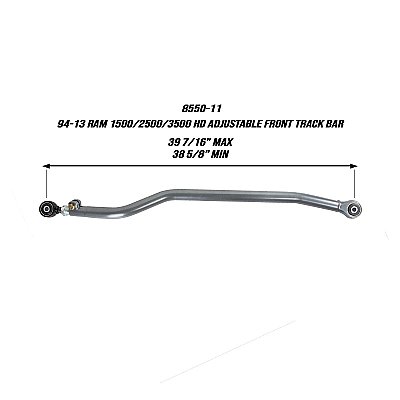

Min/Max Length:
Measured in straight line from center of bolt hole to center of bolt hole

Min collapsed length: 38.625″
Max extended length: 39.438″

Includes:

(1) Synergy Dodge Front Track Bar
(1) Grade 8 Hardware Kit
(1) Synergy Double Adjuster Sleeve

Notes:

8550-11 Replacement Parts (Bars Built after 1/1/2021)
- 4327-03 Replacement Bushing – 2003 – 2008.5 model years
- 4327-04 Replacement Bushing – 2008.5 – 2013 model years
- Synergy Dual Durometer Control Arm Bushings in Forged Housings for 2018+ Jeep Wrangler JL/2020+ Gladiator JT Replacement Threaded Housing and Bushing Assembly
8550-01 Replacement Parts (Bars built 5/19/2015 – 1/1/2021)
- 4324-01
- 4324-02
For use on 1994 – 2002 Ram 1500 / 2500 / 3500 trucks, conversion bracket Synergy 3rd Gen Track Bar Conversion Bracket Front for 1994-2002 Dodge Ram 1500/2500/3500 is required
