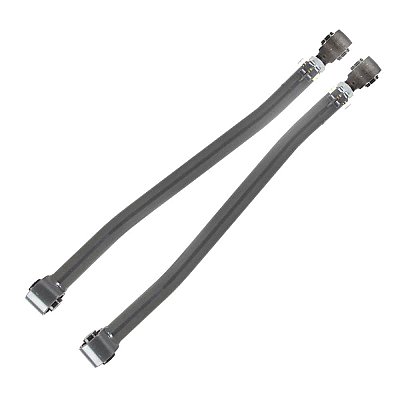

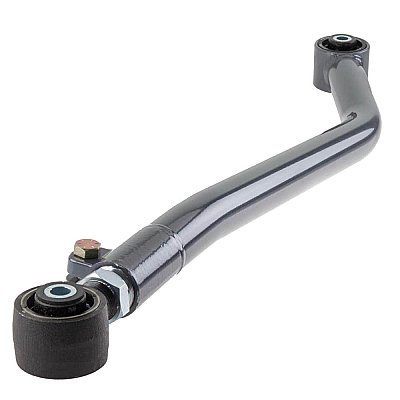

Synergy Front Upper Control Long Arms for 2003-2013 Dodge Ram 1500/2500/3500

Benefits:

• Heavy duty 1.75″ x 0.188 wall USA made DOM tubing offers improved strength over stock
• Increases wheel travel for improved traction and suspension performance off-road
• Reduces and optimizes the operating angle for the control arms which produces a smoother, more stable ride
• Improves approach and departure angles for negotiating obstacles
• Maintenance free Synergy Dual Durometer Bushings isolates noise and vibrations to provide a quiet, smooth ride
• Fully adjustable without removing from the vehicle with our Synergy Double Adjuster Sleeve and Pinch Bolt Assembly
• Maximizes ground clearance while maintaining compatibility with OEM wheels and larger tires – no spacers required

Features:

• Made from high quality crush resistant USA made 1.75″ x 0.188 Wall 1026 DOM tubing
• Two stage abrasion-resistant powder coat finish for maximum durability and corrosion resistance
• SynergyDouble Adjuster Sleeve & Pinch Bolt Assembly: allows for adjustment of control arm length without removing control arm mounting bolt
• Features Synergy Dual Durometer Bushings (DDB) with Teflon® bearing surface for a maintenance free design focusing on performance, flex, longevity, and ride quality
• 100% bolt on components assures an easy, trouble free installation with the use of basic hand tools

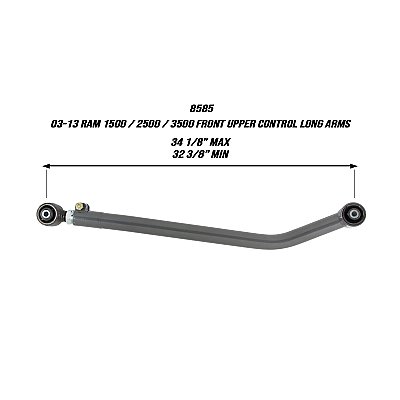

Min/Max Lengths:
Measured in a straight line from center of bolt hole to center of bolt hole

• Max extended length: 34.125″
• Min collapsed length: 32.375″

Includes:

(1) Pair Heavy Duty Adjustable Upper Control Long Arms
(1) Pinch Bolt Hardware Kit

Notes:

• Engineered to fit trucks with 0″ – 6″ of lift height

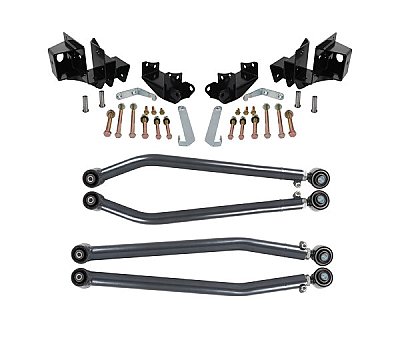

• This part is a component in the Synergy Long Arm Upgrade Kit Synergy Front Long Arm Upgrade Kit 3-6" Lift for 2003-2013 Dodge Ram 1500/2500/3500 and is designed to be used in conjunction with Synergy Dodge Long Arm Brackets Synergy Front Long Arm Bracket Kit for 2003-2013 Dodge Ram 1500/2500/3500 and Synergy Front Upper Long Arms Synergy Front Lower Long Control Arms for 2003-2013 Dodge Ram 1500/2500/3500
• Replacement Parts:
  • Frame Side Forged Rod End with Dual Durometer Bushing (DDB): Synergy Dual Durometer Control Arm Bushings in Forged Housings for 2018+ Jeep Wrangler JL/2020+ Gladiator JT
  • Dual Durometer Bushings (DDBs): 4322-01 (axle side in forged end), 4320-01 (frame side)
• Sold as a pair
• Part numbers 8583-02 and 8583-03 have been superseded by Synergy Front Long Arm Upgrade Kit 3-6" Lift for 2003-2013 Dodge Ram 1500/2500/3500
