Synergy Heavy Duty Front Sway Bar Links 0-3″ Lift for 1998.5-2013 Dodge Ram 1500/2500/3500

Description
Synergy Heavy Duty Front Sway Bar Links 0-3″ Lift for 1998.5-2013 Dodge Ram 1500/2500/3500

Synergy Heavy Duty Sway Bar Links 0-3 Lift

Part: 8515-11

Factory sway bar links restrict suspension articulation and contribute to body roll on Ram 1500, 2500, and 3500 platforms. These Synergy Heavy Duty Sway Bar Links use spherical bushings and a sealed tie rod end to create a direct, play free connection between the axle and sway bar. The design supports up to 30 degrees of bind free misalignment, allowing full articulation without loading the sway bar. Built from 1020 CR solid steel and zinc plated, they provide high structural strength and corrosion resistance for daily use and off-road abuse.

Features

• 1020 CR Solid Construction: Resists bending and deflection under load.
• Spherical Bushing: Provides 30 degrees of bind free articulation.
• Sealed Tie Rod End: Direct linkage improves sway control and handling.
• Stem Top Adapter: Eliminates failure-prone factory pancake bushing.
• Zinc Plated Finish: Enhanced corrosion protection.
• Bolt On Installation: Installs using basic hand tools.

Specifications

• Lift Range: 0 to 3 inches
• Minimum Collapsed Length: 7 1/2 inches
• Maximum Extended Length: 8 1/2 inches
• Material: 1020 CR solid steel
• Misalignment Capability: 30 degrees
• Finish: Clear zinc plated

Fitment

• 2006-2008 Dodge Ram 1500 Mega-cab 4×4
• 1998.5-2013 Dodge Ram 2500 4×4
• 1998.5-2013.5 Dodge Ram 3500 4×4

Installation Notes

• Model year 1998.5-2002 trucks require the Synergy Heavy Duty Steering Kit for clearance:
  8525-02 for 2000-2002
  and
  8525-03 for 1994-1999.
• To run part 8515-11 on a 1998-2002 Ram, the Synergy spacer kit is required:
  4006-01 spacer kit.
• Model year 2003-2009 trucks may have passenger side clearance issues if equipped with factory Y-link steering.
• Some early models may require minor drilling at the axle mount.
• 2013 Ram 3500 is a split production year. Radius arm trucks must use 2014+ sway bar links.

Installation Instructions (PDF)

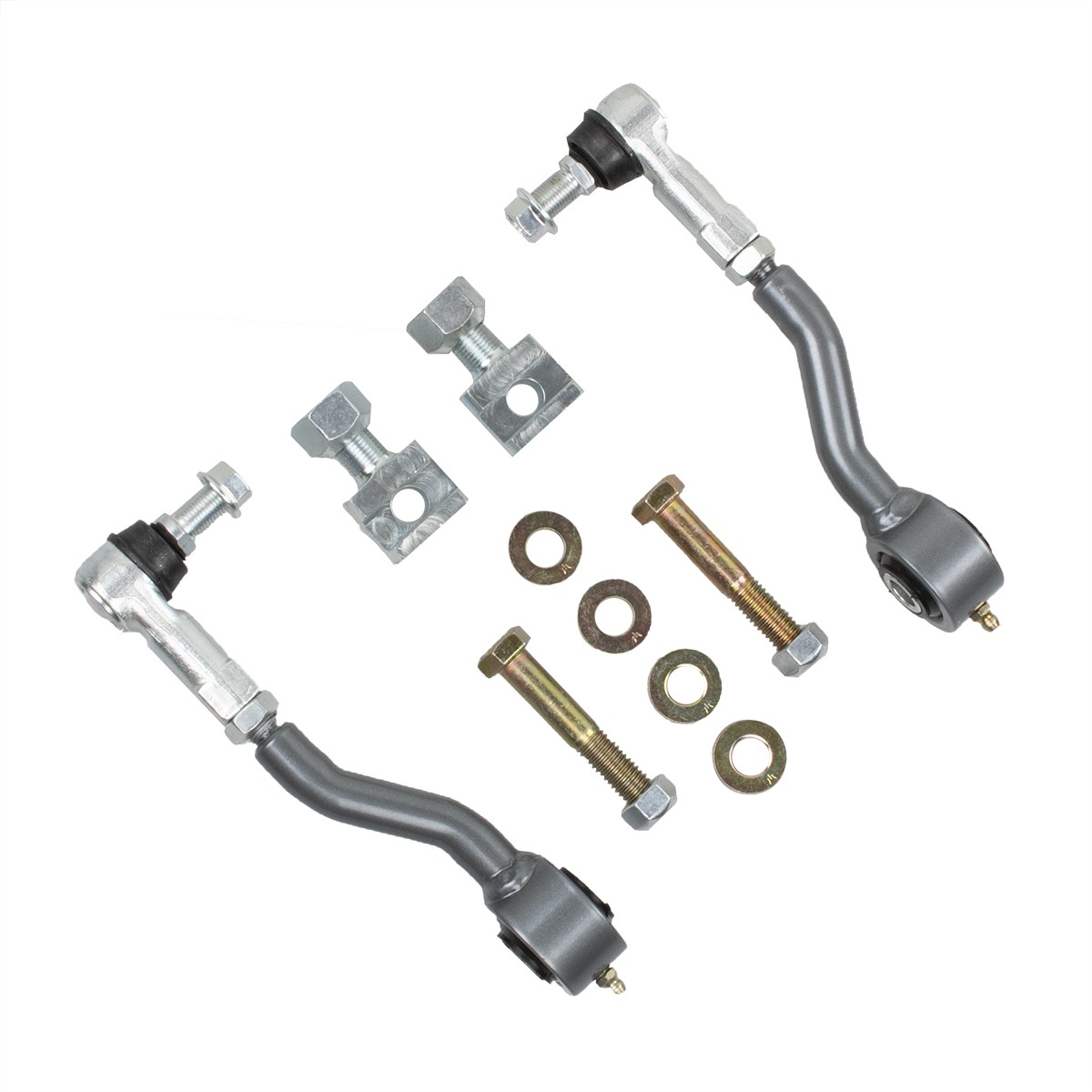

What’s Included

• (2) 8515 sway bar links
• (2) Sway bar link ends (sealed tie rod ends)
• (2) 851501 stem top sway bar link adapters

Why Choose This Product?

• Engineering Advantage: Spherical articulating joints preserve suspension travel while stabilizing the chassis.
• Performance Benefit: Reduces body roll and improves steering control without binding the sway bar during articulation.

Frequently Asked Questions

Will these work with 0-3 inch lift?
Yes. They are engineered specifically for 0 to 3 inches of lift.

Do they replace the factory pancake bushings?
Yes. The stem adapter eliminates that failure point completely.

Can these be used on trucks with factory Y-link steering?
Yes, but clearance may be tight on 2003-2009 trucks.

Do I need the spacer kit for older Rams?
Yes. The 4006-01 spacer kit is required for proper geometry on 1998-2002 models.

Is drilling required?
Only on some early trucks; install is otherwise 100 percent bolt on.
