Synergy Heavy Duty Front Tie Rod for 2003-2013 Dodge Ram 1500/2500/3500

The Synergy Heavy Duty Tie Rod is a larger and stronger, bolt-on replacement for the stock tie rod. No drilling or reaming of the knuckles is required. It uses the updated factory T-style steering design to eliminate toe-change caused by Y-style steering. Using the factory T-style steering design also results in no induced bump steer inherent with most aftermarket “cross over” steering kits. The Tie Rod also uses a single plane low misalignment Tie Rod End to prevent unwanted Tie Rod “flop” which results in a dead spot in the steering when changing direction. The Tie Rod is designed to be used with the Synergy heavy duty Drag Link (8567-11), the Synergy steering stabilizer clamp (8568-10), and the Synergy tuned IFP steering stabilizerSynergy Fox Performance 2.0 IFP Steering Stabilizer Front for Jeep Wrangler JK 2007-18, JL 2018+, Gladiator JT 2020+). This tie rod can also work with stock or aftermarket steering stabilizers using a 1/2″ mounting bolt with the Synergy clamp.

Fitments:

• 2003-2013 Dodge Ram 2500 4×4
• 2003-2012 Dodge Ram 3500 4×4
• 2006-2008 Dodge Ram 1500 Mega-cab 4×4

• Note: We cannot guarantee fitment with aftermarket differential covers.  Known compatibility with the following diff covers: aFe Power

• Warning: 2013 Dodge Ram 3500’s were a split year for production. The early model trucks use the T-style steering (drag link is attached to the Tie Rod), Synergy Part # Synergy Heavy Duty Front Steering Kit Dual Bracket w/ Stabilizers & Clamps for 2003-2013 Dodge Ram 1500/2500/3500. The late model trucks use cross over steering (Drag link is attached to the knuckle and does not attach to the Tie Rod), Synergy Part # 8725-01. Please check what style you have before ordering.

Benefits:

• The tie rod is bent similar to the factory bar to clear sway bar mounts
• Provides 2″ of additional ground clearance from stock tie rod
• Strongest Dodge Drag Link and Tie Rod on the market!

Features:

• Tie Rod is made from 1-1/2″ x .188 wall 4130 Chromoly and Heat Treated for maximum strength – 200% stronger than stock tie rod
• Steering components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance

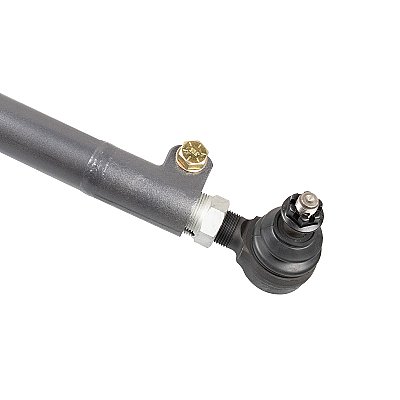

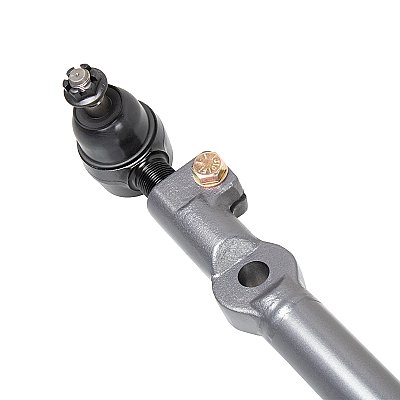

• Synergy Double Adjuster Sleeve & Pinch Bolt Assembly: allows adjustment of the tie rod length without removing it from the vehicle
• Metal on metal Synergy tie rod ends, with larger than stock, heat treated chromoly ball studs and shorter shank for greater strength, longevity, and connectivity to the road
• 100% bolt on components assures an easy, trouble free installation with the use of basic hand tools

Min/Max Lengths:
Measured in a straight line from center of tie rod end to center of tie rod end

Min Collapsed: 59.75″
Max Extended: 62″

Includes:

• (1) 8568-21 Ram tie rod
• (1) 4167-L Ram tie rod end
• (1) Synergy Heavy Duty Tie Rod & Drag Link End LH Thread Front for 2003-2013 Dodge Ram 2500/3500 Ram tie rod end
• (1) Adjuster sleeve
• (2) Pinch Bolts and hardware

Notes:

• Replacement Tie Rod Ends:
  • Synergy Heavy Duty Tie Rod & Drag Link End LH Thread Front for 2003-2013 Dodge Ram 2500/3500
  • Synergy Heavy Duty Tie Rod & Drag Link End LH Thread Front for 2003-2013 Dodge Ram 2500/3500
• New single plane tie rod end – part number 4167-L – is not compatible with the metal misalignment caps (part number 4134-02)
  • If upgrading to the new single plane tie rod end on older model tie rods that include the metal caps, the opposing tie rod end will require a new Synergy HD Replacement Tie Rod End Boot Front for 2007-2018 Jeep Wrangler JK
  • If the cotter pin does not engage the castle nut upon install, a washer is required; Washer may not be required on all knuckles depending on casting differences and wear
• Synergy High Performance Grease recommended (4119) to be used with all Tie Rod Ends
• Synergy Premium Copper Infused Anti-Seize (Synergy Copper Infused Anti-Seize for 2007-2018 Jeep Wrangler JK) to be used with all threaded components
• Recommended Steering Stabilizers:Synergy Fox Performance 2.0 IFP Steering Stabilizer Front for Jeep Wrangler JK 2007-18, JL 2018+, Gladiator JT 2020+ (Synergy Tuned FOX IFP), Synergy Steering Stabilizer 2.0 TS Front for 2007-2018 Jeep Wrangler JK (FOX Through Shaft), and Synergy Steering Stabilizer 2.0 TS Front for 2007-2018 Jeep Wrangler JK (FOX Adjustable Through Shaft)

Installation Instructions

FOURWHEELER.COM – How-to: SYNERGY STEERING FOR HEAVY-DUTY RAM TRUCKS
