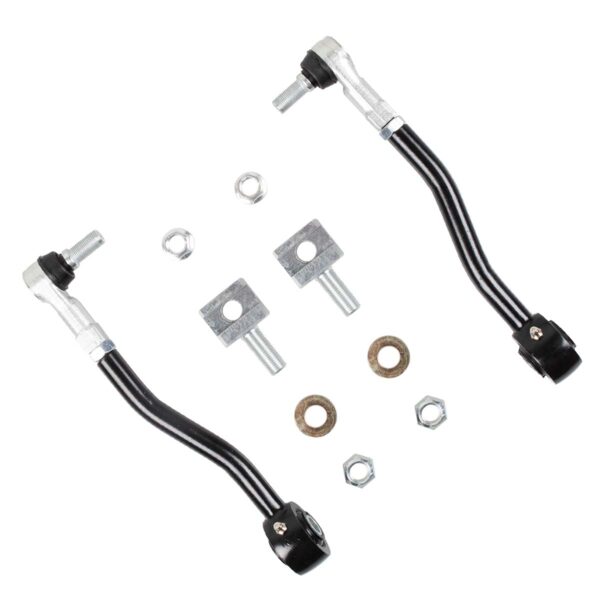

Synergy Heavy Duty Sway Bar Links 3.0-4.5″ Front Lift for 2014+ Ram 2500/3500

Description
Synergy Heavy Duty Sway Bar Links 3.0-4.5″ Front Lift for 2014+ Ram 2500/3500

Synergy 2014+ Ram 2500 / 3500 Heavy Duty Front Sway Bar Links are a great option for your 2014 + Ram. The heavy duty forged design are much stronger and offer more wheel travel than the OE alternatives. These extended links will work with trucks from 0-6 Inches of lift and feature a spherical bushing to provide more misalignment. The end links are finished with a durable e-coating for maximum corrosion resistance.

Fitments:

• 2014+ Dodge Ram 2500 / 3500

Benefits:

• Spherical bushing and sealed tie rod end provides a direct linkage to axle
• Available for 0-3″ and 3.5-6″ lifts
• Bent for clearance of other suspension and axle components

Features:

• Constructed from high quality 1020 CR Solid
• Links are e-coated for corrosion resistance
• Ends are clear zinc plated for maximum corrosion resistance
• 100% bolt on components assures an easy, trouble-free installation with the use of basic hand tools **
• Made in USA

Min/Max Length:

Measured from center of the lower bolt hole to the flat on the adapter:

• 8715-01
  • Minimum Collapsed: 7 1/2″
  • Maximum Extended: 8 1/2″
• 8715-02
  • Minimum Collapsed: 10 7/16″
  • Maximum Extended: 11 3/8″

Includes:

• (2) Sway bar links
• (2) Sway bar link ends (sealed tie rod ends)
• (2) ½”-12 UNC jam nuts
• (2) 851501 stem top sway bar link adapter
• (2) 5/8″-18 tapered nuts
• (2) ½”-12 UNC x 3.0″ long hex head bolt GR8
• (2) ½”-12 UNC Stover nut
• (4) ½” flat washer GR8

Installation Instruction
