FOX 2.5 Body Front 6″ Lift Reservoir Coilovers for 2014-2025 Ram 2500 4WD

Description
FOX 2.5 Body Front 6″ Lift Reservoir Coilovers for 2014-2025 Ram 2500 4WD

FOX 2.5 Body Front 6 inches Lift Reservoir Coilovers for 2014-2025 Ram 2500 4WD

Part Number: 883-26-064

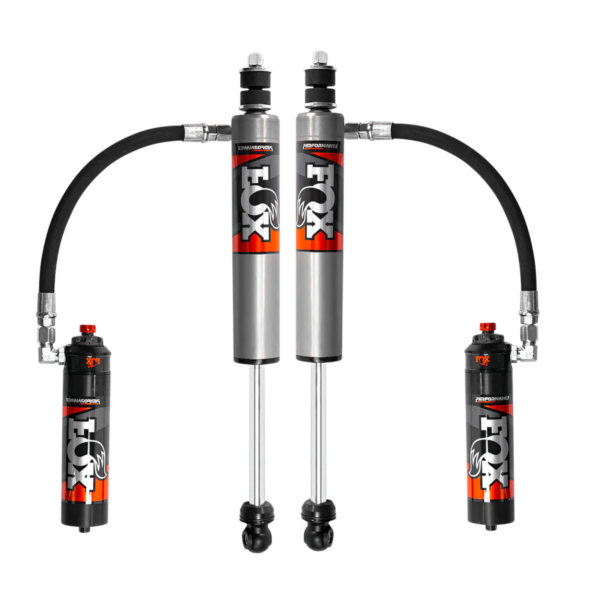

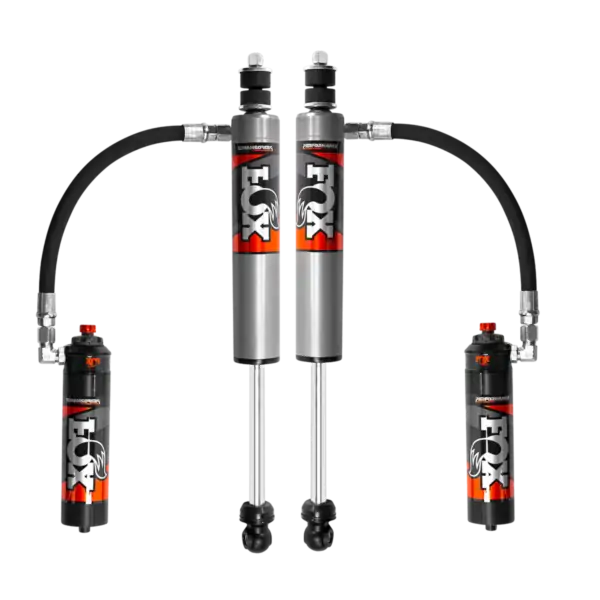

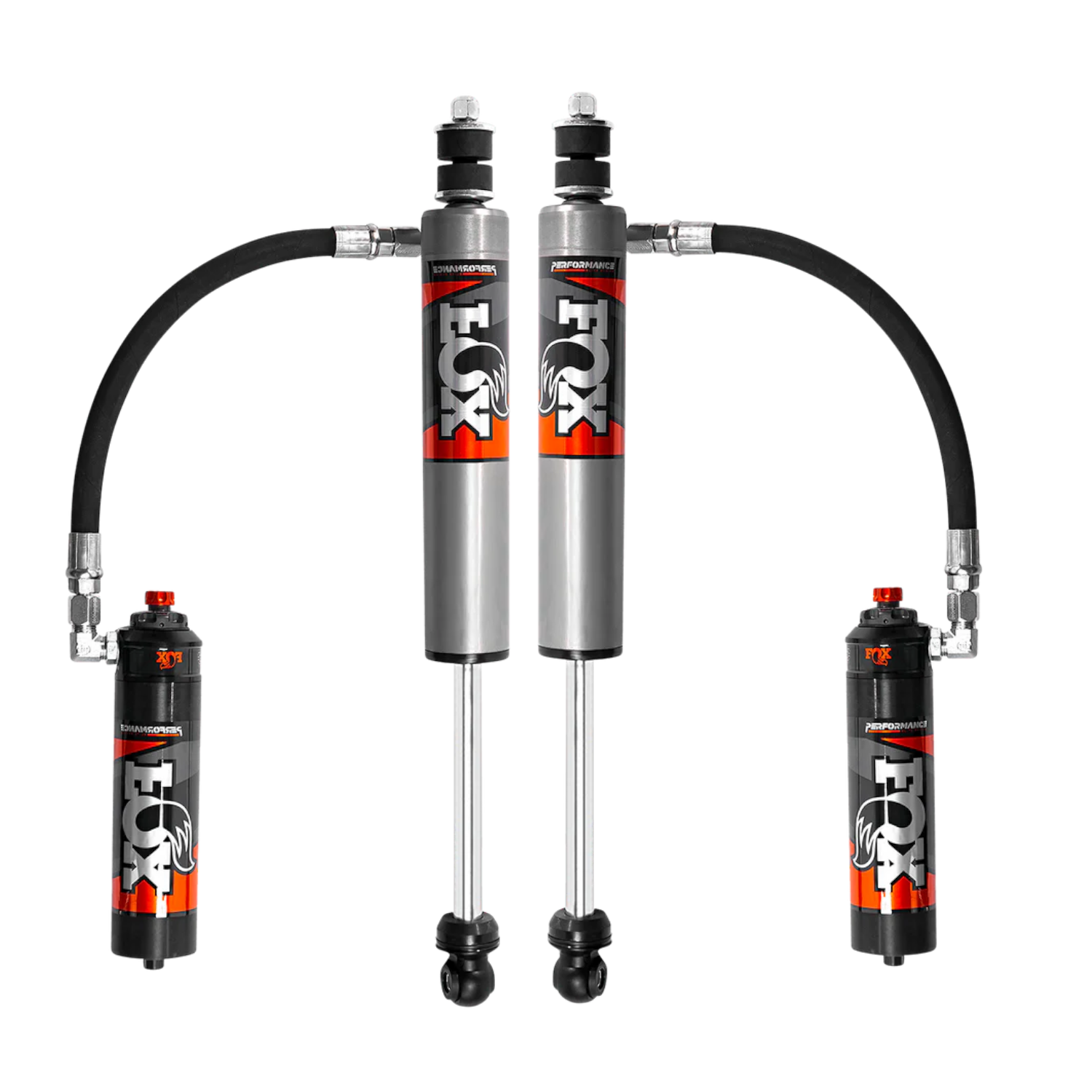

Summary: The FOX Performance Elite Series 2.5 Reservoir smooth body shocks are engineered to provide enhanced ride quality and precise control for your Ram 2500. Designed for vehicles equipped with a 6-inch front lift, these shocks utilize an External Reservoir system to increase oil and nitrogen capacity. This race-derived configuration ensures improved damping performance across various terrains, delivering the durability required for transition from pavement to off-road environments.

Features

• External Reservoir: Increased oil and nitrogen capacity provides enhanced heat dissipation to ensure consistent damping performance during sustained use.
• 2.5 inches Hard Anodized Aluminum Body: Impact extruded and CNC machined 6061-T6 aluminum provides resistance to rust to ensure long-term structural integrity.
• 7/8 inches Hard Chrome Plated Shaft: Heat-treated alloy steel construction provides a robust surface to ensure durability under heavy-duty cycles.
• Redundant Sealing Pack: A three-stage system including a main seal, wiper seal, and scraper seal provides maximum protection to ensure internal components remain free of contaminants.
• High-Flow Piston: Race-developed internal design provides application-specific valving to ensure maximized performance for the Ram 2500 platform.

Technical Specifications

Fitment

• 2014-2025 Ram 2500
• Note: Configured for front 6 inches lift applications.

What’s Included

• Sold Individually
• External Reservoir and mounting components

Why Choose This Product?

• Engineering Advantage: The use of an external reservoir system and a 2.5-inch hard-anodized aluminum body allows these shocks to manage heat significantly better than standard internal-piston designs.
• Performance Benefit: Drivers experience improved damping control and a race-proven look while maintaining the reliability needed for a vehicle-specific, bolt-on application.

Frequently Asked Questions

What is the benefit of the External Reservoir?
The external reservoir allows for increased oil and nitrogen capacity, which helps dissipate heat faster for improved damping in various terrains.

What lift height are these shocks compatible with?
These shocks are specifically designed and tuned for Ram 2500 4WD models with a 6-inch front lift.

Are these shocks resistant to corrosion?
Yes, the 6061-T6 hard-anodized aluminum body and zinc-plated seamless alloy construction are designed to resist rust over time.
