Fox Factory Race Series 2.0 ATS Steering Stabilizer for 2013-2025 Ram 2500 4WD

Description
Fox Factory Race Series 2.0 ATS Steering Stabilizer for 2013-2025 Ram 2500 4WD

Fox Factory Race Series 2.0 ATS Steering Stabilizer for 2013-2025 Ram 2500 4WD

Part Number: 983-02-158

Summary: The FOX Factory Race Series 2.0 Stabilizer ATS provides a high-performance solution for steering feedback on the Ram 2500. Utilizing an Adjustable Through Shaft (ATS) architecture, this stabilizer eliminates the unidirectional push or pull force common in conventional designs by preventing fluid displacement throughout the travel. The external piggyback reservoir increases fluid capacity and uses an Internal Floating Piston (IFP) to ensure consistent damping by separating nitrogen gas from the oil.

Features

• Adjustable Through Shaft (ATS): Architecture eliminates shaft fluid displacement to provide neutral steering force in both directions.
• External Reservoir: Piggyback design provides additional fluid capacity and separates shock oil from high-pressure nitrogen to eliminate cavitation.
• External Adjuster: 24 clicks of adjustment provides the ability to fine tune the steering feel to ensure control for any driving style.
• Internal Floating Piston (IFP): High-pressure gas charged design provides consistent damping to ensure the elimination of unwanted steering feedback.
• 6061-T6 Aluminum Body: 2.0-inch metal impacted aluminum construction provides rust resistance to ensure long-term durability.

Technical Specifications

Fitment

• 2013-2025 Ram 2500
• Note: Axle Mount. Available in multiple clamp sizes for stock or aftermarket heavy duty tie-rods.

What’s Included

• Sold Individually

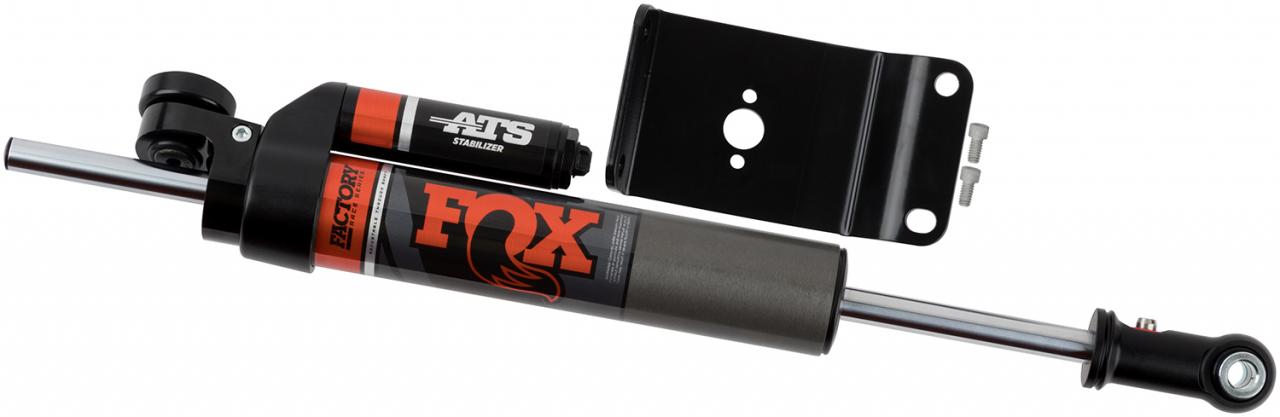

• Application specific mounting hardware

Why Choose This Product?

• Engineering Advantage: The ATS architecture solves the inherent pressure imbalance of standard stabilizers, while the external reservoir and IFP technology prevent performance fade and cavitation.
• Performance Benefit: Drivers gain a highly customizable steering feel with 24 levels of adjustment, resulting in stable and predictable handling without the need for dual stabilizers.

Frequently Asked Questions

What is the benefit of the Adjustable Through Shaft (ATS) design?
The ATS architecture eliminates fluid displacement by the shaft, which prevents the stabilizer from pushing or pulling the steering in one direction, maintaining a neutral state throughout its travel.

How many adjustment settings does this stabilizer have?
This stabilizer features an external adjuster with 24 clicks of adjustability to fine-tune the steering feel.

Does this stabilizer help prevent cavitation?
Yes, the external reservoir utilizes an Internal Floating Piston (IFP) to separate the oil from the nitrogen gas charge, which eliminates cavitation and ensures consistent damping.
