Bilstein 5100 2-2.5″ Front and 0-1″ Rear Lift Shocks 2014-2018 RAM 2500 4WD

SKU: 24-268639_24-239455
5 out of 5 based on 9 customer ratings
(9 customer reviews)
Sale!
Bilstein 5100 2-2.5" Front and 0-1" Rear Lift Shocks 14-'17 RAM 2500 4WD
Bilstein 5100 2-2.5" Front and 0-1" Rear Lift Shocks 14-'17 RAM 2500 4WD

Description
Bilstein 5100 2-2.5″ Front and 0-1″ Rear Lift Shocks 2014-2018 RAM 2500 4WD

Bilstein B8 5100 Front and Rear Shocks for 2014-2018 RAM 2500 4WD Gas and Diesel

Built for leveled and lightly lifted RAM 2500 trucks that work hard.
Bilstein B8 5100 shocks are a direct-fit performance upgrade for the 2014-2018 RAM 2500 4WD, designed to deliver improved control, stability, and ride quality on-road and off-road.

This setup is ideal for trucks running a 2 to 2.5 inch front leveling kit with a stock or mildly lifted rear suspension.

Target Vehicle Setup

  • 2014-2018 RAM 2500 4WD
  • Gas and diesel engines
  • Front leveling height: 2 to 2.5 inches (via suspension components)
  • Rear lift: 0 to 1 inch
  • Not compatible with rear air suspension

Bilstein 5100 Series Overview

Bilstein B8 5100 shocks feature a high-pressure monotube design with a velocity-sensitive digressive piston that automatically adapts to changing road and load conditions. Each shock is specifically valved for the RAM 2500 platform to improve body control, steering response, and durability under towing, hauling, and off-road use.

  • Monotube gas pressure design for consistent, fade-free performance
  • Digressive piston for controlled ride comfort and handling
  • Zinc-plated finish for corrosion resistance
  • Non-adjustable damping, factory tuned by Bilstein

Front Shock Specifications

  • Series: Bilstein B8 5100
  • Collapsed Length: 15.03 in
  • Extended Length: 22.63 in
  • Upper Mount: Stem
  • Lower Mount: Eyelet
  • Rod Diameter: 1.81 in
  • Part Number: 24-268639

Front Fitment Note: Designed to support front suspension lift or leveling components providing 2 to 2.5 inches of lift. These shocks do not create lift on their own.

Rear Shock Specifications

  • Series: Bilstein B8 5100
  • Collapsed Length: 16.73 in
  • Extended Length: 24.96 in
  • Upper Mount: Stem
  • Lower Mount: Eyelet
  • Rod Diameter: 0.55 in
  • Part Number: 24-239455

Rear Fitment Note: Compatible only with RAM 2500 models without rear air suspension.

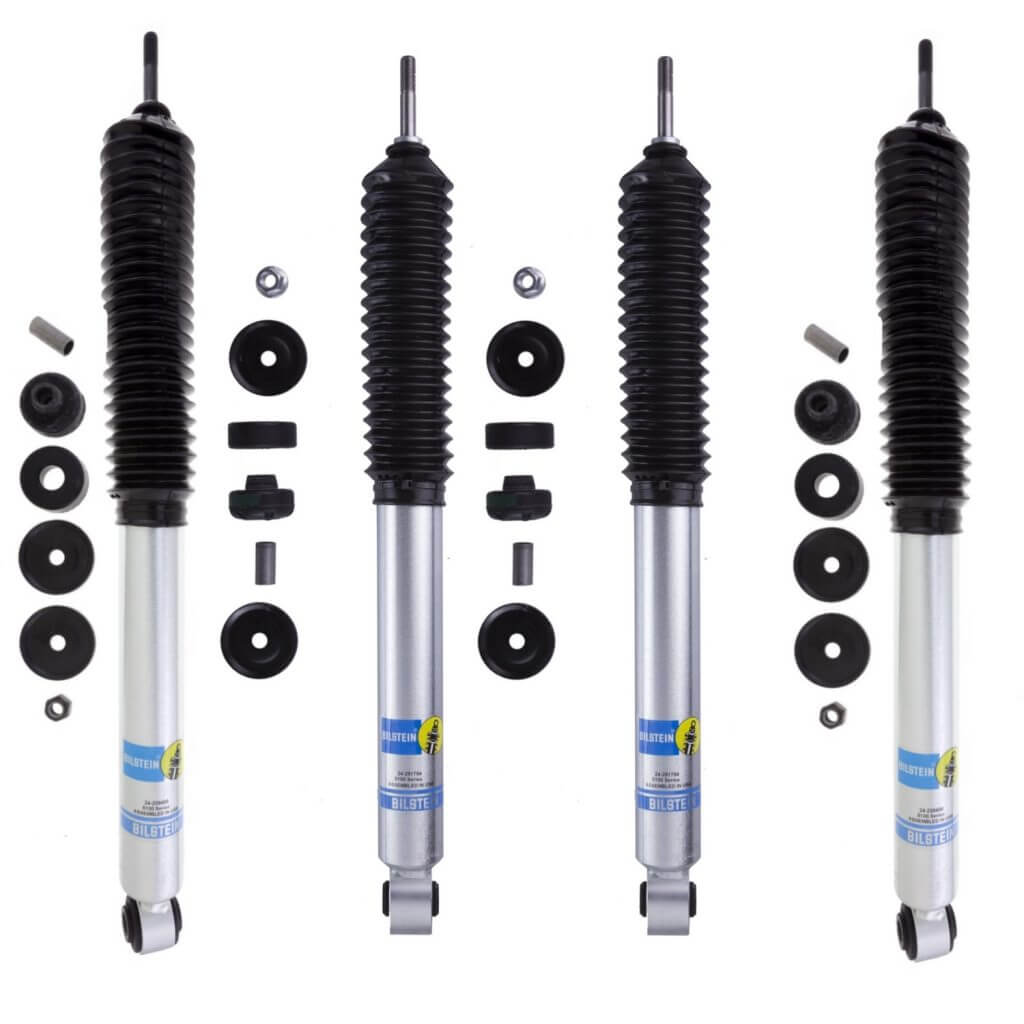

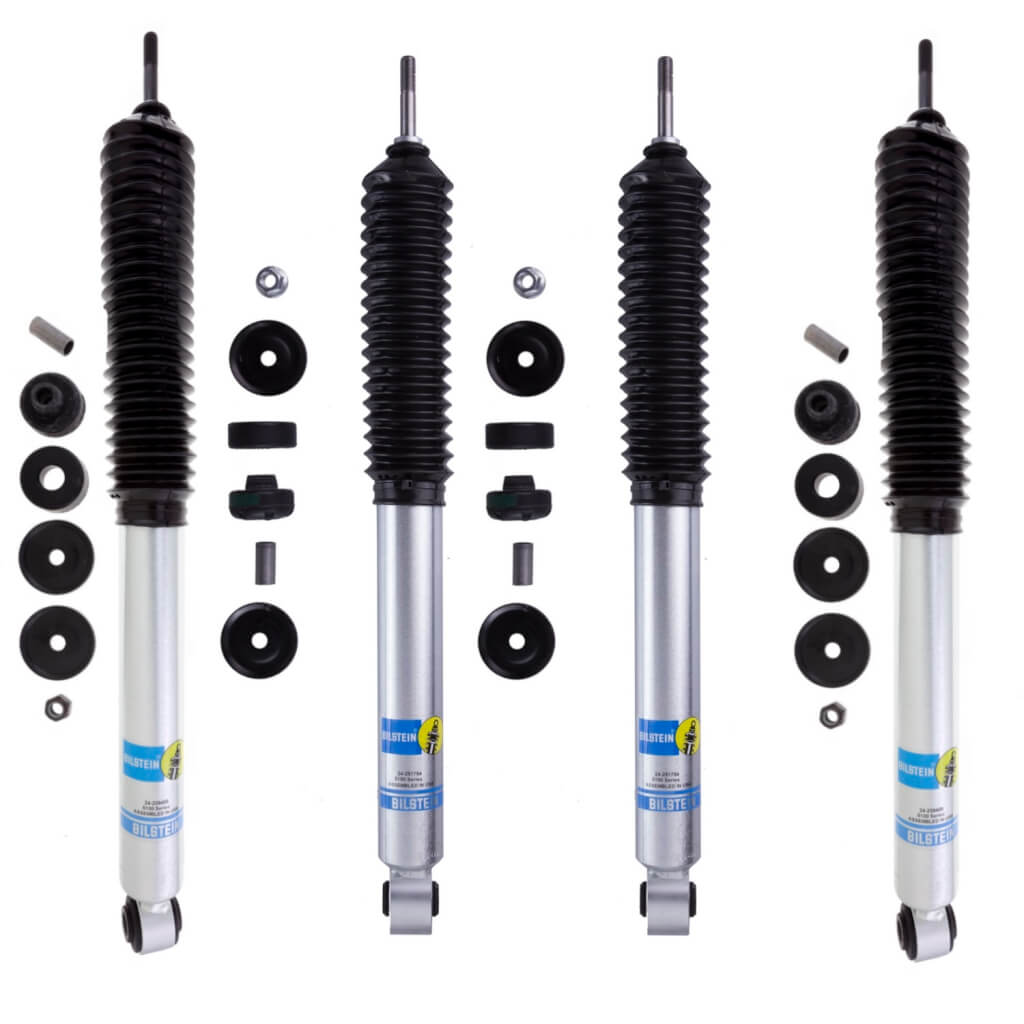

What Is Included

  • 2 Front Bilstein B8 5100 shocks
  • 2 Rear Bilstein B8 5100 shocks

Important: Includes all four shocks. Suspension lift components, springs, or spacers are not included.

Frequently Asked Questions

Do Bilstein 5100 shocks provide lift?
No. These shocks are designed to support existing lift or leveling components. They do not create lift on their own.

Are these shocks adjustable?
No. Damping is non-adjustable and factory tuned by Bilstein for the RAM 2500 platform.

Will these shocks work with rear air suspension?
No. Rear shocks are only compatible with RAM 2500 models without air suspension.

Are these shocks suitable for towing and hauling?
Yes. The monotube design and digressive valving improve stability and control under load compared to factory shocks.


Customer reviews

Rated 5 out of 5 stars
9 reviews
5 stars 9 100 %
4 stars 0 0 %
3 stars 0 0 %
2 stars 0 0 %
1 star 0 0 %

9 reviews for Bilstein 5100 2-2.5″ Front and 0-1″ Rear Lift Shocks 2014-2018 RAM 2500 4WD

Add a review

Use one of the allowed file type: jpg,png,jpeg.

    Questions and answers of the customers

      I have a 2016 ram 2500 4x4 with a 2.5in leveling kit on the front. Will these shocks work ?
    1. 0 votes
      Q I have a 2016 ram 2500 4x4 with a 2.5in leveling kit on the front. Will these shocks work ?
      A yes will work for 2016 ram 2500 4x4 wilt 2.5''
      2. Do these work on 2016 ram 4x4 2500 with factory height?
    2. 0 votes
      Q Do these work on 2016 ram 4x4 2500 with factory height?
      A some customers use them at their own and are all good but try to avoid fully collapsing front suspension
      3. Will they fit a 2020 ram 2500 4wd
    3. 0 votes
      Q Will they fit a 2020 ram 2500 4wd
      A for 2020 we can offer https://www.suspensionlifts.com/shop/ram/2500-ram/2014-2017/shocks-ram-2500-14-18/bilstein-5100-0-2-5-front-and-0-1-rear-lift-shocks-for-2019-2023-ram-2500-4wd/ https://www.suspensionlifts.com/shop/ram/2500-ram/2014-2017/bilstein-b8-5112-2-front-and-5100-0-1-rear-lift-shocks-2019-2020-ram-2500-4wd-diesel/
      4. Do they fit a 2500 Mega Cab?
    4. 0 votes
      Q Do they fit a 2500 Mega Cab?
      A yes as far as megeCab is on 2500 chassis (usually)
      5. Does it matter if it a gas or diesel truck
    5. 0 votes
      Q Does it matter if it a gas or diesel truck
      A fits both gas and diesel shocks are the same, the springs are different
      6. I need shocks for stock ram 3500 2002 model diesel
    6. 0 votes
      Q I need shocks for stock ram 3500 2002 model diesel
      A We can offer https://www.suspensionlifts.com/shop/dodge/03-12-dodge-ram-2500-3500/1994-2002/shocks-1994-2002/bilstein-b6-4600-front-shocks-for-1994-2002-dodge-ram-3500-2wd-4wd/ and https://www.suspensionlifts.com/shop/dodge/03-12-dodge-ram-2500-3500/1994-2002/shocks-1994-2002/bilstein-b6-4600-rear-shocks-for-1994-2002-dodge-ram-3500-4wd/
      7. Will these work with a stock 2015 6.4 hemi 2500? Or do I have to have a leveling kit?
    7. 0 votes
      Q Will these work with a stock 2015 6.4 hemi 2500? Or do I have to have a leveling kit?
      There are no answers for this question yet.
      8. Hello, does this fit the 2014 Ram 2500 Power Wagon 4x4 without air suspension?
    8. 0 votes
      Q Hello, does this fit the 2014 Ram 2500 Power Wagon 4x4 without air suspension?
      There are no answers for this question yet.
      9. Does this fit the 2015 ram 2500 tradesmen ?
    9. 0 votes
      Q Does this fit the 2015 ram 2500 tradesmen ?
      A will fit as long as it is 4wd
      10. Is the truck noticeably unleveled with the rear shocks set at 1”?
    10. 0 votes
      Q Is the truck noticeably unleveled with the rear shocks set at 1”?
      A The shock won't adjust ride height. It's just designed to have more room to travel so if you are lifted it won't bottom out and brake things.
      11. Does it fit on Ram 2015 2500 4*4?
    11. 0 votes
      Q Does it fit on Ram 2015 2500 4*4?
      A yes it fits
      12. Will these fit with the 2.5” icon coils?
    12. 0 votes
      Q Will these fit with the 2.5” icon coils?
      A yes it will fit front 2,5'' coils
      13. I have a 2019 2500 4x4 with 2.5 inch leveling kit, will the 5100 work.
    13. 0 votes
      Q I have a 2019 2500 4x4 with 2.5 inch leveling kit, will the 5100 work.
      A yes will work
      14. will these work on 2018 3500 gas..the 5100 series if not what will..2 to 2.5 front lift zero rear
    14. 0 votes
      Q will these work on 2018 3500 gas..the 5100 series if not what will..2 to 2.5 front lift zero rear
      A These will fit 3500 4wd but at least 1'' front lift needed https://www.suspensionlifts.com/shop/ram/3500-ram/2013-2017/bilstein-5100-2-2-5-front-lift-shocks-13-17-ram-3500-4wd/ rear shocks will not fit
      15. Will the 24-251754 fit 2014 Ram 2500 with front leveling spacers installed?
    15. 0 votes
      Q Will the 24-251754 fit 2014 Ram 2500 with front leveling spacers installed?
      A Yes, it will fit
      16. Is a lift kit required on a 2018 Ram 2500, Tradesman, quad cab 4x4 in order for this package to be installed? Or is the lift kit included in this package? BILSTEIN IS 2nd to none I’ve installed them in many vehicles I own... Love your products!!!
    16. 0 votes
      Q Is a lift kit required on a 2018 Ram 2500, Tradesman, quad cab 4x4 in order for this package to b...... Read more
      A 2'' front coils or spacers needed
      17. Where can I find Billstien shocks for Dodge Ram 2500 6” lift coil springs
    17. 0 votes
      Q Where can I find Billstien shocks for Dodge Ram 2500 6” lift coil springs
      There are no answers for this question yet.
      18. Do these shocks fit 2015 dodge power wagon
    18. 0 votes
      Q Do these shocks fit 2015 dodge power wagon
      A These shocks are not specified for Power Wagon but you may compare their dimensions and mountings to your old shocks Front Shocks: Series: 5100 Extended Length (IN): 23.84 Inch Compressed Length (IN): 15.04 Inch Rod Diameter (IN): 1.81 Inch Upper Mounting Style: Stem Lower Mounting Style: Eyelet Part Number: 24-251754 Front Shocks Fitment Notes: Rear Shocks: Series: 5100 Extended Length (IN): 24.96 Inch Compressed Length (IN): 16.73 Inch Rod Diameter (IN): 0.55 Inch Upper Mounting Style: Stem Lower Mounting Style: Eyelet Part Number: 24-239455
      19. Does this set fit stock 2015 ram 2500 4x4 diesel
    19. 0 votes
      Q Does this set fit stock 2015 ram 2500 4x4 diesel
      A You'll need at least 2'' front lift
      20. Can front shocks be substituted for the gas engine version 24-268639?
    20. 0 votes
      Q Can front shocks be substituted for the gas engine version 24-268639?
      A Yes of cource. Please specify it in the order details
      21. Are these also for 2018, RAM 2500 Diesel trucks
    21. 0 votes
      Q Are these also for 2018, RAM 2500 Diesel trucks
      A They'll fit if you shocks have same mountings and similar dimensions: Front Shocks: Extended Length (IN): 23.84 Inch Compressed Length (IN): 15.04 Inch Rod Diameter (IN): 1.81 Inch Upper Mounting Style: Stem Lower Mounting Style: Eyelet Part Number: 24-251754 Rear Shocks: Extended Length (IN): 24.96 Inch Compressed Length (IN): 16.73 Inch Rod Diameter (IN): 0.55 Inch Upper Mounting Style: Stem Lower Mounting Style: Eyelet
      22. how do you adjust the front shocks? I just received the shocks but do not understand how the front shocks adjust.
    22. 0 votes
      Q how do you adjust the front shocks? I just received the shocks but do not understand how the fron...... Read more
      A Unfortunatelly there are no height adjustable shocks for 2500 Ram - onlu for 1500. To lift the front end of the truck stronger coils such as in this kit * * * https://suspensionlifts.com/shop/ram/2500-ram/2014-2017/bilstein-5112-2-3-front-lift-kit-2014-2017-ram-2500-4wd/ * * * https://suspensionlifts.com/shop/ram/2500-ram/bilstein-5112-2-front-lift-kit-14-17-ram-2500-4wd/ * * * should be used
      23. Does this fit the 2017 Power Wagon
    23. 0 votes
      Q Does this fit the 2017 Power Wagon
      A Unfortunately no. These shocks are for usual versions of RAM -Without Air Leveling Suspension
      24. Does this part fit the 2017 Power Wagon
    24. 0 votes
      Q Does this part fit the 2017 Power Wagon
      A Unfortunately no. These shocks are for usual versions of RAM -Without Air Leveling Suspension
      A Unfortunately no. These shocks are for usual versions of RAM -Without Air Leveling Suspension
