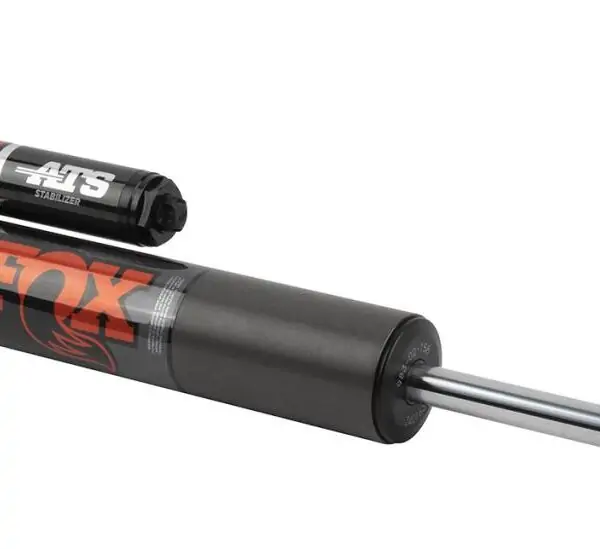

Fox Factory Race Series 2.0 ATS Steering Stabilizer for 2013-2025 Ram 3500 4WD

Description
Fox Factory Race Series 2.0 ATS Steering Stabilizer for 2013-2025 Ram 3500 4WD

Fox Factory Race Series 2.0 ATS Steering Stabilizer for 2013-2025 Ram 3500 4WD

Part Number: 983-02-158

Summary: The FOX Factory Race Series 2.0 ATS (Adjustable Through Shaft) Steering Stabilizer is engineered for the 2013-2025 Ram 3500 4WD to eliminate unwanted steering feedback. By utilizing an External Reservoir and a unique through-shaft architecture, this stabilizer cancels out the pressure increases and steering pull common in conventional designs. This system provides consistent damping and highly customizable control in a single, bolt-on component designed for heavy-duty applications.

Features

• Adjustable Through Shaft (ATS): Architecture that eliminates shaft fluid displacement throughout the stabilizer’s entire travel provides a neutral steering feel to ensure no unidirectional push or pull forces are felt by the driver.
• External Piggyback Reservoir: Increased fluid capacity utilizes an Internal Floating Piston (IFP) to separate fluid from nitrogen gas to ensure the elimination of cavitation and consistent performance.

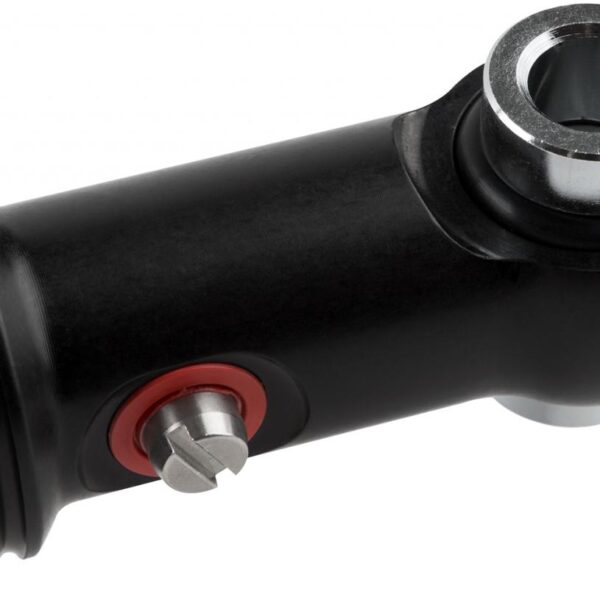

• External Adjuster: 24 clicks of manual adjustment provides the ability to fine-tune steering feel to ensure the setup is tailored to specific driving styles and tire configurations.
• 6061-T6 Aluminum Body: 2.0-inch metal impacted aluminum construction provides rust resistance and efficient heat dissipation to ensure long-term durability in harsh environments.
• Redundant Sealing Pack: Main seal, wiper seal, and scraper seal system provides a multi-layer barrier to ensure the internal components remain protected from contaminants.

Technical Specifications

Fitment

• 2013-2025 Ram 3500
• Note: Axle Mount.

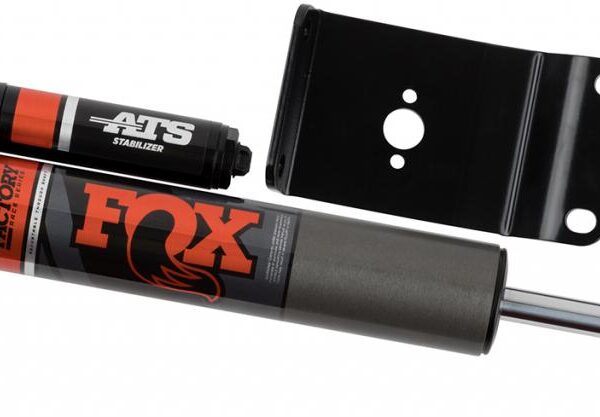

What’s Included

• Sold Individually

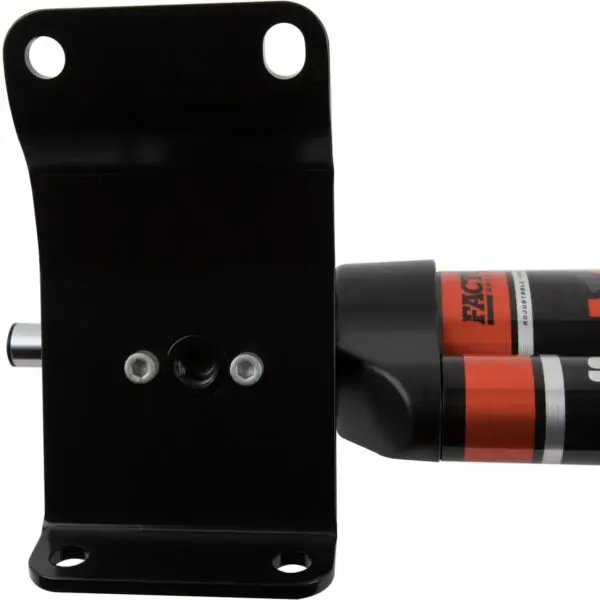

• Application specific mounting hardware

Why Choose This Product?

• Engineering Advantage: The Adjustable Through Shaft (ATS) technology solves the fundamental physics issue of fluid displacement, providing a stable steering platform without the need for dual opposing stabilizers.
• Performance Benefit: Drivers experience a consistent, customizable steering feel with 24 levels of adjustment, effectively mitigating steering feedback and “death wobble” tendencies in heavy-duty Ram trucks.

Frequently Asked Questions

Does this steering stabilizer cause the truck to pull to one side?
No, the ATS architecture eliminates shaft fluid displacement, which prevents the unidirectional push or pull force often felt with conventional stabilizers.

Can I adjust the firmness of the steering?
Yes, this stabilizer features an external adjuster with 24 clicks of adjustability to fine-tune the steering feel to your preference.

What is the benefit of the external reservoir?
The external piggyback reservoir increases fluid capacity and uses an Internal Floating Piston (IFP) to separate oil from nitrogen, preventing cavitation and ensuring consistent damping.
