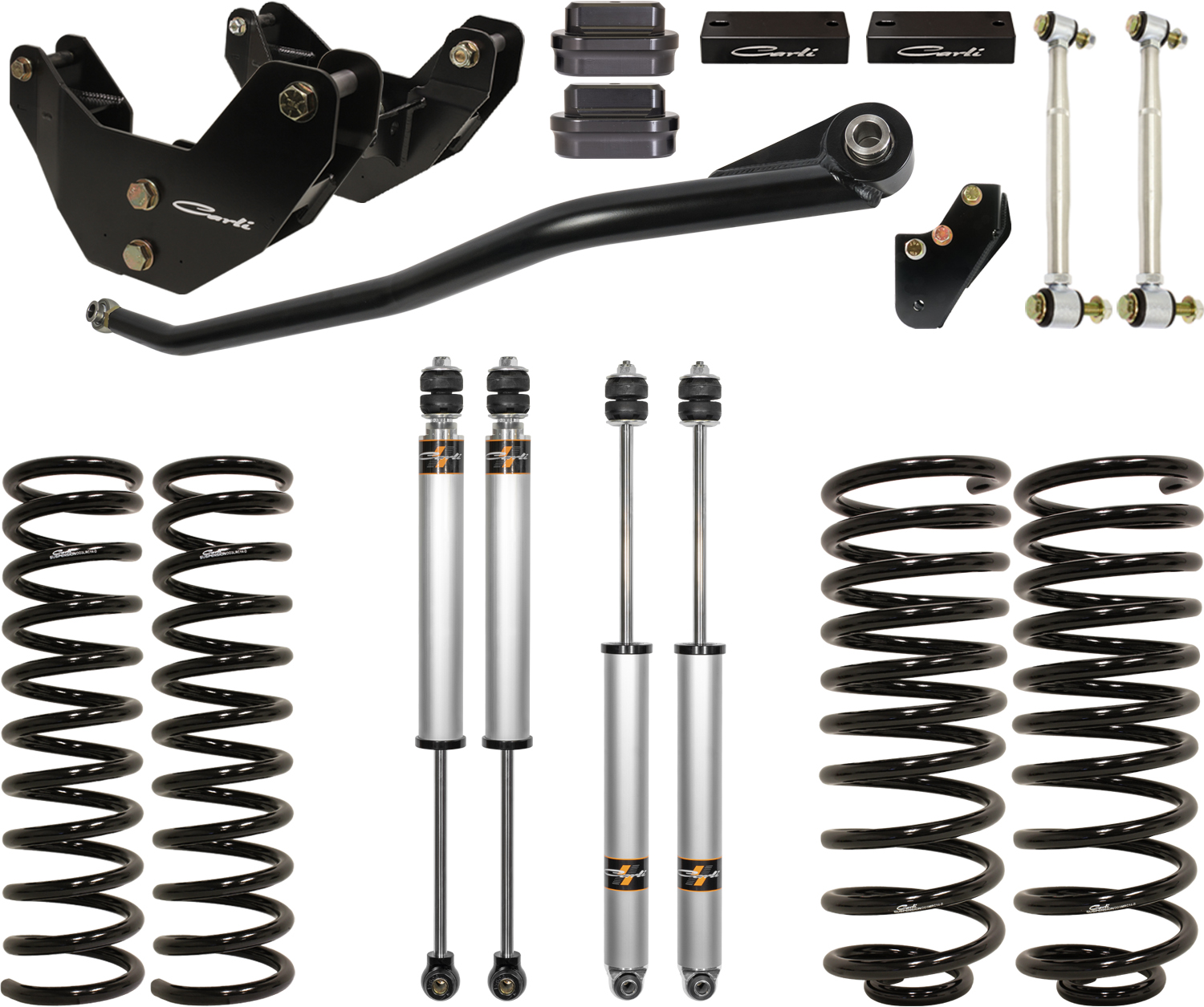

Carli Hemi 3″ Commuter Lift Kit for 2014-2018 Ram 2500 4WD

Base Kit Includes:

Upgrade your 2014–2018 Ram 2500 4WD with the HEMI engine using the Carli 3″ Commuter Lift Kit, designed to deliver improved ride comfort, suspension travel, and ground clearance without compromising daily drivability. Tailored for street use and light off-road adventures, this kit gives your truck a refined ride on and off the pavement while maintaining excellent towing and hauling capability.

Key Features:

3″ Front Lift Height – Provides improved clearance for larger tires and better off-road angles.
Custom-Tuned Carli Commuter Shocks – Premium Fox 2.0 shocks tuned for smooth street performance and occasional off-road use.
Linear Rate Front Coil Springs – Designed specifically for the weight and geometry of HEMI-equipped Ram 2500 trucks.
Track Bar & Radius Arm Options Available – Add-on upgrades help optimize suspension geometry and articulation.
Bolt-On Installation – No cutting or welding required for installation.

Performance Benefits:

• Superior Street Ride – Tuned for comfort, reducing harshness and improving body control over rough roads.

• Ready for Light Off-Road Use – Handles dirt roads, gravel, and trail bumps with ease.

• Tire Clearance – Allows fitment of 35″ tires (37″ possible with trimming and the right specs).

• Improved Suspension Travel – Smoother operation with better articulation.

• Maintains Towing Capability – Keeps your truck work-ready while enhancing the ride quality.

Vehicle Fitment:

• 2014–2018 Ram 2500 4WD

  • Fits HEMI (gas) engine models only

  • Not compatible with Power Wagon or rear air suspension-equipped trucks

Whether you’re hitting the pavement, hauling gear, or cruising backroads, the Carli 3″ Commuter Lift Kit transforms your Ram 2500 into a smoother, more capable truck—without sacrificing factory functionality. Order now to elevate your daily drive with Carli performance.

Sway Bar Selection

*REQUIRED* – You MUST select a Sway Bar option with the BASE Kit. This System has been optimized for use with the Torsion Sway Bar; this sway bar upgrade is a HUGE ride quality upgrade. Maintaining the factory sway bar through use of the Sway Bar Drops is only recommended for customers requiring the stiff rate of the factory sway bar – i.e.: those with snow-plows, in-bed campers or who are constantly hauling to the capacity of the truck.

SKU: CS-DSBD-14
– In-house machined billet aluminum
– Hard-Anodized for corrosion resistance
– Correct factory sway bar geometry on 3″ Lift
– Fitment: 2014+ Ram 2500, 4×4
– Fitment: 2013+ Ram 3500, 4×4

Low Mount Steering Stabilizer

*OPTIONAL* – Bolt in steering stabilizer (factory location). Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers. Run in conjunction with the Carli High Mount for the ultimate Dual, Opposing Steering Stabilizer combination that’s infinitely adjustable.

SKU: CS-DLMSS-14
– Direct bolt-in replacement
– Corrects left tire pull, adjustable
– Inside the Carli Stainless Stabilizer
– Fitment: 2014+ Ram 2500, 4×4
– Fitment: 2013+ Ram 3500, 4×4

High Mount Steering Stabilizer

*OPTIONAL* – Bolt in stabilizer adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains. ** Note: Original 14-18 Drag Links will have 2 jam-nuts and large adjustment collar – order DHMSS-14 stabilizer. If the truck has been updated to the 19+ drag link, order the DHMSS-19.

SKU: CS-DHMSS-14
– Direct bolt-in
– Corrects right tire pull, adjustable
– Inside the Carli Stainless Stabilizer
– Fits Leveled & Lifted trucks, ONLY.
– Does NOT Fit with Factory Power Wagon Sway Bar.
– Fitment: 2014-18 Ram 2500, 4×4
– Fitment: 2013-18 Ram 3500, 4×4

Add Fabricated Radius Arms

*OPTIONAL* – Icing on the cake, these arms add Limit Strap Protection for your Front Shocks, 1/4″ Boxed Steel Construction, and Serviceable 3″ – 17-4 Stainless Steel Spherical Bearings.

SKU: CS-DFRA-14
– Massive Strength Upgrade vs. Stock Arm
– Improved ride quality and control
– Internal X-Bracing & Serviceable 17-4 Stainless Spherical Joints
– 12″ Quad Wrap Limit Straps, For 3.25″ Lift Systems
– Requires Radius Arm Drop Brackets with Carli 3″ Front Lift
– Fitment: 2014+ Ram 2500, 4×4
– Fitment: 2013+ Ram 3500, 4×4

Front Differential Guard

*OPTIONAL* – Better to have it and not need it than need it and not have it.

SKU: CS-DFDG-14
– Protection for your Ring-Gear
– Bolts On In Minutes
– 1/4″ Wall Cold-Rolled Steel Construction
– Grade 8 Hardware
– Fitment: 2014+ Ram 2500, 4×4
– Fitment: 2013+ Ram 3500, 4×4
– Power Wagons may require modification to the Diff Guard or Lower Diff Housing.

Lifetime Ball Joints

*OPTIONAL* – Do your ball joints once, grease every oil change and forget they exist…

SKU: CS-DBJP-14
– Set of Upper and Lower Ball Joints
– LIFETIME Advanced-Replacement Warranty
– Copper Plated, Carburized and Dry-Lubed
– Includes a tube of Redline CV2 Grease
– Fitment: 2013+ Ram 3500 4×4
– Fitment: 2014+ Ram 2500 4×4
