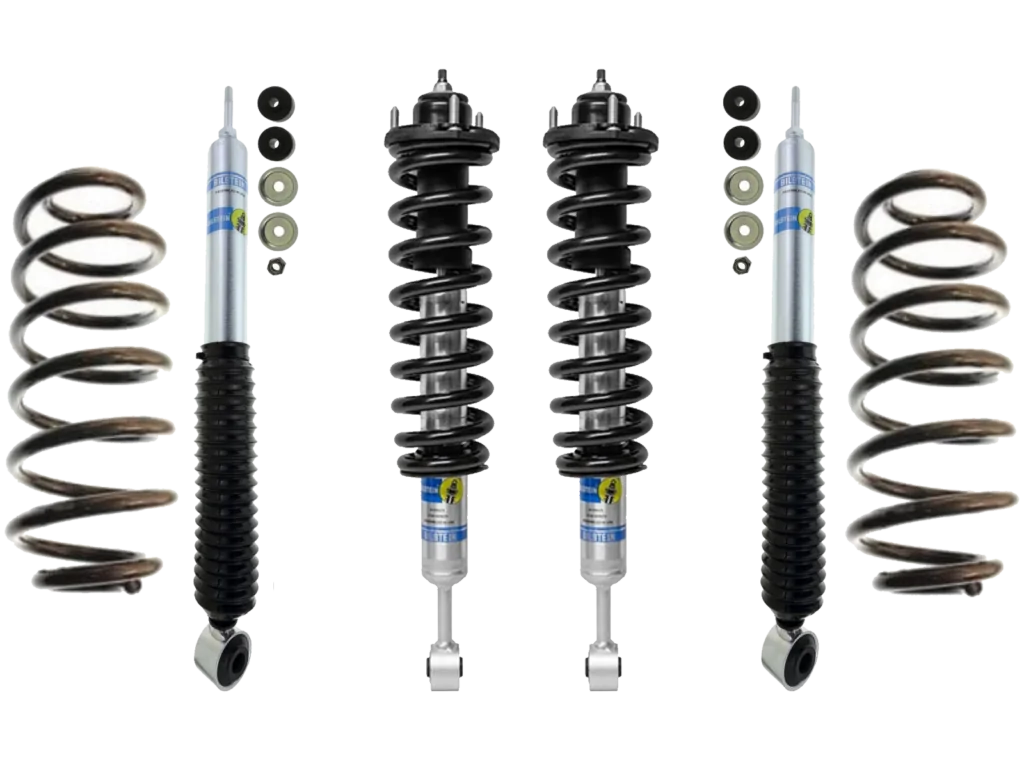

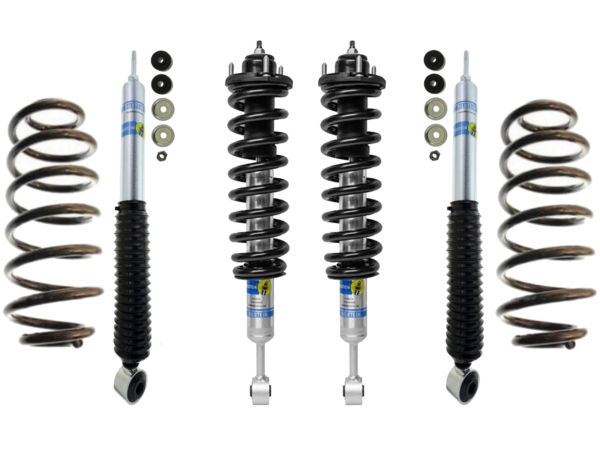

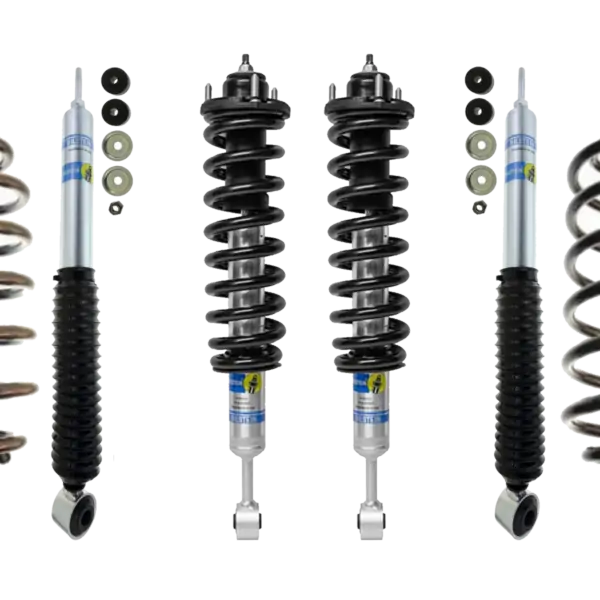

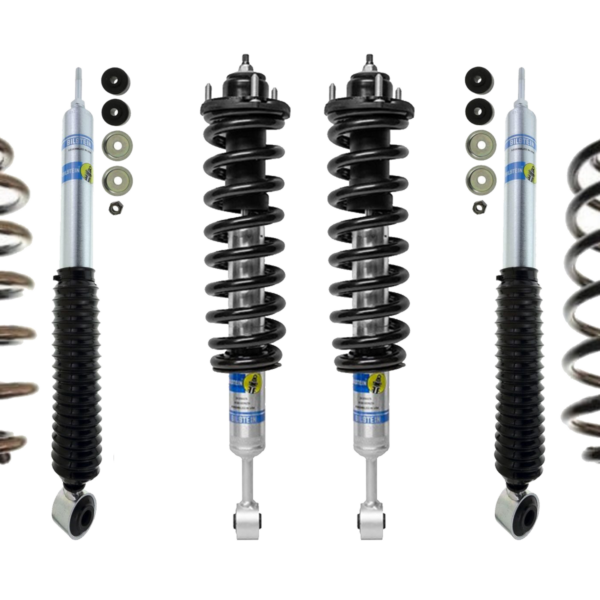

Bilstein/OME 2-2.5″ Lift Kit with Coils for 2003-2009 Toyota 4Runner

SKU: BLK4R03
4.3333333333333 out of 5 based on 6 customer ratings
(6 customer reviews)
Sale!

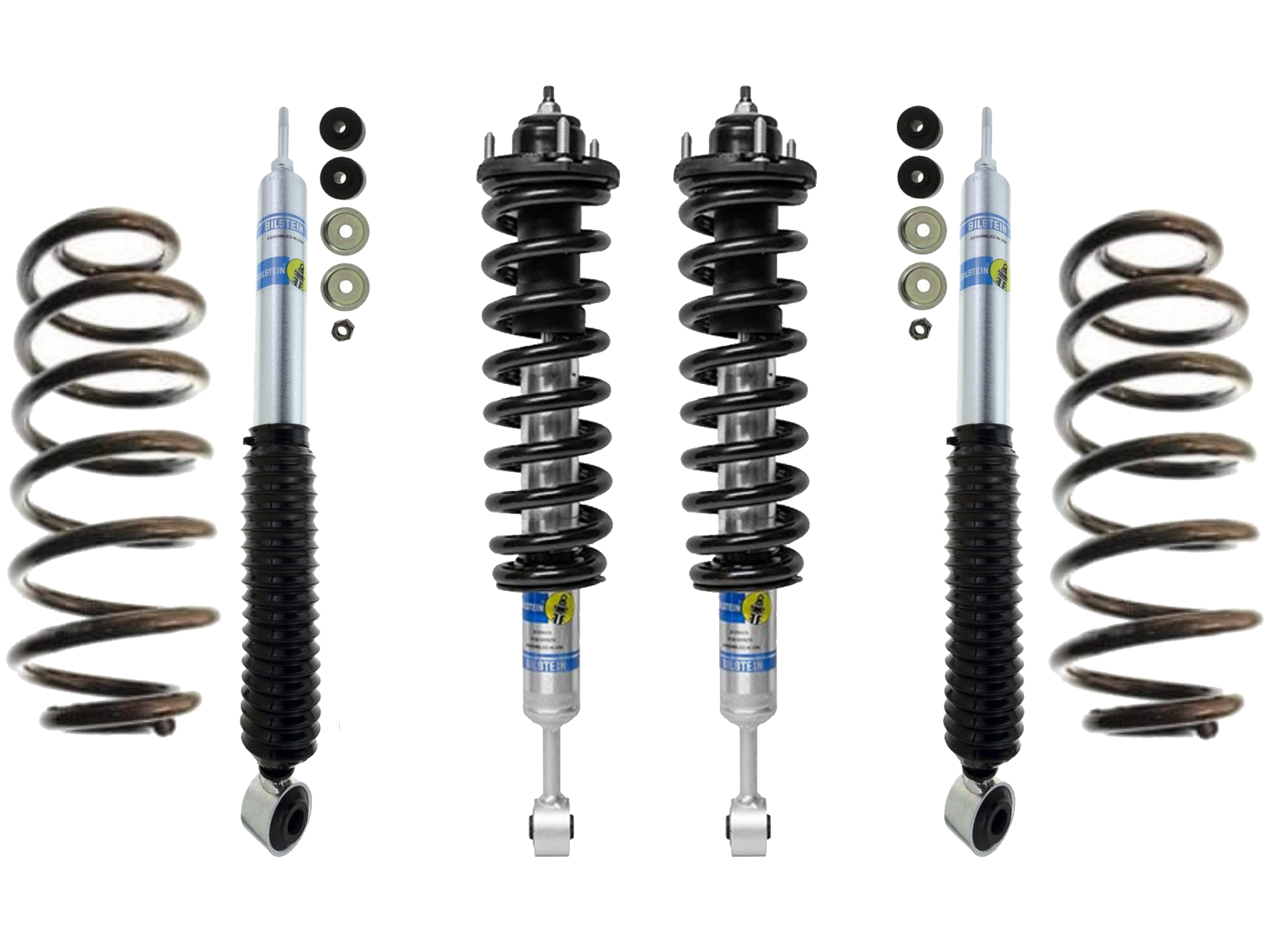

Bilstein/ARB 1.5-2.85" Lift Kit with Coils for 2003-2009 Toyota 4Runner
Bilstein/ARB 1.5-2.85" Lift Kit with Coils for 2003-2009 Toyota 4Runner

Description
Bilstein/OME 2-2.5″ Lift Kit with Coils for 2003-2009 Toyota 4Runner

Bilstein/OME 2-2.5″ Assembled Lift Kit with Coils for 2003, 2004, 2005, 2006, 2007, 2008, 2009 Toyota 4Runner

Part: BLK4R03

Important Note: Will not fit 2003-2009 4Runner Sport sub-model. If you still choose to buy – you will get less lift.

Suspension Lift Kit featuring Bilstein front ride height adjustable shocks is being assembled with ARB/OME coil springs.

Front Shocks:

Front 24-324359 (old: 24-239370) height adjustable 5100 shocks assembled with OME coils (choose from drop down)

Extended Length: 22.56″
Compressed Length: 17.03″


Rear 33-313146 5100 shocks work with 0″ to 2″ lift

Extended Length (IN): 23-1/2 Inch
Compressed Length (IN): 14.91 Inch
Rod Diameter (IN): 1.81 Inch
Upper Mounting Style: Stem
Lower Mounting Style: Eyelet

Notes:
Without X-REAS Suspension

Rear Bilstein Brand Coil Springs:
Rear Coil Springs 36-281817
4Runner 2WD – Rear Lift Height: 1.8″
4Runner 4WD – Rear Lift Height: 1.75″
or
Rear Coil Springs 36-281824
4Runner 2WD – Rear Lift Height: 2.25″
4Runner 4WD – Rear Lift Height: 2.3″
or
Rear Coil Springs Heavy Load Package 400 Pound Constant Weight 36-281831
4Runner 2WD – Rear Lift Height: 2.5″
4Runner 4WD – Rear Lift Height: 2.2″

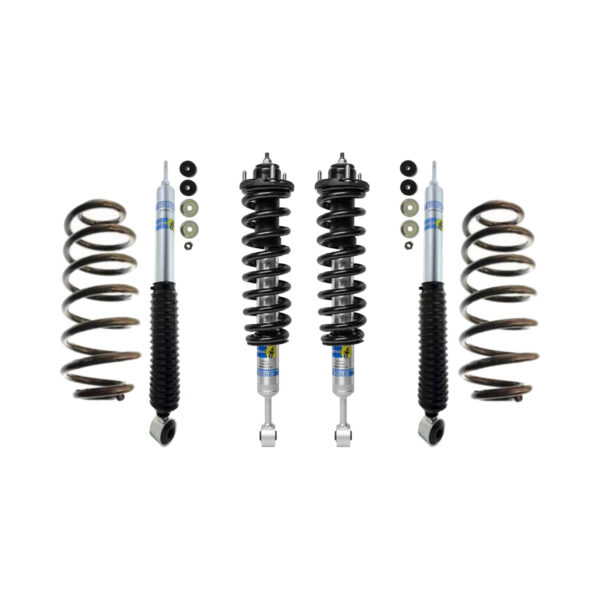

Includes Shocks exactly as pictured

Coilovers are assembled on the 1st clip. Setting them higher than 1st clip will give you too much lift and most likely damage the suspension.

Customer reviews

Rated 4.3333333333333 out of 5 stars
6 reviews
5 stars 5 83 %
4 stars 0 0 %
3 stars 0 0 %
2 stars 0 0 %
1 star 1 16 %

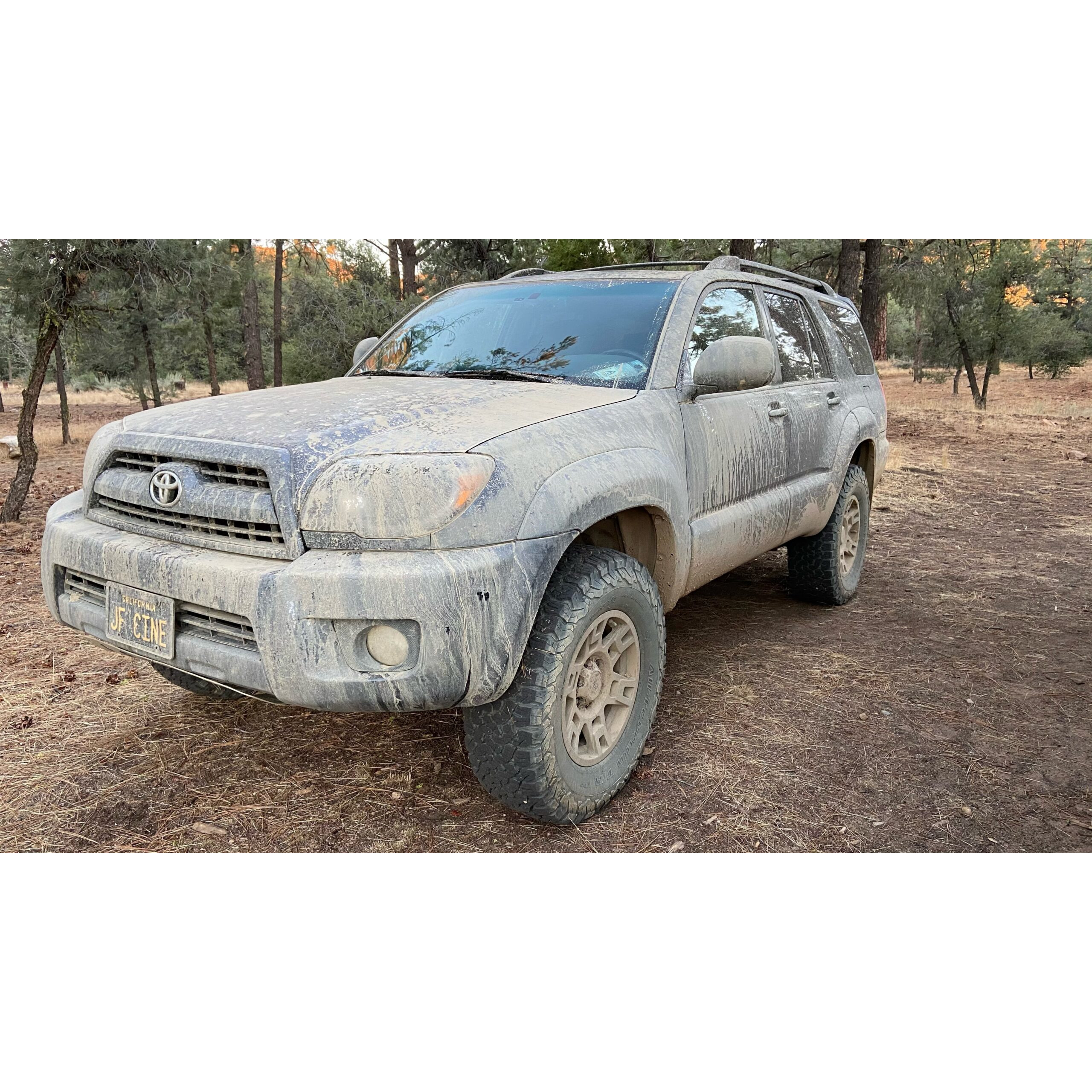

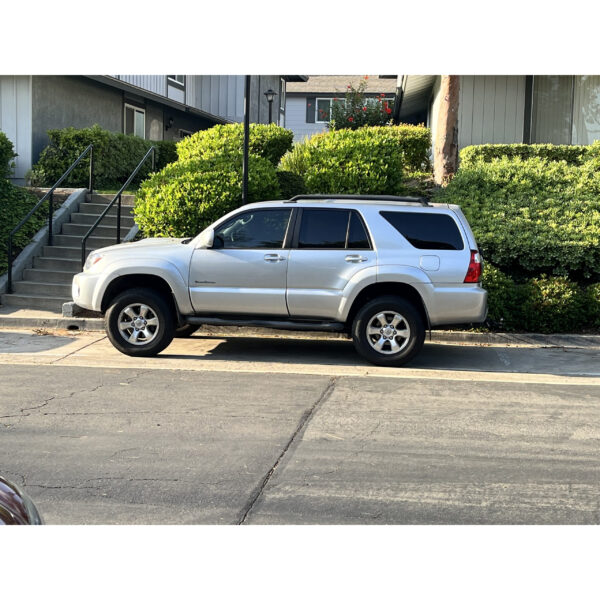

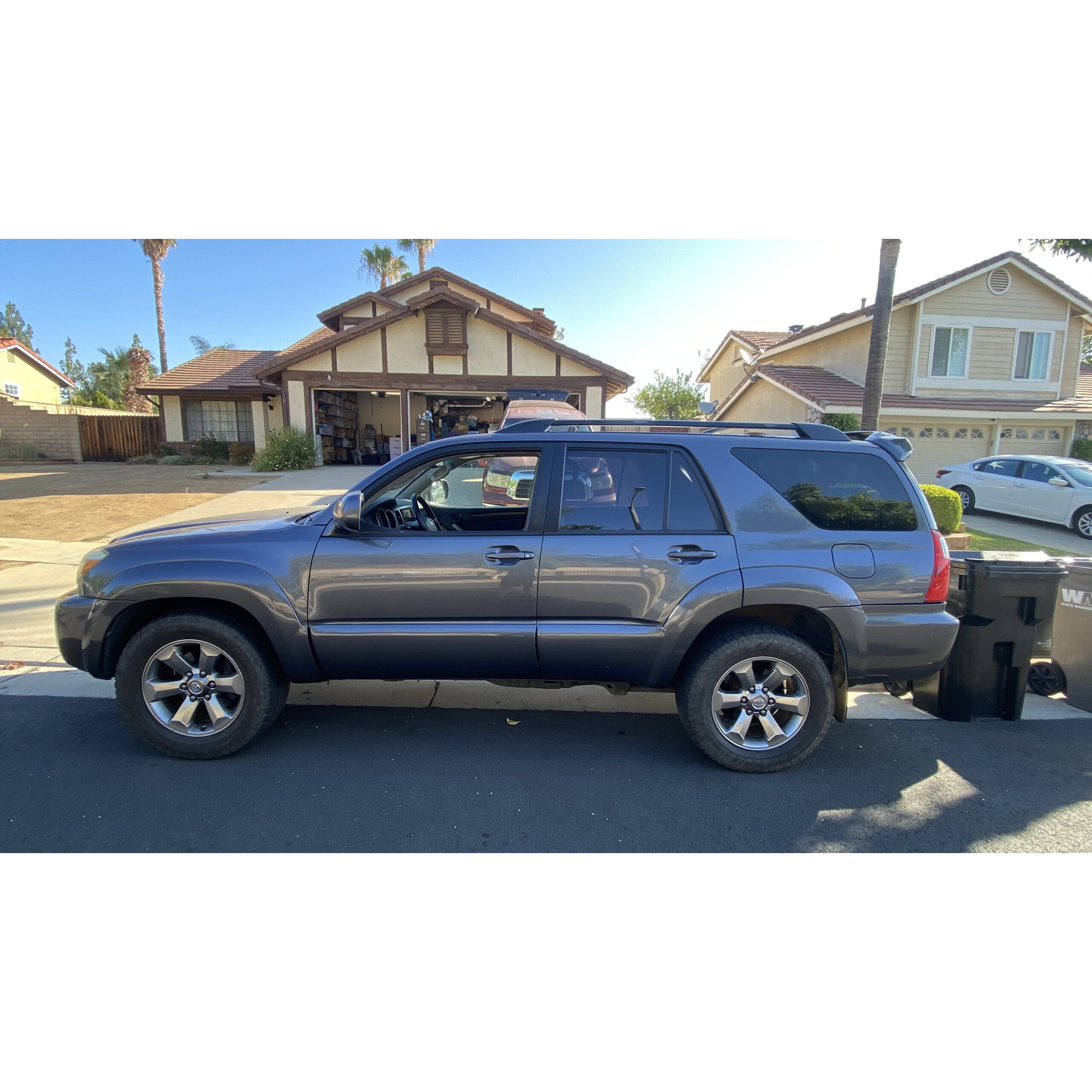

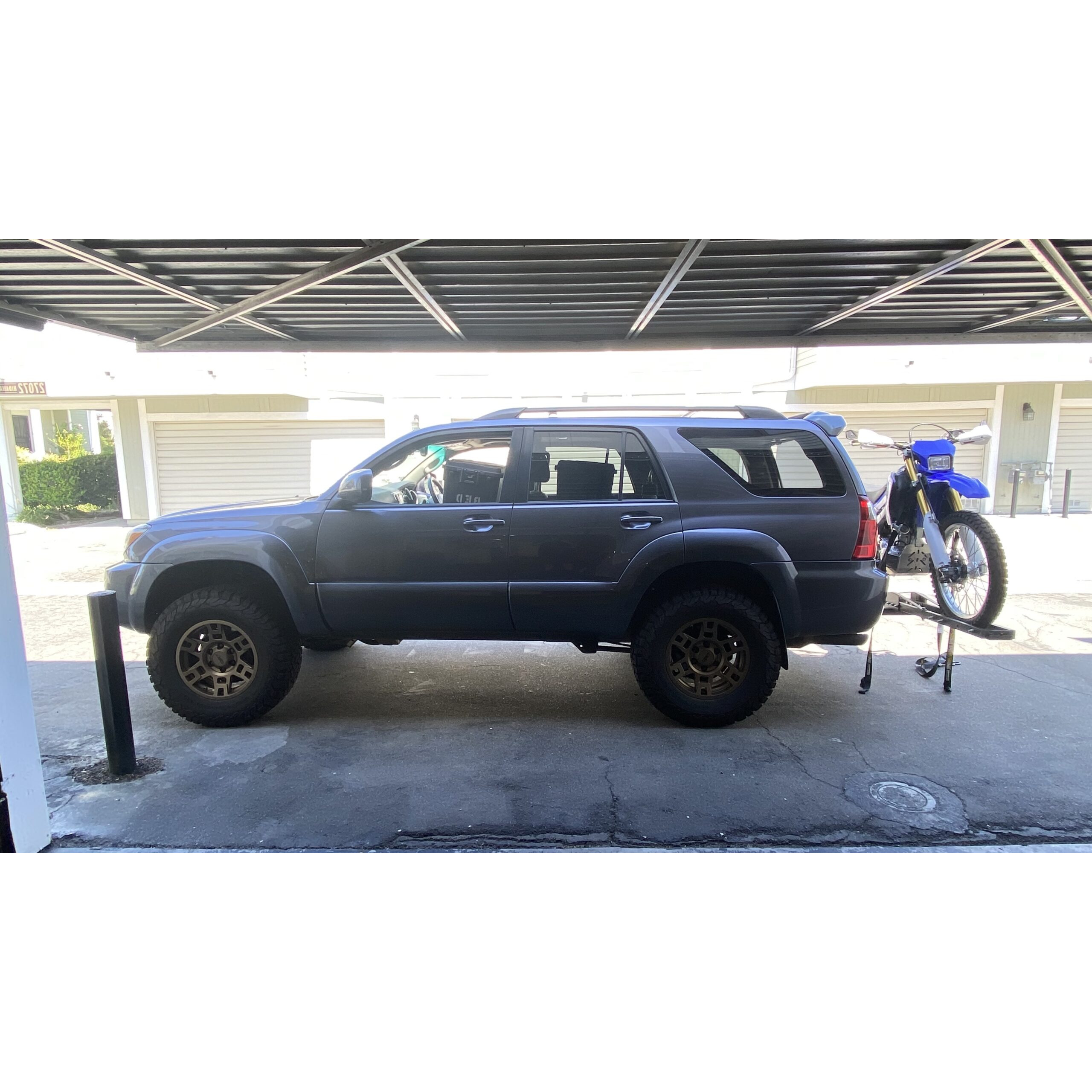

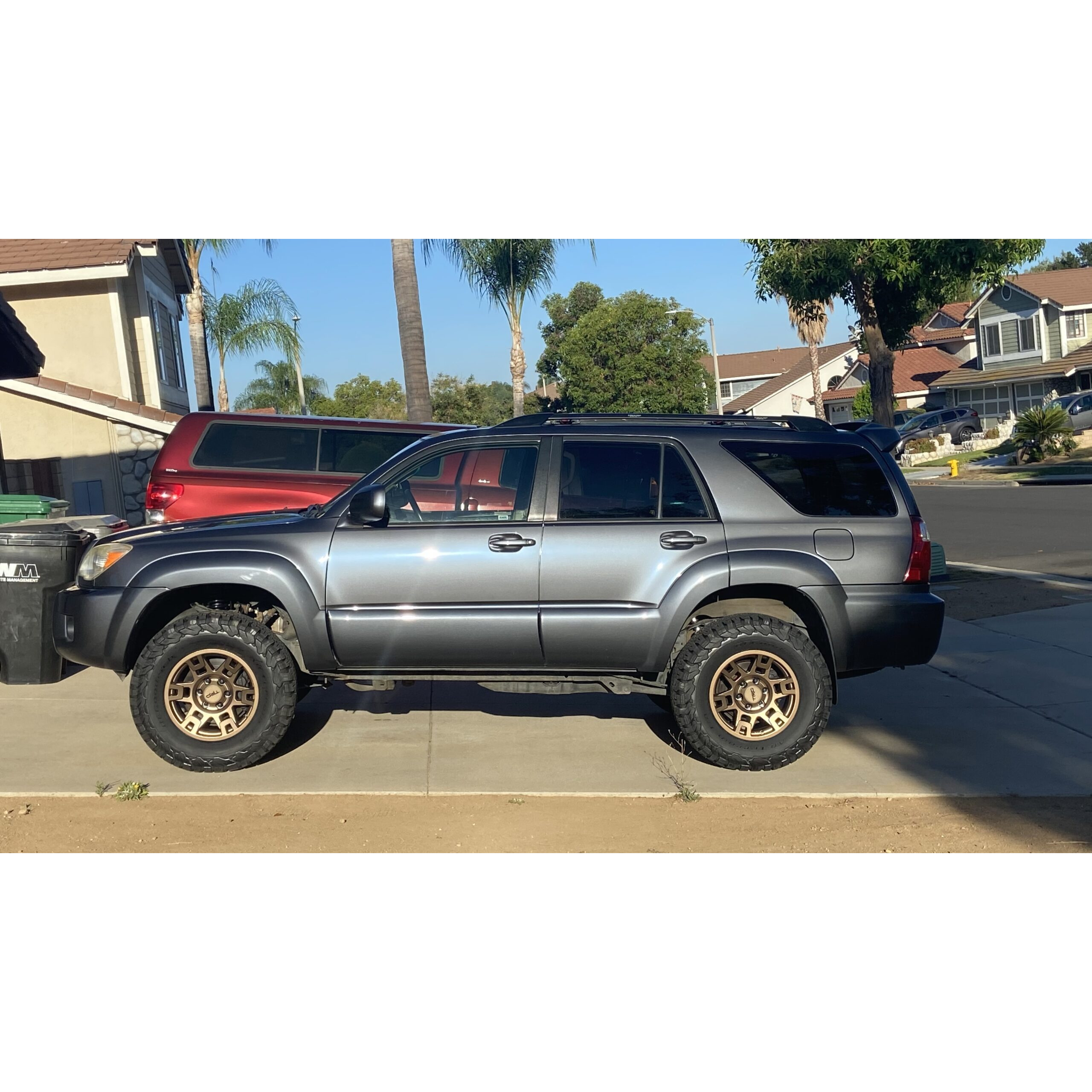

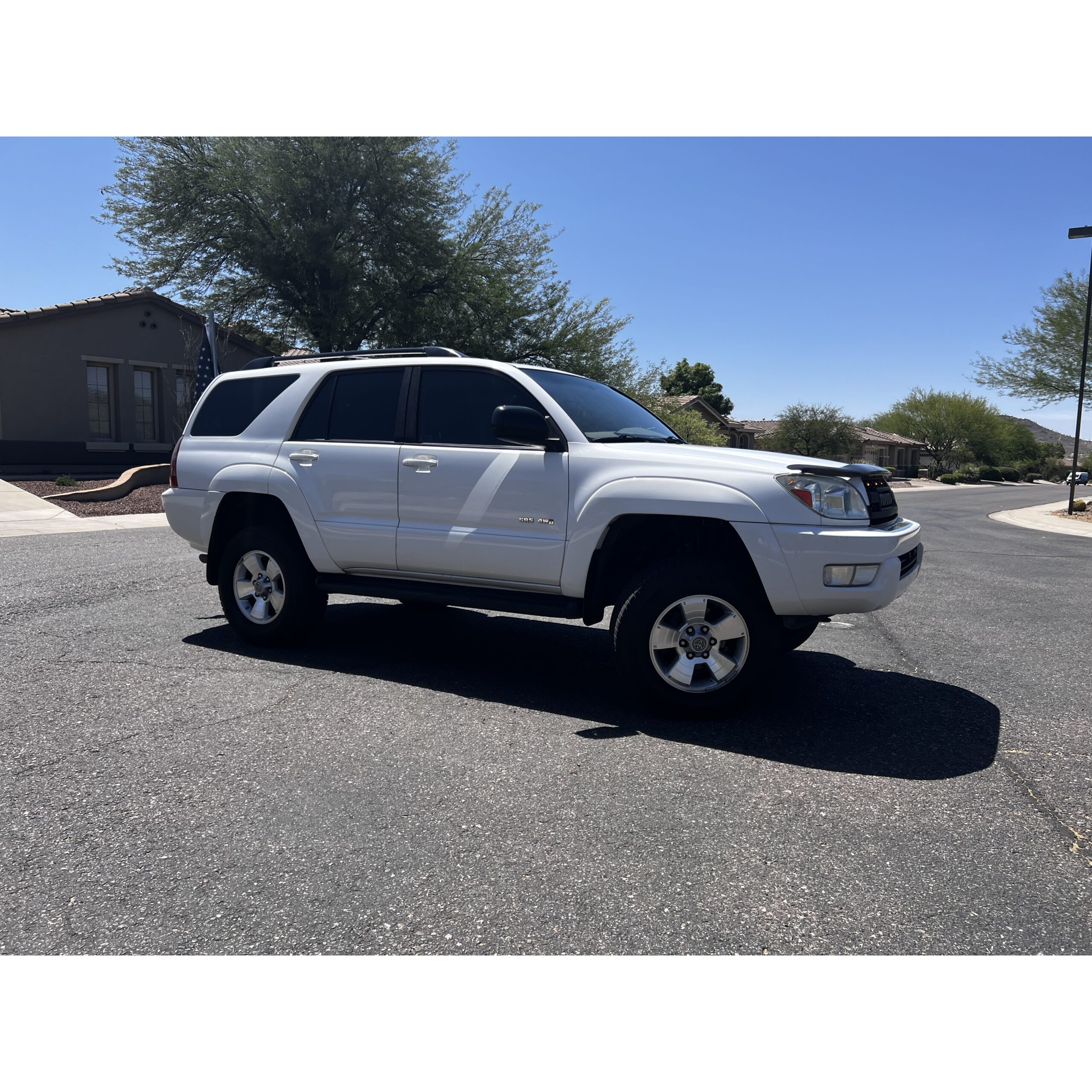

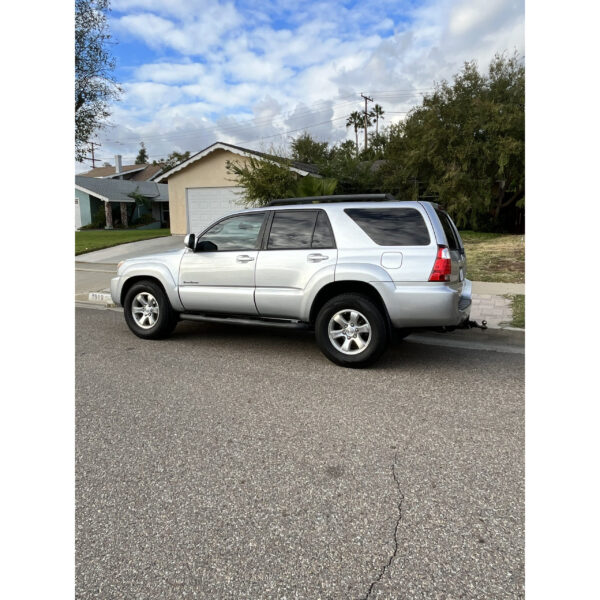

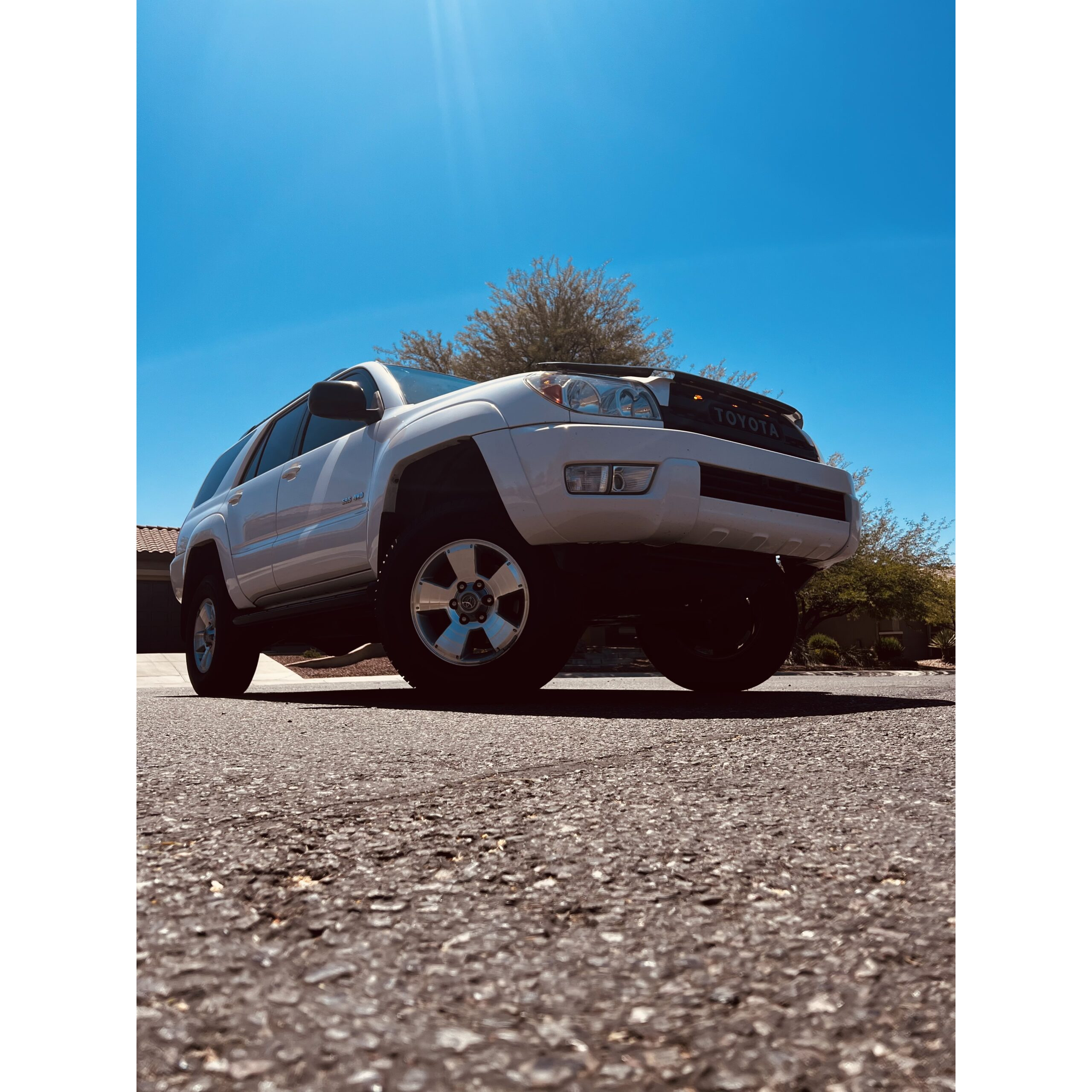

6 reviews for Bilstein/OME 2-2.5″ Lift Kit with Coils for 2003-2009 Toyota 4Runner

Add a review

Use one of the allowed file type: jpg,png,jpeg.

    Questions and answers of the customers

      Hi again ! This is in respond to your answer to my first question. So when you say " you will need to disable the X-REAS system " Does that mean replace it ? And if so, Everything is contained in the kit ( SKU: BLK4R03) to do so ? Sorry if that is a dumb question! I'm new at this, but the garage where I'm having it done at I'm sure will know what to do. Thank you. Shane
    1. 0 votes
      Q Hi again ! This is in respond to your answer to my first question. So when you say " you will nee...... Read more
      A The X-REAS system simply needs to be disabled, as that kit will essentially replace it.
      2. Hello, I have a question about a Bilstein 5100 lift kit. I've heard a lot of good things about the 5100 with the Toyota 4-Runner. I'm kind of new to this lift kit/off road look stuff, but I have a 2004 Toyota 4 Runner Sport Edition with a V6 engine. The body is in mint condition with only 63,000 miles. It does have some frame rust from sitting occasionally ( bought it from an old guy!) but I've had the frame welded in spots and it's since been inspected. Based on my research, my Sport Edition has an X-REAS suspension system ? I think, given the age of the vehicle, is it best to get a kit that is explicitly designed for this year/model ? Does the kit replace this X-REAS system? Again, I'm new at this so please let me know what you think ! Thanks again. Shane
    2. 0 votes
      Q Hello, I have a question about a Bilstein 5100 lift kit. I've heard a lot of good things about th...... Read more
      A You can buy this kit. It will work perfectly on your truck, but you will need to disable the X-REAS system.
      3. Will this fit an 07 4wd FJ Cruiser?
    3. 0 votes
      Q Will this fit an 07 4wd FJ Cruiser?
      A For your truck we can offer https://www.suspensionlifts.com/shop/toyota-fj-cruiser/2007-2009/fj-lift-kits/bilstein-arb-2-2-5-lift-kit-with-coils-for-2007-2009-toyota-fj-cruiser/
      4. I have a 2004 Limited V8 with XREAS that I'll remove. I'm running 265/65R17 tires. I'd like a level look with only slight lift. I'm not sure which rear option to choose as I'll go with the stock 2884 front coils. THank you
    4. 0 votes
      Q I have a 2004 Limited V8 with XREAS that I'll remove. I'm running 265/65R17 tires. I'd like a lev...... Read more
      A

      If you want to level and slightly lift the rear end in conjunction with your front spring, we would recommend using rear springs with minimal lift (for example, OME 1.5 inches)
      5. I have a 2007 4Runner Sport with x-reas suspension. Will this kit fit? do I need to make any modifications to fit this kit? Thx!
    5. 0 votes
      Q I have a 2007 4Runner Sport with x-reas suspension. Will this kit fit? do I need to make any modi...... Read more
      A will fit, just the x-reas will be disabled
      6. i bought this kit aftermarket and havent put on yet, is there a way i can tell what spring is on front shock?
    6. 0 votes
      Q i bought this kit aftermarket and havent put on yet, is there a way i can tell what spring is on ...... Read more
      A yes will fit, just x-reas system will be disabled
      7. This lift kit will fit 2008 gx470? Thank you in adavance.
    7. 0 votes
      Q This lift kit will fit 2008 gx470? Thank you in adavance.
      A yes will fit
