Bilstein 4600 Front & Rear Shocks for 86-’89 Toyota 4Runner
Sale!
Description
Bilstein 4600 Front & Rear Shocks for 86-’89 Toyota 4Runner
Bilstein 4600 Front & Rear Shocks for 86-’89 Toyota 4Runner
Part Number(s): 24-011396, 24-011402
Summary: Bilstein B6 4600 shock absorbers are designed as a direct OE replacement upgrade for the 1986-1989 Toyota 4Runner and 1986-1995 Toyota Pickup 4WD. These shocks feature a monotube design which provides consistent fade-free performance for light trucks and SUVs at stock height. Utilizing a unique, velocity-sensitive, digressive piston, the B6 4600 series reacts to changing road conditions to ensure optimal performance. This complete set offers a significant improvement in ride quality, handling, and comfort over factory equipment.
Features
- Monotube Design: Single-tube construction provides consistent fade-free performance to ensure reliable damping under repeated impacts and extended use.
- Digressive Piston: Velocity-sensitive, digressive piston design reacts to changing road conditions to ensure optimal handling and comfort.
- Application Specific Tuning: Custom valving for Toyota 4WD applications provides a significant improvement in ride quality to ensure the best possible performance for stock height vehicles.
Technical Specifications
| Specification | Value |
|---|---|
| Series | B6 4600 |
| Position | Front and Rear |
| Collapsed Length | Front: 9.29 in / Rear: 13.62 in |
| Extended Length | Front: 13.88 in / Rear: 20.87 in |
| Collapsed Length (mm) | 236.0 (Front) |
| Extended Length (mm) | 352.5 (Front) |
| Lower Mount Type | Eyelet |
| Upper Mount Type | Front: Stem / Rear: Eyelet |
| Internal Design | Monotube |
| Finish | Yellow Paint |
| Reservoir | No |
| Body Diameter | 2.0 in. |
| Boot Included | Blue Bellows |
| Adjustable Damping | Non-Adjustable |
| Country of Origin | MX |
| Warranty | Limited Lifetime Warranty |
Fitment
- 1986-1989 Toyota 4Runner 2WD/4WD
- 1986-1995 Toyota Pickup 4WD
- Note: Includes shocks exactly as pictured. Designed for stock height vehicles.
What’s Included

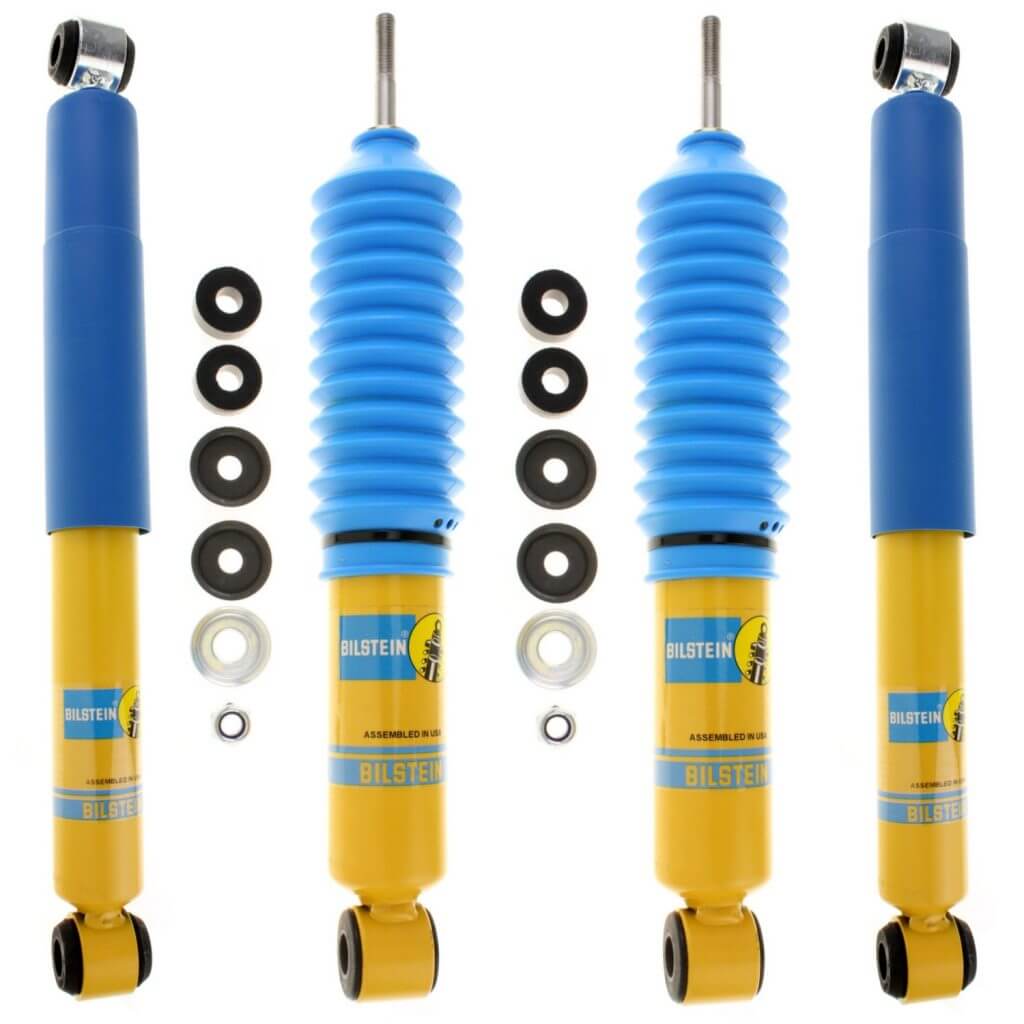

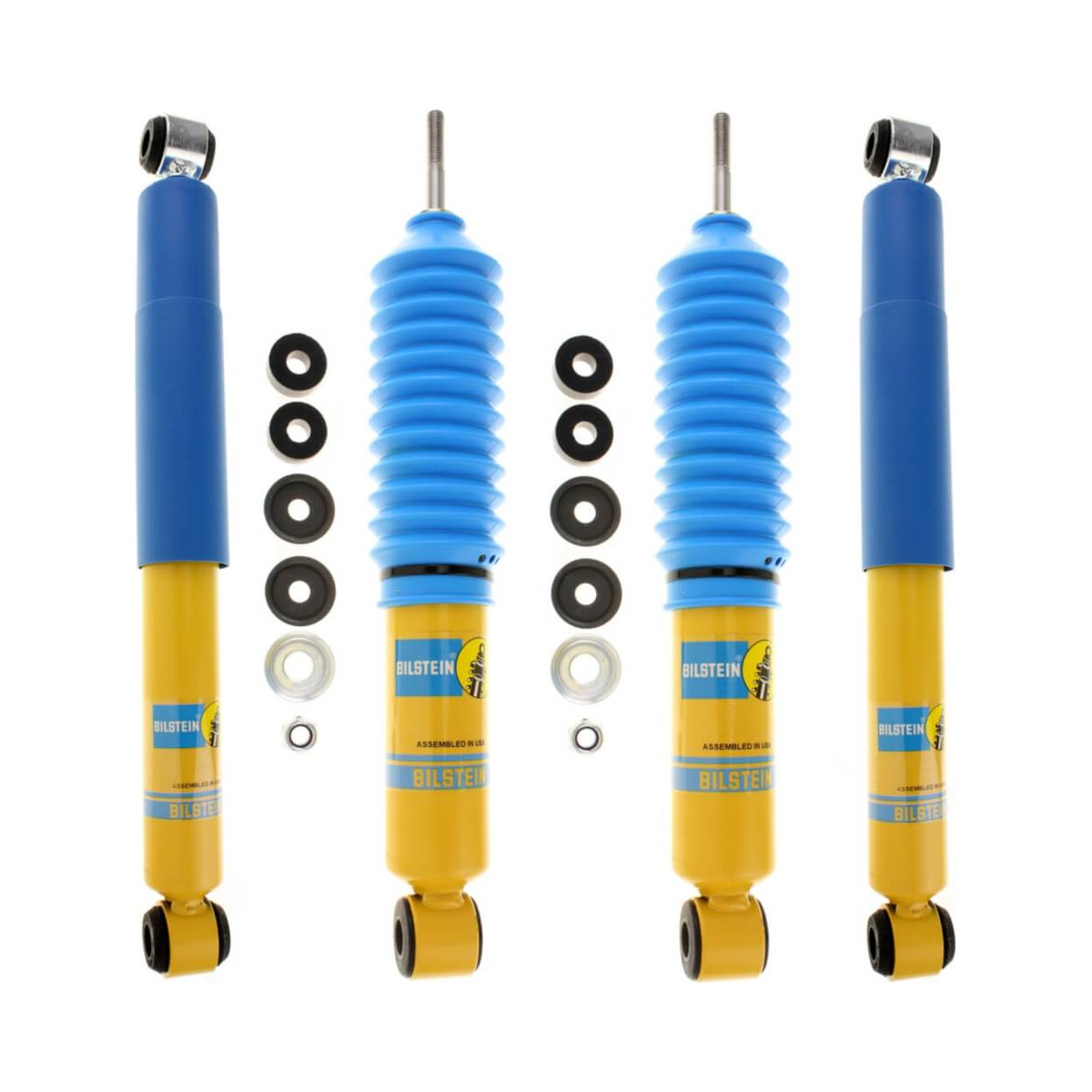

- Includes 4 Shocks
- 2 x Front Shocks (Part #24-011396)
- 2 x Rear Shocks (Part #24-011402)
- Blue Bellows Boots
Interchange Numbers
This product is compatible with the following part numbers:
- AutoZone 84587
- Bilstein B46-1139
- Bilstein F4-B46-1139-H1
- BQNV 24011396
- Pro Comp Suspension 314014
- Pro Comp Suspension 914014
- Pro Comp Suspension MX6044
- Rancho RS5145
- Rancho RS999145
Why Choose This Product?
- OE Replacement: Direct fit replacement for stock OE shocks, ensuring easy installation and perfect compatibility.
- Monotube Advantage: Monotube design provides consistent damping and fade resistance compared to twin-tube OE shocks.
- Performance Upgrade: Improved ride quality, handling, and comfort over factory shocks without modification required.
- Bilstein Quality: German engineering and manufacturing standards ensure long-lasting performance and reliability.
Frequently Asked Questions
Will these shocks lift my Toyota 4Runner?
No, the Bilstein B6 4600 series is designed as a direct OE replacement for stock height vehicles and does not provide lift.
Are these shocks adjustable?
No, the B6 4600 series features a non-adjustable design with application-specific velocity-sensitive valving.
What is the benefit of the Monotube design?
The monotube design provides consistent, fade-free performance by dissipating heat more effectively than traditional twin-tube shocks.
Do these come with boots?
Yes, these shocks include blue bellows boots as part of the assembly.
Questions and answers of the customers
-
These good for jumps?
-
0 votesQ These good for jumps?A These good for stock lift truck
Hello, looking for front and rear shocks for any 89' 4runner w/a 2" body lift.
Thanks.
-
0 votesQ Hello, looking for front and rear shocks for any 89' 4runner w/a 2" body lift. Thanks.A Body lift does not affect suspension. These shocks will work with 2" body lift, but not with 2" suspension lift.
I need shock absorber for a 1987 Toyota 4Runner. I just purchased the 4Runner and not sure what the lift is but guessing the front is one inch and back is 4-5”. Tires are 31”. My estimate on lift is based off of stock height of ground to wheel well height from others I found online. Then measured mine and considered tire size. Any recommendation on what shock absorber to purchase?
-
0 votesQ I need shock absorber for a 1987 Toyota 4Runner. I just purchased the 4Runner and not sure what t...... Read moreThere are no answers for this question yet.
What is the Bilstein part number for each front/back?
-
0 votesQ What is the Bilstein part number for each front/back?A 24-011396_24-011402 Please send us complete info about your truck as follows: Year Model Sub-model (1500 / 1500HD / etc.) Drivetrain (4WD / 2WD) Engine (displacement, fuel: gas/diesel) Cab (regular, crew, extended) Lift height (front and rear lift amount if applicable) Lift type (spacers, spring coils or specify if anything else was applied for the lift) and we'll try our best to find the proper shocks for your vehicle.
Do these fit 89 toyota pickup 4x4
-
0 votesQ Do these fit 89 toyota pickup 4x4A yes it will fit Toyota Pickup 4wd with stock height suspension
Will these fit a stock 1986 Toyota 4Runner?? Not extra lift or anything else needed??just want to make sure before purchase thanks
-
0 votesQ Will these fit a stock 1986 Toyota 4Runner?? Not extra lift or anything else needed??just want to...... Read moreA Yes It will fit on 1986 Toyota 4Runner which stock suspension (0" lift)
are these the stock length for a 1987 toyota 4x4, i don't want to get too much lift.
-
0 votesQ are these the stock length for a 1987 toyota 4x4, i don't want to get too much lift.A Yes, for stock height (0'' lift)
Will these shocks with with a 1.5” BJ lift up front and 1.5” lift blocks rear ?
-
0 votesQ Will these shocks with with a 1.5” BJ lift up front and 1.5” lift blocks rear ?A They may fit but we'd better recommend slightly longer https://www.suspensionlifts.com/shop/toyota-4runner/1986-1989/shocks-4runner-1986-1989/86-89-toyota-4runner-4wd-0-2-front-0-2-rear-lift-skyjacker-monotube-shocks/
