ICON Stage 2 System 3″ Lift Kit for 1991-1997 Toyota Land Cruiser 80 Series

Description
ICON Stage 2 System 3″ Lift Kit for 1991-1997 Toyota Land Cruiser 80 Series

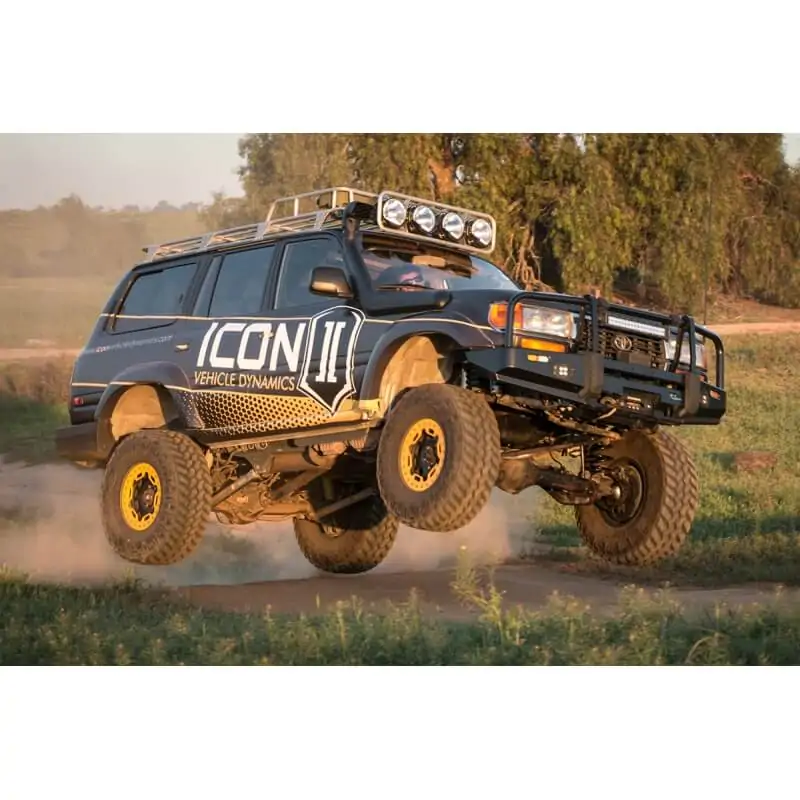

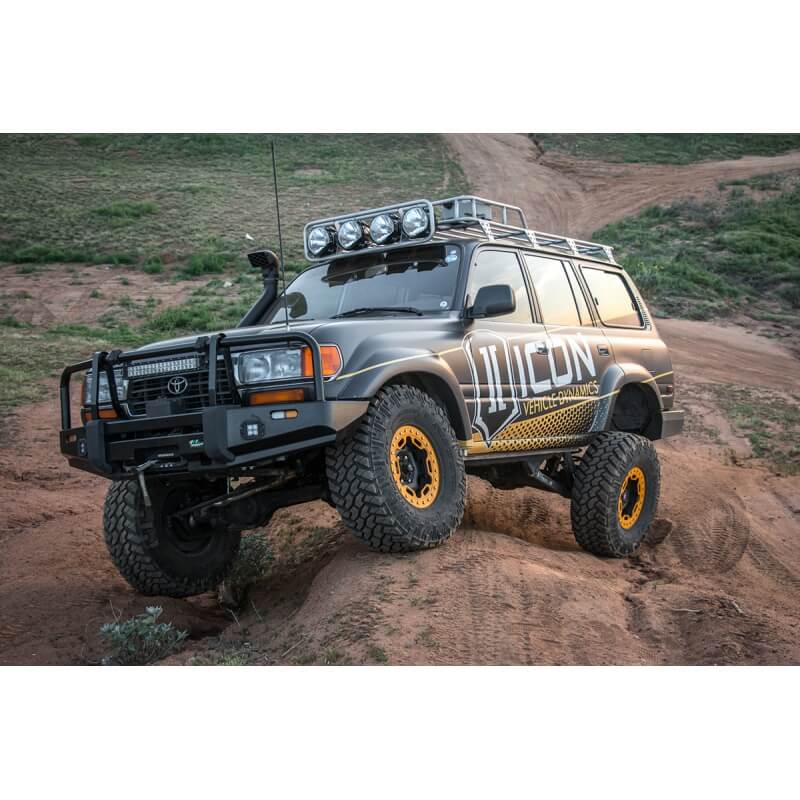

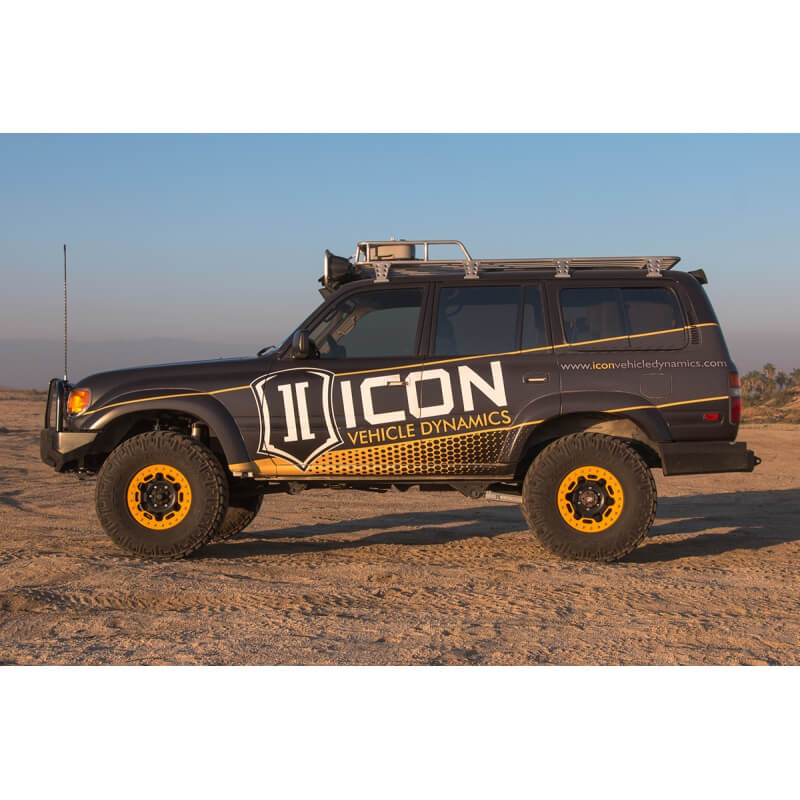

ICON Toyota 80 Series Land Cruiser Stage 2 3 inches Lift Suspension System (1991–1997)

Part Number: K53092

Summary: The ICON Stage 2 suspension system for the 1991–1997 Toyota 80 Series Land Cruiser is engineered to provide a 3 inches lift height, significantly enhancing both on-road handling and off-road capability. This system features ICON 2.5 Aluminum Series remote reservoir shocks with vehicle-specific valving and dual-rate coil springs to optimize damping across diverse terrains. A key differentiator for this Stage 2 kit is the inclusion of caster correction bushings and sway bar relocation components to maintain proper suspension geometry after lifting.

Features

• Dual-Rate Coil Springs: ICON-engineered springs provide a 3” lift height to ensure exceptional on-road ride quality and outstanding off-road performance.
• Increased Wheel Travel: Specialized geometry provides approximately 40% increased front and 35% increased rear wheel travel to ensure superior articulation in technical terrain.
• 2.5 Aluminum Series Shocks: 2.5-inch diameter remote reservoir shocks with 7/8 inches shafts provide increased oil capacity to ensure cooler operating temperatures during extended off-road use.
• System Durability: One-piece impact extruded aluminum cylinders and 6061 aircraft-grade CNC machined components provide excellent corrosion resistance to ensure a consistent finish and long-term reliability.
• Installation: A 100% bolt-on design provides a straightforward upgrade path to ensure no drilling, cutting, or welding is necessary for installation.

Technical Specifications

Wheel & Tire Fitment

• OEM Wheels & Tires: Yes
• Aftermarket Wheels: 17×8.5 with 4.63” Backspace
• Aftermarket Tires: 33 inches x 11.50 inches
• Note: Larger tires may fit but fender trimming and modifications will be required. ICON’s advertised lift heights are based around a typical 80 Series build with added weight (bumpers/winch). Lift heights may be higher on stock weighted vehicles.

System Components

• 57801P: 91-97 LAND CRUISER 80 0-3 inches FRONT 2.5 VS RR PAIR
• 53007: 91-97 LAND CRUISER FRONT SWAY BAR RELOCATION KIT
• 53008: 91-97 LAND CRUISER 4.6 DEG CASTER CORRECTION KIT
• 53009: 93-97 LAND CRUISER BRAKE LINE KIT +3 inches
• 53005: 91-97 LAND CRUISER 3 inches FRONT DUAL RATE SPRING KIT
• 53006: 91-97 LAND CRUISER 3 inches REAR DUAL RATE SPRING KIT
• 57802P: 91-07 LAND CRUISER 80/100 0-3 inches REAR 2.5 VS RR PAIR

Why Choose ICON Stage 2?

• Performance Engineering: Increased wheel travel and damping for superior control.
• Optimized Geometry: Caster correction bushings ensure stable steering feedback and alignment specs at the 3 inches lift height.
• Fully Serviceable: Shocks are rebuildable and revalveable for long-term performance.

Frequently Asked Questions

Is this kit a direct bolt-on?
Yes, the 100% bolt-on design means no drilling, cutting, or welding is required for installation.

Can I service these shocks?
Yes, ICON 2.5 Series shocks are fully serviceable, including the ability to be rebuilt or re-valved.
