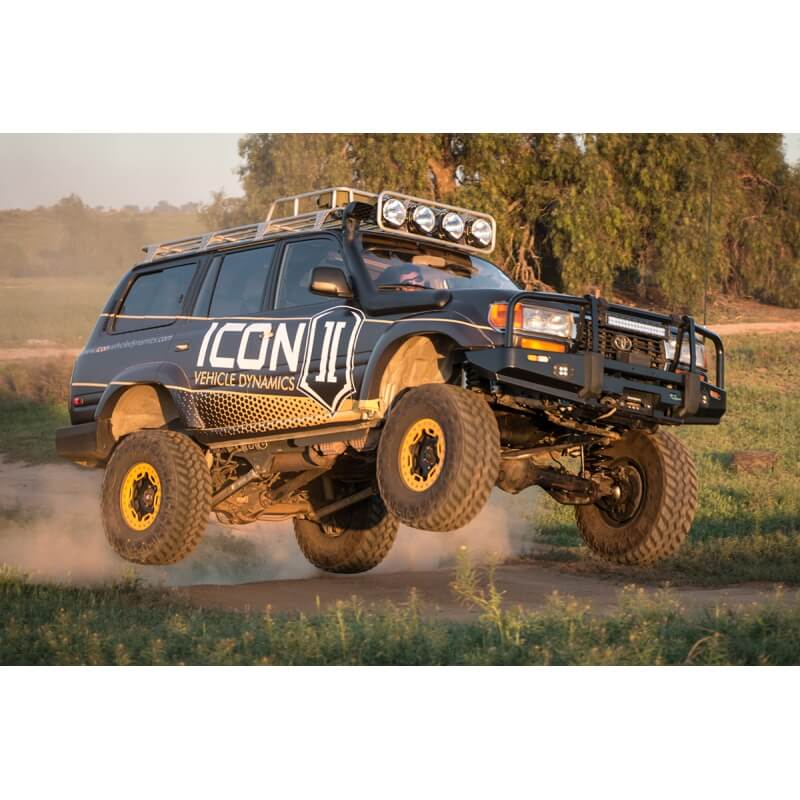

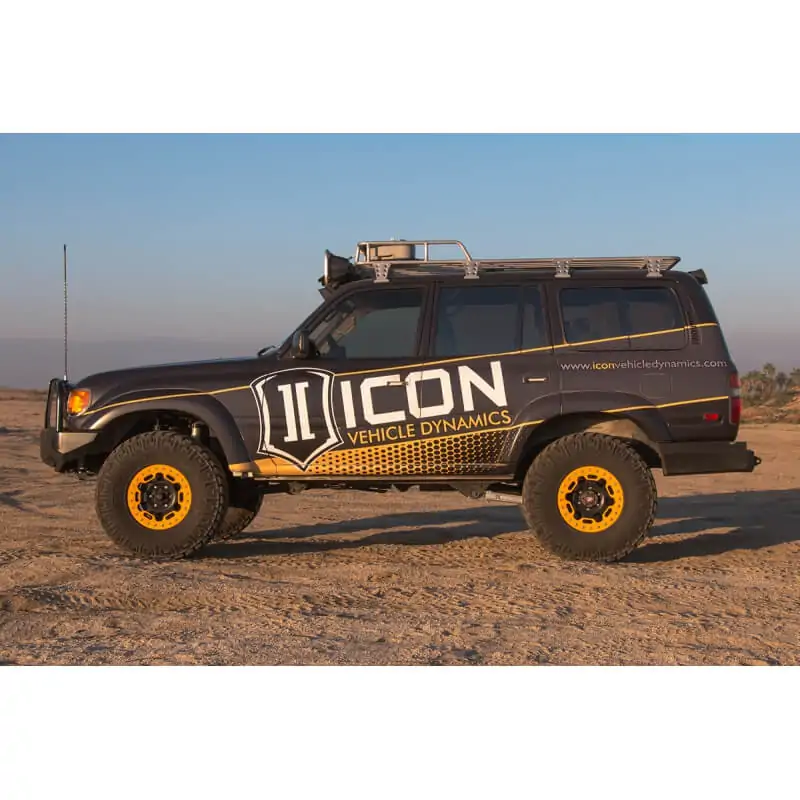

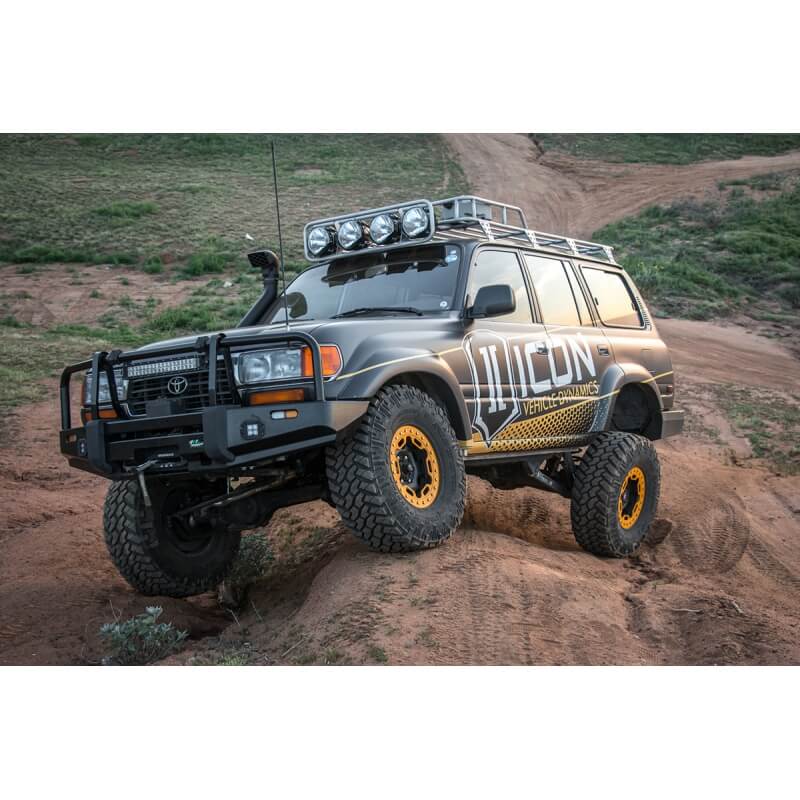

ICON Stage 3 System 3″ Lift Kit for 1991-1997 Toyota Land Cruiser 80 Series

Description
ICON Stage 3 System 3″ Lift Kit for 1991-1997 Toyota Land Cruiser 80 Series

ICON 1991–1997 Toyota 80 Series Land Cruiser 3 inches Lift Stage 3 Suspension System

Part Number: K53093

Summary: The ICON Stage 3 Suspension System for the 1991–1997 Toyota 80 Series Land Cruiser provides a 3-inch lift height designed to balance superior on-road handling with maximum off-road capability. This comprehensive system features ICON 2.5 Aluminum Series remote reservoir shocks equipped with CDCV (Compression Damping Control Valve) technology, allowing for 10 high-resolution damping adjustments to suit any terrain. By integrating dual-rate coil springs and caster correction components, this stage ensures the Land Cruiser maintains precise geometry and increased wheel travel for extreme off-road use.

Features

• Increased Wheel Travel: Approximately 40% increased front and 35% increased rear wheel travel provides improved articulation to ensure superior off-road traction.
• CDCV Technology: The ICON Compression Damping Control Valve provides 10 user-adjustable settings to ensure perfectly tuned ride quality for varying loads and terrains.
• Dual-Rate Coil Springs: ICON-engineered dual-rate springs provide a soft initial rate for street comfort and a firmer secondary rate to ensure bottom-out resistance during aggressive driving.
• 2.5 Aluminum Series Shocks: 2.5-inch diameter impact-extruded aluminum cylinders provide excellent corrosion resistance and heat dissipation to ensure consistent damping during extended off-road use.
• Caster Correction: Included 4.6-degree caster correction bushings provide proper front-end geometry to ensure stable high-speed tracking and steering feel.
• System Durability: 6061 aircraft-grade aluminum CNC machined components provide high strength and a premium finish to ensure long-term component integrity.
• Installation: A 100% bolt-on design provides a straightforward upgrade path with no cutting, drilling, or welding required to ensure a clean return to stock if necessary.

Technical Specifications

Wheel & Tire Fitment

• OEM Wheels & Tires: Yes
• Aftermarket Wheels: 17×8.5 with 4.63” Backspace
• Aftermarket Tires: 33 inches x 11.50 inches
• Note: Larger tires may fit but fender trimming and modifications will be required. Lift heights are based on typical builds with armor; stock-weight vehicles may see higher lift.

System Components

• 57801CP: 91-97 LAND CRUISER 80 0-3 inches FRONT 2.5 VS RR CDCV PAIR
• 53007: 91-97 LAND CRUISER FRONT SWAY BAR RELOCATION KIT
• 53008: 91-97 LAND CRUISER 4.6 DEG CASTER CORRECTION KIT
• 53009: 93-97 LAND CRUISER BRAKE LINE KIT +3 inches
• 53005: 91-97 LAND CRUISER 3 inches FRONT DUAL RATE SPRING KIT
• 53006: 91-97 LAND CRUISER 3 inches REAR DUAL RATE SPRING KIT
• 57802CP: 91-07 LAND CRUISER 80/100 0-3 inches REAR 2.5 VS RR CDCV PAIR

Why Choose ICON Stage 3?

• Performance Engineering: Increased wheel travel (40% Front / 35% Rear) and vehicle-specific valving for superior control.
• Adjustable Damping: The CDCV system allows for tool-free adjustments to shock firmness in seconds.
• Fully Serviceable: Shocks are rebuildable and revalveable for long-term performance and sustainability.

Frequently Asked Questions

Can I adjust the firmness of the ride on this kit?
Yes, the Stage 3 system includes CDCV (Compression Damping Control Valve) shocks which feature a knob with 10 settings to adjust the ride from soft to firm without tools.

Will this kit work with my factory wheels?
Yes, this system is compatible with OEM wheels and tires, though aftermarket wheels with 4.63 inches backspacing are recommended for optimal clearance.
