FOX 2.5 Factory Reservoir 0-3 Lift Shocks 2003-2026 Toyota Prado 120

Description

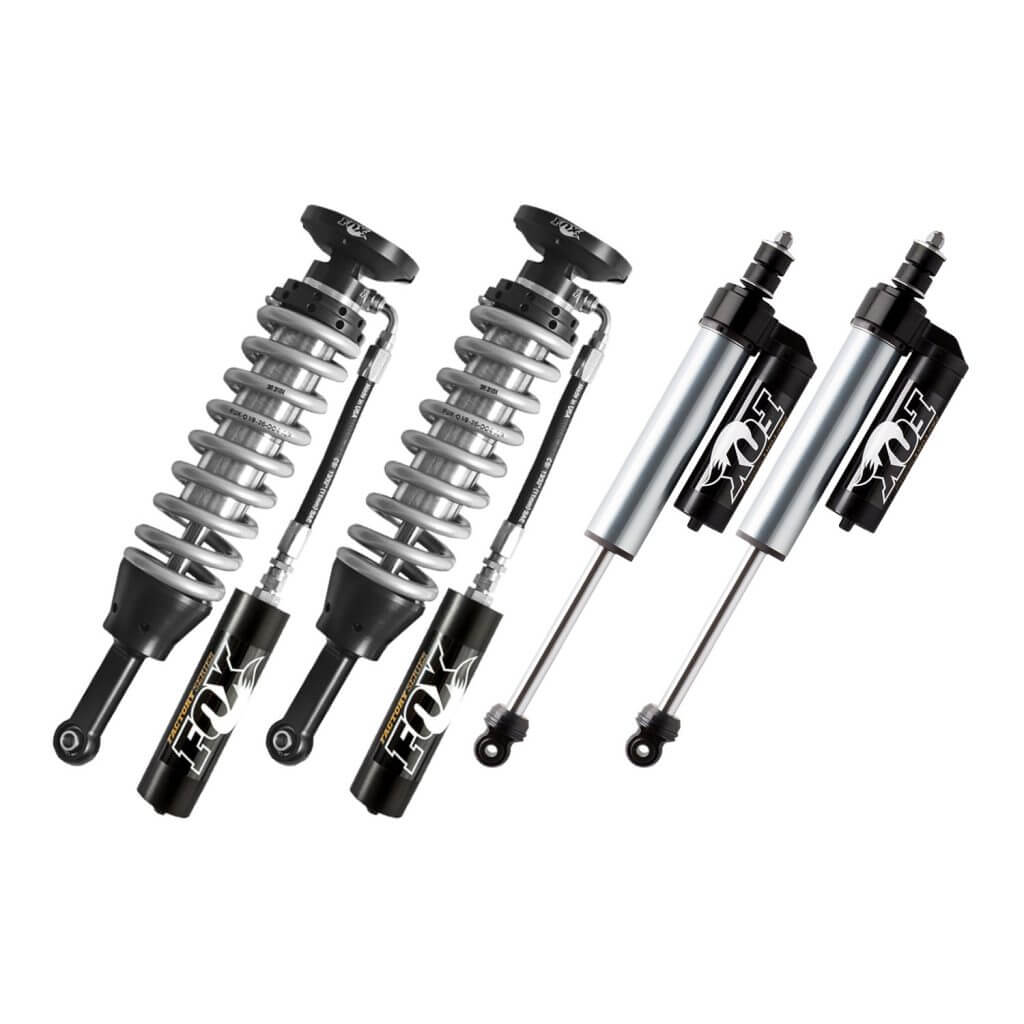

FOX 2.5 Factory Reservoir 0-3 Lift Shocks 2003-2026 Toyota Prado 120

FOX 2.5 Factory Reservoir 0-3 Lift Shocks 2003-2026 Toyota Prado 120

Part Number: 883-02-130

Summary: The FOX 2.5 Factory Series Reservoir shock system is engineered to provide enhanced ride quality and precise control for the Toyota Prado 120. Utilizing an External Reservoir design, these shocks increase oil and nitrogen capacity to deliver improved damping performance in any terrain. This bolt-on solution is specifically valved to maximize performance whether navigating daily commutes or challenging off-road environments, ensuring consistent operation under demanding conditions.

Features

• External Reservoir: Increased oil and nitrogen capacity provides enhanced heat dissipation to ensure a striking race look and fade-resistant performance.
• Smooth Bore Body: Honed seamless alloy construction provides a durable foundation to ensure long-lasting performance in brutal conditions.
• High-Flow Piston: Race-developed design provides application-specific valving to ensure maximized performance and precise control.
• Redundant Sealing Pack: Main seal, wiper seal, and scraper seal system provides a robust barrier to ensure internal components remain protected from contaminants.
• Hard Chrome Plated Shaft: 7/8-inch heat-treated alloy steel provides superior strength to ensure durability during high-impact operation.

Technical Specifications

Fitment

• 2003-2026 Toyota Prado
• Note: Requires Upper Control Arm. Fitment applies to Prado 120 series as specified in primary documentation.

What’s Included

• Includes Full Set (See Below)
• 2 Front Shocks (883-02-130)
• 2 Rear Shocks (883-24-004)

Why Choose This Product?

• Engineering Advantage: These shocks feature CNC-machined 6061-T6 billet aluminum components and a double clear-coated zinc-plated finish for extreme corrosion resistance and structural integrity.
• Performance Benefit: The 2.5 Factory Series shocks deliver race-proven damping technology that has been perfected in competition, offering a significant upgrade in vehicle stability and off-road handling.

Frequently Asked Questions

What is the benefit of the External Reservoir?
The external reservoir allows for increased oil and nitrogen capacity, which improves heat management and provides consistent damping performance across various terrains.

Are there any special requirements for installation?
Yes, this shock configuration requires the use of an aftermarket Upper Control Arm for proper fitment and operation.

What lift height do these shocks support?
These shocks are designed for 0-3 inches of front lift and 0-1.5 inches of rear lift on the Toyota Prado 120.
