FOX 2.5 Factory Res 0-3 Front Lift Shocks 2010-2014 Toyota Prado 150
Sale!
Description

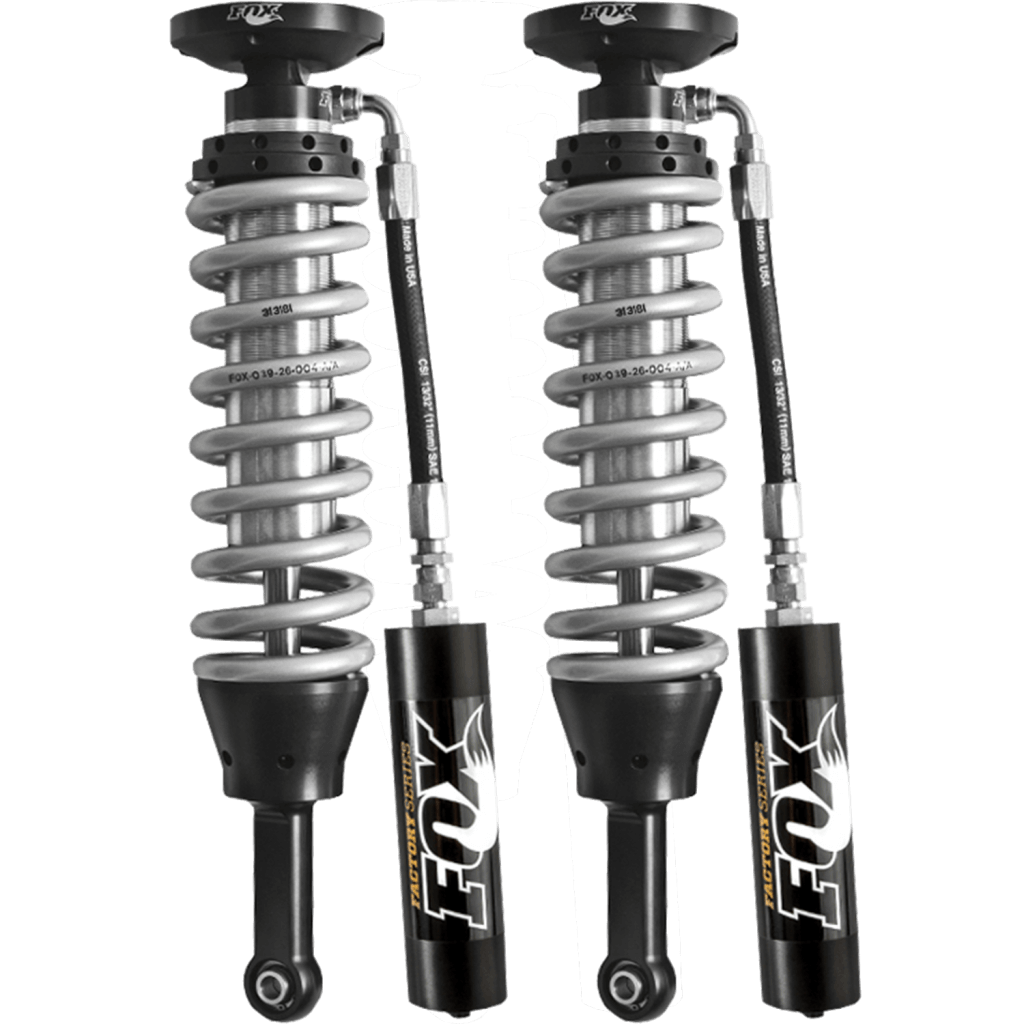

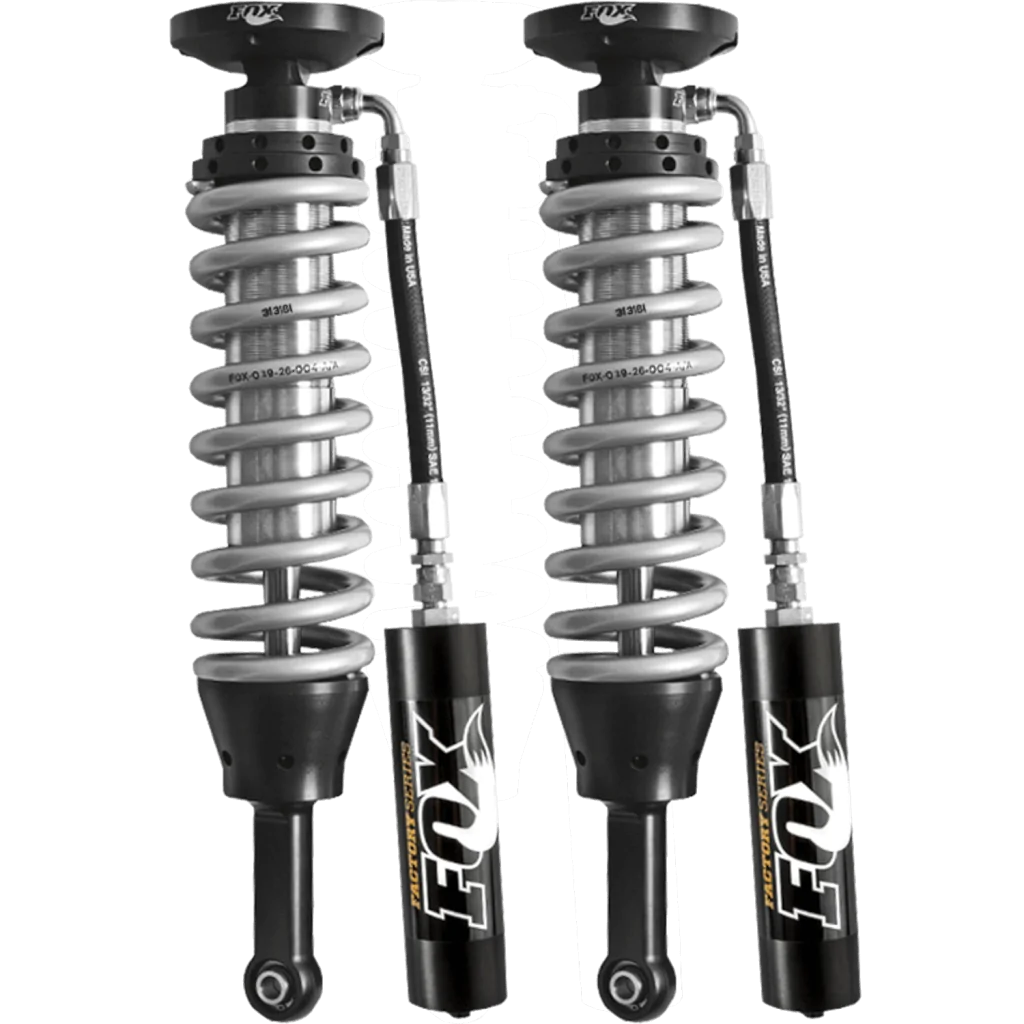

FOX 2.5 Factory Res 0-3 Front Lift Shocks 2010-2014 Toyota Prado 150
FOX 2.5 Factory Res 0-3 Front Lift Shocks 2010-2014 Toyota Prado 150
Part Number: 883-02-130
Summary: The FOX 2.5 Factory Reservoir front shocks are engineered for the 2010-2014 Toyota Prado 150 to provide enhanced performance for lifted applications. Featuring a Factory Reservoir design, these shocks are built to increase heat capacity and maintain consistent damping during sustained off-road operation. This system is specifically configured to accommodate front lift heights ranging from 0 to 3 inches, ensuring improved suspension travel and control.
Features
- Factory Reservoir: External reservoir design provides increased oil capacity and heat dissipation to ensure fade resistance during high-speed operation.
- Lift Compatibility: Configuration for 0 to 3 inches of front lift provides increased suspension height to ensure clearance for off-road obstacles.
- Application Specific Valving: Performance-tuned damping provides specialized control to ensure a balanced ride for the Toyota Prado 150.
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 883-02-130 |
| Front Lift Range | 0-3 Inches |
| Notes | Requires Upper Control Arm |
Fitment
- 2010 Toyota Prado
- 2011 Toyota Prado
- 2012 Toyota Prado
- 2013 Toyota Prado
- 2014 Toyota Prado
- Note: Requires Upper Control Arm.
What’s Included
- Includes 2 Shocks
Why Choose This Product?
- Engineering Advantage: The external Factory Reservoir design significantly increases the shock’s ability to manage heat compared to standard internal-reservoir shocks.
- Performance Benefit: Drivers will experience sustained damping performance and reduced fade during intensive off-road use, maintaining vehicle stability across varied terrain.
Frequently Asked Questions
What is the benefit of the Factory Reservoir?
The Factory Reservoir increases the shock’s oil and nitrogen capacity, which improves heat dissipation and prevents performance fade during repeated impacts.
Does this shock require any additional components for installation?
Yes, according to the manufacturer specifications, this shock requires the installation of an aftermarket Upper Control Arm.
What lift height are these shocks compatible with?
These front shocks are designed to work with lift heights ranging from 0 to 3 inches on the Toyota Prado 150.
Be the first to review “FOX 2.5 Factory Res 0-3 Front Lift Shocks 2010-2014 Toyota Prado 150”
Questions and answers of the customers
-
Do these fit 2019 4Runner TRD off road
-
0 votesQ Do these fit 2019 4Runner TRD off roadA Hello These shocks are also fit for 2019 4Runner TRD off road Body 2.5” smooth bore zinc plated seamless steel body Body Plating Zinc-plated and double-clear coated for long lasting finish Reservoir 2.5" Smooth bore and honed seamless alloy reservoir Components Black-anodized, CNC-machined 6061-T6 billet aluminum Spring Application specific, adjustable 3.0 Eibach® racing springs Shaft 7/8" hard chrome plated steel shafts Piston 6061-T6 hard-anodized, high flow aluminum piston Valving Application specific valving to maximize performance Seals Redundant sealing pack system main seal, wiper seal, scraper seal Oil JM92 Advanced Suspension Fluid for improved performance at variable temperatures Bearing PTFE-lined, heat-treated, alloy steel spherical Adjustments Ride height preload ring Travel (in) 5.290 Compressed (in) 17.090 Extended (in) 22.380 Top Mount OEM Bottom Mount Eyelet
