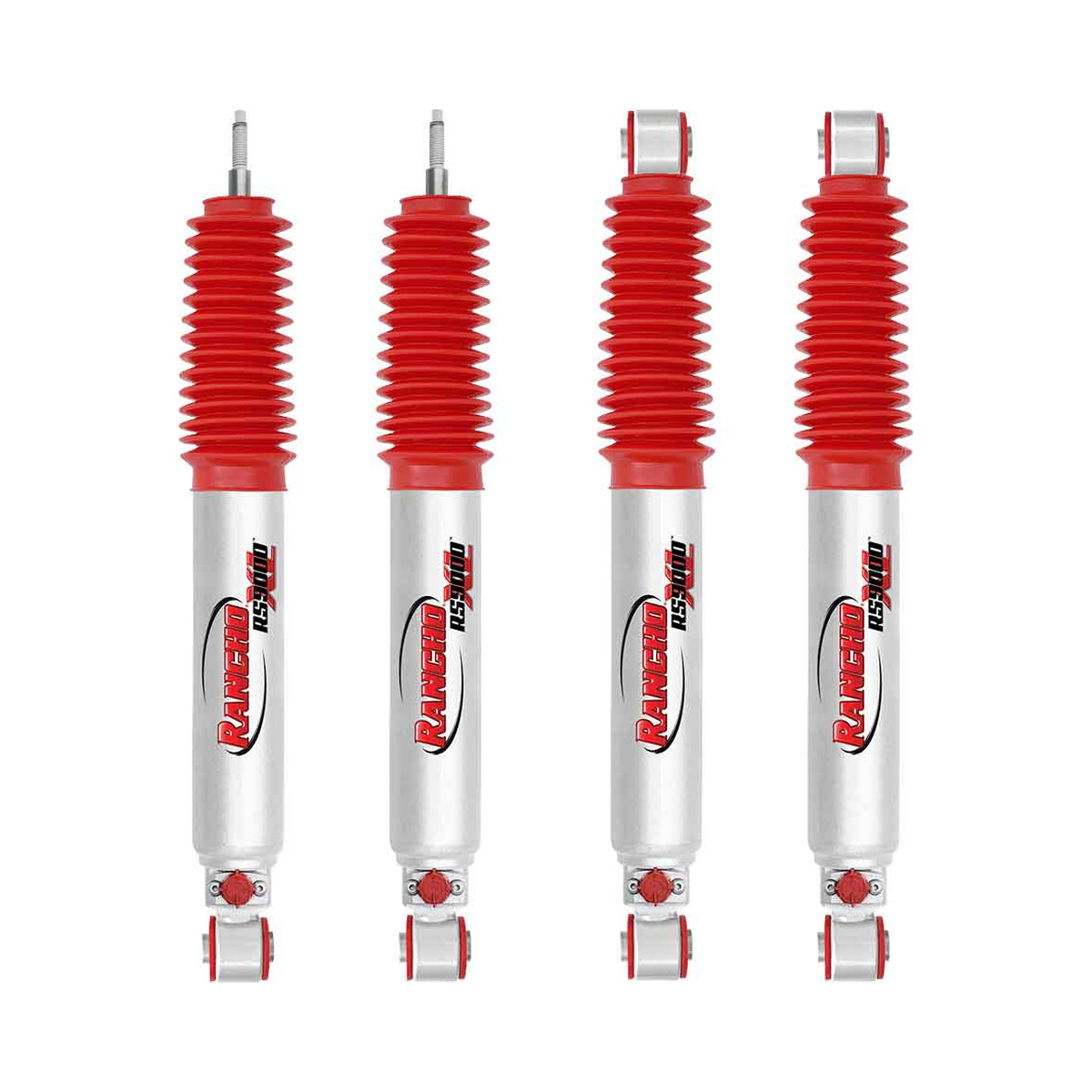

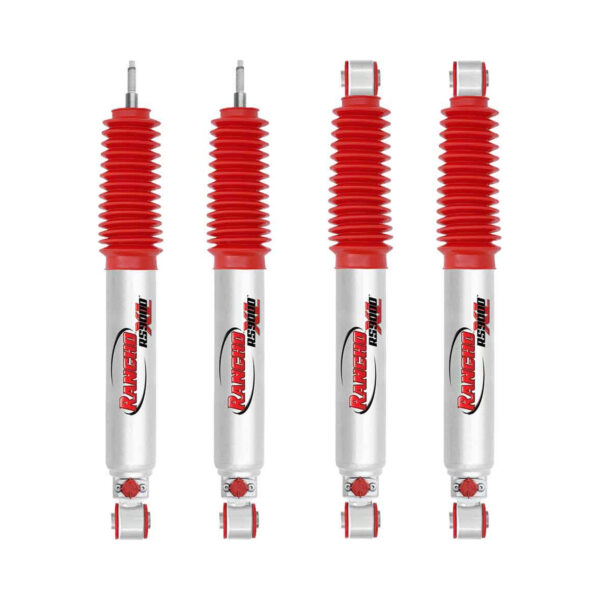

Rancho RS90000XL 3″ Lift Shocks for 1986-1992 Toyota Pickup 4WD

Description
Rancho RS90000XL 3″ Lift Shocks for 1986-1992 Toyota Pickup 4WD

Rancho RS9000XL 3″ Lift Shocks for 1986-1992 Toyota Pickup 4WD

Part Number: RS999136 / RS999144

Summary: The Rancho RS9000XL series provides the ultimate in ride control versatility for the 1986-1992 Toyota Pickup 4WD. Featuring a globally recognized 9-position manual adjustment knob, these shocks allow owners to instantly tune their damping profile from soft to firm to compensate for varying loads or terrain. Optimized for vehicles with a 3-inch lift, this set delivers a custom-tailored driving experience whether you are commuting or navigating off-road trails.

Features

• 9-Position Tuning: A manual adjustment knob provides nine levels of damping control to ensure the driver can switch between street comfort and firm off-road performance.
• Large Shock Body: A 2.75-inch diameter reserve tube provides increased oil capacity to ensure cooler operating temperatures during heavy hauling or towing.
• Nitrogen Gas Charged: High-pressure nitrogen gas pressurized to 120 PSI provides reduced aeration and foaming to ensure consistent valving response.
• Fluon-Banded Piston: A specialized piston coating provides a consistent seal between the piston and pressure tube to ensure maximum durability under harsh conditions.

Technical Specifications

Fitment

• 1986-1992 Toyota Pickup 4WD
• Note: Specifically configured for models with 3-inches of suspension lift.

What’s Included

• Includes 4 Shocks (Full Set)
• Protective Red Dust Boots
• Mounting Hardware

Why Choose This Product?

• Engineering Advantage: Rancho’s MyRide technology allows for a 400% change in damping force, moving from a supple T1 setting to a race-firm T9 setting.
• Performance Benefit: Eliminates the “one size fits all” compromise of standard shocks, allowing the driver to stiffen the rear for heavy payloads and soften the front for daily driving.

Related Products

RS5000X (Rear):
Rancho RS5000X 3" Rear Lift Shocks for 1986-1992 Toyota Pickup 4WD

RS5000X (Front):
Rancho RS5000X 3" Front Lift Shocks for 1986-1992 Toyota Pickup 4WD

RS90000XL (Rear):
Rancho RS90000XL 3" Rear Lift Shocks for 1986-1992 Toyota Pickup 4WD

RS5000X (Kit):
Rancho RS5000X 3" Lift Shocks for 1986-1992 Toyota Pickup 4WD

RS90000XL (Front):
Rancho RS90000XL 3" Front Lift Shocks for 1986-1992 Toyota Pickup 4WD

Frequently Asked Questions

How do I adjust the firmness of these shocks?
Each shock features a red 9-position knob at the base of the body; simply turn the dial to your desired setting, with 1 being the softest and 9 being the firmest.

Will these shocks lift my Toyota Pickup?
No, these shocks do not create lift. They are specifically valved and extended to accommodate Toyota Pickups that have already been modified with a 3-inch suspension lift.

Are the boots included with this set?
Yes, this kit includes Rancho’s signature red protective boots to shield the piston rod from debris and contaminants.
