Bilstein/OME 5100 2-3″ Lift Kit for 2001-2007 Toyota Sequoia

SKU: BSE00CS_n1
Sale!
Bilstein-OME 5100 2-3 Lift Kit for 2001-2007 Toyota Sequoia
Bilstein-OME 5100 2-3 Lift Kit for 2001-2007 Toyota Sequoia

Description
Bilstein/OME 5100 2-3″ Lift Kit for 2001-2007 Toyota Sequoia

Bilstein 5100 1.5–3″ Lift Kit for 2001–2007 Toyota Sequoia

Part: BSE00CS

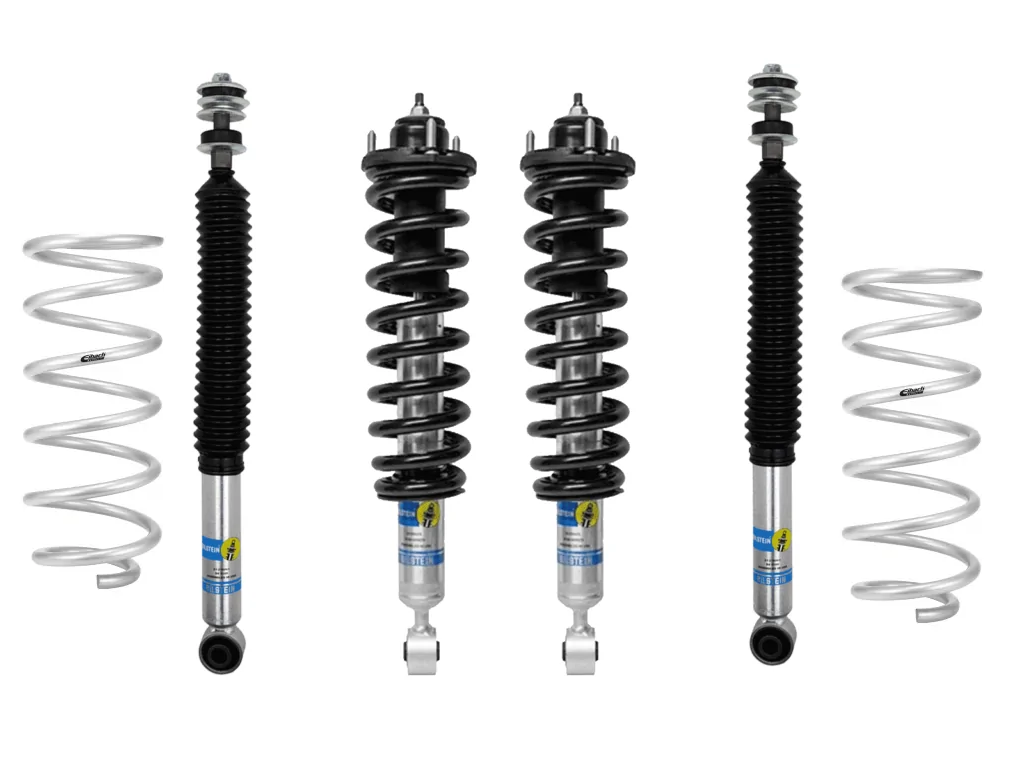

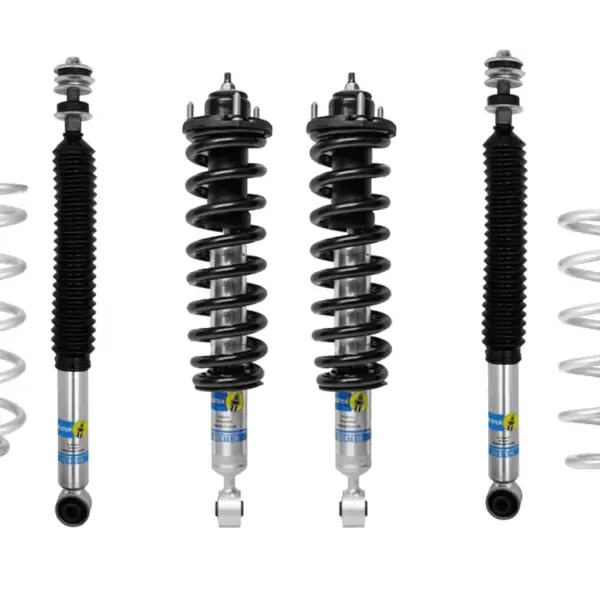

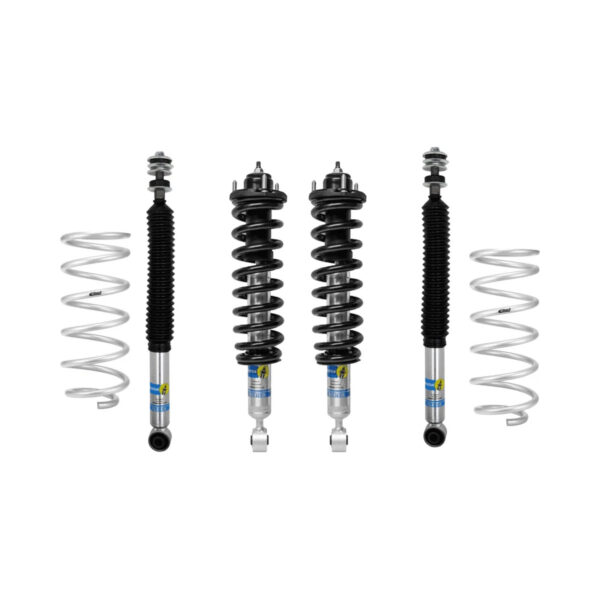

This complete lift kit for the 2001–2007 Toyota Sequoia combines Bilstein 5100 adjustable front coilovers (pre-assembled with ARB/OME springs) and matching rear Bilstein 5100 shocks, along with upgraded Eibach rear lift coils. The result is a balanced, durable lift setup that improves ride quality, increases wheel travel, and delivers better on-road and off-road handling.

The assembled front coilovers use OME lift springs, so the Bilstein shocks are set to the bottom snap-ring position. Raising the shocks further will over-preload the springs, damage suspension components, and void the warranty.

What’s Included

  • 2 x Bilstein 5100 front shocks (pre-assembled with OME lift coils)
  • 2 x Bilstein 5100 rear shocks
  • 2 x Eibach 1″ rear lift coil springs (E30-82-095-01-02)

Front Suspension (Bilstein 5100 + OME Coils)

  • Lift range: Coilover assembly provides approx. 1.5–3″ total lift
  • Assembled at bottom setting only due to OME coil preload
  • Improved wheel travel and reduced body roll
  • 46mm monotube design with digressive valving
  • Zinc-plated body for corrosion resistance

Rear Suspension (Eibach 1″ Lift Coils + Bilstein 5100 Shocks)

  • Lift: Adds approx. 1″ of rear ride height
  • Increased ground & fender clearance
  • Better balance for front lift and larger tire fitment
  • Improved towing stability and off-road control
  • Eibach coils made in the U.S.A. with a Million-Mile Warranty

Download Eibach Installation Instructions

Fitment

  • 2001, 2002, 2003, 2004, 2005, 2006, 2007 Toyota Sequoia (2WD & 4WD)
  • Direct bolt-on components
  • Compatible with factory upper control arms

Important Notes

  • Front Bilstein snap-ring must remain at the bottom setting
  • Setting the shock higher will over-lift the front and can cause damage
  • OME coil preload already provides lift
  • Alignment required after installation

Frequently Asked Questions

Why are the front shocks set to the bottom clip?
Because the OME coils already provide lift. Raising the snap-ring higher will over-compress the springs and damage components.

How much lift does this kit provide?
Expect approx. 1.5–3 inches up front (via OME coils) and about 1 inch in the rear with Eibach coils.

Do I need aftermarket upper control arms?
No. This lift height remains compatible with factory UCAs.

Are Bilstein 5100 shocks good for off-road use?
Yes. They offer better damping, more wheel travel, and improved control on rough terrain compared to factory units.

Customer reviews

Reviews

There are no reviews yet.

Be the first to review “Bilstein/OME 5100 2-3″ Lift Kit for 2001-2007 Toyota Sequoia”

Use one of the allowed file type: jpg,png,jpeg.

    Questions and answers of the customers

      Will i need to buy extender uca or a dif drop kit to make this work without just blowing through cv boots?
    1. 0 votes
      Q Will i need to buy extender uca or a dif drop kit to make this work without just blowing through ...... Read more
      A UCA's are recommended but not required, the benefit of the UCA's is to fix the caster when the vehicle is getting aligned and also helps you a lot with articulation on the front end. Diff drop kit is recommended for 4WD trucks for 1.5'' of front  lift and more to increase the CV axles life.
      2. can I use 2884 Bilstein coils on 2006 Toyota sequoia limited 2rwd?
    2. 0 votes
      Q can I use 2884 Bilstein coils on 2006 Toyota sequoia limited 2rwd?
      A In order to figure out how much lift you need to level please take existing measurements from center of the wheel hub to the bottom of the fender. Difference between front and rear is how much lift you need to level. https://www.suspensionlifts.com/level.png
      3. Will this level out the sequoia? I don’t mind the rears being a little bit higher.
    3. 0 votes
      Q Will this level out the sequoia? I don’t mind the rears being a little bit higher.
      There are no answers for this question yet.
      4. I want to do a 3 inch lift all around. in the description, it says that the rear springs only provide 1 inch of lift. Do i need to get the kit without the rear coils, and get different 3 inch lift coils, or is this kit fine?
    4. 0 votes
      Q I want to do a 3 inch lift all around. in the description, it says that the rear springs only pro...... Read more
      A rear shocks will not lift the vehicle by themselves, need rear coils if you want to lift the rear this kit has rear 1'' coils included if you want to lift the rear higher you are right, higher coils needed you can use OME 2862 rear coils if you will be able to find them (backordered now) but seems they require non-standart rear camber bolts or spacers or something like this
