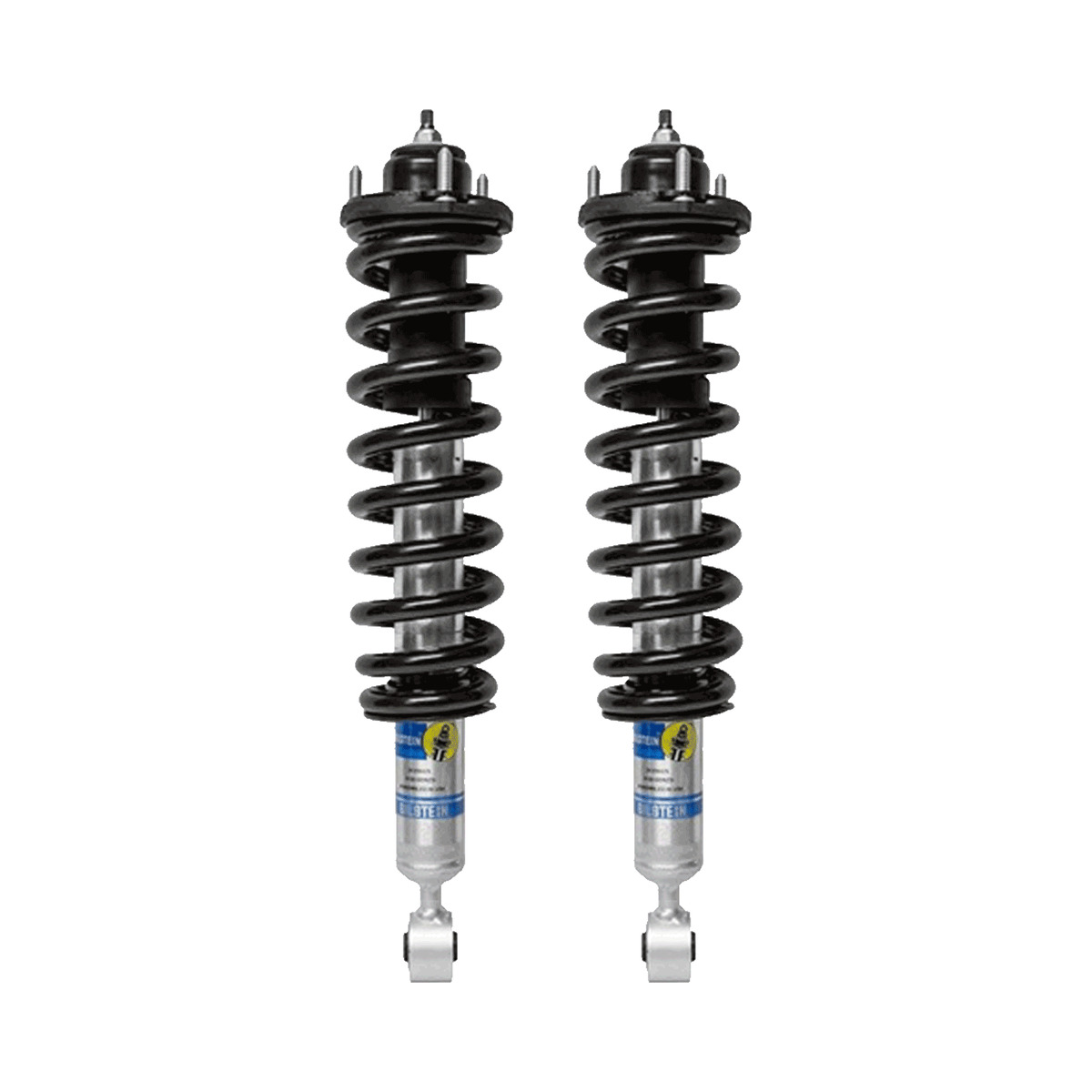

Bilstein 5100 0-2.8″ Front Lift Assembled Coilovers with OE Replacement Coils for 2001-2007 Toyota Sequoia
Sale!Description
Bilstein 5100 0-2.8″ Front Lift Assembled Coilovers with OE Replacement Coils for 2001-2007 Toyota Sequoia
Bilstein 5100 0-2.8″ Lift Assembled Coilovers with OE Replacement Coils for 2001-2007 Toyota Sequoia
Part: BTS01C
Need a complete front assembled + rear shock kit?
Bilstein 5100 0-2.8″ Lift Assembled Coilovers with OE Replacement and Rear Shocks for 2001-2007 Toyota Sequoia
Fitment
- Vehicle: Toyota Sequoia 2001, 2002, 2003, 2004, 2005, 2006, 2007
- Front ride height range: approximately 0-2.8″ of lift (depending on clip position, vehicle weight, and coils)
- Front suspension: coilover strut
What’s Included
- (2) Front Bilstein B8 5100 shocks assembled as complete coilovers
- OE-style replacement front coils installed on each shock
- New top mounts, bushings, insulators, and mounting hardware
- New bump stops and dust boots installed
- No spring compressor needed – ready-to-bolt-in assemblies
Product Notes
- Front coilovers arrive pre-assembled to save shop and DIY time.
- By default we set the snap-ring at the bottom groove (Clip 1), which works well with already lifted coils or if you prefer to set ride height yourself.
- Ride height can be changed by moving the snap ring to a higher groove for additional front lift.
- An alignment is required after installation and any change to front ride height.
Bilstein B8 5100 Details
- Ride-height-adjustable snap-ring design – up to about 2.8″ of front lift possible with appropriate coils
- 46 mm digressive piston monotube for consistent, fade-resistant damping
- Self-adjusting deflective disc valving tuned for the Sequoia platform
- Improves wheel travel and front end control compared to worn OE struts or spacer-only lifts
- Great balance of on-road comfort and off-road capability
Why Choose Assembled Coilovers
- Safety and convenience: Coils are professionally installed on the 5100 shocks – you do not need to compress springs.
- Clean install: Unbolt your old front assemblies and bolt these in using the new mounts and hardware supplied.
- Leveling flexibility: Move the snap ring to bring the nose up, reduce rake, and clear larger tires.
{
“@context”: “https://schema.org”,
“@type”: “FAQPage”,
“mainEntity”: [
{
“@type”: “Question”,
“name”: “Do these Bilstein 5100 coilovers come pre-assembled?”,
“acceptedAnswer”: {
“@type”: “Answer”,
“text”: “Yes. This BTS01C kit includes two front Bilstein B8 5100 shocks built into complete coilovers with OE-style replacement coils, new top mounts, bushings, bump stops, dust boots, and hardware. They arrive ready to bolt in with no spring compressor required.”
}
},
{
“@type”: “Question”,
“name”: “How much lift can I get on my 2001-2007 Toyota Sequoia?”,
“acceptedAnswer”: {
“@type”: “Answer”,
“text”: “With appropriate coils and clip settings, the Bilstein 5100 front coilovers can typically provide between 0 and about 2.8 inches of front lift. Actual lift depends on vehicle weight, accessories such as bumpers or winches, and spring choice or wear.”
}
},
{
“@type”: “Question”,
“name”: “What snap-ring setting do you use from the factory?”,
“acceptedAnswer”: {
“@type”: “Answer”,
“text”: “We ship these Sequoia coilovers with the snap ring at the bottom groove (Clip 1). This position works well with lifted coils or for customers who want to choose their own ride height. You or your installer can move the clip to a higher groove if you want additional front lift.”
}
},
{
“@type”: “Question”,
“name”: “Do I need an alignment after installing these coilovers?”,
“acceptedAnswer”: {
“@type”: “Answer”,
“text”: “Yes. Any time front coilovers or struts are replaced or the ride height is changed, a professional alignment is strongly recommended. Correct camber, caster, and toe settings help your Sequoia drive straight and prevent uneven tire wear.”
}
},
{
“@type”: “Question”,
“name”: “Are Bilstein 5100 coilovers good for both daily driving and off-road use?”,
“acceptedAnswer”: {
“@type”: “Answer”,
“text”: “Yes. Bilstein B8 5100 shocks use a 46 mm digressive piston and self-adjusting deflective disc valving that provide firm control off-road while still keeping a comfortable ride on pavement. They are a popular choice for Sequoia owners who want a mild lift and better handling without sacrificing daily drivability.”
}
}
]
}
