Bilstein/OME 2-2.5″ Lift Kit with 5100 Shocks for 1995-2004 Toyota Tacoma

SKU: C95TK
4.6666666666667 out of 5 based on 9 customer ratings
(9 customer reviews)
Bilstein-OME 2-2.5 Lift Kit with 5100 Shocks for 1995-2004 Toyota Tacoma
Bilstein-OME 2-2.5 Lift Kit with 5100 Shocks for 1995-2004 Toyota Tacoma

Description
Bilstein/OME 2-2.5″ Lift Kit with 5100 Shocks for 1995-2004 Toyota Tacoma

Bilstein / OME 2-2.5″ Suspension Lift Kit with 5100 Shocks – 1995-2004 Toyota Tacoma (6-lug)

Part: C95TK

Give your first-gen Tacoma the stance, travel, and control it deserves. This kit pairs Bilstein 5100 ride-height–adjustable struts (assembled with ARB/OME coils) up front with your choice of rear lift solution and matching 5100 shocks. Everything arrives ready to bolt in—no spring compressor, no guesswork.

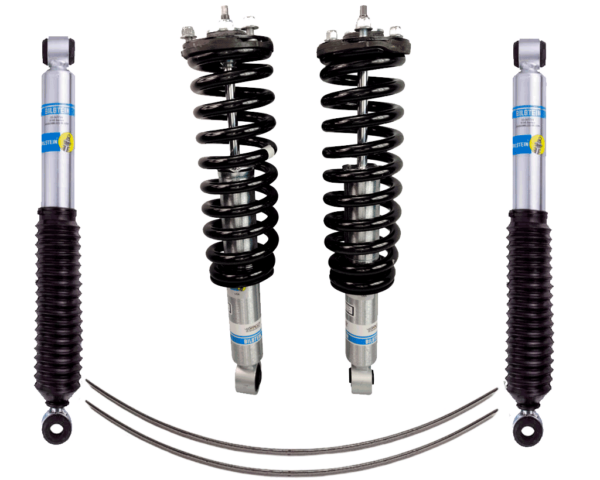

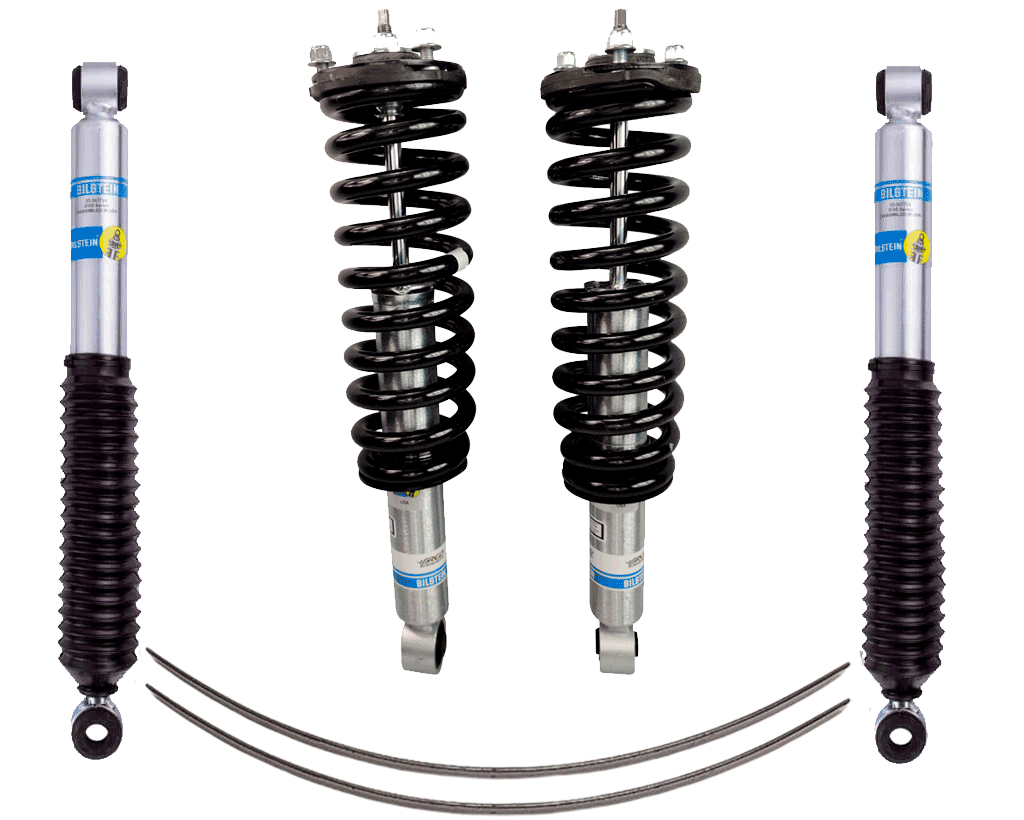

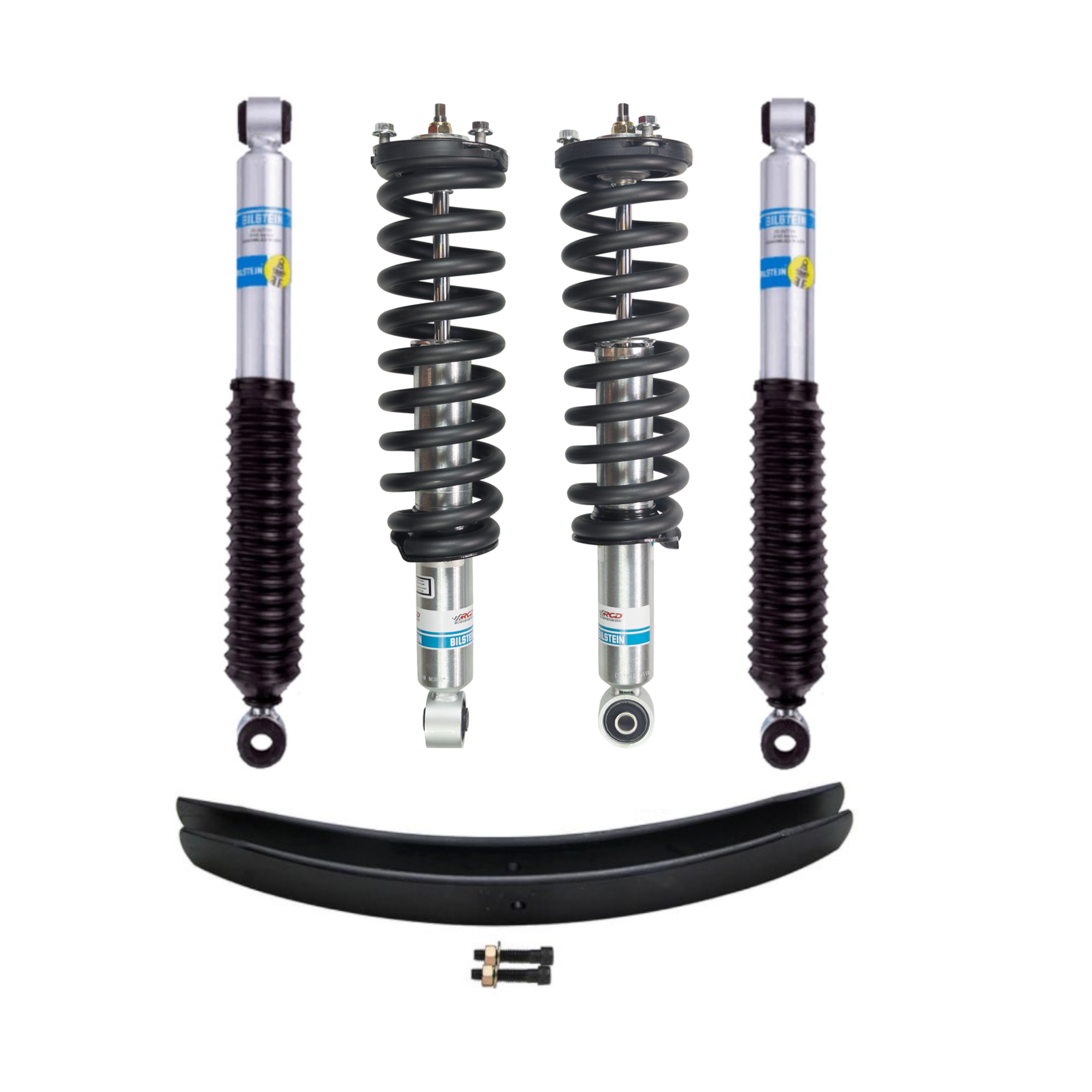

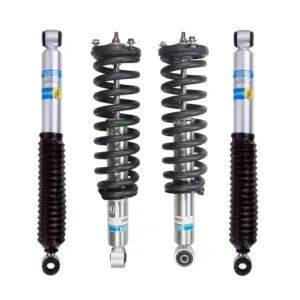

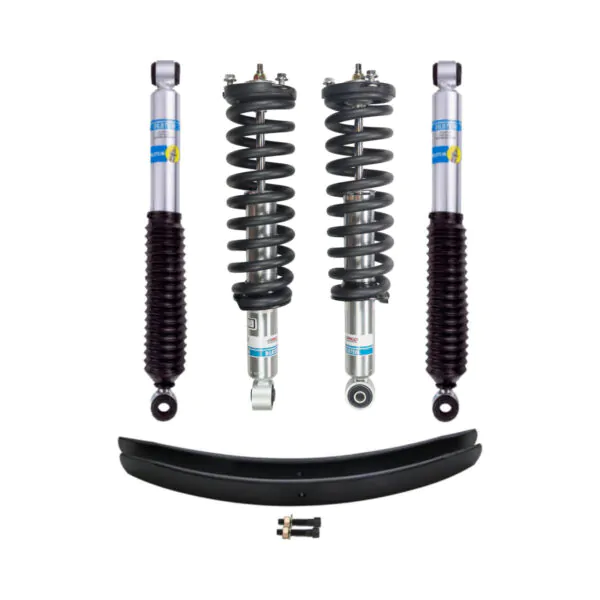

What’s Included

  • Front (pre-assembled coilovers)
    • 2 × Bilstein 5100 struts (F4-BE5-D558-T0) – silver/zinc finish
    • Your selected ARB/OME lift coils (see options below)
    • New KYB top mounts, isolators, dust boots, hardware
  • Rear
    • Your selected rear-lift solution (AALs, block kit, or ARB Dakar leaf packs)
    • 2 × rear shocks – choose Bilstein 5100 1-1.5″, 0-2.5″ Bilstein/RCD 5100, or 2.5-3.5″ Bilstein 5100 (options in dropdown)

Front Coil Choices

  • OME 2880 – ~1.5″ lift, stock front weight
  • OME 2881 – ~2-2.5″ lift, stock front weight
  • Eibach E30-82-006-05-20 – ~2.5″ lift, stock weight, firmer 742 lb/in rate
  • OME 2883 – ~2.5-3″ lift, +200 lb front weight (steel bumper + winch)

Rear Lift Options

  • ReadyLIFT 67-7120 1.5″ add-a-leafs
  • ReadyLIFT 66-5001 1″ block kit
  • ICON 51100 1.5″ add-a-leafs
  • ARB Dakar leaf-spring packs (year-specific, ~2.5″)

Rear Shock Options

  • Bilstein 5100 1-1.5″ (33-247724 / 33-247717)
  • Bilstein/RCD 5100 0-2.5″ (D559 / D560)
  • Bilstein 5100 2.5-3.5″ (33-186542 w/ hardware)

Important Setup Note

Front struts are built on the lowest snap-ring clip. The selected coils supply the advertised lift. Raising the clip will over-lift the truck, stress CVs and ball joints, and void the warranty.

Why You’ll Like It

  • No spring compressor needed – coilovers ship fully assembled
  • Matched damping & spring rates – Bilstein 5100 monotubes + OME/Eibach coils for confident control on- and off-road
  • Customizable rear – pick the leaf or block solution that suits your load and target rake

Fitment

  • Vehicle – Toyota Tacoma 1995-2004 (6-lug only)
  • Lift range – front ~1.5-3″ depending on coil; rear per option selected

Technical Notes

  • 5100 struts: 46 mm monotube, self-adjusting digressive valving
  • Rear shocks: gas-pressure monotube, tuned to chosen rear height
  • Alignment required after installation; verify tire clearance with wheel/offset

FAQ

Which coil should I pick? Choose 2880 for mild lift on a stock-weight truck; 2881 for a level 2-2.5″; 2883 if you run a heavy bumper + winch; or the Eibach for the firmest stock-weight option.

Can I move the snap ring higher? No—coils already provide lift. Raising the clip risks suspension damage.

Does this include rear springs? Yes, if you select an add-a-leaf or full ARB Dakar pack in the dropdown.

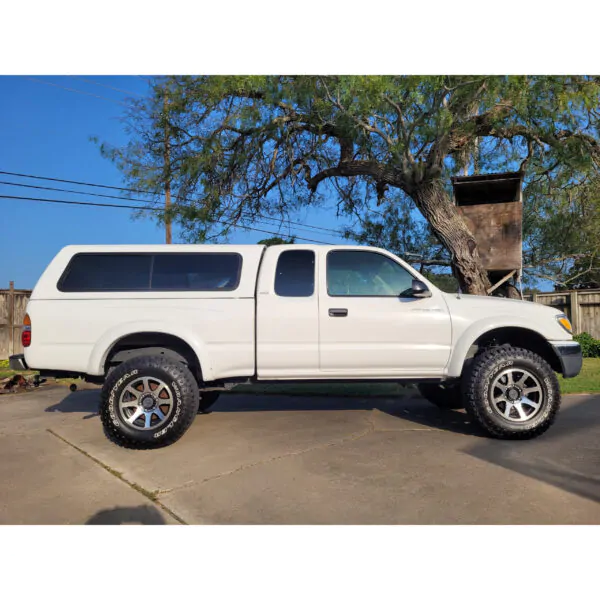

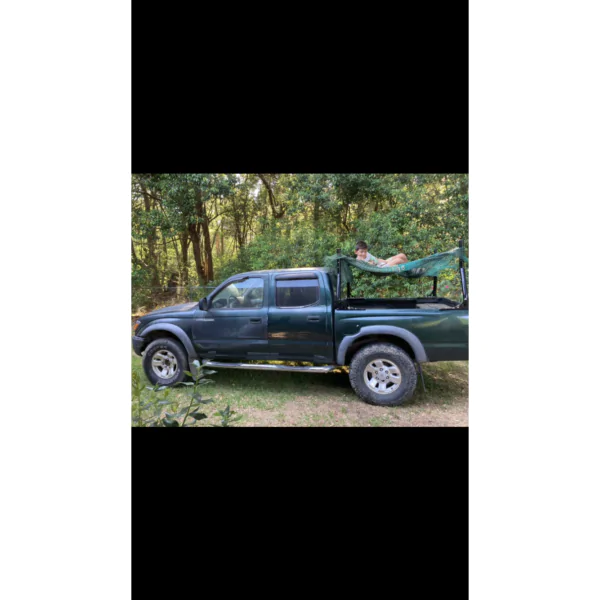

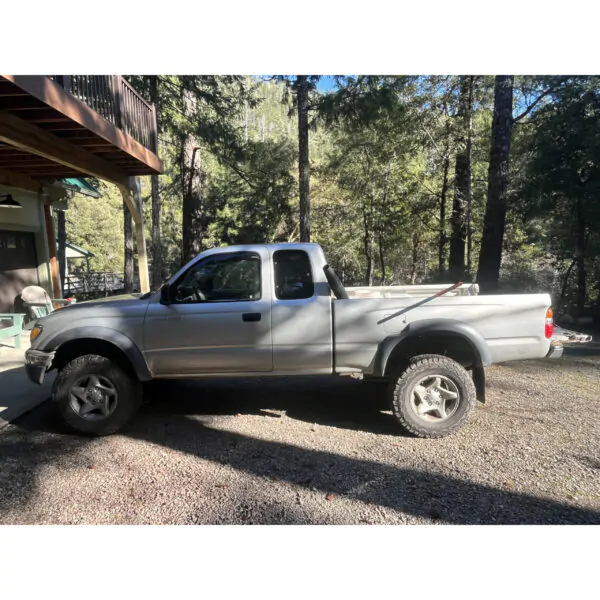

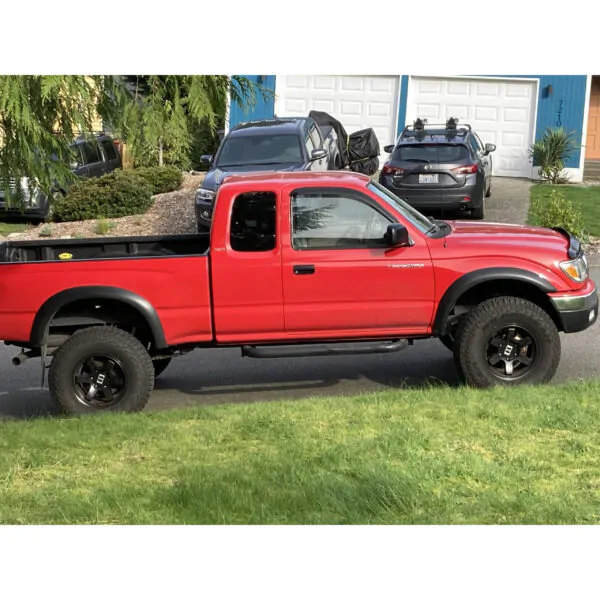

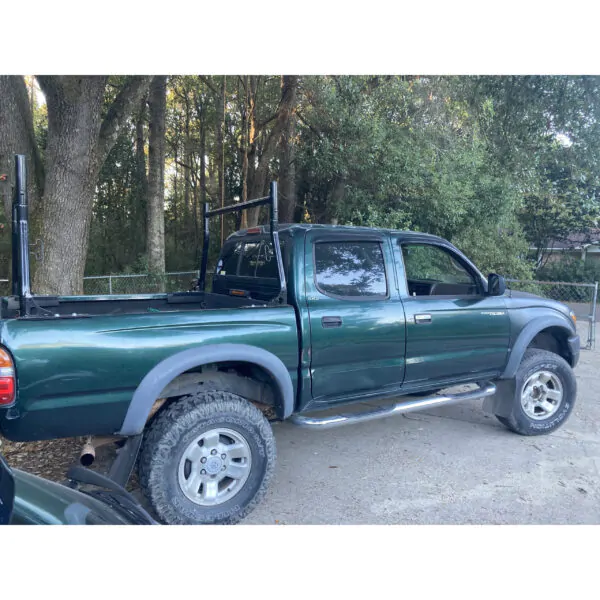

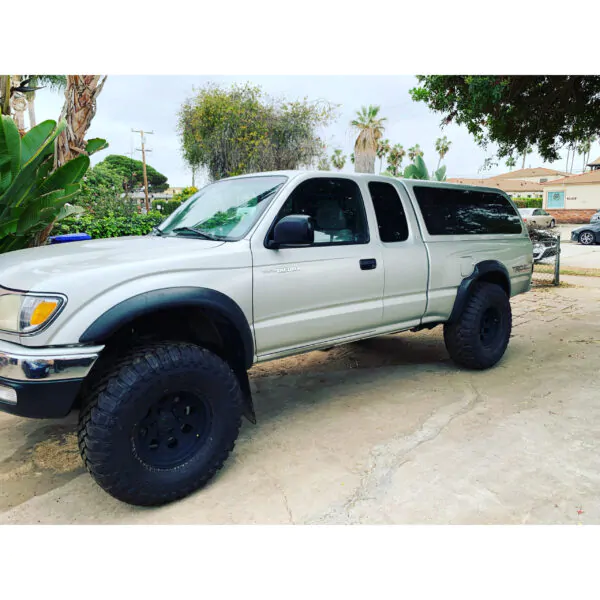

Customer reviews

Rated 4.6666666666667 out of 5 stars
9 reviews
5 stars 7 77 %
4 stars 1 11 %
3 stars 1 11 %
2 stars 0 0 %
1 star 0 0 %

9 reviews for Bilstein/OME 2-2.5″ Lift Kit with 5100 Shocks for 1995-2004 Toyota Tacoma

Load more

Add a review

Use one of the allowed file type: jpg,png,jpeg.

    Questions and answers of the customers

      Hi! I have a 2000 Toyota Tacoma 3.4 4x4 My question is what front lift do I need to fit 285/75/16 . I have them on rn and they slightly rub
    1. 0 votes
      Q Hi! I have a 2000 Toyota Tacoma 3.4 4x4 My question is what front lift do I need to fit 285/75/16...... Read more answer now
      A We would recommend at least 2 inches.
      2. How much is the average installation rate
    2. 0 votes
      Q How much is the average installation rate answer now
      A do you mean time? depends on experience , can take about 1 working day or slightly less
      3. Is it possible to purchase this kit with the springs set to the highest lift setting?
    3. 0 votes
      Q Is it possible to purchase this kit with the springs set to the highest lift setting?
      There are no answers for this question yet. Answer now
      4. Does the add a leaf kit come with new leaf spring tie bolts? That go through the center of the spring pack?
    4. 0 votes
      Q Does the add a leaf kit come with new leaf spring tie bolts? That go through the center of the sp...... Read more answer now
      A Yes. It came with two options. Same length but different size heads. They are a little long but are easy to cut off before installing the bump stop.
      5. With the add a leaf option does it come with longer bolt for the existing spring pack with added leaf?
    5. 0 votes
      Q With the add a leaf option does it come with longer bolt for the existing spring pack with added ...... Read more answer now
      A OEM u-bolts are reused with add a leaf
      A no, comes as pictured
      6. Does the ome dakar leaf set require longer u bolts? And is an exhaust lowering bracket required to purchase separately?
    6. 0 votes
      Q Does the ome dakar leaf set require longer u bolts? And is an exhaust lowering bracket required t...... Read more
      There are no answers for this question yet. Answer now
      7. I have a 2000 Toyota Tacoma Regular Cab 2.7L 4cyl 4WD. I am adding an ARB bull bar with winch and need to upgrade my front struts. I do NOT want to exceed 2 inches lift over stock so as to not cause excess wear to cv axles. Which option front strut would you recommend? Also, do your front strut options take into account difference in weight between 4 cyl and 6 cyl engines on the Tacomas? Thank you for your time.
    7. 0 votes
      Q I have a 2000 Toyota Tacoma Regular Cab 2.7L 4cyl 4WD. I am adding an ARB bull bar with winch and...... Read more
      There are no answers for this question yet. Answer now
      8. Does this come with all necessary hardware
    8. 0 votes
      Q Does this come with all necessary hardware answer now
      A yes, as pictured
      9. Will this kit work with 3.4 v6
    9. 0 votes
      Q Will this kit work with 3.4 v6 answer now
      A yes will fit
      10. I purchased the 2 to 2 1/2 kit ,should the truck be level or higher in the rear?
    10. 0 votes
      Q I purchased the 2 to 2 1/2 kit ,should the truck be level or higher in the rear? answer now
      A In order to figure out how much lift you need to level please take existing measurements from center of the wheel hub to the bottom of the fender. Difference between front and rear is how much lift you need to level. Please follow this illustration: https://www.suspensionlifts.com/level.png
      11. Does the bushings come with leaf springs, or any hardware needed?
    11. 0 votes
      Q Does the bushings come with leaf springs, or any hardware needed? answer now
      A no hardware needed, leaf spring full pack has bushings
      12. Does this come with front and rear shocks?
    12. 0 votes
      Q Does this come with front and rear shocks? answer now
      A as described - includes front+rear shocks, front coils and rear lift option - please see the dropdown rear lift  options
      13. 03 tacoma 4cyl. 5 lug 2wd base model Is this a fit?
    13. 0 votes
      Q 03 tacoma 4cyl. 5 lug 2wd base model Is this a fit? answer now
      A will not fit 5-lug((
      14. will this kit work for 99 tacoma prerruner 2wd ?
    14. 0 votes
      Q will this kit work for 99 tacoma prerruner 2wd ? answer now
      A Pre runner models are identical to 4x4 models, with a lack of a front diff and transfercase... yes, it will work
