Bilstein 4600 Front Rear Shocks 1995-2004 Toyota Tacoma 4WD, PreRunner 6-lug

SKU: 2x24-022842_24-184960_24-184977
4.9333333333333 out of 5 based on 15 customer ratings
(15 customer reviews)
Sale!
Bilstein 4600 Front and Rear Shocks for 1995-2004 Toyota Tacoma 4WD
Bilstein 4600 Front and Rear Shocks for 1995-2004 Toyota Tacoma 4WD

Description
Bilstein 4600 Front Rear Shocks 1995-2004 Toyota Tacoma 4WD, PreRunner 6-lug

Bilstein 4600 Front Rear Shocks 1995-2004 Toyota Tacoma 4WD, PreRunner 6-lug

Part Number(s): 24-022842, 24-184960, 24-184977

Summary: Bilstein B6 4600 shock absorbers are designed as a direct fit OE replacement for the 1995-2004 Toyota Tacoma (6-lug 4WD and PreRunner) at stock height. Featuring a monotube design, these shocks provide consistent, fade-free performance and superior control compared to conventional alternatives. These gas pressure shock absorbers are engineered to improve ride quality, handling, and comfort while maintaining complete command over various road surfaces. This set is specifically tuned for the Toyota Tacoma to ensure optimal performance and an extended service life for your vehicle.

Features

  • Monotube Design: Single-tube construction provides consistent fade-free performance to ensure reliable damping under repeated impacts and extended use.
  • Digressive Piston: Velocity-sensitive, digressive piston reacts to changing road conditions to ensure optimal ride quality and handling.
  • Direct Fit Upgrade: Application-specific tuning provides a significant improvement in comfort to ensure a perfect fit for stock height light trucks and SUVs.

Technical Specifications

Specification Value
Series B6 4600
Position Front and Rear
Internal Design Monotube
Finish Yellow Paint
Reservoir No
Body Diameter 2.0 in.
Boot Included Black Straight
Adjustable Damping Non-Adjustable
Country of Origin MX
Warranty Limited Lifetime Warranty

Fitment

  • 1995-2004 Toyota Tacoma 4WD (6-Lug)
  • 1995-2004 Toyota Tacoma PreRunner (2WD 6-Lug)
  • Note: Stock Height Shocks only. Front Shocks do not come with upper bushings; reuse existing bushings or purchase separately. Rear set includes specific left (24-184960) and right (24-184977) shocks.

What’s Included

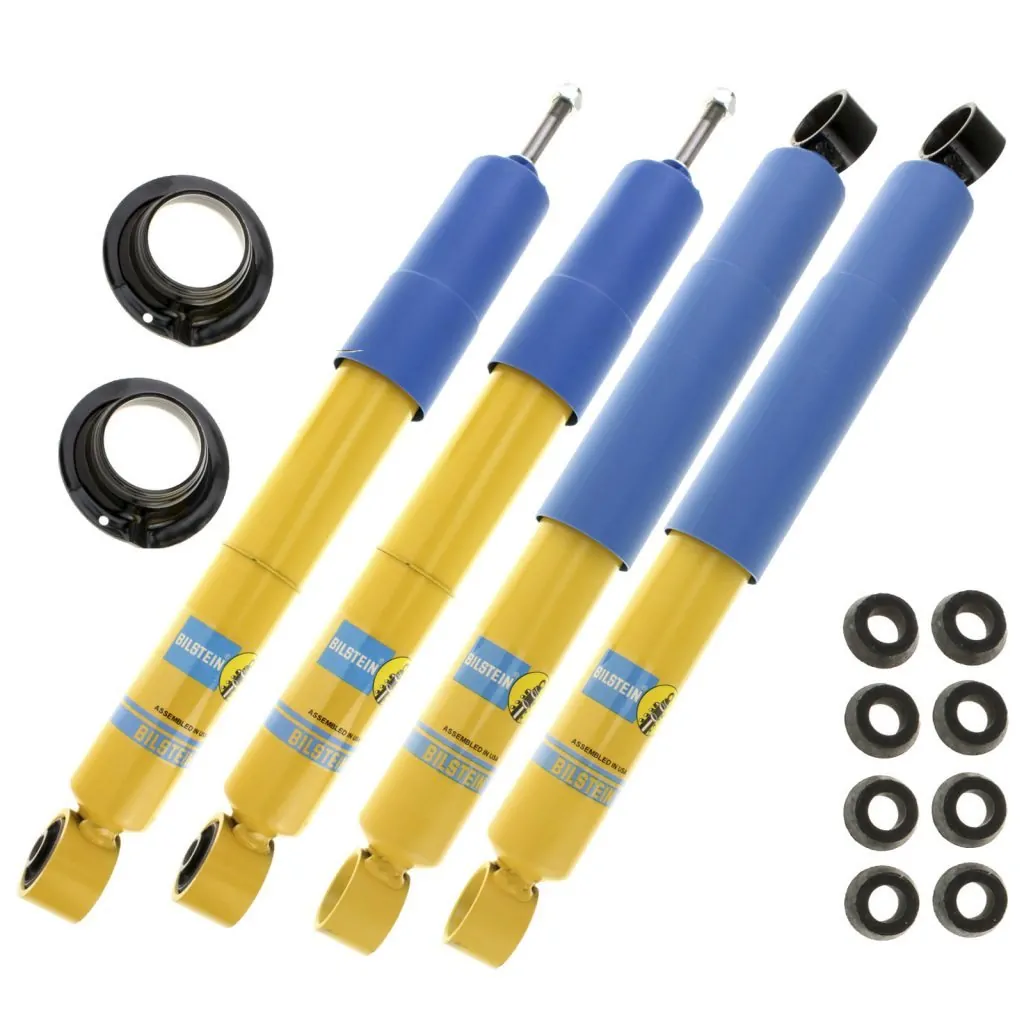

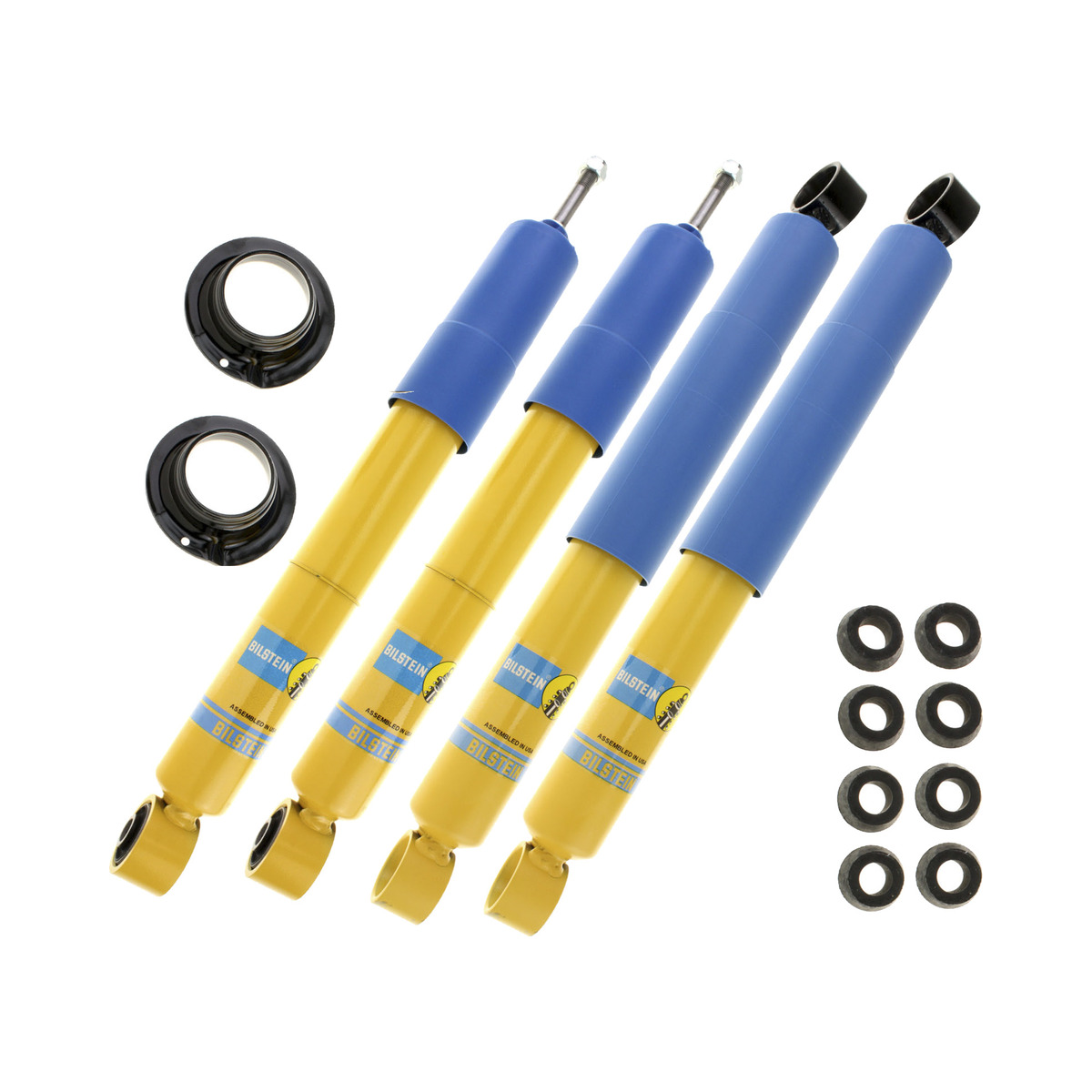

  • Includes 4 Shocks
  • 2 x Front Shocks (Part #24-022842)
  • 1 x Rear Left Shock (Part #24-184960)
  • 1 x Rear Right Shock (Part #24-184977)
  • Spring seats (front) and black straight boots (where applicable)

Interchange Numbers

This product is compatible with the following part numbers:

  • AutoZone 88567
  • Bilstein B46-2284
  • Bilstein F4-B46-2284-H1
  • BQNV 24022842
  • Pro Comp Suspension 618053
  • Rancho RS5763
  • Rancho RS999763
  • Toyota 48510-09270
  • Toyota 48510-A9050

Why Choose This Product?

  • OE Replacement: Direct fit replacement for stock OE shocks, ensuring easy installation and perfect compatibility.
  • Monotube Advantage: Monotube design provides consistent damping and fade resistance compared to twin-tube OE shocks.
  • Performance Upgrade: Improved ride quality, handling, and comfort over factory shocks without modification required.
  • Bilstein Quality: German engineering and manufacturing standards ensure long-lasting performance and reliability.

Frequently Asked Questions

Will these shocks lift my Toyota Tacoma?
No, the Bilstein B6 4600 series is designed for vehicles at stock height and does not provide any lift.

Are these shocks adjustable?
No, the B6 4600 series features a non-adjustable design with application-specific valving for optimal performance.

Do I need to buy extra parts for the front installation?
According to the manufacturer, you must reuse your existing front upper bushings or purchase new ones separately, as they are not included with the front shocks.

What is the benefit of the Monotube design?
The monotube design offers consistent, fade-free performance, allowing the shock to dissipate heat more effectively and maintain control over various surfaces.

Customer reviews

Rated 4.9333333333333 out of 5 stars
15 reviews
5 stars 14 93 %
4 stars 1 6 %
3 stars 0 0 %
2 stars 0 0 %
1 star 0 0 %

15 reviews for Bilstein 4600 Front Rear Shocks 1995-2004 Toyota Tacoma 4WD, PreRunner 6-lug

Add a review

Use one of the allowed file type: jpg,png,jpeg.

    Questions and answers of the customers

      My 2002 Tacoma PreRunner TRD 6 lug has same factory stock ride height as 4x4. Are these the correct replacement fit for me?
    1. 0 votes
      Q My 2002 Tacoma PreRunner TRD 6 lug has same factory stock ride height as 4x4. Are these the corre...... Read more
      A yes those shocks will work good for factory height suspension
      2. Will these fit my 2002 TRD 6 lug Tacoma?
    2. 0 votes
      Q Will these fit my 2002 TRD 6 lug Tacoma?
      A yes will work for 6-lug
      3. I need the front bushing kit for the blistering 4600 where do I find them?
    3. 0 votes
      Q I need the front bushing kit for the blistering 4600 where do I find them?
      A OEM bushings can be reused if they are in good condition or Toyota original bushings can be ordered
      4. I have a 2002 toyota Tacoma and to replace my front struts I believe that the spring sits on the strut, so my question is do the new bilstein struts come with the plate where the spring sits ?
    4. 0 votes
      Q I have a 2002 toyota Tacoma and to replace my front struts I believe that the spring sits on the ...... Read more
      A The front shock comes with this spring seat as shown in the picture.
      5. 2000 Toyota Tacoma 6
    5. 0 votes
      Q 2000 Toyota Tacoma 6
      There are no answers for this question yet.
      6. What reference points are used when measuring the collapsed and extended lengths of the Bilstein 4600 shocks? I need to measure the stock Tokiko stock shocks for my 2004 Tacoma Prerunner TRD and want to be consistent for comparison purposes.
    6. 0 votes
      Q What reference points are used when measuring the collapsed and extended lengths of the Bilstein ...... Read more
      A For measure the collapsed and extended lengths of shock we use the following reference points: If the shock has a mount two loops then measure from the center of the loop to the center of the loop If the shock has a bolt and loop then measure it from the end of the bolt to the center of the loop
      7. Why are the shocks handed. Left and right
    7. 0 votes
      Q Why are the shocks handed. Left and right
      A Because 1st gen 6-lug Tacomas have different length stock rear shocks
      8. Is there any rubber bushing that fits on the end of the springs when installing the shock on my old springs
    8. 0 votes
      Q Is there any rubber bushing that fits on the end of the springs when installing the shock on my o...... Read more
      A No, it all comes as pictured
      9. will these fit my 1999 Tacoma extended cab 4WD TRD 5 speed manual 2.7 liter?
    9. 0 votes
      Q will these fit my 1999 Tacoma extended cab 4WD TRD 5 speed manual 2.7 liter?
      A Will fit all 6-lug 1st gen Tacomas except TRD Pro
      10. Will these fit a 2004 Toyota Hilux LN172 4WD?
    10. 0 votes
      Q Will these fit a 2004 Toyota Hilux LN172 4WD?
      A You added a note These shocks have such dimensions: FRONT: Extended Length (IN): 18.41 Inch Compressed Length (IN): 13.7 Inch Rod Diameter (IN): 1.81 Inch Upper Mounting Style: Stem Lower Mounting Style: Eyelet Extended Length (IN): 19.61 Inch Compressed Length (IN): 12.8 Inch Rod Diameter (IN): 1.81 Inch Upper Mounting Style: Eyelet Lower Mounting Style: Eyelet REAR: Extended Length (IN): 20.28 Inch Compressed Length (IN): 13.19 Inch Rod Diameter (IN): 1.81 Inch Upper Mounting Style: Eyelet Lower Mounting Style: Eyelet please compare the length and the mountings to your old shocks
      11. Will this fit my 2004 Toyota Tacoma 2wd 5 lug?
    11. 0 votes
      Q Will this fit my 2004 Toyota Tacoma 2wd 5 lug?
      A These shocks are only for 6-lug Tacoma.
      12. There are leveling blocks on the front and add a leaf on the rear of my 02 4 door Tacoma 4x4. Will it cause new stock bilsteins to wear faster?
    12. 0 votes
      Q There are leveling blocks on the front and add a leaf on the rear of my 02 4 door Tacoma 4x4. Wil...... Read more
      A These shocks are recommended to use with stock height ( 0'' lift)
      13. Will these fit my 2002 5 lug Tacoma?
    13. 0 votes
      Q Will these fit my 2002 5 lug Tacoma?
      There are no answers for this question yet.
      14. Which aftermarket springs will go good with these shocks? Since I'm not planning on using my stock.
    14. 0 votes
      Q Which aftermarket springs will go good with these shocks? Since I'm not planning on using my stock.
      A We can offer only springs for lifted Tacomas. Unfortunatelly we have no spring coils for stock height.
      15. does this fit on my 04 Tacoma, pre runner, SR5, 2wd
    15. 0 votes
      Q does this fit on my 04 Tacoma, pre runner, SR5, 2wd
      A Yes, will fit.
      16. will these fit the 02 PreRunner 2WD?
    16. 1 vote
      Q will these fit the 02 PreRunner 2WD?
      A

      Yes, they will fit
      17. are these for the TRD toyotas?
    17. 1 vote
      Q are these for the TRD toyotas?
      A

      According to Bilstein's guide they fit Base, SR5, Pre Runner and Limited models
