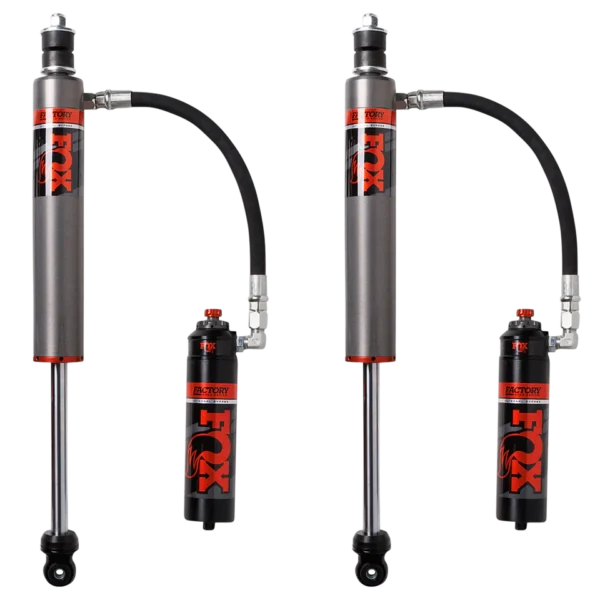

FOX Factory Race Series 2.5 Internal Bypass 2-3″ Rear Lift Shocks for 2005-2023 Toyota Tacoma 4WD

Description
FOX Factory Race Series 2.5 Internal Bypass 2-3″ Rear Lift Shocks for 2005-2023 Toyota Tacoma 4WD

FOX Factory Race Series 2.5 Internal Bypass 2-3 inches Rear Lift Shocks for 2005-2023 Toyota Tacoma 4WD

Part Number: 883-26-124

Summary: The FOX Factory Race Series 2.5 Internal Bypass shocks are engineered for the 2005-2023 Toyota Tacoma 4WD to provide high-speed ready performance in a convenient bolt-on kit. Utilizing patented Internal Bypass technology, these shocks offer position-sensitive damping that adapts to the terrain for a comfortable ride and increased capacity through rough environments. Equipped with Dual Speed Compression (DSC) adjusters and external reservoirs, this system is designed to handle sustained off-road impacts while maintaining cool operating temperatures.

Features

• Internal Bypass Technology: Patented bleed hole system provides multiple zones of damping control to ensure a comfortable ride with increased capacity through rough terrain.
• Dual Speed Compression (DSC): External DSC adjuster provides user-tunable compression settings to ensure the vehicle is dialed in for specific loads, environments, and driving styles.
• External Reservoir: Increased oil capacity housing an Internal Floating Piston (IFP) provides separation between shock oil and nitrogen charge to ensure consistent damping and cooler temperatures.
• Aluminum Body: 2.5-inch diameter 6061-T6 hard anodized aluminum construction provides Type III anodization to ensure resistance against corrosion and wear.
• High-Flow Piston: Race-developed piston design provides application-specific valving to ensure maximized performance.

Technical Specifications

Fitment

• 2005-2023 Toyota Tacoma
• Note: Fits 4WD models. Supports 2-3 inches of rear lift.

What’s Included

• Sold Individually

Why Choose This Product?

• Engineering Advantage: The Internal Bypass design allows fluid to bypass the main piston through bleed holes in the ride zone, progressively increasing damping force as the shock extends to control hard bottom-outs and harsh top-outs.
• Performance Benefit: Drivers gain the confidence to navigate high-speed rugged terrain with a shock system that resists fade and provides sustained off-road support.

Frequently Asked Questions

What is the benefit of the Internal Bypass technology?
Internal Bypass technology provides position-sensitive damping by allowing fluid to bypass the main piston in the ride zone, resulting in a plush ride while still offering significant bottom-out and top-out control.

Can I adjust these shocks for different driving conditions?
Yes, these shocks feature Dual Speed Compression (DSC) adjusters, which allow you to manually dial in the compression settings based on your load, environment, and driving style.

How do the external reservoirs improve performance?
The external reservoirs increase the total oil capacity and use an Internal Floating Piston (IFP) to separate oil from the nitrogen charge, which helps maintain cool temperatures and consistent damping performance.
