ICON 1.875″ Stage 1 Rear RXT Lift Kit for 2005-2023 Toyota Tacoma

Description
ICON 1.875″ Stage 1 Rear RXT Lift Kit for 2005-2023 Toyota Tacoma

ICON 2005–2023 Toyota Tacoma Stage 1 RXT Suspension System

Part Number: K53161

Summary: The ICON Stage 1 RXT Suspension System is a specialized rear upgrade designed to provide 1.375–2.625 inches of lift for the 2005–2023 Toyota Tacoma. This system focuses on maximizing rear-end performance and versatility by introducing the RXT Multi-Rate Leaf Spring pack and 2.5 Series Remote Reservoir shocks. Engineered for extreme off-road conditions, this stage is a primary differentiator for drivers seeking adjustable spring rates and superior bottom-out resistance via an included hydraulic bump stop kit.

Features

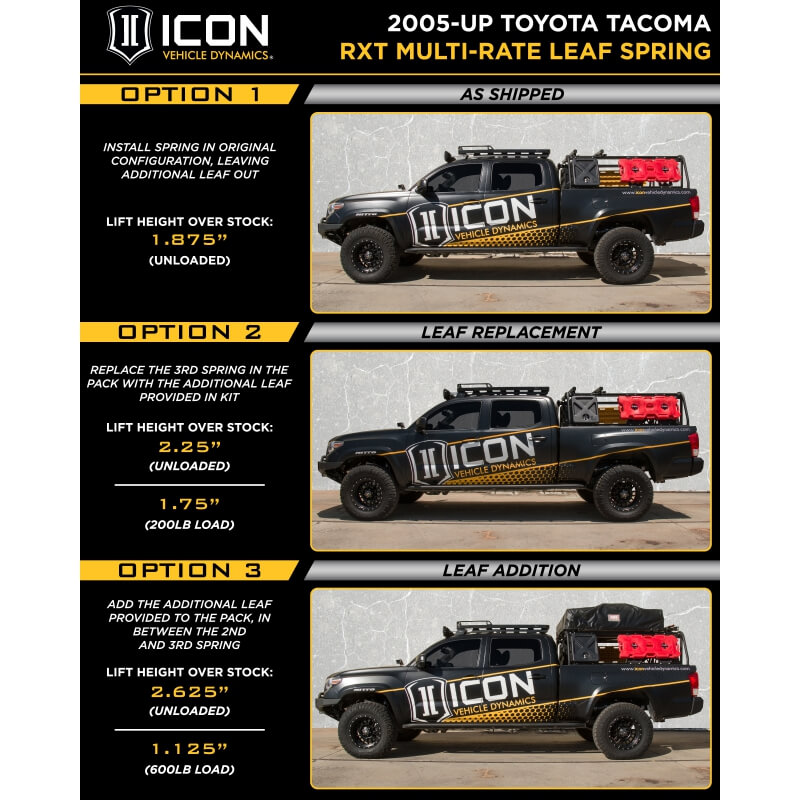

• RXT Multi-Rate Leaf Spring: 3 user-adjustable spring rates provide custom load-handling capabilities to ensure optimal ride quality for unique vehicle configurations.
• RXT Rear Shocks: 10” aluminum remote reservoirs provide generous oil and nitrogen volume for consistent damping to ensure performance as shock temperature increases.
• Hydraulic Rear Bump Stop Kit: Position-sensitive technology exponentially increases bottom-out resistance to provide smooth engagement and prevent rear-end “kick.”
• System Durability: Multi-stage CAD plated bump stop bodies and anodized aluminum shock bodies provide maximum corrosion resistance to ensure long-term reliability in harsh environments.
• Installation: Direct bolt-in design to OEM locations provides a straightforward process to ensure a precise fitment without major modifications.

Technical Specifications

Wheel & Tire Fitment

• OEM Wheels & Tires: Yes
• Aftermarket Wheels: 17×8.5 inches w/ 4.75” BS / 0mm Offset, 18×9 inches w/ 5.00” BS / 0mm Offset, or 20×9 inches w/ 5.00” BS / 0mm Offset
• Aftermarket Tires: 33 inches x 11.50 inches
• Note: Larger tires may fit but fender trimming and modifications will be required. Not compatible with 2005-2015 2WD 5-Lug models. TRD Pro models see 1.375-2.125 inches of lift.

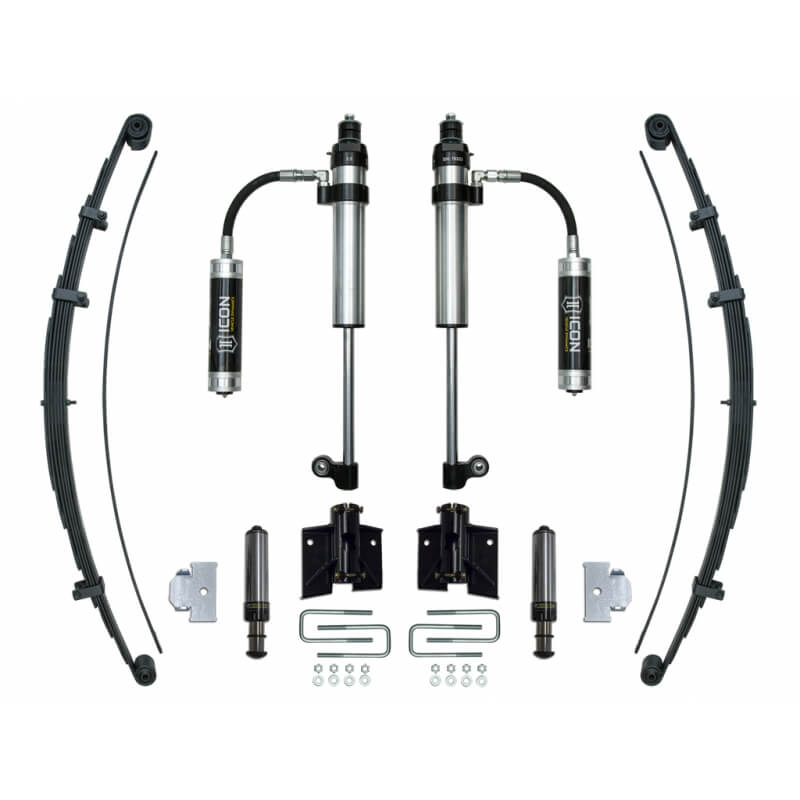

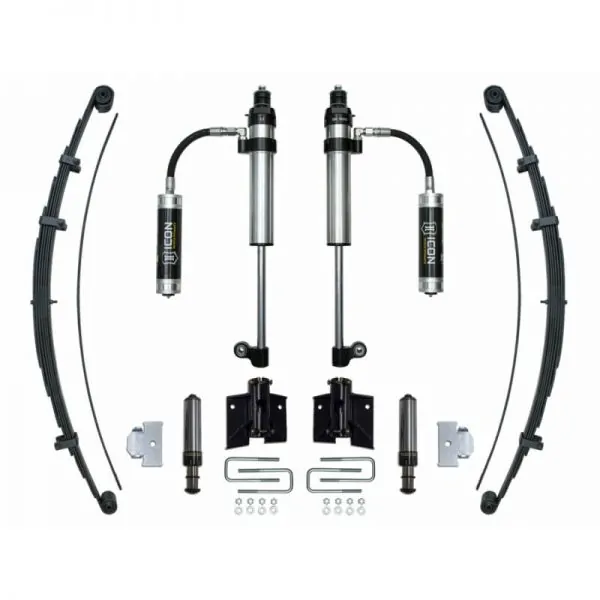

System Components

• 56103 (qty: 1) | 05-23 TACOMA REAR HYD BUMP STOP KIT
• 57826P (qty: 1) | 05-23 TACOMA RXT REAR 2.5 VS RR PAIR
• 158505 (qty: 2) | 05-23 TACOMA MULTI RATE RXT LEAF PACK W/ ADD IN LEAF
• 52050 (qty: 1) | TOYOTA REAR 8.0 inches U-BOLT KIT

Why Choose ICON Stage 1 RXT?

• Performance Engineering: Increased wheel travel and damping for superior control.
• Adjustable Load Management: The RXT leaf pack allows for three different spring rate configurations based on vehicle weight.
• Fully Serviceable: Shocks are rebuildable and revalveable for long-term performance.

Frequently Asked Questions

Is this kit compatible with 5-lug Tacoma models?
No, this system is specifically designed for 6-lug 2WD Prerunner and 4WD models and is not compatible with 2005-2015 2WD 5-Lug Toyota Tacoma models.

Can I use this with other aftermarket lift kits?
These are stand-alone kits and are not intended to be used in conjunction with any other aftermarket suspension kits to ensure advertised performance and travel.
