ICON 2.25″ Stage 2 Rear RXT Lift Kit for 2005-2023 Toyota Tacoma

Description
ICON 2.25″ Stage 2 Rear RXT Lift Kit for 2005-2023 Toyota Tacoma

ICON ICON 2005–2023 Toyota Tacoma Stage 2 RXT Suspension System

Part Number: K53162

Summary: The ICON Stage 2 RXT Suspension System is a premium performance upgrade designed for the 2005–2023 Toyota Tacoma, providing a rear lift range of 1.875–2.625 inches. This system is engineered to redefine rear-end performance by integrating the RXT Multi-Rate Leaf Pack and 2.5 Series Remote Reservoir shocks with CDCV technology. By combining adjustable spring rates with a hydraulic bump stop kit, this stage provides the ultimate in bottom-out resistance and damping control for versatile off-road adventures.

Features

• RXT Multi-Rate Leaf Spring: 3 user-adjustable spring rates provide customizable load-carrying capacities to ensure optimal ride quality for unique vehicle configurations.
• CDC Valve Technology: 10 settings of quick and easy compression damping adjustment provide manual tuning for various terrains to ensure superior ride control.
• Hydraulic Bump Stop Kit: 2.5” travel and position-sensitive technology provides exponentially increased bottom-out resistance to ensure smooth engagement and reduced rear-end “kick.”
• Remote Reservoir Damping: 10” aluminum reservoirs provide increased oil and nitrogen volume to ensure consistent damping performance as shock temperatures increase.
• System Durability: Multi-stage CAD plated bodies and one-piece impact extruded aluminum construction provide maximum corrosion resistance to ensure long-term component integrity.
• Installation: Direct bolt-in design to OEM locations provides a straightforward process to ensure a precise fitment.

Technical Specifications

Wheel & Tire Fitment

• OEM Wheels & Tires: Yes
• Aftermarket Wheels: 17×8.5 inches w/ 4.75” BS / 0mm Offset, 18×9 inches w/ 5.00” BS / 0mm Offset, or 20×9 inches w/ 5.00” BS / 0mm Offset
• Aftermarket Tires: 33 inches x 11.50 inches
• Note: Larger tires may fit but fender trimming and modifications will be required. Not compatible with 2005-2015 2WD 5-Lug models. TRD Pro models will see 1.375-2.125 inches of rear lift over stock.

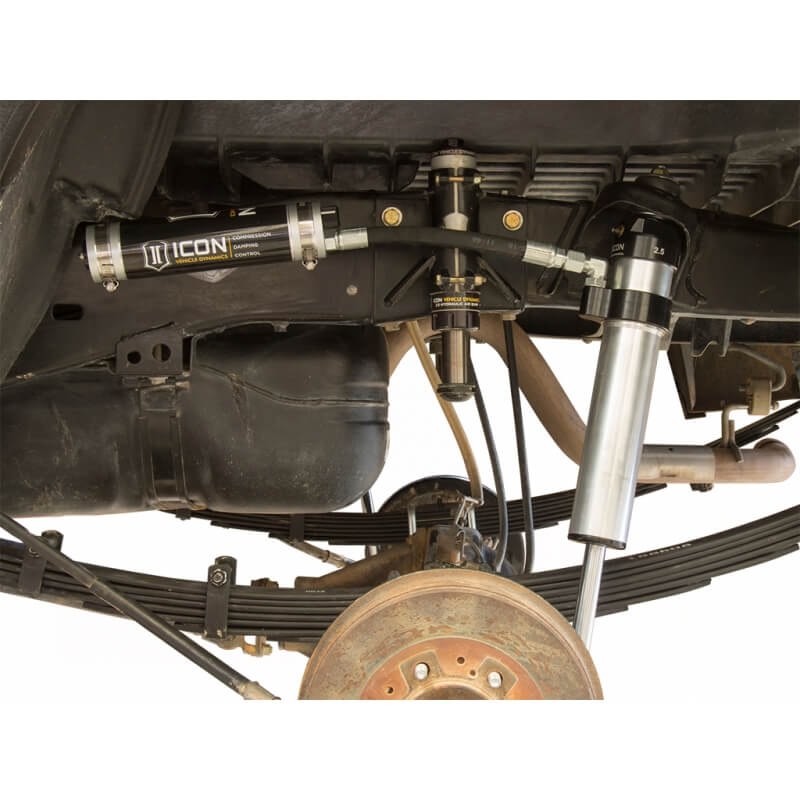

System Components

• 56103 (qty: 1) | 05-23 TACOMA REAR HYD BUMP STOP KIT
• 57826CP (qty: 1) | 05-23 TACOMA RXT REAR 2.5 RR CDCV PAIR
• 158505 (qty: 2) | 05-23 TACOMA MULTI RATE RXT LEAF PACK W/ ADD IN LEAF
• 52050 (qty: 1) | TOYOTA REAR 8.0 inches U-BOLT KIT

Why Choose ICON Stage 2 RXT?

• Performance Engineering: Increased wheel travel and damping for superior control.
• RXT Versatility: Adjustable leaf pack rates allow the suspension to grow with your build as you add weight.
• Fully Serviceable: Shocks are rebuildable and revalveable for long-term performance.

Frequently Asked Questions

Can I adjust the lift height on the rear of my Tacoma?

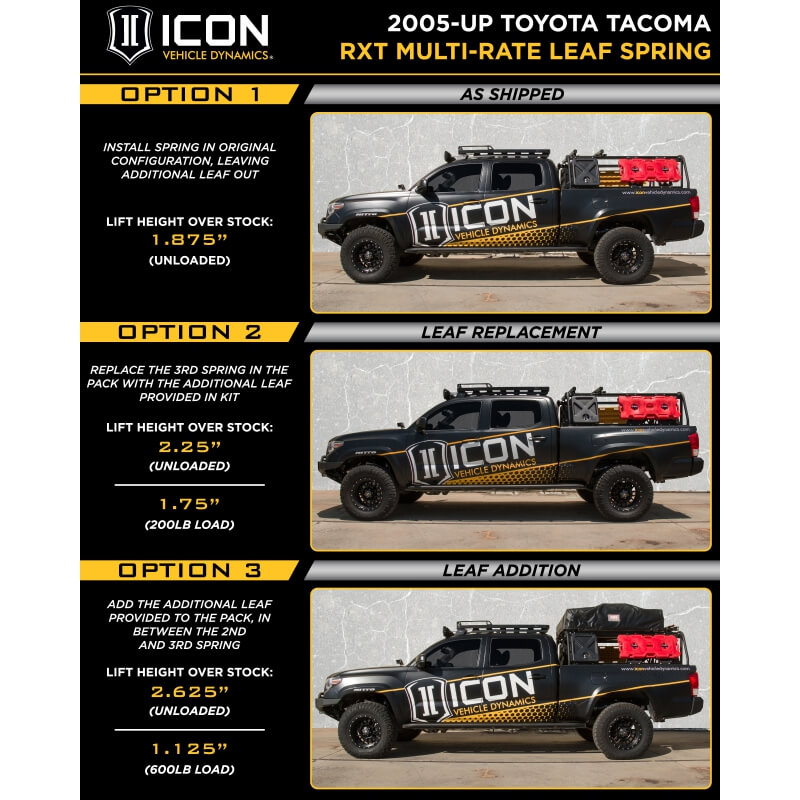

Yes, the RXT Multi-Rate Leaf Pack includes three different spring rate configurations to account for different bed loads and desired lift heights.

What does the CDC Valve do?
The Compression Damping Control (CDC) valve allows you to manually adjust the firmness of the shock with 10 distinct settings to match your terrain or cargo load.
