Bilstein B8 5100 1-2.5″ Front Lift Assembled Coilovers with 0-1.5″ Rear Lift Shocks for 2024-2025 Toyota Tacoma 4WD

Description
Bilstein B8 5100 1-2.5″ Front Lift Assembled Coilovers with 0-1.5″ Rear Lift Shocks for 2024-2025 Toyota Tacoma 4WD

Bilstein B8 5100 1-2.5″ Front Lift Assembled Coilovers with 0-1.5″ Rear Lift Shocks – 2024-2025 Toyota Tacoma 4WD

Level your all-new Tacoma the right way with a bolt-on package that blends control, comfort, and durability. This kit pairs pre-assembled Bilstein B8 5100 front coilovers with matched B8 5100 rear shocks to deliver a true 1-2.5″ adjustable front lift and support up to 0-1.5″ rear lift components. Front coilovers arrive fully built with new springs and top mounts, so you skip the spring compressor and get a clean, fast install. Designed for 4WD models, the monotube 46 mm B8 5100 dampers keep steering tight and body motion in check on pavement and trail.

Kit part number: BIL510TT24K

What’s Included

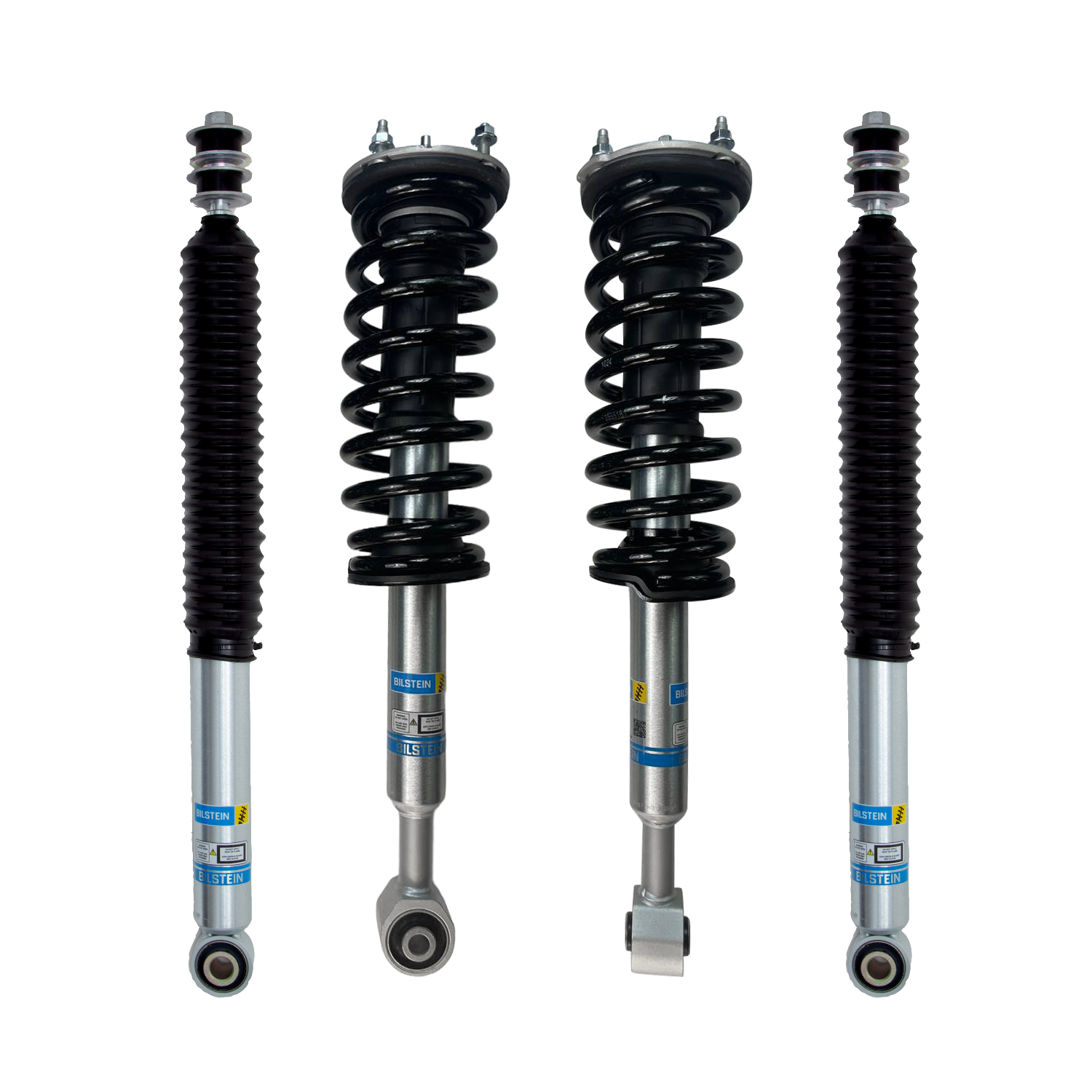

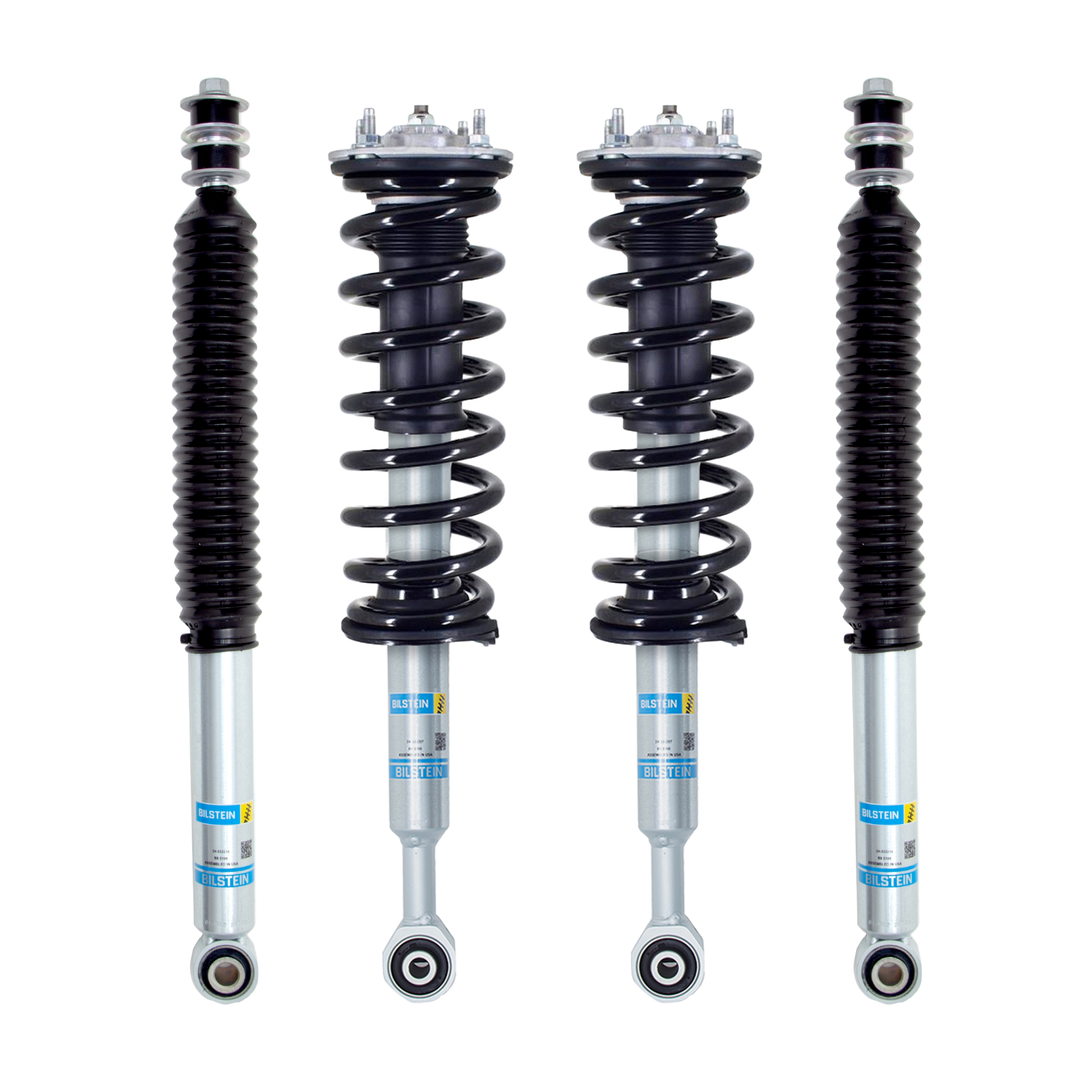

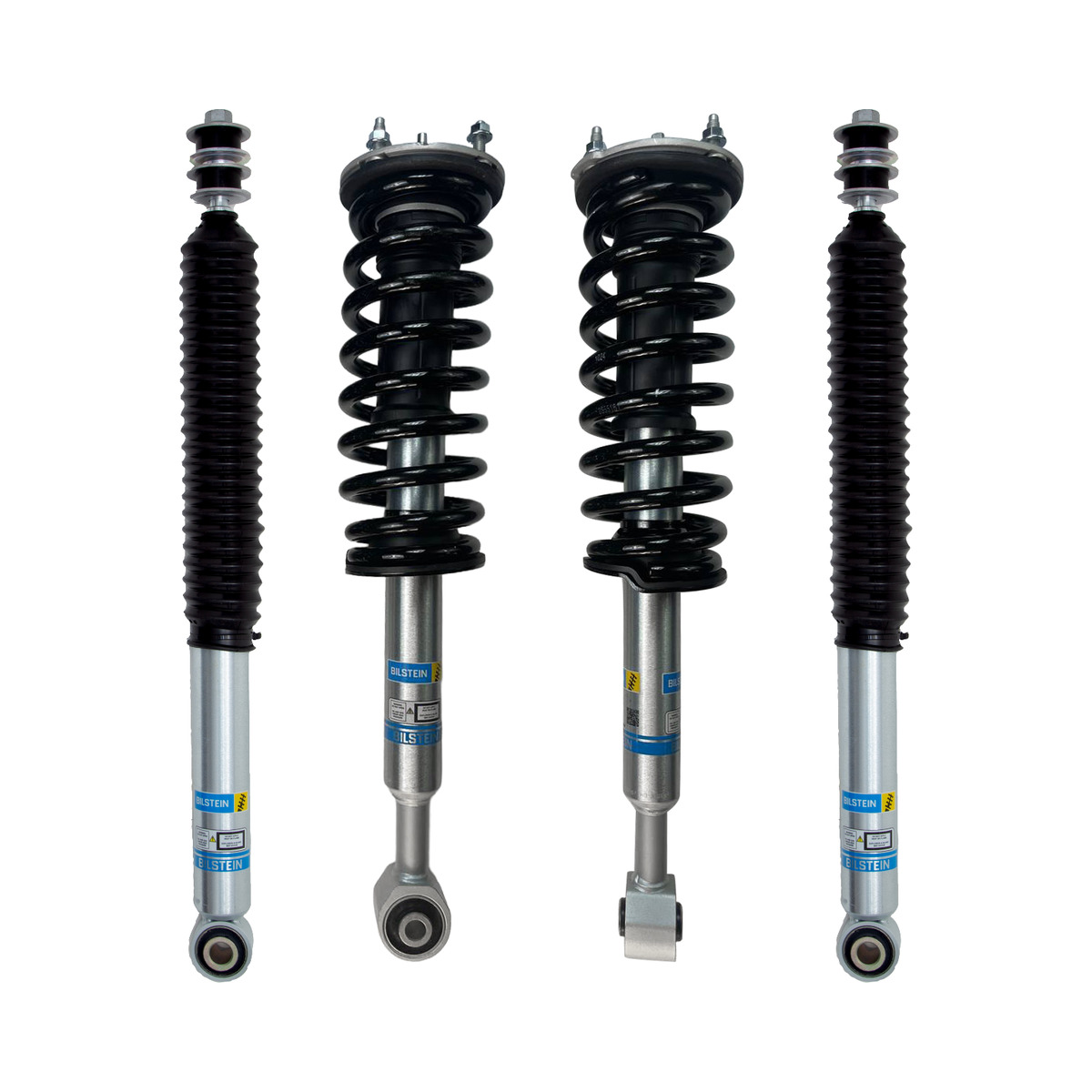

• Front: 2 x Bilstein B8 5100 coilovers pre-assembled with new OE-style springs and top mounts (shock PN 24-333207)
• Rear: 2 x Bilstein B8 5100 shocks for 0-1.5″ rear lift (shock PN 24-333214)
• All required isolators and assembly hardware

Why You’ll Like It

• No spring compressor needed – front units arrive fully assembled for a safer, faster install
• Adjustable 1-2.5″ front lift – perfect for a level stance or mild lift to clear larger tires
• Bilstein B8 5100 control – 46 mm digressive piston, monotube design, nitrogen gas-charged for consistent, fade-resistant damping
• Daily comfort, weekend capability – tuned for real-world ride quality with confident handling

Coil Option

• OE-Style Replacement Coils – generic OE-style spring set included for factory-like ride and reliable support

Rear Shock Specs (24-333214)

• Series: B8 5100
• Collapsed length: 15.78 in (400.8 mm)
• Extended length: 25.44 in (646.2 mm)
• Finish: Zinc plated
• Reservoir: No
• Body design: Smooth body, non-coilover
• Body diameter (ID): 46 mm
• Adjustable damping: Non-adjustable
• Notes: Fits vehicles with 0-1.5″ rear lift and coil spring rear suspension

Fitment

• Vehicle: Toyota Tacoma 2024, 2025
• Drivetrain: 4WD only
• Rear suspension: For trucks equipped with coil-spring rear suspension (not for leaf-spring rear)
• Lift ranges: Front adjustable 1-2.5″ – Rear shocks support 0-1.5″ rear lift components

Technical Notes

• Monotube B8 5100 construction – 46 mm digressive piston – nitrogen gas-charged
• Front coilovers are height-adjustable within the stated range
• Alignment is required after installation
• Rear shocks do not add lift by themselves – they are matched to rear springs or lift components up to 1.5″
• Tire clearance depends on wheel width and offset – check clearances after install

FAQ

Do I need a spring compressor? No. The front coilovers arrive fully assembled with new springs and top mounts.

Will the rear shocks lift my truck by 1.5″? Rear shocks do not provide lift on their own. They are valved and sized to work with 0-1.5″ rear lift springs or components.

Is this compatible with all 2024-2025 Tacomas? This kit is for 4WD models with coil-spring rear suspension. It is not intended for leaf-spring rear trucks.

What part numbers are used? Front shock 24-333207 with pre-assembled OE-style coils and mounts, rear shock 24-333214. Kit PN BIL510TT24K.

Level up. Ride right. Trust Bilstein.
