Bilstein 4600 Front, Rear Shocks for 2007-2021 Toyota Tundra 2WD/4WD

SKU: 24-186230_24-186247
5 out of 5 based on 3 customer ratings
(3 customer reviews)
Sale!
Bilstein 4600 Front & Rear Shocks for 07-'17 TOYOTA Tundra 4WD
Bilstein 4600 Front & Rear Shocks for 07-'17 TOYOTA Tundra 4WD

Description

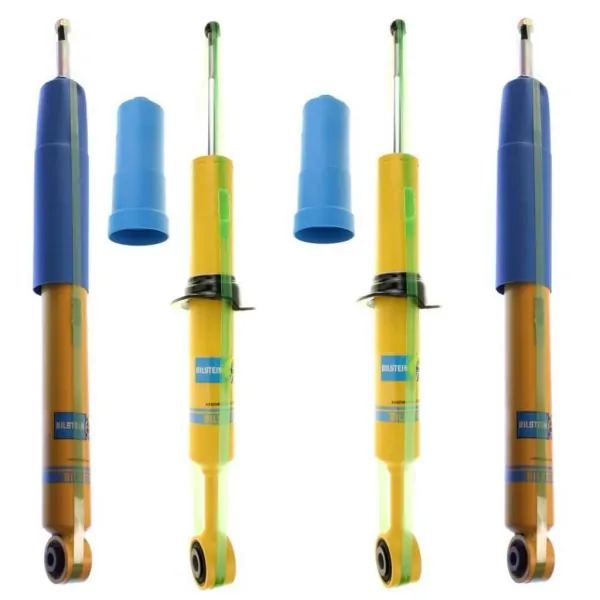

Bilstein 4600 Front, Rear Shocks for 2007-2021 Toyota Tundra 2WD/4WD

Bilstein 4600 Front, Rear Shocks for 2007-2021 Toyota Tundra 2WD/4WD

Part Number(s): 24-186230, 24-186247

Summary: Bilstein B6 4600 shock absorbers are engineered as a direct OE replacement for the 2007-2021 Toyota Tundra 2WD and 4WD. Featuring a high-pressure monotube design, these shocks provide consistent, fade-free performance and improved handling for stock-height vehicles. This complete kit addresses common factory limitations like body roll and brake dive, ensuring enhanced ride quality and comfort for daily driving and towing applications.

Features

  • Monotube Design: High-pressure single-tube construction provides increased oil volume and heat dissipation to ensure consistent, fade-free damping performance on rough roads.
  • Velocity-Sensitive Digressive Piston: A unique valving system reacts instantly to changing road conditions to provide firm control during aggressive movements while maintaining comfort over small bumps.
  • Application-Specific Tuning: Custom valving specifically for the Toyota Tundra provides a precise balance of stability and load control to ensure optimal performance without altering factory ride height.
  • 46mm Monotube Piston: A large-diameter piston design provides increased damping precision and responsiveness to ensure improved vehicle stability during braking and cornering.

Technical Specifications

Specification Value
Series B6 4600
Position Front and Rear
Collapsed Length Front: 17.62 in. / Rear: 14.98 in.
Extended Length Front: 23.55 in. / Rear: 24.45 in.
Collapsed Length (mm) Front: 447.5 mm / Rear: 380.5 mm
Extended Length (mm) Front: 598.2 mm / Rear: 621.0 mm
Lower Mount Type Front: Eye 16.4mm / Rear: Eye 12.4mm
Upper Mount Type Stem
Internal Design Monotube
Finish Yellow Paint
Reservoir No
Body Diameter 2.0 in.
Boot Included Blue Straight
Adjustable Damping Non-Adjustable
Country of Origin MX
Warranty Limited Lifetime Warranty

Fitment

  • 2007-2021 Toyota Tundra 2WD
  • 2007-2021 Toyota Tundra 4WD
  • Note: Designed for stock ride height vehicles.
  • Note: Rear Shocks do NOT come with bushings/washers.

What’s Included

  • Includes 4 Shocks
  • (2) Bilstein 4600 Front Shock Absorbers (Part #24-186230)
  • (2) Bilstein 4600 Rear Shock Absorbers (Part #24-186247)
  • Integrated Spring Seats (Front Shocks)

Interchange Numbers

This product is compatible with the following part numbers:

  • AutoZone 52966
  • Bilstein BE5-E235
  • Bilstein F4-BE5-E235-H0
  • BQNV 24186230
  • Pro Comp Suspension 623533
  • Pro Comp Suspension ZX2078
  • Rancho RS5324
  • Rancho RS999324
  • Toyota 48510-09Q50
  • Toyota 48510-09Q70
  • Toyota 48510-09Q80
  • Toyota 48510-09Q90
  • Toyota 48510-09Q92
  • Toyota 48510-09Q93
  • Toyota 48510-09Q94
  • Toyota 48510-09Q95
  • Toyota 48510-09Q97
  • Toyota 48510-09Q98
  • Toyota 48510-09R10
  • Toyota 48510-09R20
  • Toyota 48510-09R30
  • Toyota 48510-8Z162
  • Toyota 48510-8Z362

Why Choose This Product?

  • OE Replacement: Direct fit replacement for stock OE shocks, ensuring easy installation and perfect compatibility.
  • Monotube Advantage: Monotube design provides consistent damping and fade resistance compared to twin-tube OE shocks.
  • Performance Upgrade: Improved ride quality, handling, and comfort over factory shocks without modification required.
  • Bilstein Quality: German engineering and manufacturing standards ensure long-lasting performance and reliability.

Frequently Asked Questions

Are these shocks suitable for lifted Tundras?
No. Bilstein 4600 shocks are designed specifically for stock-height suspension applications.

Are the shocks sold as a complete set?
Yes. This kit includes four shocks: two front and two rear.

Do the front shocks include a spring seat?
Yes. The front shocks include an integrated spring seat.

Is adjustable damping included?
No. These shocks use fixed, application-specific valving tuned by Bilstein.

Customer reviews

Rated 5 out of 5 stars
3 reviews
5 stars 3 100 %
4 stars 0 0 %
3 stars 0 0 %
2 stars 0 0 %
1 star 0 0 %

3 reviews for Bilstein 4600 Front, Rear Shocks for 2007-2021 Toyota Tundra 2WD/4WD

Add a review

Use one of the allowed file type: jpg,png,jpeg.

    Questions and answers of the customers

      I have a 2014 Limited TRD 4x4 Off-Road version. Are these original equipment replacements? Also, what is the part number for new bushings?
    1. 0 votes
      Q I have a 2014 Limited TRD 4x4 Off-Road version. Are these original equipment replacements? Also, ...... Read more
      A yes those will replace originals
      2. Will coils from the Toyota OEM Bilstein 48510 fit the 4600 front struts?
    2. 0 votes
      Q Will coils from the Toyota OEM Bilstein 48510 fit the 4600 front struts?
      A Only stock springs will fit these shocks. If you have stock springs, they will fit
      A yes sure will work
      3. I have a 2016 Tundra crewmax TRD and the suspension is stock. I would like to get a 3” lift. What is the best route to take? And will I need to do the rear as well?
    3. 0 votes
      Q I have a 2016 Tundra crewmax TRD and the suspension is stock. I would like to get a 3” lift. What...... Read more
      A In order to figure out how much lift you need to level please take existing measurements from center of the wheel hub to the bottom of the fender. Difference between front and rear is how much lift you need to level. https://www.suspensionlifts.com/level.png usually 5100 for the front and rear blocks or add a leafs are used
      4. I am looking for stiffer shocks and struts I do tow a 16 footer alot in the summer. What do you recommend
    4. 0 votes
      Q I am looking for stiffer shocks and struts I do tow a 16 footer alot in the summer. What do you r...... Read more
      A rear 5100 ao 5160 series will we better for towing
      5. Can I just install the 4600 rear shocks for my 2018 Tundra since I do a lot of RV trailer towing in Spring and Summer? Are 4600 the best choice or other?
    5. 0 votes
      Q Can I just install the 4600 rear shocks for my 2018 Tundra since I do a lot of RV trailer towing ...... Read more
      A It will fit on your 2018 Tundra if you have stock lift. But if you want to compensate for the sag from towing a trailer, then you will need to use stiffer springs, but this will degrade the ride quality without a trailer.
      6. Do these shocks allow for a 1" or 1.5" rear lift?
    6. 0 votes
      Q Do these shocks allow for a 1" or 1.5" rear lift?
      A we'd recommend longer shocks https://www.suspensionlifts.com/shop/toyota-tundra/2007-2019-toyota-tundra/shocks-07-and-up-toyota-tundra/bilstein-5100-height-adjustable-front-and-5100-rear-shocks/ https://www.suspensionlifts.com/product-category/toyota-tundra/2007-2019-toyota-tundra/shocks-07-and-up-toyota-tundra/?swoof=1&pa_lift=0-75,0-87,0-9,1,1-25,1-3,1-45,1-5,1-6,1-7,1-75,1-8,1-875,2,2-2,2-25,2-28,2-3,2-4,2-5,2-6,2-625,2-63,2-75,2-8,3,4,4-5,5,5-5,6&really_curr_tax=72-product_cat
      7. Do you offer an upper bushing/hardware kit separately from this set?
    7. 0 votes
      Q Do you offer an upper bushing/hardware kit separately from this set?
      A We can offer only https://www.suspensionlifts.com/shop/toyota-tundra/2007-2019-toyota-tundra/other-07-and-up-toyota-tundra/icon-9-16-rxt-heavy-duty-stem-front-bushing-kit-for-2000-2020-toyota-tundra/ https://www.suspensionlifts.com/shop/toyota-tundra/2007-2019-toyota-tundra/other-07-and-up-toyota-tundra/icon-9-16-hd-stem-front-bushing-kit-for-2000-2020-toyota-tundra/ https://www.suspensionlifts.com/shop/toyota-tundra/2007-2019-toyota-tundra/other-07-and-up-toyota-tundra/icon-9-16-medium-duty-stem-front-bushing-kit-for-2000-2020-toyota-tundra/
      8. Do these shocks include all mounting hardware?
    8. 0 votes
      Q Do these shocks include all mounting hardware?
      A they reuse OEM upper bushings
      9. Does this kit, Bilstein 4600 is straight swap for original height on a 2014 Tundra? Please advise and thanks!!
    9. 0 votes
      Q Does this kit, Bilstein 4600 is straight swap for original height on a 2014 Tundra? Please advise...... Read more
      A Yes
