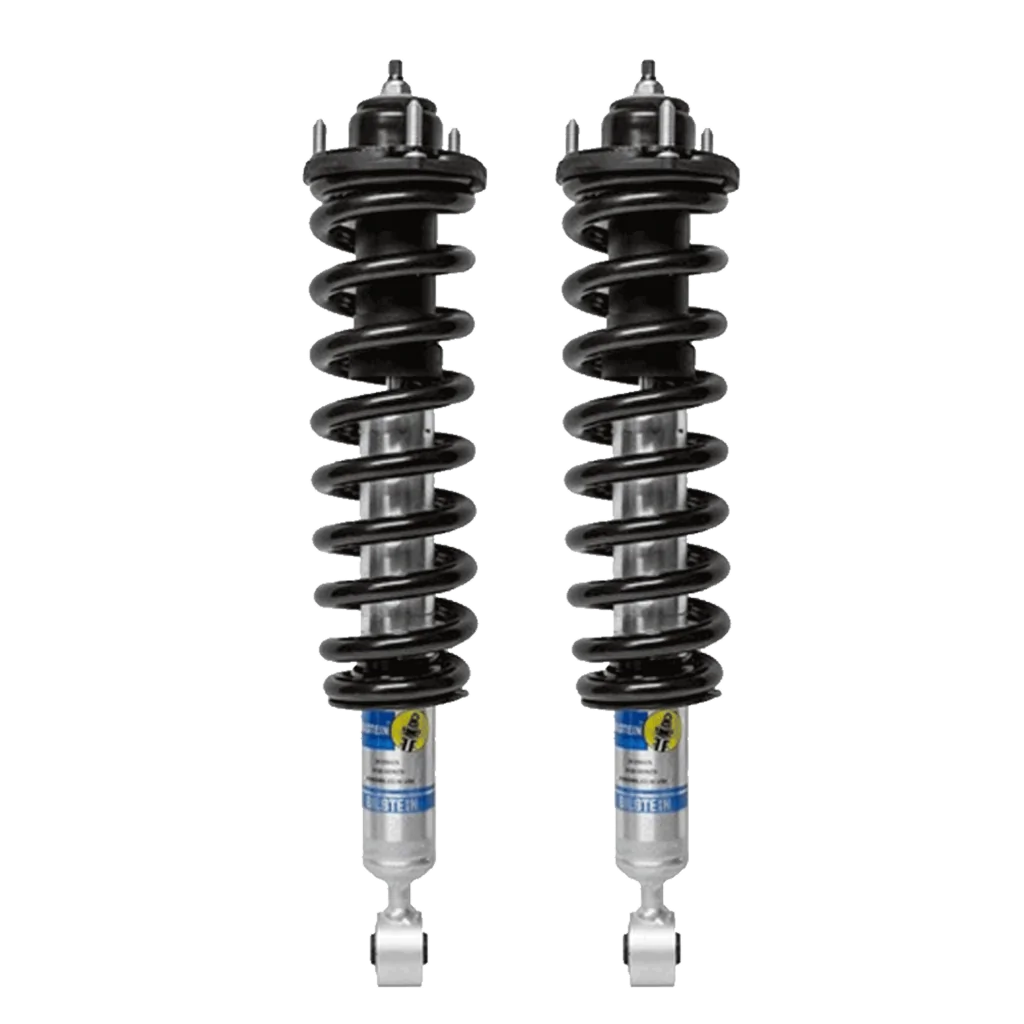

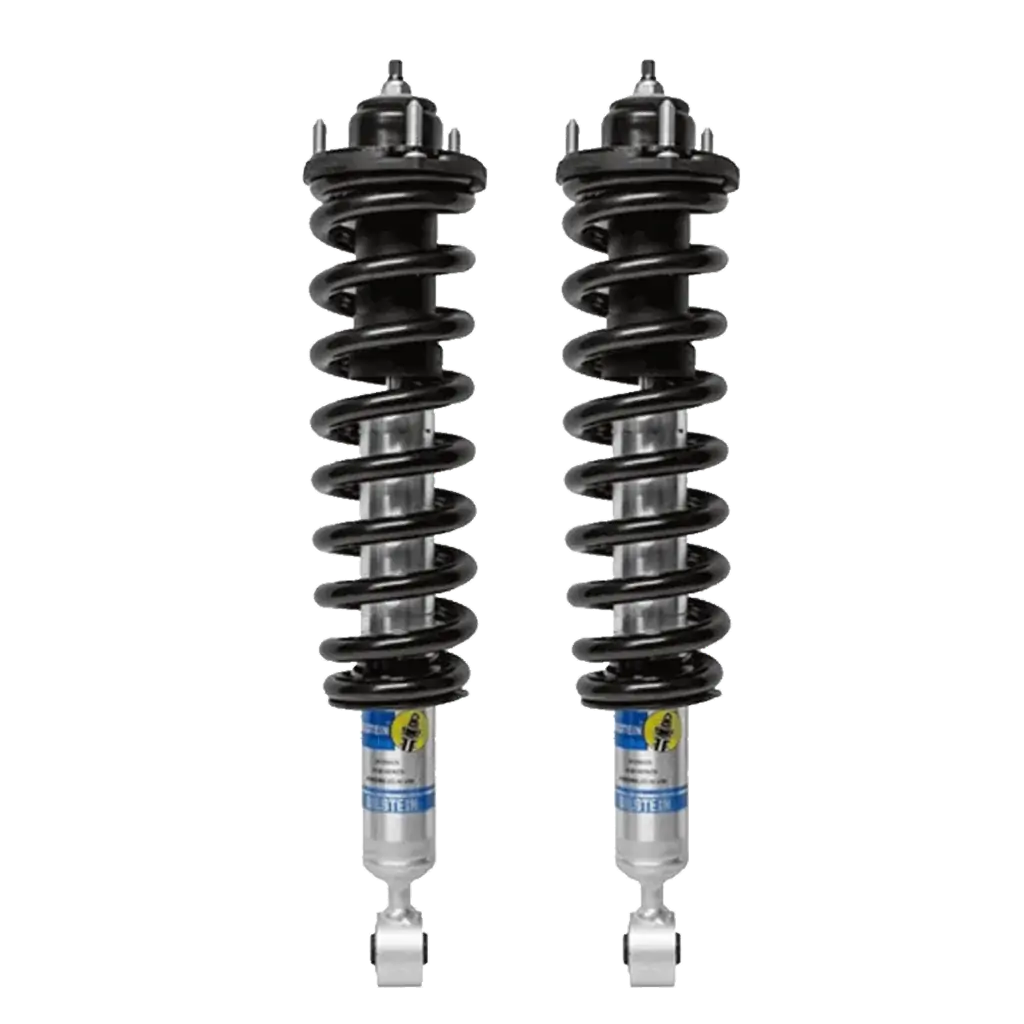

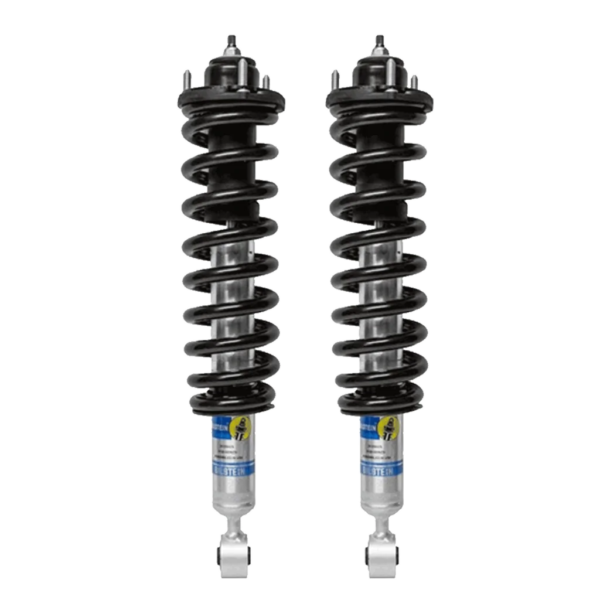

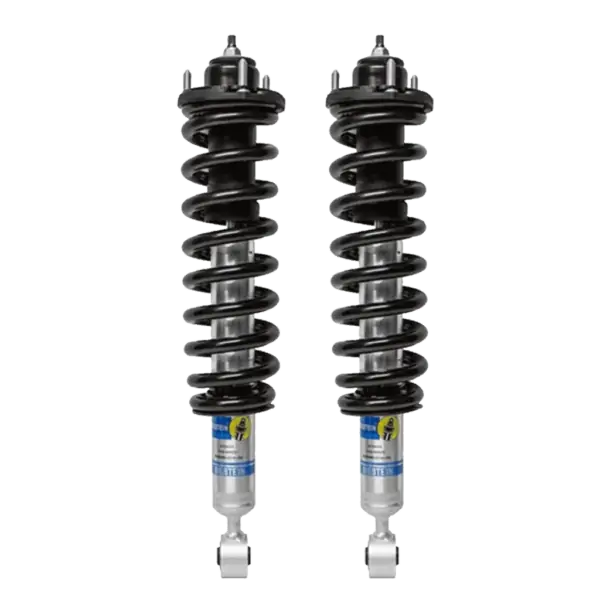

Bilstein 5100 0-2.5″ Lift Assembled Coilovers with OE Replacement Coils for 2000-2006 Toyota Tundra

Description
Bilstein 5100 0-2.5″ Lift Assembled Coilovers with OE Replacement Coils for 2000-2006 Toyota Tundra

Bilstein 5100 0-2.5″ Front Lift Pre-Assembled Coilovers – 2000-2006 Toyota Tundra

Part: BTUOE00C

Level your first-gen Tundra the clean way. These Bilstein B8 5100 ride-height-adjustable struts come fully assembled with new OE-style front coils, top mounts, bushings, and hardware—so you skip the spring compressor and bolt them in. The 46 mm monotube 5100s use snap-ring perch positions to set your preferred stance within the kit’s usable range, delivering tighter body control and improved wheel travel while keeping daily ride quality.

What’s Included

• 2 × Bilstein 5100 front ride-height-adjustable struts (pre-assembled)
• 2 × OE-style replacement front coil springs
• New top mounts, insulators, dust boots, and hardware

Available Perch/Lift Options (by configuration)

• 4WD – Access Cab: 1.1″ (Clip 3), 0.5″ (Clip 2), 0″ stock (Clip 1).
• 4WD – Double Cab: 1.6″ (Clip 4), 1.1″ (Clip 3), 0.5″ (Clip 2), 0″ stock (Clip 1).
• 2WD – Access Cab: 2.7″ (Clip 5), 2.2″ (Clip 4), 1.5″ (Clip 3), 0.7″ (Clip 2), 0″ stock (Clip 1).
• 2WD – Double Cab: 2.5″ (Clip 5), 2.1″ (Clip 4), 1.4″ (Clip 3), 0.7″ (Clip 2), 0″ stock (Clip 1).

Actual front lift varies with accessories and vehicle weight.

Why You’ll Like It

• No spring compressor needed – arrives pre-assembled for a faster, safer install
• Adjustable front lift – dial in a level stance within the options above
• Bilstein 5100 control – 46 mm digressive piston, gas-pressure monotube for consistent, fade-resistant damping
• OE-style comfort – factory-like feel with tighter steering and less float

Fitment

• Vehicle: Toyota Tundra 2000, 2001, 2002, 2003, 2004, 2005, 2006
• Drivetrain: 2WD or 4WD (select the configuration above)
• Front lift range: up to ~2.5″ depending on configuration and clip setting

Technical Notes

• Multiple snap-ring grooves set spring seat height
• Monotube, nitrogen gas-charged, self-adjusting deflective-disc valving
• Alignment is required after installation
