Bilstein 5100 0-2.8″ Front Lift Assembled Coilovers with OE Replacement Coils for 2001-2007 Toyota Sequoia

Bilstein 5100 0-2.8″ Lift Assembled Coilovers with OE Replacement Coils for 2001-2007 Toyota Sequoia

Part: BTS01C

Need a complete front assembled + rear shock kit?

Bilstein 5100 0-2.8″ Lift Assembled Coilovers with OE Replacement and Rear Shocks for 2001-2007 Toyota Sequoia

Fitment

• Vehicle: Toyota Sequoia 2001, 2002, 2003, 2004, 2005, 2006, 2007
• Front ride height range: approximately 0-2.8″ of lift (depending on clip position, vehicle weight, and coils)
• Front suspension: coilover strut

What’s Included

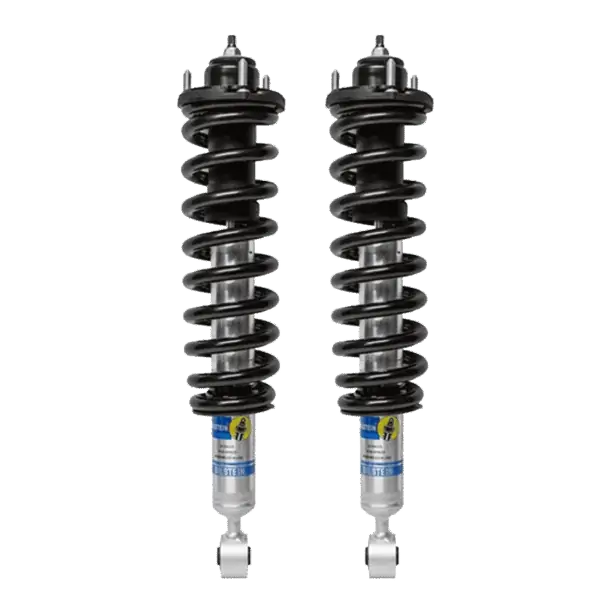

• (2) Front Bilstein B8 5100 shocks assembled as complete coilovers
• OE-style replacement front coils installed on each shock
• New top mounts, bushings, insulators, and mounting hardware
• New bump stops and dust boots installed
• No spring compressor needed – ready-to-bolt-in assemblies

Product Notes

• Front coilovers arrive pre-assembled to save shop and DIY time.
• By default we set the snap-ring at the bottom groove (Clip 1), which works well with already lifted coils or if you prefer to set ride height yourself.
• Ride height can be changed by moving the snap ring to a higher groove for additional front lift.
• An alignment is required after installation and any change to front ride height.

Bilstein B8 5100 Details

• Ride-height-adjustable snap-ring design – up to about 2.8″ of front lift possible with appropriate coils
• 46 mm digressive piston monotube for consistent, fade-resistant damping
• Self-adjusting deflective disc valving tuned for the Sequoia platform
• Improves wheel travel and front end control compared to worn OE struts or spacer-only lifts
• Great balance of on-road comfort and off-road capability

Why Choose Assembled Coilovers

• Safety and convenience: Coils are professionally installed on the 5100 shocks – you do not need to compress springs.
• Clean install: Unbolt your old front assemblies and bolt these in using the new mounts and hardware supplied.
• Leveling flexibility: Move the snap ring to bring the nose up, reduce rake, and clear larger tires.
