ICON Stage 1 3.0 Billet 1.25-3.25″ Lift Kit for 2022-2023 Toyota Tundra 4WD

Description
ICON Stage 1 3.0 Billet 1.25-3.25″ Lift Kit for 2022-2023 Toyota Tundra 4WD

ICON 2022–2025 Toyota Tundra 1.25–3.25 inches Lift Stage 1 3.0 Suspension System (Billet/CDCV)

Part Number: K53211

Summary: The ICON Vehicle Dynamics Stage 1 3.0 suspension system for the 2022–2025 Toyota Tundra provides a significant performance upgrade by integrating 3.0 Series front coilovers with adjustable ride heights from 1.25–3.25 inches. This high-performance system features 2.5 Aluminum Series CDCV rear remote reservoir shocks and CNC-machined billet aluminum front upper control arms for maximum strength and alignment adjustability. The inclusion of the Delta Joint Pro and a billet rear upper/lower link combo ensures superior articulation and durability for Tundra owners seeking elite on- and off-road handling.

Features

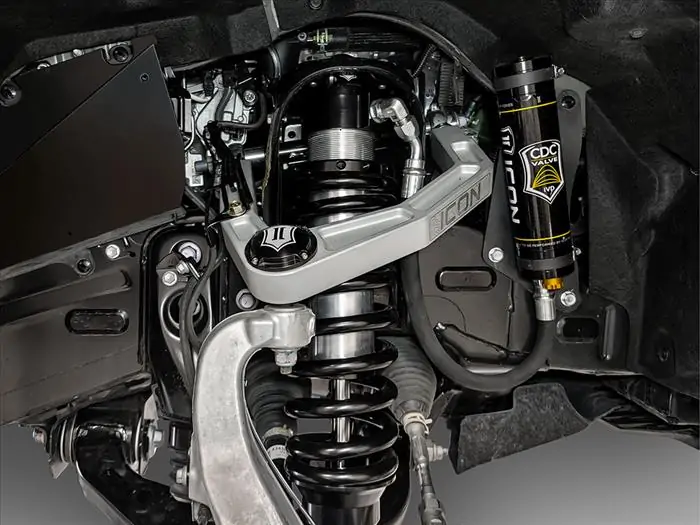

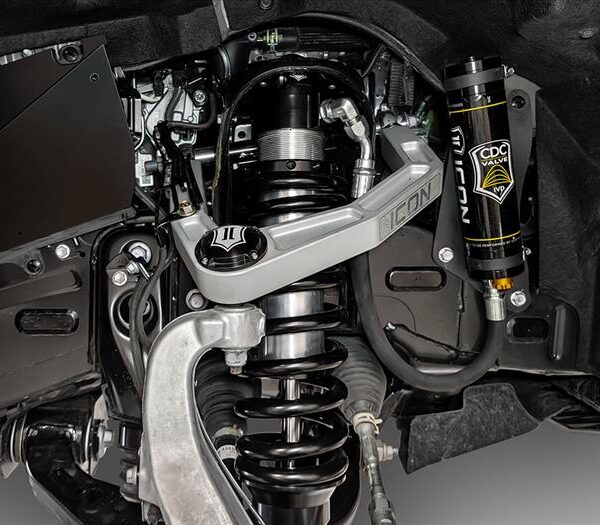

• 3.0 Series Front Coilovers: ICON’s multi-stage, tunable hydraulic “Bump Zone” provides increased bottom-out resistance to ensure superior control during aggressive off-road use.
• Delta Joint Pro: Patented design with 90 degrees of total articulation provides high-angle movement and durability to ensure maximum suspension travel without binding.
• CDC Valve Technology: 10 settings of compression damping adjustment provide user-defined ride tuning from soft to hard to ensure optimal performance across varying terrains.
• Billet Aluminum Links: CNC-machined rear upper and lower links provide on-vehicle pinion angle adjustment to ensure proper driveline geometry and increased rear-end articulation.
• System Durability: Premium billet aluminum construction and high-quality shock finishes provide maximum corrosion resistance to ensure long-term reliability in harsh environments.
• Installation: Vehicle-specific direct fitment provides a straightforward bolt-on process to ensure reduced shop time and precise OE integration.

Technical Specifications

Wheel & Tire Fitment

• OEM Wheels & Tires: Yes
• Aftermarket Wheels: 17×8.5 inches w/ 5.75” Backspace / 25mm Offset
• Aftermarket Tires: 35 inches x 12.50 inches
• Note: Minor fender trimming and modifications may be required. Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.

System Components

• 58775C | 22–25 TUNDRA/23–25 SEQUOIA 3.0 VS RR CDCV COILOVER KIT
• 58561DJ | 22–25 TUNDRA/23–25 SEQUOIA BILLET UCA DJ PRO KIT
• 55154 | 22–25 TUNDRA/23–25 SEQUOIA SWAY BAR DROP KIT
• 54002 | 22–25 TUNDRA/23–25 SEQUOIA/24–25 TACOMA BILLET REAR LOWER LINK KIT
• 54102 | 22–25 TUNDRA/23–25 SEQUOIA/24–25 TACO/LC250/GX550/25 T4R BLT UPR LINK KIT
• 57840CP | 22–25 TUNDRA 0-1.5 inches/23–25 SEQUOIA 0-4 inches REAR 2.5 VS CDCV RR PAIR

Why Choose ICON Stage 1?

• Performance Engineering: Increased wheel travel (up to 40% front / 20% rear) and superior damping for professional-grade control.
• Delta Joint Reliability: Features the Delta Joint Pro for high-angle articulation with a fully sealed, serviceable design.
• Fully Serviceable: All ICON shock absorbers are 100% rebuildable and re-tunable for long-term performance.

Frequently Asked Questions

What is the benefit of the 3.0 Series coilovers over the 2.5 Series?
The 3.0 Series coilovers offer increased oil volume and a larger piston area for better heat dissipation and include an internal hydraulic “Bump Zone” for superior bottom-out control.

Does this system work with the Load-Leveling Rear Air Suspension?
No, this system is not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension or Adaptive Variable Suspension (AVS).
