ICON Stage 2 3.0 Billet 1.25-3.25″ Lift Kit for 2022-2023 Toyota Tundra 4WD

Description
ICON Stage 2 3.0 Billet 1.25-3.25″ Lift Kit for 2022-2023 Toyota Tundra 4WD

ICON ICON 2022–2025 Toyota Tundra 1.25–3.25 inches Lift Stage 2 3.0 Suspension System Billet CDCV

Part Number: K53212

Summary: The ICON Stage 2 3.0 suspension system for the 2022–2025 Toyota Tundra is a high-performance upgrade designed to provide 1.25–3.25 inches of front lift. This system features massive 3.0 Series front coilovers and rear remote reservoir shocks, both equipped with ICON’s Compression Damping Control Valves (CDCV) for precision tuning. A key differentiator is the inclusion of billet aluminum upper control arms with Delta Joint Pro technology and a billet rear upper/lower link combo for superior articulation and durability.

Features

• 3.0 Series Front Coilovers: Multi-stage, tunable hydraulic “Bump Zone” provides increased bottom-out control to ensure high-speed off-road stability.
• CDC Valves: 10 settings of compression damping adjustment provide a range from soft to hard to ensure optimized ride quality across various terrains.
• Delta Joint Pro: Patented design with 90 degrees of total articulation provides maximum movement to ensure superior off-road performance without binding.
• Billet Rear Links: 6061 billet aluminum construction provides on-vehicle pinion angle adjustment to ensure proper driveline geometry after lifting.
• Increased Wheel Travel: Up to 40% increase in front wheel travel provides enhanced suspension cycling to ensure improved traction on technical trails.
• System Durability: Billet aluminum and high-quality finishes provide corrosion resistance to ensure long-term reliability in harsh environments.
• Installation: Direct fitment design provides a straightforward bolt-on process to ensure reduced downtime during vehicle upgrades.

Technical Specifications

Wheel & Tire Fitment

• OEM Wheels & Tires: Yes
• Aftermarket Wheels: 17×8.5 inches w/ 5.75” Backspace / 25mm Offset
• Aftermarket Tires: 35 inches x 12.50 inches
• Note: Minor fender trimming and modifications may be required. Hybrid (i-Force MAX) models see a reduced lift range of 0.75-2.75 inches. TRD Pro models see 0-1.5 inches lift.

System Components

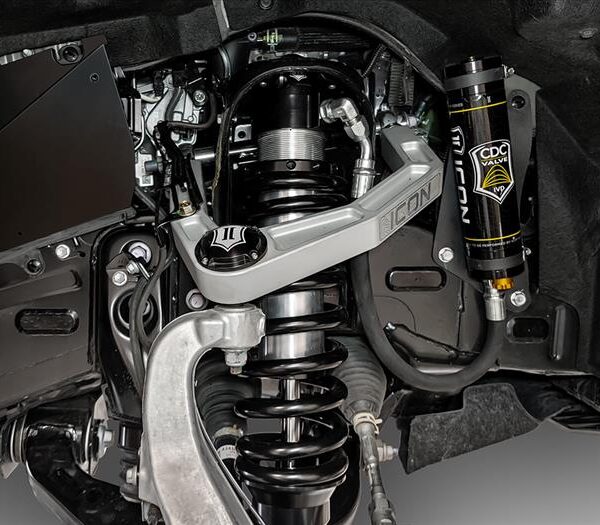

• 58775C | 22-25 TUNDRA/23-25 SEQUOIA 3.0 VS RR CDCV COILOVER KIT
• 58561DJ | 22-25 TUNDRA/23-25 SEQUOIA BILLET UCA DJ PRO KIT
• 55154 | 22-25 TUNDRA/23-25 SEQUOIA SWAY BAR DROP KIT
• 54002 | 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACOMA BILLET REAR LOWER LINK KIT
• 54102 | 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACO/LC250/GX550/25 T4R BLT UPR LINK KIT

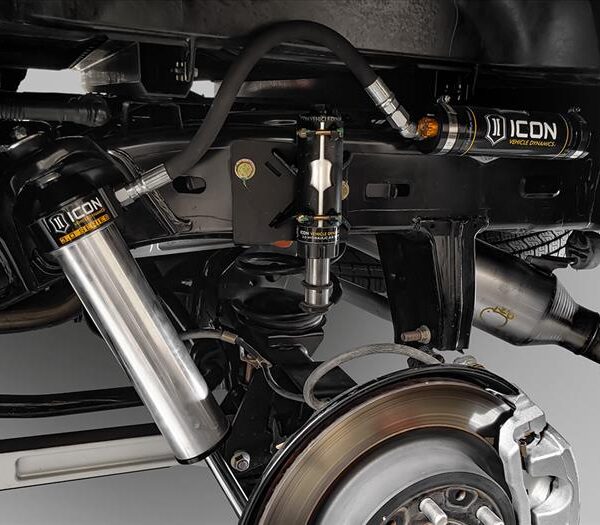

• 57845CP | 22-25 TUNDRA 0-1.5 inches/23-25 SEQUOIA 0-4 inches REAR 3.0 VS RR CDCV PAIR

Why Choose ICON Stage 2?

• Performance Engineering: Increased wheel travel and damping for superior control.
• Delta Joint Reliability: High-angle articulation with a sealed, fully lubricated Pro design.
• Fully Serviceable: Shocks are rebuildable and revalveable for long-term performance.

Frequently Asked Questions

Is this system compatible with the Load-Leveling Rear Height Control Air Suspension?
No, this system is not compatible with vehicles equipped with the factory Load-Leveling Rear Height Control Air Suspension.

What is the benefit of the CDC Valve?
The CDC Valve allows for 10 specific settings of compression damping adjustment, letting you quickly tune the suspension for different vehicle loads or terrain conditions.
