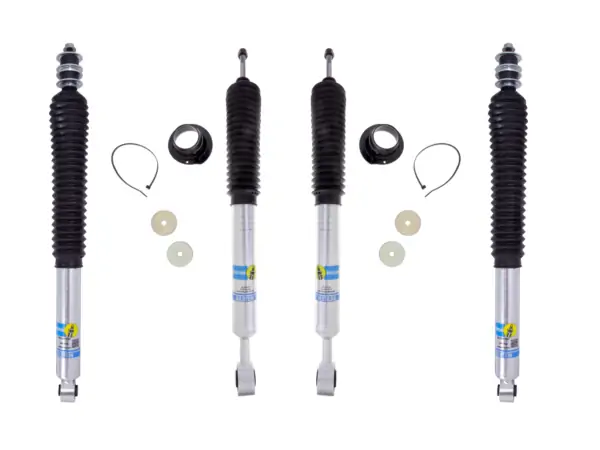

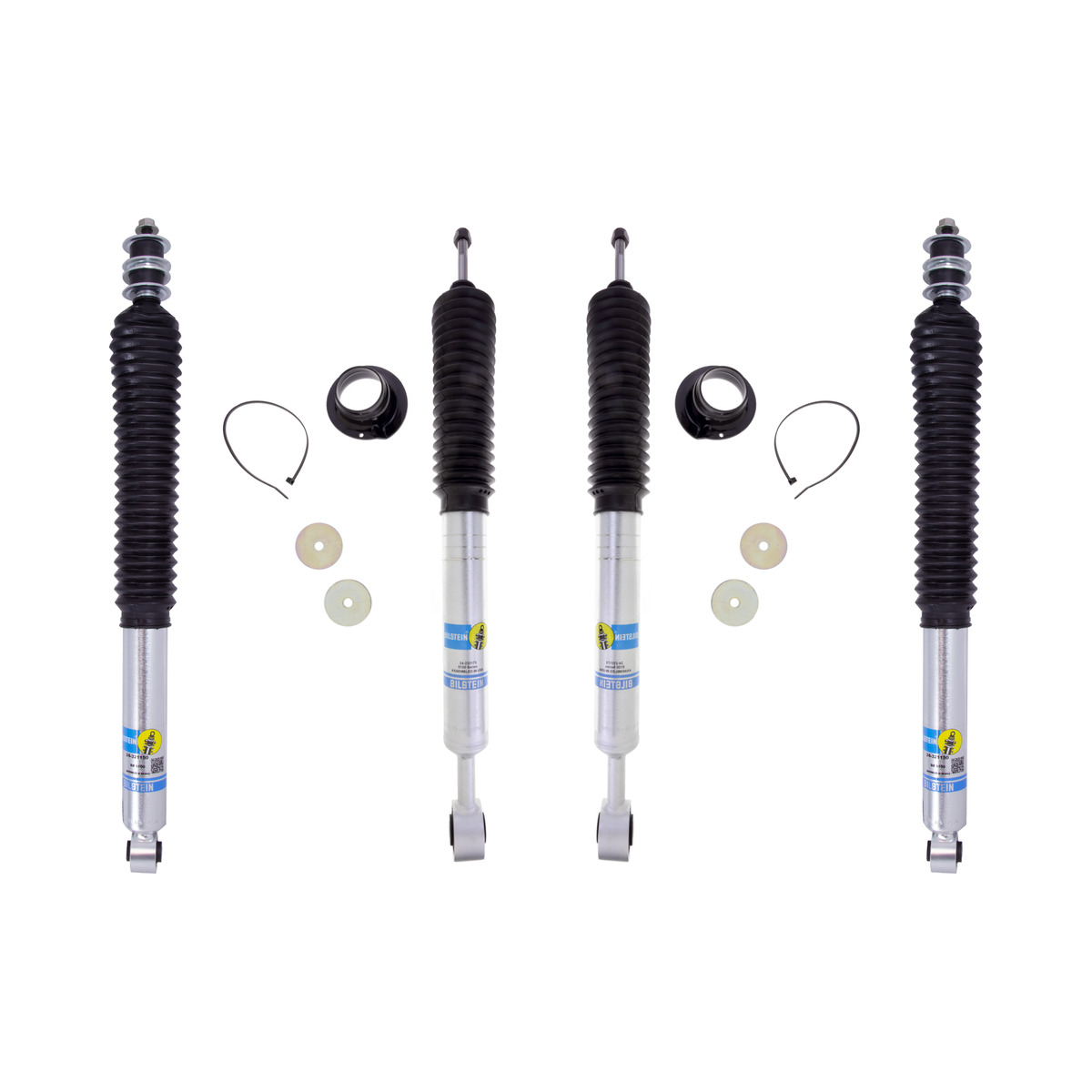

Bilstein B8 5100 (Ride Height Adjustable) 0-2.3″ Front and 0-1″ Rear Lift Shocks for 2022-2024 Toyota Tundra

Description
Bilstein B8 5100 (Ride Height Adjustable) 0-2.3″ Front and 0-1″ Rear Lift Shocks for 2022-2024 Toyota Tundra

Bilstein B8 5100 (Ride Height Adjustable) 0-2.3″ Front and 0-1″ Rear Lift Shocks for 2022, 2023, 2024 Toyota Tundra

Part: 24-329200_24-329217

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Front Shocks:

Collapsed Length (in) :15.91

Extended Length (in) :20.22

Collapsed Length (mm) :404.0

Extended Length (mm) :513.5

Finish :Zinc Plated

Reservoir :No

Body Design :Snap Ring Grooved Body (Coilover)

Body Diameter (id) :46mm

Spring Seat Included :Yes

Adjustable Damping :Non-Adjustable

Notes:

• Provides 0-2.3″ Front Lift
• Without TRD Sport Package

Rear Shocks:

Collapsed Length (in) :16.59

Extended Length (in) :25.06

Collapsed Length (mm) :421.4

Extended Length (mm) :636.5

Finish :Zinc Plated

Reservoir :No

Body Design :Smooth Body (Non-coilover)

Body Diameter (id) :46mm

Spring Seat Included :Yes

Adjustable Damping :Non-Adjustable

Notes:

• Fits Vehicles With 0-1″ Rear Lift
• Without Rear Air Suspension
• Without TRD Sport Package
